In Power Query, you can split a column through different methods. In this case, you can split one or more selected columns by a delimiter.

Where to find Split Columns > By Delimiter

You can find the Split Columns: By Delimiter option in three places:

  • Home tab—under the Split column dropdown menu inside the Transform group.

    Screenshot of the split column button and options in the Home tab.

  • Transform tab—under the Split column dropdown menu inside the Text column group.

    Screenshot of the split column button and options in the Transform tab.

  • Right-click a column—inside the Split column option.

    Screenshot of the split column button and options found in the column right-click contextual menu.

Split columns by delimiter into columns

In this example, the initial table is shown in the following image, with only one column for Accounts.

Screenshot of the sample source table for splitting columns into new columns.

This column holds two values:

  • Account number
  • Account name

In this example using Power Query Online, you want to split this column into two columns. A space character delimits the values—the first space from left to right. To do this split, select the column, and then select the option to split the column by a delimiter. In Split Column by Delimiter, apply the following configuration:

  • Basic/Advanced: Advanced
  • Select or enter delimiter: Space
  • Split at: Left-most delimiter
  • Split into: Columns

Screenshot of the split column dialog with the delimiter splitting into columns.

Note

The Split column dialog has a different format in Power Query Desktop, but the options are basically the same. In Power Query Desktop, you only need to select Space as the delimiter and Left-most delimiter for Split at. The Split into option is under Advanced in Power Query Desktop, but the default value is already set to Columns.

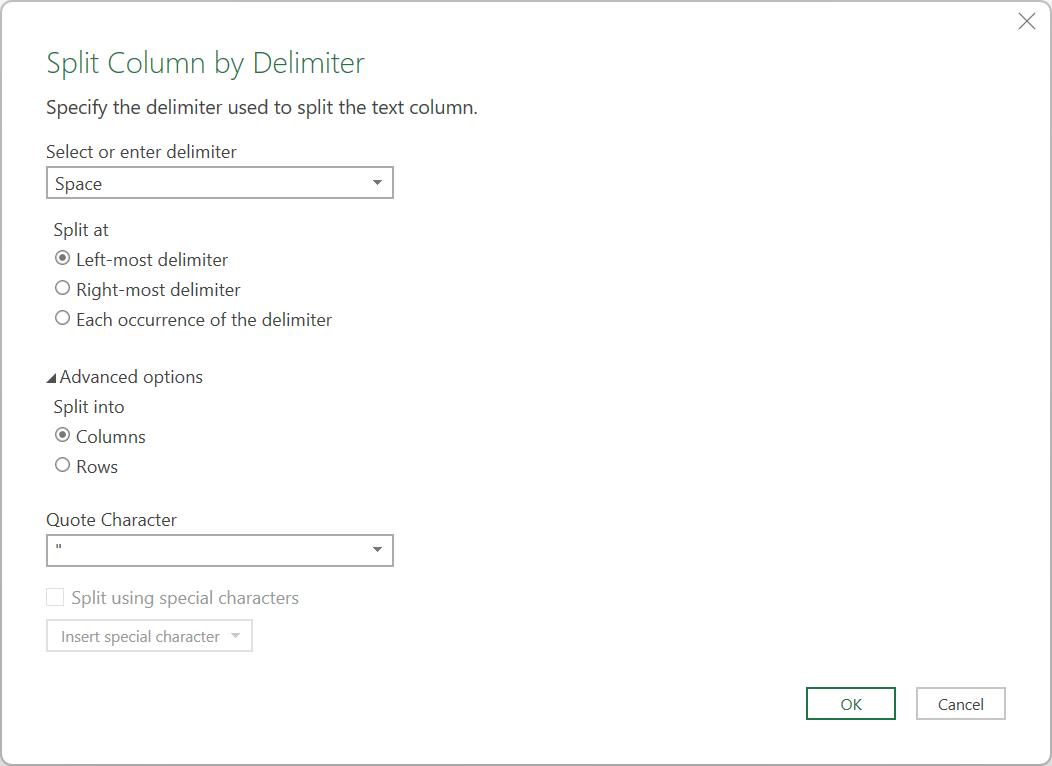

Screenshot of the split column dialog in Power Query Desktop with the delimiter splitting into columns.

The result of that operation gives you a table with the two columns that you're expecting.

Screenshot of the sample output table after splitting a column into new columns.

Note

Power Query splits the column into as many columns as needed. The name of the new columns contains the same name as the original column. A suffix that includes a dot and a number that represents the split sections of the original column is appended to the name of the new columns.

Split columns by delimiter into rows

In this example, your initial table is shown in the following image, with the columns Cost Center and Accounts.

Screenshot of the sample source table for splitting columns into rows.

The Accounts column has values in pairs separated by a comma. These pairs are separated by a semicolon. The goal of this example is to split this column into new rows by using the semicolon as the delimiter.

To do that split in Power Query Online, select the Accounts column. Select the option to split the column by a delimiter. In Split Column by Delimiter, apply the following configuration:

  • Basic/Advanced: Advanced
  • Select or enter delimiter: Semicolon
  • Split at: Each occurrence of the delimiter
  • Split into: Rows

Screenshot of the split column by delimiter dialog with the column split into rows.

Note

The Split column dialog has a different format in Power Query Desktop, but the options are basically the same. In Power Query Desktop, you only need to select Semicolon as the delimiter, Each occurrence of the delimiter for Split at, and Rows for Split into under Advanced options.

The result of that operation gives you a table with the same number of columns, but many more rows because the values inside the cells are now in their own cells.

Screenshot of the sample output table after splitting columns into rows.

Final Split

Your table still requires one last split column operation. You need to split the Accounts column by the first comma that it finds. This split creates a column for the account name and another one for the account number.

To do that split in Power Query Online, select the Accounts column and then select Split Column > By Delimiter. Inside the Split column window, apply the following configuration:

  • Basic/Advanced: Advanced
  • Select or enter delimiter: Comma
  • Split at: Each occurrence of the delimiter
  • Split into: Columns

Screenshot of the table after splitting into rows and into columns.

Note

The Split column dialog has a different format in Power Query Desktop, but the options are basically the same. In Power Query Desktop, you only need to select Comma as the delimiter and Each occurrence of the delimiter for Split at. The Split into option is under Advanced in Power Query Desktop, but the default value is already set to Columns.

The result of that operation gives you a table with the three columns that you're expecting. You then rename the columns as follows:

Previous Name New Name
Accounts.1 Account Name
Accounts.2 Account Number

Your final table looks like the one in the following image.

Screenshot of the final output table with renamed columns.
