Create an Event Grid data connection for Azure Data Explorer

Article
05/03/2023

In this article, you learn how to ingest blobs from your storage account into Azure Data Explorer using an Event Grid data connection. You'll create an Event Grid data connection that sets an Azure Event Grid subscription. The Event Grid subscription routes events from your storage account to Azure Data Explorer via an Azure Event Hubs.

For general information about ingesting into Azure Data Explorer from Event Grid, see Connect to Event Grid.

Note

To achieve the best performance with the Event Grid connection, set the rawSizeBytes ingestion property via the blob metadata. For more information, see ingestion properties.

Prerequisites

An Azure subscription. Create a free Azure account.
An Azure Data Explorer cluster and database. Create a cluster and database.
A destination table. Create a table or use an existing table.
An ingestion mapping for the table.
A storage account. An Event Grid notification subscription can be set on Azure Storage accounts for BlobStorage, StorageV2, or Data Lake Storage Gen2.

Create an Event Grid data connection

In this section, you'll establish a connection between Event Grid and your Azure Data Explorer table.

Under the cluster you created, select Databases > TestDatabase.
Select Data ingestion > Add data connection.

Under Basics, select the connection type: Blob storage and then fill out the form with the following information:

Screenshot of the Data Connection Basics tab, showing the options for the Blob storage connection type.

Setting	Suggested value	Field description
Data connection name	test-grid-connection	The name of the connection that you want to create in Azure Data Explorer.
Storage account subscription	Your subscription ID	The subscription ID where your storage account is.
Storage account	gridteststorage1	The name of the storage account that you created previously.
Event type	Blob created or Blob renamed	The type of event that triggers ingestion. Blob renamed is supported only for ADLSv2 storage. To rename a blob, navigate to the blob in Azure portal, right-click on the blob and select Rename. Supported types are: Microsoft.Storage.BlobCreated or Microsoft.Storage.BlobRenamed.
Resources creation	Automatic	Define whether you want Azure Data Explorer to create an Event Grid Subscription, an Event Hubs namespace, and an Event Hubs for you. To create resources manually, see Manually create resources for Event Grid ingestion

Select Filter settings if you want to track specific subjects. Set the filters for the notifications as follows:
- Prefix field is the literal prefix of the subject. As the pattern applied is startswith, it can span multiple containers, folders, or blobs. No wildcards are allowed.
  - To define a filter on the blob container, the field must be set as follows: /blobServices/default/containers/[container prefix].
  - To define a filter on a blob prefix (or a folder in Azure Data Lake Gen2), the field must be set as follows: /blobServices/default/containers/[container name]/blobs/[folder/blob prefix].
- Suffix field is the literal suffix of the blob. No wildcards are allowed.
- Case-Sensitive field indicates whether the prefix and suffix filters are case-sensitive
- For more information about filtering events, see Blob storage events.
Select Next: Ingest properties.

Fill out the form with the following information. Table and mapping names are case-sensitive:

Screenshot of the Data Connection Ingest properties tab, showing the target table properties.

Ingest properties:

Setting	Suggested value	Field description
Allow routing the data to other databases (Multi database data connection)	Don't allow	Turn on this option if you want to override the default target database associated with the data connection. For more information about database routing, see Events routing.
Table name	TestTable	The table you created in TestDatabase.
Data format	JSON	Supported formats are Avro, CSV, JSON, MULTILINE JSON, ORC, PARQUET, PSV, SCSV, SOHSV, TSV, TXT, TSVE, APACHEAVRO, RAW, and W3CLOG. Supported compression options are Zip and Gzip.
Mapping	TestMapping	The mapping you created in TestDatabase, which maps incoming data to the column names and data types of TestTable. If not specified, an identity data mapping derived from the table's schema is used.
Advanced settings	My data has headers	Ignores headers. Supported for *SV type files.

Note

You don't have to specify all Default routing settings. Partial settings are also accepted.

Select Next: Review + create
Under *Review + create.
Review the resources that were auto created for you and select Create.

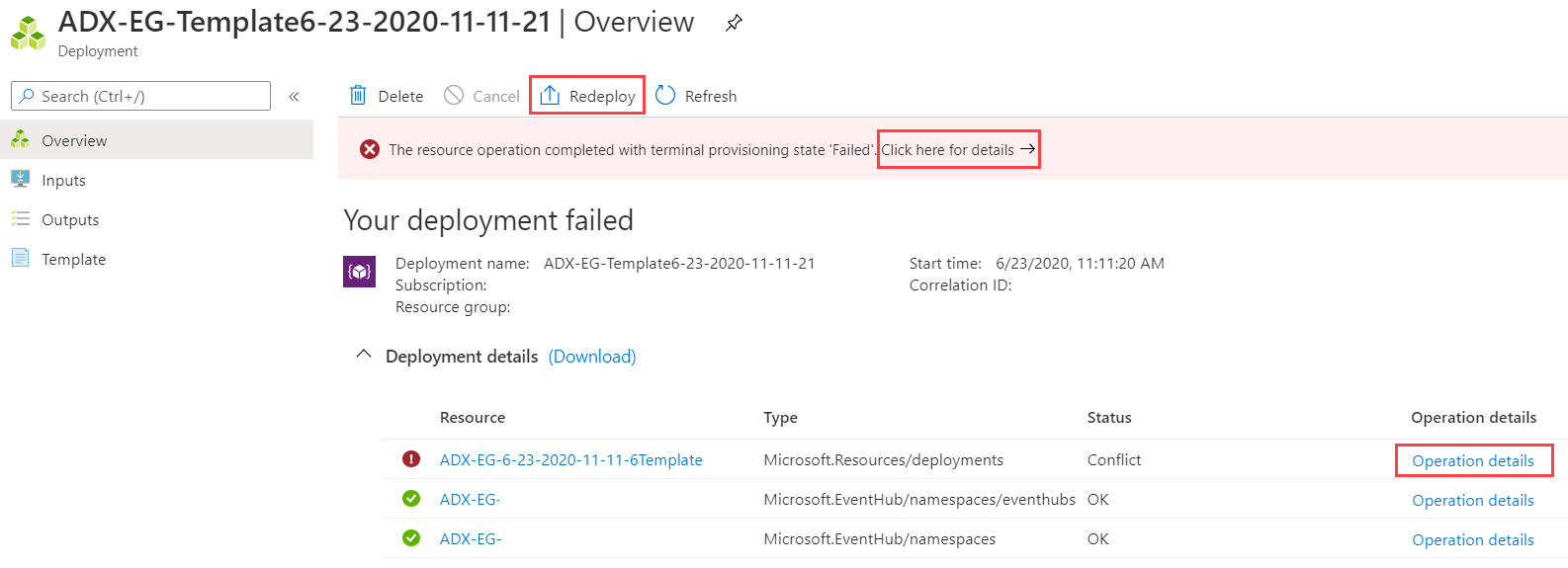

Wait until the deployment is completed. If your deployment failed, select Operation details next to the failed stage to get more information for the failure reason. Select Redeploy to try to deploy the resources again. You can alter the parameters before deployment.

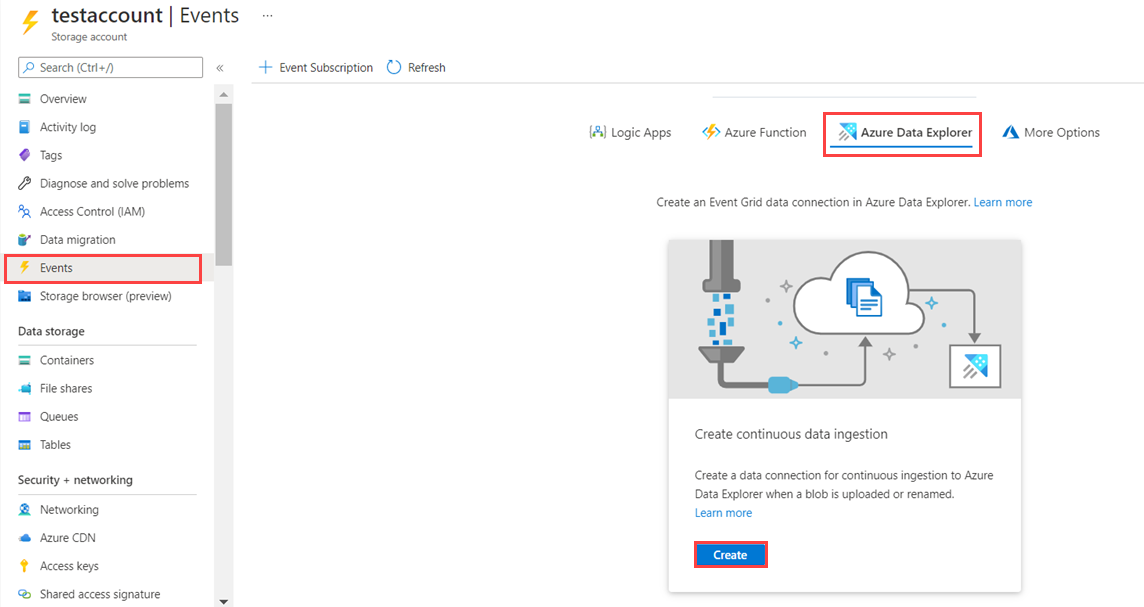

Browse to the storage account in the Azure portal. On the left menu, select Events
In the main pane, select the Azure Data Explorer tab.

The Data connection pane opens with the Basics tab selected.

Under Basics, fill out the form with the following information:

Screenshot of the Data Connection Basics tab, showing the options for the connection type.

Setting	Suggested value	Field description
Data connection name	test-grid-connection	The name of the connection that you want to create in Azure Data Explorer.
Storage account	gridteststorage1	The storage account from which you accessed this wizard. Autopopulated.
Event type	Blob created or Blob renamed	The type of event that triggers ingestion. Blob renamed is supported only for ADLSv2 storage. To rename a blob, navigate to the blob in Azure portal, right-click on the blob and select Rename. Supported types are: Microsoft.Storage.BlobCreated or Microsoft.Storage.BlobRenamed.
Resources creation	Automatic	Define whether you want Azure Data Explorer to create an Event Grid Subscription, an Event Hubs namespace, and an Event Hubs for you. To create resources manually, see Manually create resources for Event Grid ingestion

Select Next> Ingest properties.
Under Ingest properties.

Fill out the form with the following information. Table and mapping names are case-sensitive:

Screenshot of the Data Connection Ingest properties tab, showing the subscription and data routing properties.

Setting	Suggested value	Field description
Subscription		Your Azure Data Explorer subscription.
Cluster Name	TestCluster	The name of the cluster in which you want to ingest data.
Database Name	TestDatabase	The target database you created in TestCluster.
Allow routing the data to other databases (Multi database data connection)	Don't allow	Turn on this option if you want to override the default target database associated with the data connection. For more information about database routing, see Events routing.
Table name	TestTable	The target table you created in TestDatabase.
Data format	JSON	Supported formats are Avro, CSV, JSON, MULTILINE JSON, ORC, PARQUET, PSV, SCSV, SOHSV, TSV, TXT, TSVE, APACHEAVRO, RAW, and W3CLOG. Supported compression options are Zip and Gzip.
Mapping	TestMapping	The mapping you created in TestDatabase, which maps incoming data to the column names and data types of TestTable. If not specified, an identity data mapping derived from the table's schema is used.
Advanced settings	My data has headers	Ignores headers. Supported for *SV type files.

Note

You don't have to specify all Data routing settings. Partial settings are also accepted.

Select Next: Review + create
Under Review + create.
Review the resources that were auto created for you and select Create.
Wait until the deployment is completed. If your deployment failed, select Operation details next to the failed stage to get more information for the failure reason. Select Redeploy to try to deploy the resources again. You can alter the parameters before deployment.

Install the Microsoft.Azure.Management.Kusto NuGet package.
Create an Azure AD application principal to use for authentication. You'll need the directory (tenant) ID, application ID, and client secret.

Run the following code.

var tenantId = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"; //Directory (tenant) ID
var clientId = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"; //Application ID
var clientSecret = "PlaceholderClientSecret"; //Client Secret
var subscriptionId = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx";
var authClient = ConfidentialClientApplicationBuilder.Create(clientId)
    .WithAuthority($"https://login.microsoftonline.com/{tenantId}")
    .WithClientSecret(clientSecret)
    .Build();
var result = authClient.AcquireTokenForClient(new[] { "https://management.core.windows.net/" }).ExecuteAsync().Result;
var credentials = new TokenCredentials(result.AccessToken, result.TokenType);
var kustoManagementClient = new KustoManagementClient(credentials) { SubscriptionId = subscriptionId };
var resourceGroupName = "testrg";
//The cluster and database that are created as part of the Prerequisites
var clusterName = "mykustocluster";
var databaseName = "mykustodatabase";
var eventGridConnectionName = "myeventgridconnect";
//The event hub and storage account that are created as part of the Prerequisites
var eventHubResourceId = "/subscriptions/<storageAccountSubscriptionId>/resourceGroups/<storageAccountResourceGroupName>/providers/Microsoft.Storage/storageAccounts/<storageAccountName>";
var storageAccountResourceId = "/subscriptions/<eventHubSubscriptionId>/resourceGroups/<eventHubResourceGroupName>/providers/Microsoft.EventHub/namespaces/<eventHubNamespaceName>/eventhubs/<eventHubName>";
var consumerGroup = "$Default";
var location = "Central US";
//The table and column mapping are created as part of the Prerequisites
var mappingRuleName = "StormEvents_CSV_Mapping";
var dataFormat = DataFormat.CSV;
var blobStorageEventType = "Microsoft.Storage.BlobCreated";
var databaseRouting = "Multi";
var eventGridConnectionData = new EventGridDataConnection(
    storageAccountResourceId, eventHubResourceId, consumerGroup,
    tableName: tableName, location: location, mappingRuleName: mappingRuleName,
    dataFormat: dataFormat, blobStorageEventType: blobStorageEventType, databaseRouting: databaseRouting
);
await kustoManagementClient.DataConnections.CreateOrUpdateAsync(
    resourceGroupName, clusterName, databaseName, eventGridConnectionName, eventGridConnectionData
);

Setting	Suggested value	Field description
tenantId	xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx	Your tenant ID. Also known as directory ID.
subscriptionId	xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx	The subscription ID that you use for resource creation.
clientId	xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx	The client ID of the application that can access resources in your tenant.
clientSecret	PlaceholderClientSecret	The client secret of the application that can access resources in your tenant.
resourceGroupName	testrg	The name of the resource group containing your cluster.
clusterName	mykustocluster	The name of your cluster.
databaseName	mykustodatabase	The name of the target database in your cluster.
eventGridConnectionName	myeventgridconnect	The desired name of your data connection.
tableName	StormEvents	The name of the target table in the target database.
mappingRuleName	StormEvents_CSV_Mapping	The name of your column mapping related to the target table.
dataFormat	csv	The data format of the message.
eventHubResourceId	Resource ID	The resource ID of your event hub where the Event Grid is configured to send events.
storageAccountResourceId	Resource ID	The resource ID of your storage account that holds the data for ingestion.
consumerGroup	$Default	The consumer group of your event hub.
location	Central US	The location of the data connection resource.
blobStorageEventType	Microsoft.Storage.BlobCreated	The type of event that triggers ingestion. Supported events are: Microsoft.Storage.BlobCreated or Microsoft.Storage.BlobRenamed. Blob renaming is supported only for ADLSv2 storage.
databaseRouting	Multi or Single	The database routing for the connection. If you set the value to Single, the data connection will be routed to a single database in the cluster as specified in the databaseName setting. If you set the value to Multi, you can override the default target database using the Database ingestion property. For more information, see Events routing.

Install the required libraries.

pip install azure-common
pip install azure-mgmt-kusto

Create an Azure AD application principal to use for authentication. You'll need the directory (tenant) ID, application ID, and client secret.

Run the following code.

from azure.mgmt.kusto import KustoManagementClient
from azure.mgmt.kusto.models import EventGridDataConnection
from azure.common.credentials import ServicePrincipalCredentials

#Directory (tenant) ID
tenant_id = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"
#Application ID
client_id = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"
#Client Secret
client_secret = "xxxxxxxxxxxxxx"
subscription_id = "xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx"
credentials = ServicePrincipalCredentials(
        client_id=client_id,
        secret=client_secret,
        tenant=tenant_id
    )
kusto_management_client = KustoManagementClient(credentials, subscription_id)

resource_group_name = "testrg"
#The cluster and database that are created as part of the Prerequisites
cluster_name = "mykustocluster"
database_name = "mykustodatabase"
data_connection_name = "myeventhubconnect"
#The event hub and storage account that are created as part of the Prerequisites
event_hub_resource_id = "/subscriptions/xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx/resourceGroups/xxxxxx/providers/Microsoft.EventHub/namespaces/xxxxxx/eventhubs/xxxxxx"
storage_account_resource_id = "/subscriptions/xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx/resourceGroups/xxxxxx/providers/Microsoft.Storage/storageAccounts/xxxxxx"
consumer_group = "$Default"
location = "Central US"
#The table and column mapping that are created as part of the Prerequisites
table_name = "StormEvents"
mapping_rule_name = "StormEvents_CSV_Mapping"
data_format = "csv"
database_routing = "Multi"
blob_storage_event_type = "Microsoft.Storage.BlobCreated"

#Returns an instance of LROPoller, check https://learn.microsoft.com/python/api/msrest/msrest.polling.lropoller?view=azure-python
poller = kusto_management_client.data_connections.begin_create_or_update(resource_group_name=resource_group_name, cluster_name=cluster_name, database_name=database_name, data_connection_name=data_connection_name,
                                            parameters=EventGridDataConnection(storage_account_resource_id=storage_account_resource_id, event_hub_resource_id=event_hub_resource_id,
                                                                                consumer_group=consumer_group, table_name=table_name, location=location, mapping_rule_name=mapping_rule_name, data_format=data_format, database_routing=database_routing,
                                                                                blob_storage_event_type=blob_storage_event_type))
# The creation of the connection is async. Validation errors are only visible if you wait for the results.
poller.wait()
print(poller.result())

Setting	Suggested value	Field description
tenant_id	xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx	Your tenant ID. Also known as directory ID.
subscription_id	xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx	The subscription ID that you use for resource creation.
client_id	xxxxxxxx-xxxxx-xxxx-xxxx-xxxxxxxxx	The client ID of the application that can access resources in your tenant.
client_secret	xxxxxxxxxxxxxx	The client secret of the application that can access resources in your tenant.
resource_group_name	testrg	The name of the resource group containing your cluster.
cluster_name	mykustocluster	The name of your cluster.
database_name	mykustodatabase	The name of the target database in your cluster.
data_connection_name	myeventhubconnect	The desired name of your data connection.
table_name	StormEvents	The name of the target table in the target database.
mapping_rule_name	StormEvents_CSV_Mapping	The name of your column mapping related to the target table.
database_routing	Multi or Single	The database routing for the connection. If you set the value to Single, the data connection will be routed to a single database in the cluster as specified in the databaseName setting. If you set the value to Multi, you can override the default target database using the Database ingestion property. For more information, see Events routing.
data_format	csv	The data format of the message.
event_hub_resource_id	Resource ID	The resource ID of your event hub where the Event Grid is configured to send events.
storage_account_resource_id	Resource ID	The resource ID of your storage account that holds the data for ingestion.
consumer_group	$Default	The consumer group of your event hub.
location	Central US	The location of the data connection resource.
blob_storage_event_type	Microsoft.Storage.BlobCreated	The type of event that triggers ingestion. Supported events are: Microsoft.Storage.BlobCreated or Microsoft.Storage.BlobRenamed. Blob renaming is supported only for ADLSv2 storage.

The following example shows an Azure Resource Manager template for adding an Event Grid data connection. You can edit and deploy the template in the Azure portal by using the form.

{
    "$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#",
    "contentVersion": "1.0.0.0",
    "parameters": {
        "namespaces_eventhubns_name": {
            "type": "string",
            "defaultValue": "eventhubns",
            "metadata": {
                "description": "Specifies the event hub namespace name."
            }
        },
        "EventHubs_eventhubdemo_name": {
            "type": "string",
            "defaultValue": "eventhubdemo",
            "metadata": {
                "description": "Specifies the event hub name."
            }
        },
        "consumergroup_default_name": {
            "type": "string",
            "defaultValue": "$Default",
            "metadata": {
                "description": "Specifies the consumer group of the event hub."
            }
        },
        "StorageAccounts_storagedemo_name": {
            "type": "string",
            "defaultValue": "storagedemo",
            "metadata": {
                "description": "Specifies the storage account name"
            }
        },
        "Clusters_kustocluster_name": {
            "type": "string",
            "defaultValue": "kustocluster",
            "metadata": {
                "description": "Specifies the name of the cluster"
            }
        },
        "databases_kustodb_name": {
            "type": "string",
            "defaultValue": "kustodb",
            "metadata": {
                "description": "Specifies the name of the database"
            }
        },
        "tables_kustotable_name": {
            "type": "string",
            "defaultValue": "kustotable",
            "metadata": {
                "description": "Specifies the name of the table"
            }
        },
        "mapping_kustomapping_name": {
            "type": "string",
            "defaultValue": "kustomapping",
            "metadata": {
                "description": "Specifies the name of the mapping rule"
            }
        },
        "dataformat_type": {
            "type": "string",
            "defaultValue": "csv",
            "metadata": {
                "description": "Specifies the data format"
            }
        },
             "databaseRouting_type": {
            "type": "string",
            "defaultValue": "Single",
            "metadata": {
                "description": "The database routing for the connection. If you set the value to **Single**, the data connection will be routed to a single database in the cluster as specified in the *databaseName* setting. If you set the value to **Multi**, you can override the default target database using the *Database* EventData property."
            }
        },
        "dataconnections_kustodc_name": {
            "type": "string",
            "defaultValue": "kustodc",
            "metadata": {
                "description": "Name of the data connection to create"
            }
        },
        "subscriptionId": {
            "type": "string",
            "defaultValue": "[subscription().subscriptionId]",
            "metadata": {
                "description": "Specifies the subscriptionId of the resources"
            }
        },
        "resourceGroup": {
            "type": "string",
            "defaultValue": "[resourceGroup().name]",
            "metadata": {
                "description": "Specifies the resourceGroup of the resources"
            }
        },
        "location": {
            "type": "string",
            "defaultValue": "[resourceGroup().location]",
            "metadata": {
                "description": "Location for all resources."
            }
        }
    },
    "variables": {
    },
    "resources": [{
            "type": "Microsoft.Kusto/Clusters/Databases/DataConnections",
            "apiVersion": "2022-02-01",
            "name": "[concat(parameters('Clusters_kustocluster_name'), '/', parameters('databases_kustodb_name'), '/', parameters('dataconnections_kustodc_name'))]",
            "location": "[parameters('location')]",
            "kind": "EventGrid",
            "properties": {
                "managedIdentityResourceId": "[resourceId('Microsoft.Kusto/clusters', parameters('clusters_kustocluster_name'))]",
                "storageAccountResourceId": "[resourceId(parameters('subscriptionId'), parameters('resourceGroup'), 'Microsoft.Storage/storageAccounts', parameters('StorageAccounts_storagedemo_name'))]",
                "eventHubResourceId": "[resourceId(parameters('subscriptionId'), parameters('resourceGroup'), 'Microsoft.EventHub/namespaces/eventhubs', parameters('namespaces_eventhubns_name'), parameters('EventHubs_eventhubdemo_name'))]",
                "consumerGroup": "[parameters('consumergroup_default_name')]",
                "tableName": "[parameters('tables_kustotable_name')]",
                "mappingRuleName": "[parameters('mapping_kustomapping_name')]",
                "dataFormat": "[parameters('dataformat_type')]",
                "databaseRouting": "[parameters('databaseRouting_type')]"
            }
        }
    ]
}

Remove an Event Grid data connection

To remove the Event Grid connection from the Azure portal, do the following:

Go to your cluster. From the left menu, select Databases. Then, select the database that contains the target table.
From the left menu, select Data connections. Then, select the checkbox next to the relevant Event Grid data connection.
From the top menu bar, select Delete.

To remove the Event Grid connection, run the following command:

kustoManagementClient.DataConnections.Delete(resourceGroupName, clusterName, databaseName, dataConnectionName);

To remove the Event Grid connection, run the following command:

kusto_management_client.data_connections.delete(resource_group_name=resource_group_name, cluster_name=kusto_cluster_name, database_name=kusto_database_name, data_connection_name=kusto_data_connection_name)

Next steps

Process data from your event hub using Azure Stream Analytics

Share via

Create an Event Grid data connection for Azure Data Explorer

Prerequisites

Create an Event Grid data connection

Remove an Event Grid data connection

Next steps

Additional resources
