Customize how the Connected Factory solution displays data from your OPC UA servers

  • Article

Important

While we update this article, see Azure Industrial IoT for the most up to date content.

The Connected Factory solution aggregates and displays data from the OPC UA servers connected to the solution. You can browse and send commands to the OPC UA servers in your solution. For more information about OPC UA, see the Connected Factory FAQ.

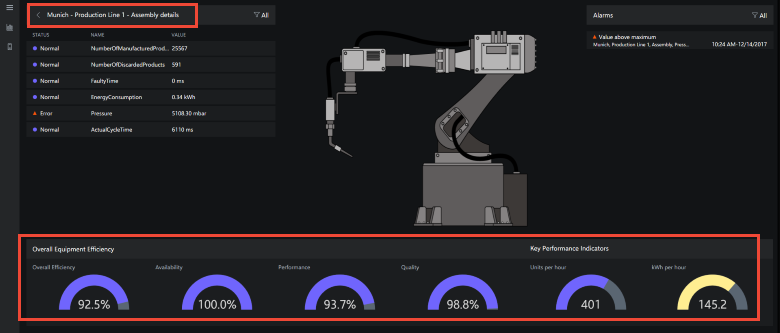

Examples of aggregated data in the solution include the Overall Equipment Efficiency (OEE) and Key Performance Indicators (KPIs) that you can view in the dashboard at the factory, line, and station levels. The following screenshot shows the OEE and KPI values for the Assembly station, on Production line 1, in the Munich factory:

Example of OEE and KPI values in the solution

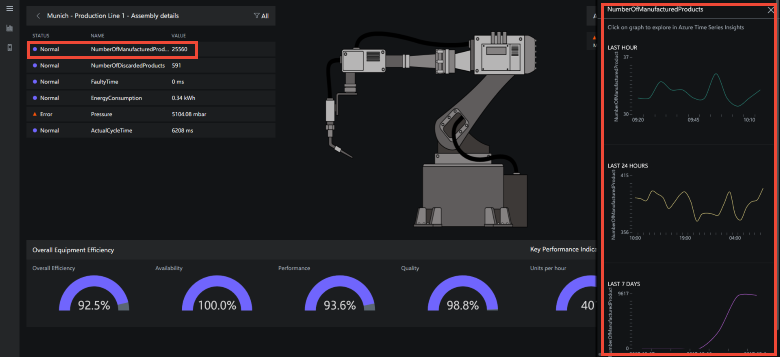

The solution enables you to view detailed information from specific data items from the OPC UA servers, called stations. The following screenshot shows plots of the number of manufactured items from a specific station:

Plots of number of manufactured items

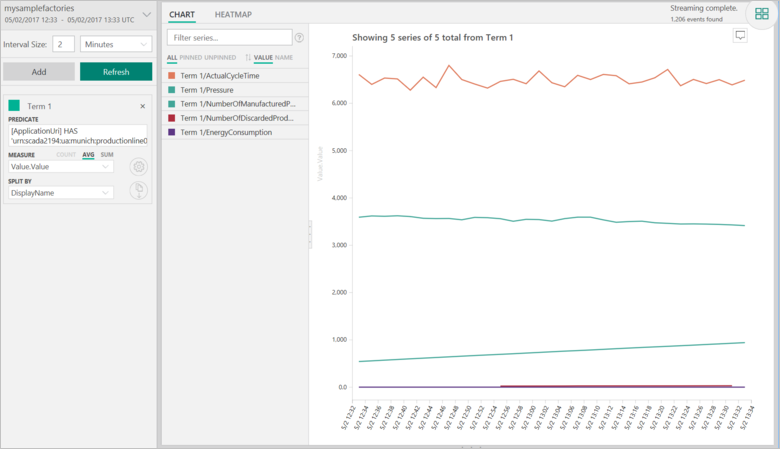

If you click one of the graphs, you can explore the data further using Time Series Insights (TSI):

Explore data using Time Series Insights

This article describes:

  • How the data is made available to the various views in the solution.
  • How you can customize the way the solution displays the data.

Data sources

The Connected Factory solution displays data from the OPC UA servers connected to the solution. The default installation includes several OPC UA servers running a factory simulation. You can add your own OPC UA servers that [connect through a gateway][lnk-connect-cf] to your solution.

You can browse the data items that a connected OPC UA server can send to your solution in the dashboard:

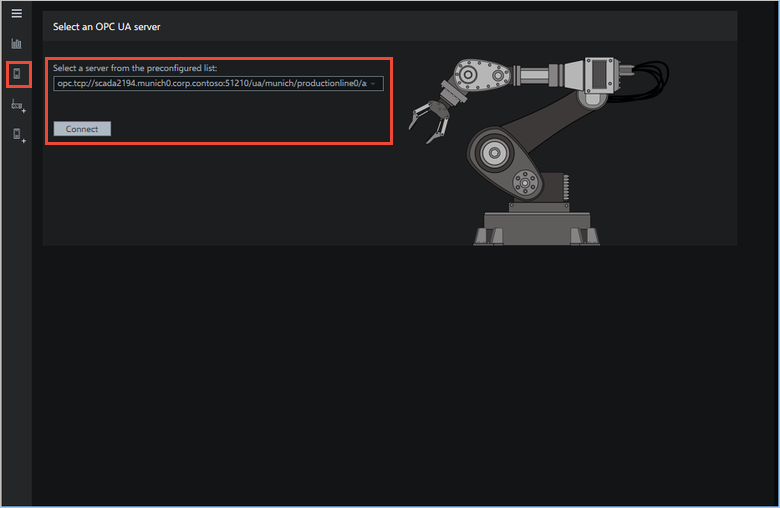

  1. Choose Browser to navigate to the Select an OPC UA server view:

    Navigate to the Select an OPC UA server view

  2. Select a server and click Connect. Click Proceed when the security warning appears.

    Note

    This warning only appears once for each server and establishes a trust relationship between the solution dashboard and the server.

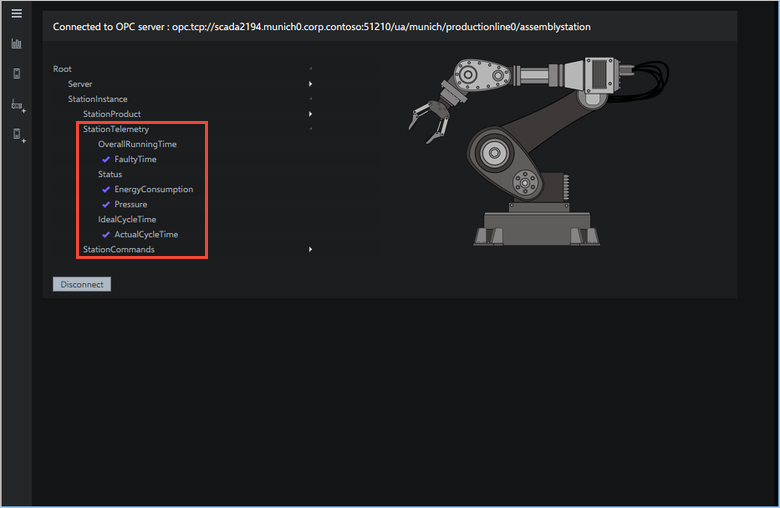

  3. You can now browse the data items that the server can send to the solution. Items that are being sent to the solution have a check mark:

    Published items

  4. If you are an Administrator in the solution, you can choose to publish a data item to make it available in the Connected Factory solution. As an Administrator, you can also change the value of data items and call methods in the OPC UA server.

Map the data

The Connected Factory solution maps and aggregates the published data items from the OPC UA server to the various views in the solution. The Connected Factory solution deploys to your Azure account when you provision the solution. A JSON file in the Visual Studio Connected Factory solution stores this mapping information. You can view and modify this JSON configuration file in the Connected Factory Visual Studio solution. You can redeploy the solution after you make a change.

You can use the configuration file to:

  • Edit the existing simulated factories, production lines, and stations.
  • Map data from real OPC UA servers that you connect to the solution.

For more information about mapping and aggregating the data to meet your specific requirements, see How to configure the Connected Factory solution accelerator .

Deploy the changes

When you have finished making changes to the ContosoTopologyDescription.json file, you must redeploy the Connected Factory solution to your Azure account.

The azure-iot-connected-factory repository includes a build.ps1 PowerShell script you can use to rebuild and deploy the solution.
