Snackbar
Important
This article describes functionality and guidance that is in public preview and may be substantially modified before it's generally available. Microsoft makes no warranties, express or implied, with respect to the information provided here.
The SnackbarContainer
is a custom FrameLayout with a CoordinatorLayout as a child that can be used as a holder for the Snackbar.
This container is foldable aware, and can be used on foldable devices but also on regular devices. The message will be displayed every time at the bottom of the screen at fixed 25 pixels from the edges of the screen.
Using the information from the WindowManager, this container moves its CoordinatorLayout child where the developer needs, on the first screen, second screen, or the entire screen. For other scenarios, you can use the Snackbar
directly.
Ensure the
mavenCentral()
repository is in your top-level build.gradle file:allprojects { repositories { google() mavenCentral() } }
Add this dependency to the module-level build.gradle file:
dependencies { implementation "com.microsoft.device.dualscreen:snackbar:1.0.0-alpha2" }
If your project is created using Java, you will need to add a kotlin-stdlib dependency to your module-level build.gradle file (this is because the Snackbar library was created using Kotlin).
dependencies { implementation "org.jetbrains.kotlin:kotlin-stdlib-jdk8:$kotlin_version" }
Once the package has been added, follow these steps to implement the dual-screen Snackbar:
Add the
SnackbarContainer
at the bottom of theActivity
orFragment
root view:<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" android:layout_width="match_parent" android:layout_height="match_parent" <com.microsoft.device.dualscreen.snackbar.SnackbarContainer android:id="@+id/snackbar_container" android:layout_width="match_parent" android:layout_height="wrap_content" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintStart_toStartOf="parent" /> </androidx.constraintlayout.widget.ConstraintLayout>
Using an instance of the
SnackbarContainer
, you can display theSnackbar
using this code snippet. ThesnackbarContainer
parameter is an instance ofSnackbarContainer
, themessage
parameter is the text to be displayed, andLENGTH_LONG
is the display duration. Theshow
function is an extension function used to display theSnackbar
inside the givenSnackbarContainer
at the specified position.
The possible values for the position
parameter are:
SnackbarPosition.START
SnackbarPosition.END
SnackbarPosition.BOTH
These are explained in more detail below.

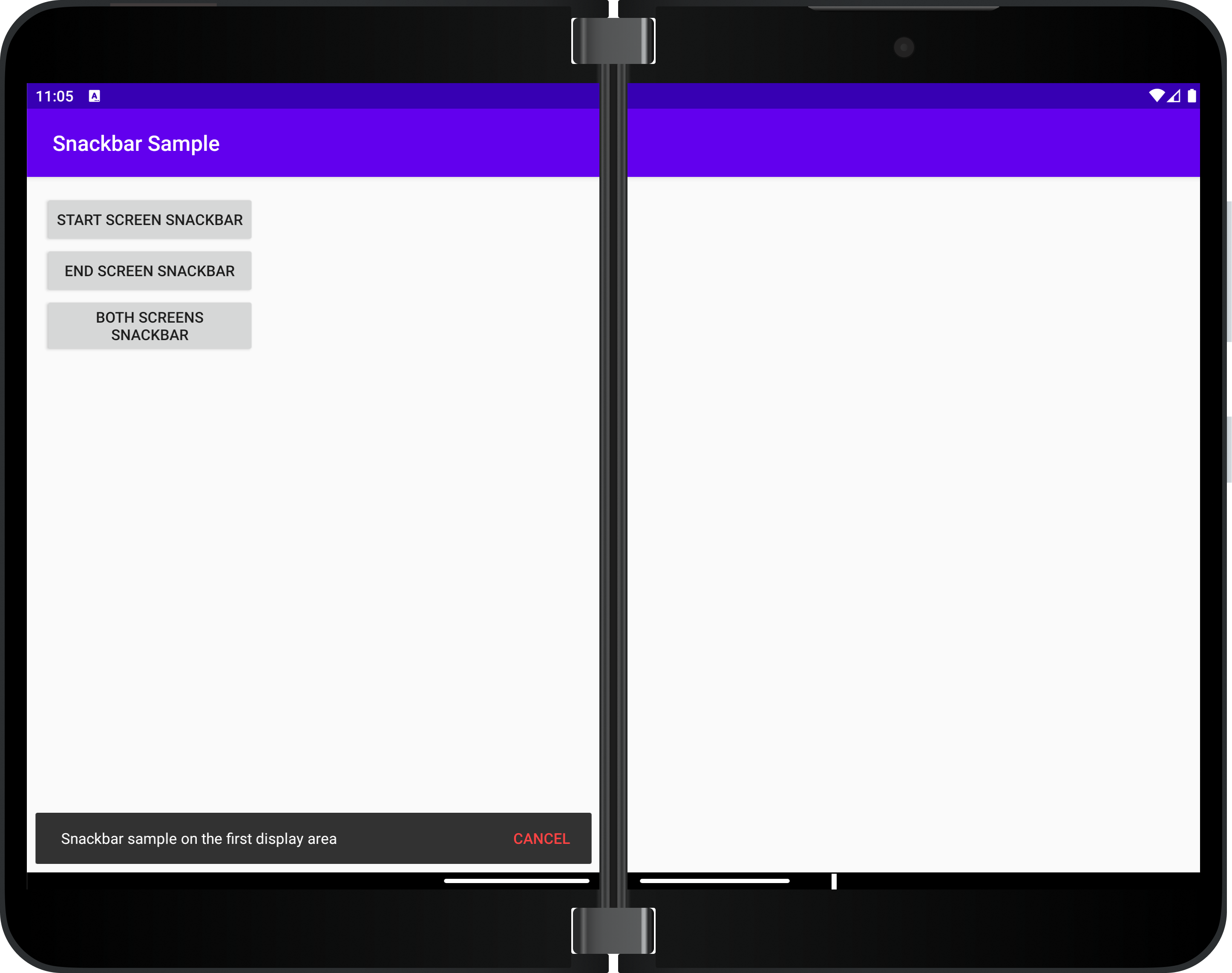

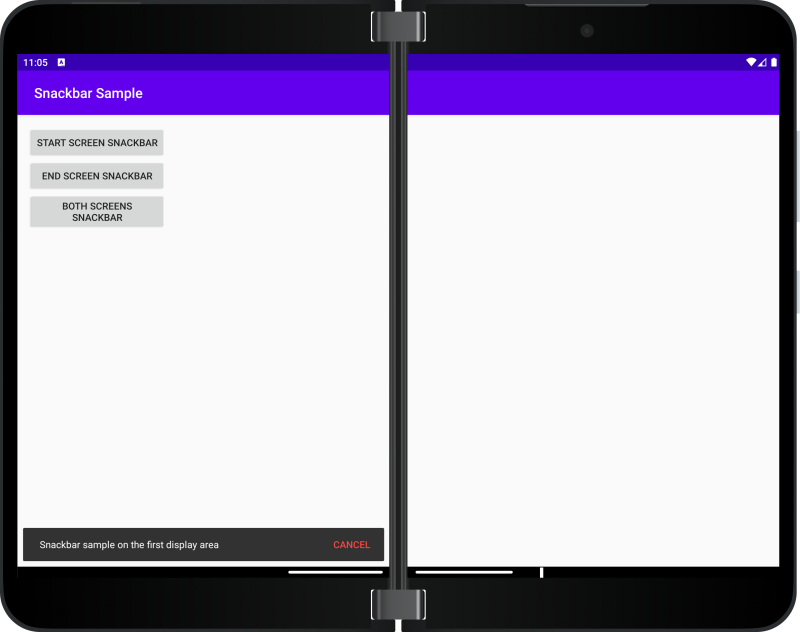

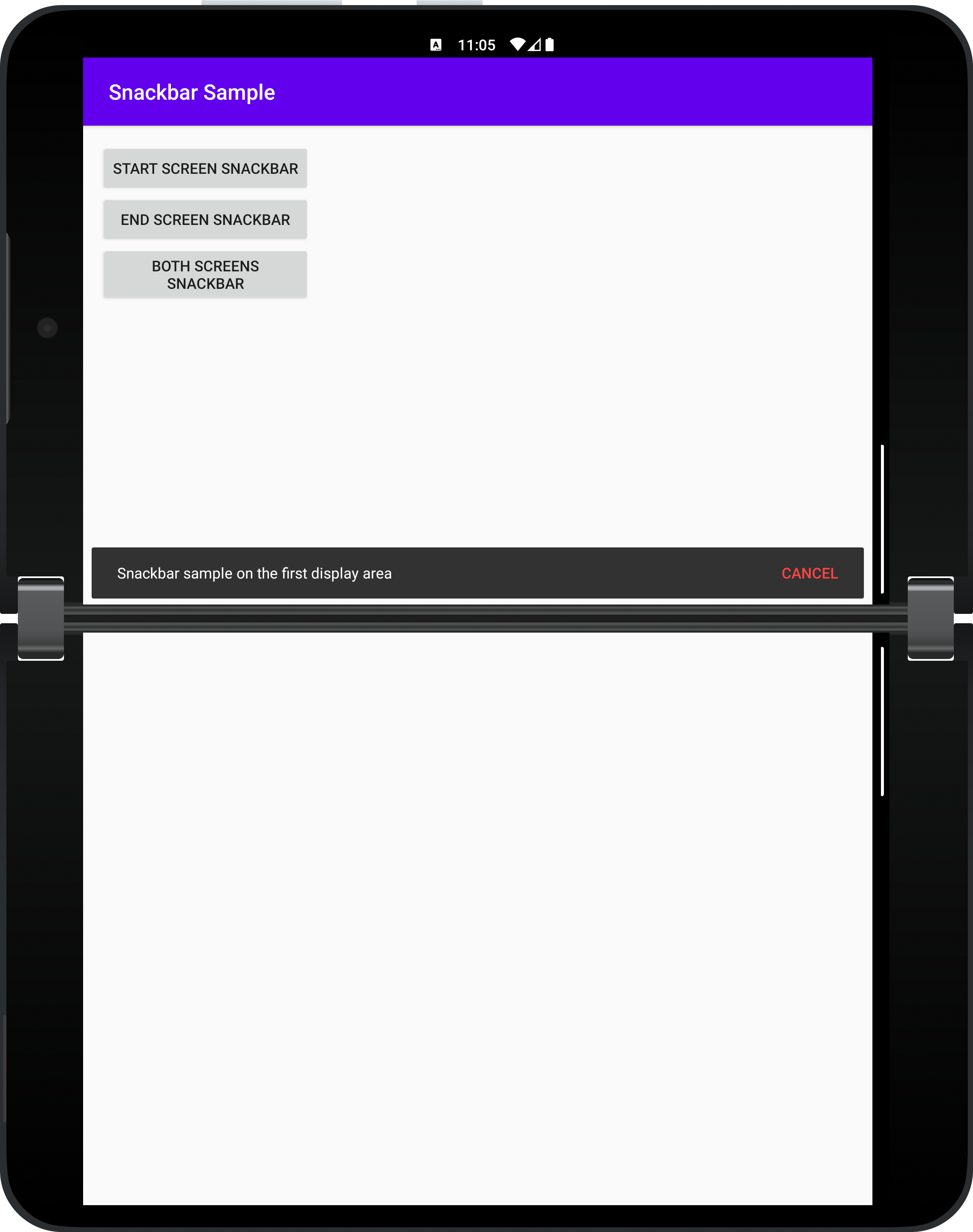

The Snackbar will be displayed at the bottom of the first display area:

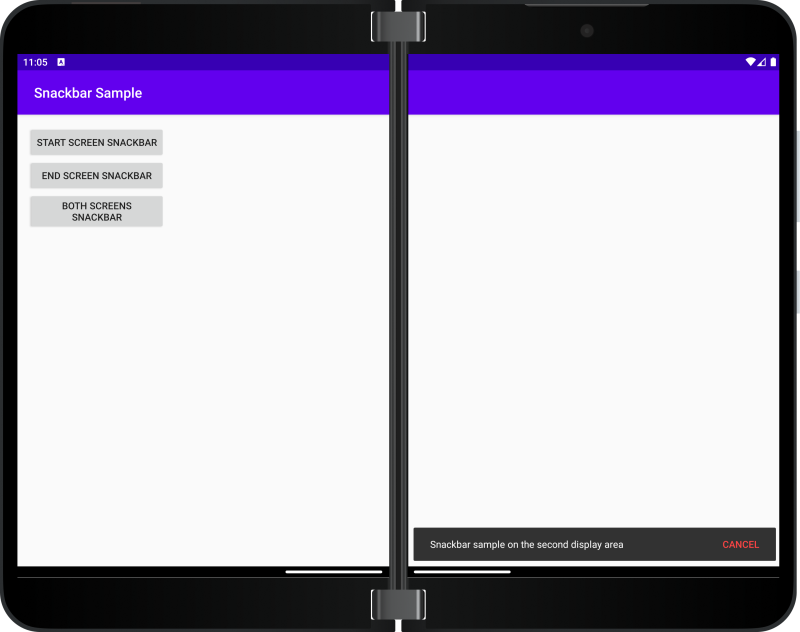

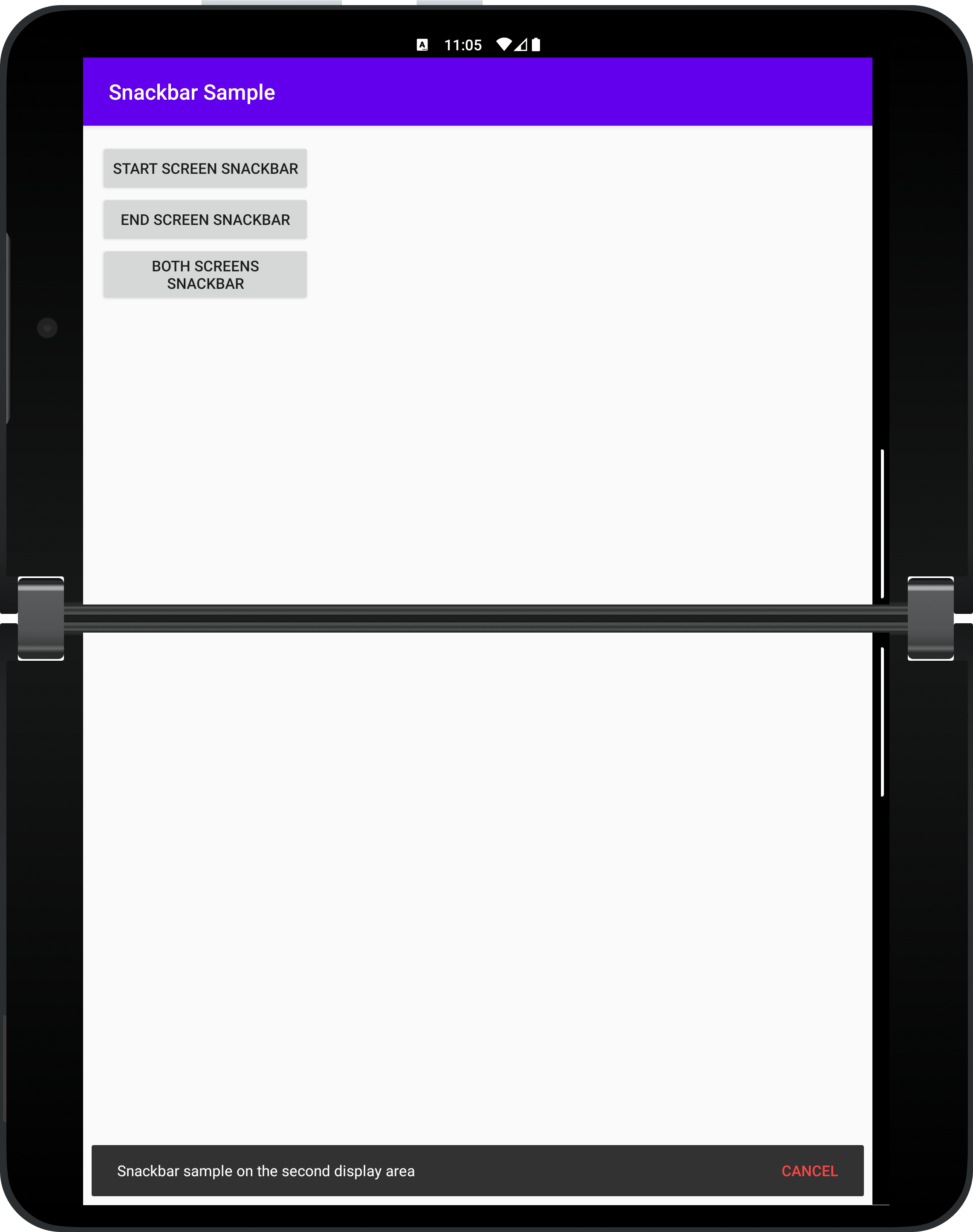

The Snackbar will be displayed on the second display area:

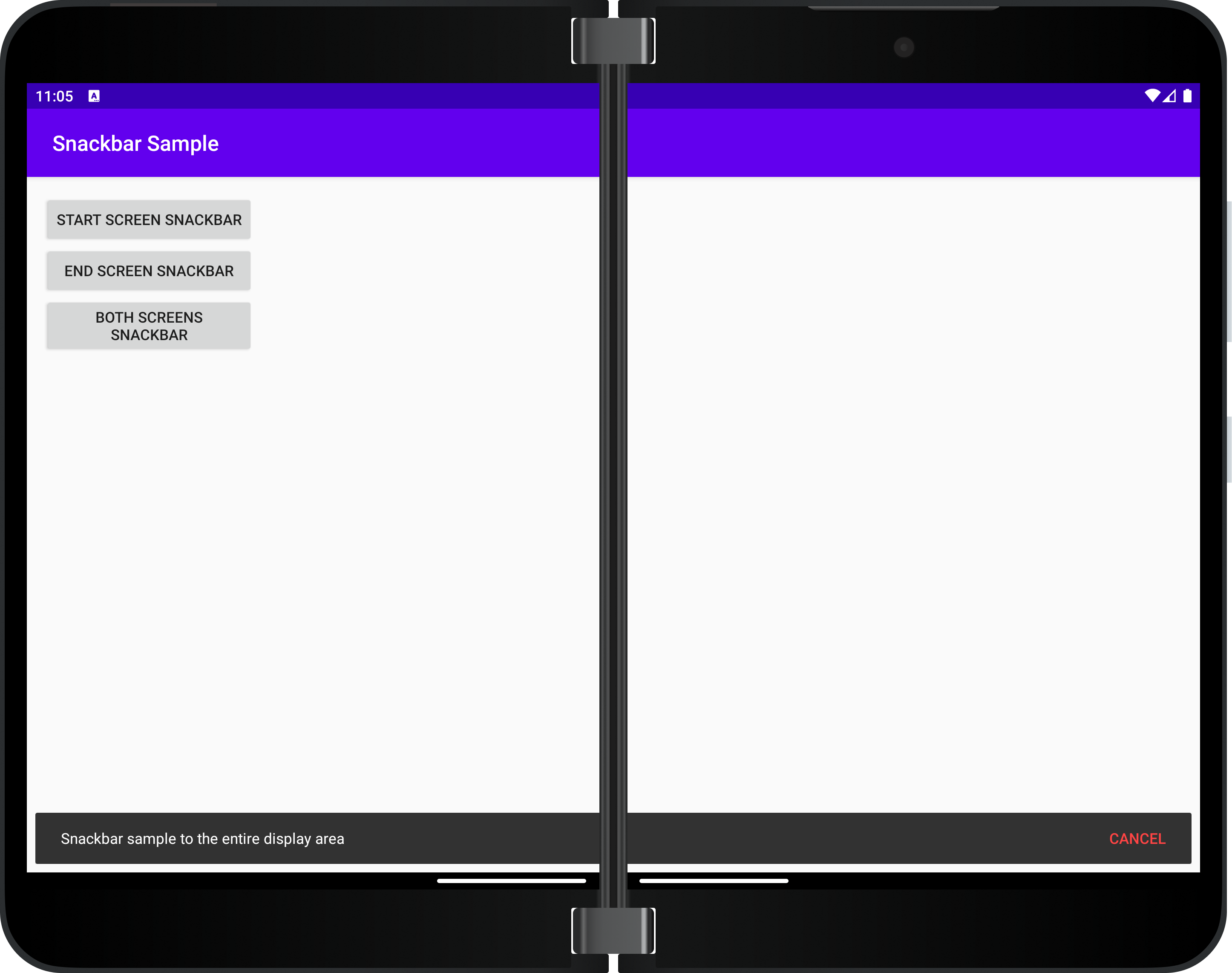

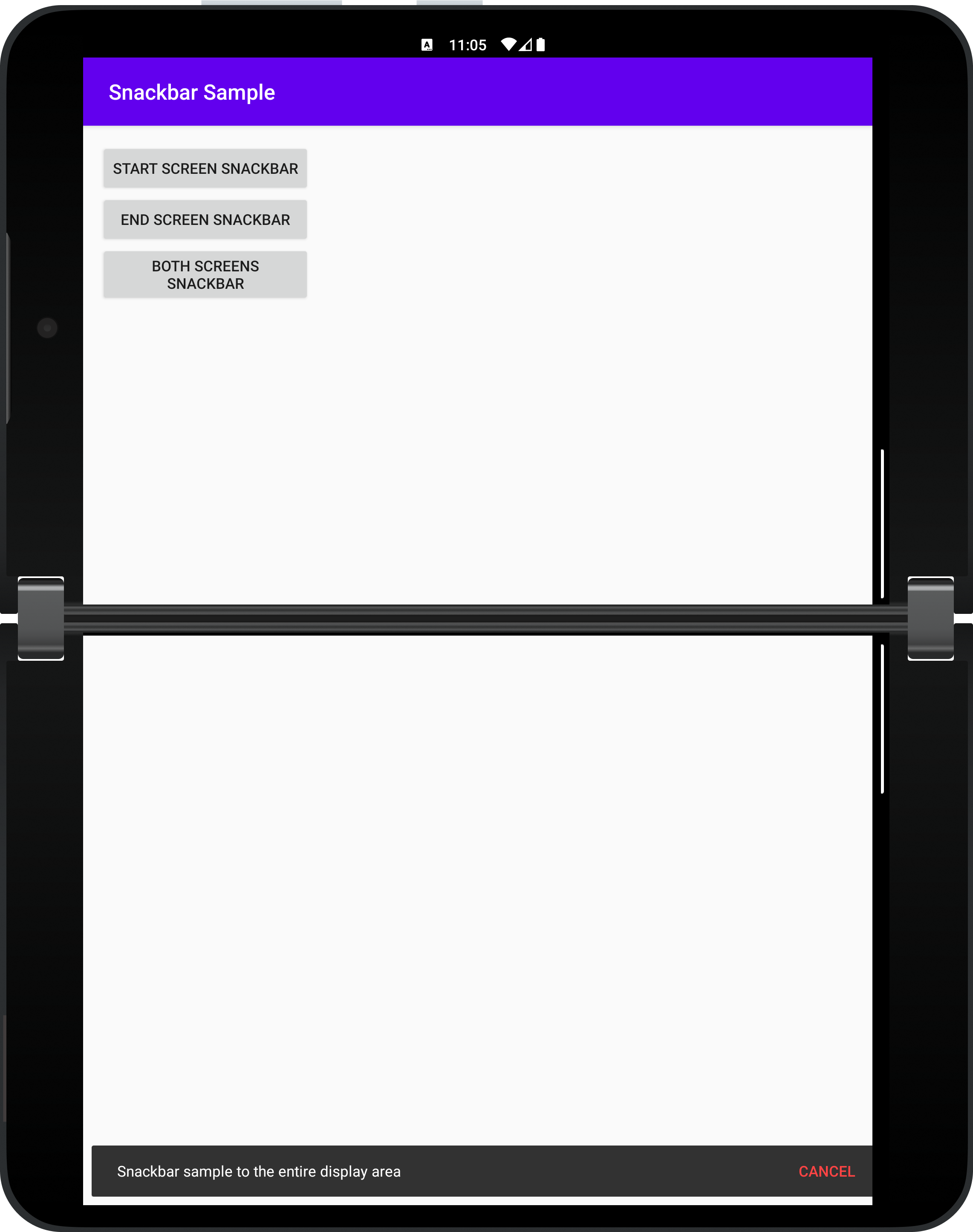

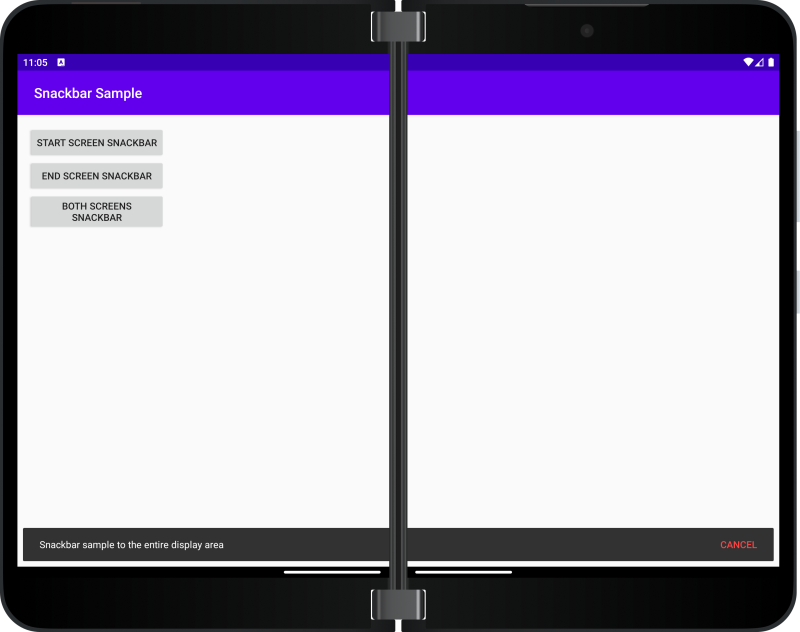

The Snackbar will be displayed at the bottom of the entire display area:
You can have a look at the code of the snackbar sample app to see all these behaviors.
