Event Aggregation QuickStart Using the Prism Library 5.0 for WPF

patterns & practices Developer CenterDownload Prism documentationDownload Event Aggregation QuickStartDownload Prism source codeOther Prism releases

From: Developer's Guide to Microsoft Prism Library 5.0 for WPF

The Event Aggregation QuickStart sample demonstrates how to build a composite application that uses the Prism Library’s Event Aggregator service. This service enables you to establish loosely coupled communications between components in your application. The Event Aggregator is a Portable Class Library (PCL) so it can be used on WPF, Windows Phone 8, and Windows Store apps.

Business Scenario

The main window of the Event Aggregation QuickStart represents a subset of a fictitious financial system. In this window, users can add funds to customers and see the activity log for each customer. The following illustration shows the QuickStart main window.

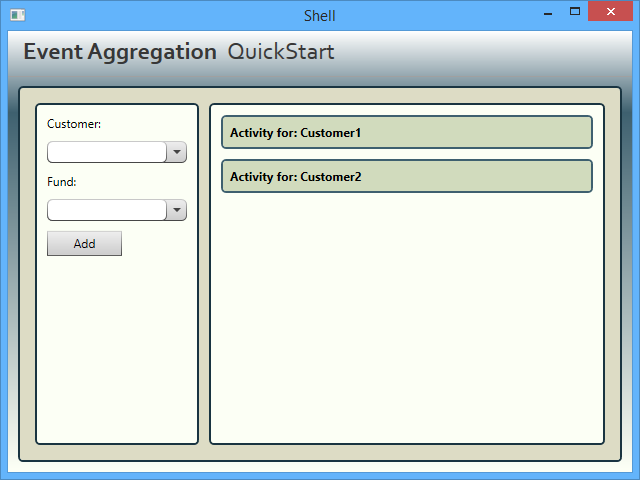

Event Aggregation QuickStart user interface

Event Aggregation QuickStart user interface

Building and Running the QuickStart

This QuickStart requires Visual Studio 2012 or later and the .NET Framework 4.5.1 to run.

To build and run the Event Aggregation QuickStart

  1. In Visual Studio, open the solution file Quickstarts\EventAggregation\EventAggregation_Desktop.sln.
  2. On the Build menu, click Rebuild Solution.
  3. Press F5 to run the QuickStart.

Implementation Details

The QuickStart highlights the key elements that interact when using the Event Aggregator service. This section describes the key artifacts of the QuickStart, which are shown in the following illustration.

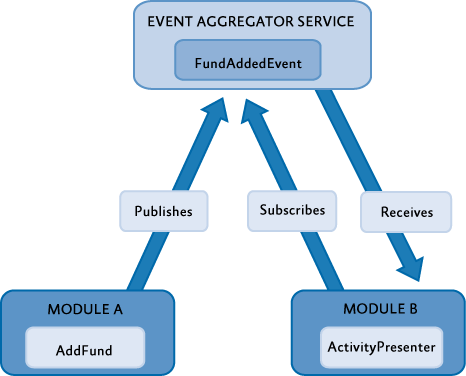

Event Aggregation QuickStart conceptual view

Event Aggregation QuickStart conceptual view

The FundAddedEvent Event

The FundAddedEvent event is raised when the user adds a fund for a customer. This event is used by the modules ModuleA and ModuleB to communicate in a loosely coupled way. The following code shows the event class signature; the class extends the PubSubEvent<TPayload> class, specifying FundOrder as the payload type. This code is located at EventAggregation.Infrastructure.Dektop\FundAddedEvent.cs.

public class FundAddedEvent : PubSubEvent<FundOrder>

The following code is the class definition for the FundOrder class; this class represents a fund order and specifies the ticker symbol and the customer's identifier. This code is located at EventAggregation.Infrastructure.Desktop\FundOrder.cs.

public class FundOrder
    public string CustomerId { get; set; }
    public string TickerSymbol { get; set; }

Event Publishing

When the user adds a fund for a customer, the event FundAddedEvent is published by the AddFundPresenter class (located at ModuleA.Desktop\AddFundPresenter.cs). The following code shows how the FundAddedEvent is published.

void AddFund(object sender, EventArgs e)
    FundOrder fundOrder = new FundOrder();
    fundOrder.CustomerId = View.Customer;
    fundOrder.TickerSymbol = View.Fund;

    if (!string.IsNullOrEmpty(fundOrder.CustomerID) && !string.IsNullOrEmpty(fundOrder.TickerSymbol))

In the preceding code, first a FundOrder instance is created and set up. Then, the FundAddedEvent is retrieved from the Event Aggregator service and the Publish method is invoked on it; this supplies the recently created FundOrder instance as the FundAddedEvent event's parameter.

Event Subscription

The ModuleB module contains a view named ActivityView. An instance of this view shows the activity log for a single customer. The ModuleB initializer class creates two instances of this view, one for Customer1 and one for Customer2, as shown in the following code (this code is located at ModuleB.Desktop\ModuleB.cs).

public void Initialize()
    ActivityView activityView1 = Container.Resolve<ActivityView>();
    ActivityView activityView2 = Container.Resolve<ActivityView>();

    activityView1.CustomerId = "Customer1";
    activityView2.CustomerId = "Customer2";

    IRegion rightRegion = RegionManager.Regions["RightRegion"];

When an instance of the ActivityView view is created, its presenter subscribes an event handler to the FundAddedEvent event using a filter expression. This filter expression defines a condition that the event's argument must meet for the event handler to be invoked. In this case, the condition is satisfied if the fund order corresponds to the customer associated to the view. The event handler contains code to display the new fund added to the customer in the user interface.

The following code shows the CustomerId property of the ActivityPresenter class. In the property setter, an event handler for the FundAddedEvent event is subscribed using the Event Aggregator service.

public string CustomerId
    get { return _customerId; }
        _customerId = value;

        FundAddedEvent fundAddedEvent = eventAggregator.GetEvent<FundAddedEvent>();

        if (subscriptionToken != null)

        subscriptionToken = fundAddedEvent.Subscribe(FundAddedEventHandler, ThreadOption.UIThread, false, FundOrderFilter);

        View.Title = string.Format(CultureInfo.CurrentCulture, Resources.ActivityTitle, CustomerId);

The following line, extracted from the preceding code, shows how the event handler is subscribed to the FundAddedEvent event.

subscriptionToken = fundAddedEvent.Subscribe(FundAddedEventHandler, ThreadOption.UIThread, false, FundOrderFilter);

In the preceding line, the following parameters are passed to configure the subscription:

  • The FundAddedEventHandler action**.** This event handler is executed when the Add button is clicked and the filter condition is satisfied.
  • The ThreadOption.UIThread option**.** This option specifies that the event handler will run on the user interface thread.
  • The KeepSubscriberReferenceAlive flag. This flag is false and indicates that the lifetime of the subscriber's reference is not managed by the event. This is set to false because the lifetime of the subscriber, the presenter class, is managed by its view, which contains a reference to it.
  • The filter predicate. This filter is a condition that specifies that the event handler is invoked only when the fund is added to the view's corresponding customer.

Unit and Acceptance Tests

The Event Aggregator QuickStart includes unit tests within the solution. Unit tests verify if individual units of source code work as expected.

Unit Tests

To run the Event Aggregator QuickStart unit tests

  • On the Test menu of Visual Studio, point to Run, and then click All Tests.


You should see the Test Results pane in Visual Studio indicating that all the unit tests passed.

Acceptance Tests

The Event Aggregator QuickStart includes a separate solution that includes acceptance tests. The acceptance tests describe how the application should perform when you follow a series of steps; you can use the acceptance tests to explore the functional behavior of the application in a variety of scenarios.

To run the Event Aggregator QuickStart acceptance tests

  1. In Visual Studio, open the solution file QuickStarts\EventAggregation\EventAggregation.Tests.AcceptanceTest\EventAggregation.Tests.AcceptanceTest.sln.
  2. Open Test Explorer.
  3. After building the solution, Visual Studio finds the tests. Click the Run All button to run the acceptance tests.


You should see the QuickStart window and the tests automatically interact with the application. At the end of the test run, you should see that all tests have passed.

More Information

For more information about event aggregation, see Communicating Between Loosely Coupled Components.
