Lesson 4: Adding a Table to the Report (Reporting Services)

After the dataset is defined, you can start defining the report layout. You create a report layout by dragging and dropping data regions, text boxes, images, and other items that you want to include in your report to the design surface.

Items that contain repeated rows of data from underlying datasets are called data regions. Reports typically have only one data region, but you can add more, for example, if you want to add a chart to your tabular report. After you add a data region, you can add fields to the data region.

To add a Table data region and fields to a report layout

  1. In the Toolbox, click Table, and then click on the design surface. Report Designer draws a table data region with three columns in the center of the design surface.

    Note

    The Toolbox may appear as a tab on the left side of the Report Data pane. To open the Toolbox, move the pointer over the Toolbox tab. If the Toolbox is not visible, from the View menu, click Toolbox.

  2. In the Report Data pane, expand the AdventureWorksDataset dataset to display the fields.

  3. Drag the Date field from the Report Data pane to the first column in the table.

    When you drop the field into the first column, two things happen. First, the data cell will display the field name, known as the field expression, in brackets: [Date]. Second, a column header value is automatically added to Header row, just above the field expression. By default, the column is the name of the field. You can select the Header row text and type a new name.

  4. Drag the Order field from the Report Data pane to the second column in the table.

  5. Drag the Product field from the Report Data pane to the third column in the table.

  6. Drag the Qty field to the right edge of the third column until you get a vertical cursor and the mouse pointer includes a plus sign [+]. When you release the mouse button, a fourth column is created for [Qty].

  7. Add the LineTotal field in the same way, creating a fifth column.

    Note

    The column header is Line Total. Report Designer automatically creates a friendly name for the column by splitting LineTotal into two words.

    The following diagram shows a table data region that has been populated with these fields: Date, Order, Product, Qty, and Line Total.

    Design, Table with header row and detail row

Preview Your Report

Previewing a report enables you to easily view the rendered report without having to first publish it to a report server. You will probably want to preview your report frequently during design time.

To preview a report

  • Click the Preview tab. Report Designer runs the report and displays it in Preview view.

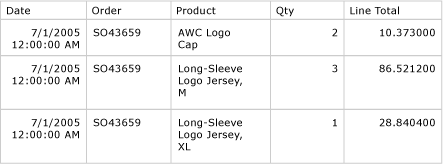

    The following diagram shows part of the report in Preview view.

    Preview, Detail rows of table with 5 columns

    Notice that the currency (in the Line Total column) has six places after the decimal, and the date has an unnecessary time stamp. You're going to fix that formatting in the next lesson.

Note

You can save the report project before or after you preview the report. On the File menu, click Save All.

Next Steps

You have successfully added a Table data region to your report, added fields to the data region, and previewed your report. Next, you will format column headers and date and currency values. See Lesson 5: Formatting a Report (Reporting Services).
