In this task, you add a Fuzzy Group Transform to the data flow. The Fuzzy Group transformation can help identify duplicates in the source data. See Fuzzy Grouping Transformation for more details.
Drag-drop Fuzzy Group transform in Other Transforms on the SSIS Toolbox to the Data Flow tab under Combine Correct and Corrected Records.
Right-click Fuzzy Group Transform in the Data Flow tab, and click Rename. Type Group Suppliers with matching IDs and press ENTER.
Connect Combine Correct and Corrected Records to Group Suppliers with matching IDs using the blue connector.
.jpg "Connection to Group Suppliers with Matching IDs")
Double-click Group Suppliers with matching IDs.
In the Fuzzy Group Transformation Editor, click New next to OLE DB Connection Manager drop-down list to launch Configure OLE DB Connection Manager dialog box.
In the dialog box, click New to launch Connection Manager dialog box.
Type (local) or period (.) for the Server name.
Select MDS for Select or enter a database name field. You will use the MDS database as the temporary storage for the Fuzzy Group Transform. The Fuzzy Grouping transformation requires a connection to an instance of SQL Server to create the temporary SQL Server tables that the transformation algorithm requires to do its work. You can create a database or use another existing database for this purpose.
Click Test Connection to test the connection and click OK on the message box.
In the Connection Manager dialog box, click OK.
Select (local).MDS (or localhost.MDS) from the list of Data Connections and click OK.
In the Fuzzy Grouping Transformation Editor, confirm that (local).MDS or localhost.MDS is selected for the OLE DB Connection Manager.

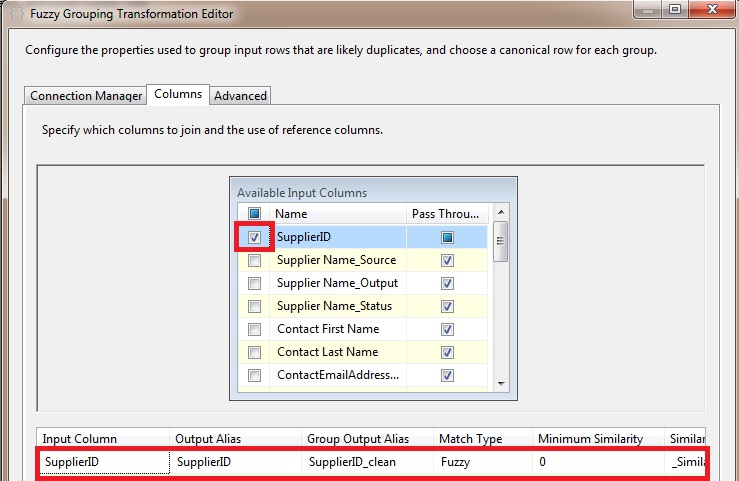

Switch to the Columns tab.
Select (check box) SupplierID_Output from the list of Available Input Columns. To configure the transformation, select the input columns to use when identifying duplicates. To keep it simple, you only use the SupplierID in this step.
.jpg "Fuzzy Grouping Transformation Editor")
Click OK to close the Fuzzy Group Transformation Editor.
Next Step
Task 11: Adding Conditional Split Transform to Filter Duplicates
