Task 14: Adding Execute SQL Task to Control Flow to Run the Stored Procedure for MDS

After loading data into the staging tables of MDS, you run a stored procedure associated with that table to load the data from staging into the appropriate tables in the MDS database. This stored procedure has two required parameters that you need to pass: LogFlag and VersionName. LogFlag specifies whether transactions are logged during the staging process and VersionName represents the version of the model. See Staged Stored Procedure topic for more details.

In this task, you add the Execute SQL Task to the control flow to invoke the stored procedure to load the staged data into appropriate MDS tables.

  1. Now, switch to the Control Flow tab.

  2. Drag-drop Execute SQL Task from the SSIS Toolbox to the Control Flow tab.

  3. Right-click Execute SQL Task in the Control Flow tab, and click Rename. Type Trigger Stored Procedure to Load Data into MDS and press ENTER.

  4. Connect Receive, Cleanse, Match, and Curate Supplier Data to Trigger Stored Procedure to Load Data using the green connector.

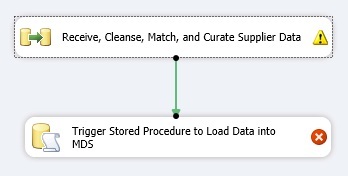

    Connect to Execute SQL Task

  5. Using the Variables window, add two new variables with the following settings. If you do not see the Variables window, click SSIS on the menu bar and click Variables.

    Name

    Data Type

    Value

    LogFlag

    Int32

    1

    VersionName

    String

    VERSION_1

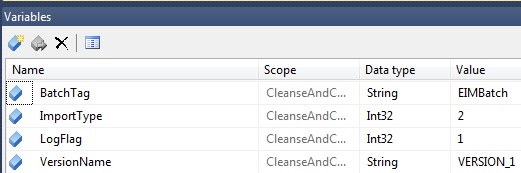

    SSIS Variables Window

  6. Double-click Trigger Stored Procedure to Load Data into MDS.

  7. In the Execute SQL Task Editor dialog box, select (local).MDS (or localhost.MDS) for Connection.

  8. Type EXEC [stg].[udp_Supplier_Leaf] ?, ?, ? for SQL Statement. You can verify the name by using SQL Server Management Studio.

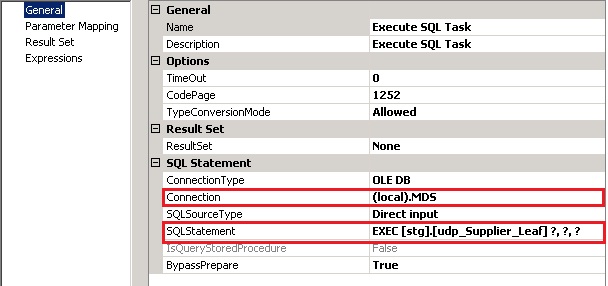

    Execute SQL Editor Dialog Box - General Settings

  9. Click Parameter Mapping from the menu on left.

  10. In the Parameter Mapping page, click Add to add a mapping. Maximize the window and resize columns so that you can see values in drop-down lists properly.

  11. Select User::VersionName from the drop-down list for the Variable Name.

  12. Select NVARCHAR for Data Type.

  13. Type 0 (zero) for Parameter Name.

  14. Repeat the previous four steps to add two more variables.

    Variable Name

    Data Type (important)

    Parameter Name

    User::LogFlag

    LONG

    1

    User::BatchTag

    NVARCHAR

    2

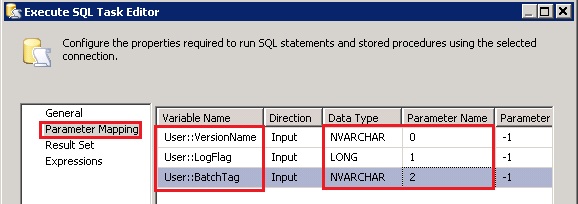

    Execute SQL Task Editor - Parameter Mapping

  15. Click OK to close the Execute SQL Editor dialog box.

Next Step

Task 15: Building and Running the SSIS Project
