Xamarin.Forms Shell tabs

The navigation experience provided by Xamarin.Forms Shell is based on flyouts and tabs. The top level of navigation in a Shell application is either a flyout or a bottom tab bar, depending on the navigation requirements of the application. When the navigation experience for an application begins with bottom tabs, the child of the subclassed Shell object should be a TabBar object, which represents the bottom tab bar.

A TabBar object can contain one or more Tab objects, with each Tab object representing a tab on the bottom tab bar. Each Tab object can contain one or more ShellContent objects, with each ShellContent object displaying a single ContentPage. When more than one ShellContent object is present in a Tab object, the ContentPage objects will be navigable by top tabs. Within a tab, additional ContentPage objects that are known as detail pages, can be navigated to.

Important

The TabBar type disables the flyout.

Single page

A single page Shell application can be created by adding a Tab object to a TabBar object. Within the Tab object, a ShellContent object should be set to a ContentPage object:

<Shell xmlns="http://xamarin.com/schemas/2014/forms"
       xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
       xmlns:views="clr-namespace:Xaminals.Views"
       x:Class="Xaminals.AppShell">
    <TabBar>
       <Tab>
           <ShellContent ContentTemplate="{DataTemplate views:CatsPage}" />
       </Tab>
    </TabBar>
</Shell>

This code example results in the following single page application:

Screenshot of a Shell single page app, on iOS and Android

Shell has implicit conversion operators that enable the Shell visual hierarchy to be simplified, without introducing additional views into the visual tree. This is possible because a subclassed Shell object can only ever contain FlyoutItem objects or a TabBar object, which can only ever contain Tab objects, which can only ever contain ShellContent objects. These implicit conversion operators can be used to remove the Tab objects from the previous example:

<Shell xmlns="http://xamarin.com/schemas/2014/forms"
       xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
       xmlns:views="clr-namespace:Xaminals.Views"
       x:Class="Xaminals.AppShell">
    <Tab>
        <ShellContent ContentTemplate="{DataTemplate views:CatsPage}" />
    </Tab>
</Shell>

This implicit conversion automatically wraps the ShellContent object in a Tab object, which is wrapped in a TabBar object.

Important

In a Shell application, pages are created on demand in response to navigation. This is accomplished by using the DataTemplate markup extension to set the ContentTemplate property of each ShellContent object to a ContentPage object.

Bottom tabs

Tab objects are rendered as bottom tabs, provided that there are multiple Tab objects in a single TabBar object:

<Shell xmlns="http://xamarin.com/schemas/2014/forms"
       xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
       xmlns:views="clr-namespace:Xaminals.Views"
       x:Class="Xaminals.AppShell">
    <TabBar>
       <Tab Title="Cats"
            Icon="cat.png">
           <ShellContent ContentTemplate="{DataTemplate views:CatsPage}" />
       </Tab>
       <Tab Title="Dogs"
            Icon="dog.png">
           <ShellContent ContentTemplate="{DataTemplate views:DogsPage}" />
       </Tab>
    </TabBar>
</Shell>

The Title property, of type string, defines the tab title. The Icon property, of type ImageSource, defines the tab icon:

Screenshot of a Shell two page app with bottom tabs, on iOS and Android

When there are more than five tabs on a TabBar, a More tab will appear, which can be used to access the additional tabs:

Screenshot of a Shell app with a More tab, on iOS and Android

In addition, Shell's implicit conversion operators can be used to remove the ShellContent and Tab objects from the previous example:

<Shell xmlns="http://xamarin.com/schemas/2014/forms"
       xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
       xmlns:views="clr-namespace:Xaminals.Views"
       x:Class="Xaminals.AppShell">
    <TabBar>
       <ShellContent Title="Cats"
                     Icon="cat.png"
                     ContentTemplate="{DataTemplate views:CatsPage}" />
       <ShellContent Title="Dogs"
                     Icon="dog.png"
                     ContentTemplate="{DataTemplate views:DogsPage}" />
    </TabBar>
</Shell>

This implicit conversion automatically wraps each ShellContent object in a Tab object.

Important

In a Shell application, pages are created on demand in response to navigation. This is accomplished by using the DataTemplate markup extension to set the ContentTemplate property of each ShellContent object to a ContentPage object.

Bottom and top tabs

When more than one ShellContent object is present in a Tab object, a top tab bar is added to the bottom tab, through which the ContentPage objects are navigable:

<Shell xmlns="http://xamarin.com/schemas/2014/forms"
       xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
       xmlns:views="clr-namespace:Xaminals.Views"
       x:Class="Xaminals.AppShell">
    <TabBar>
       <Tab Title="Domestic"
            Icon="paw.png">
           <ShellContent Title="Cats"
                         ContentTemplate="{DataTemplate views:CatsPage}" />
           <ShellContent Title="Dogs"
                         ContentTemplate="{DataTemplate views:DogsPage}" />
       </Tab>
       <Tab Title="Monkeys"
            Icon="monkey.png">
           <ShellContent ContentTemplate="{DataTemplate views:MonkeysPage}" />
       </Tab>
    </TabBar>
</Shell>

This results in the layout shown in the following screenshots:

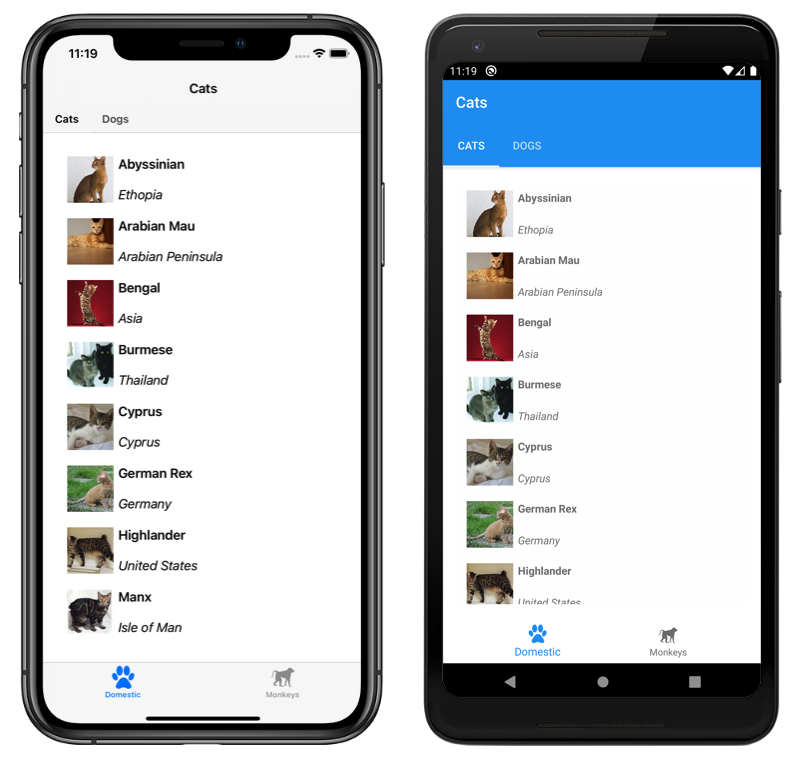

Screenshot of a Shell two page app with top and bottom tabs, on iOS and Android

In addition, Shell's implicit conversion operators can be used to remove the second Tab object from the previous example:

<Shell xmlns="http://xamarin.com/schemas/2014/forms"
       xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
       xmlns:views="clr-namespace:Xaminals.Views"
       x:Class="Xaminals.AppShell">
    <TabBar>
       <Tab Title="Domestic"
            Icon="paw.png">
           <ShellContent Title="Cats"
                         Icon="cat.png"
                         ContentTemplate="{DataTemplate views:CatsPage}" />
           <ShellContent Title="Dogs"
                         Icon="dog.png"
                         ContentTemplate="{DataTemplate views:DogsPage}" />
       </Tab>
       <ShellContent Title="Monkeys"
                     Icon="monkey.png"
                     ContentTemplate="{DataTemplate views:MonkeysPage}" />
    </TabBar>
</Shell>

This implicit conversion automatically wraps the third ShellContent object in a Tab object.

Tab appearance

The Shell class defines the following attached properties that control the appearance of tabs:

  • TabBarBackgroundColor, of type Color, that defines the background color for the tab bar. If the property is unset, the BackgroundColor property value is used.
  • TabBarDisabledColor, of type Color, that defines the disabled color for the tab bar. If the property is unset, the DisabledColor property value is used.
  • TabBarForegroundColor, of type Color, that defines the foreground color for the tab bar. If the property is unset, the ForegroundColor property value is used.
  • TabBarTitleColor, of type Color, that defines the title color for the tab bar. If the property is unset, the TitleColor property value will be used.
  • TabBarUnselectedColor, of type Color, that defines the unselected color for the tab bar. If the property is unset, the UnselectedColor property value is used.

All of these properties are backed by BindableProperty objects, which means that the properties can be targets of data bindings, and styled.

The following example shows a XAML style that sets different tab bar color properties:

<Style TargetType="TabBar">
    <Setter Property="Shell.TabBarBackgroundColor"
            Value="CornflowerBlue" />
    <Setter Property="Shell.TabBarTitleColor"
            Value="Black" />
    <Setter Property="Shell.TabBarUnselectedColor"
            Value="AntiqueWhite" />
</Style>

In addition, tabs can also be styled using Cascading Style Sheets (CSS). For more information, see Xamarin.Forms Shell specific properties.

Tab selection

When a Shell application that uses a tab bar is first run, the Shell.CurrentItem property will be set to the first Tab object in the subclassed Shell object. However, the property can be set to another Tab, as shown in the following example:

<Shell ...
       CurrentItem="{x:Reference dogsItem}">
    <TabBar>
        <ShellContent Title="Cats"
                      Icon="cat.png"
                      ContentTemplate="{DataTemplate views:CatsPage}" />
        <ShellContent x:Name="dogsItem"
                      Title="Dogs"
                      Icon="dog.png"
                      ContentTemplate="{DataTemplate views:DogsPage}" />
    </TabBar>
</Shell>

This example sets the CurrentItem property to the ShellContent object named dogsItem, which results in it being selected and displayed. In this example, an implicit conversion is used to wrap each ShellContent object in a Tab object.

The equivalent C# code, given a ShellContent object named dogsItem, is:

CurrentItem = dogsItem;

In this example, the CurrentItem property is set in the subclassed Shell class. Alternatively, the CurrentItem property can be set in any class through the Shell.Current static property:

Shell.Current.CurrentItem = dogsItem;

TabBar and Tab visibility

The tab bar and tabs are visible in Shell applications by default. However, the tab bar can be hidden by setting the Shell.TabBarIsVisible attached property to false.

While this property can be set on a subclassed Shell object, it's typically set on any ShellContent or ContentPage objects that want to make the tab bar invisible:

<TabBar>
   <Tab Title="Domestic"
        Icon="paw.png">
       <ShellContent Title="Cats"
                     ContentTemplate="{DataTemplate views:CatsPage}" />
       <ShellContent Shell.TabBarIsVisible="false"
                     Title="Dogs"
                     ContentTemplate="{DataTemplate views:DogsPage}" />
   </Tab>
   <Tab Title="Monkeys"
        Icon="monkey.png">
       <ShellContent ContentTemplate="{DataTemplate views:MonkeysPage}" />
   </Tab>
</TabBar>

In this example, the tab bar is hidden when the upper Dogs tab is selected.

In addition, Tab objects can be hidden by setting the IsVisible bindable property to false:

<TabBar>
    <ShellContent Title="Cats"
                  Icon="cat.png"
                  ContentTemplate="{DataTemplate views:CatsPage}" />
    <ShellContent Title="Dogs"
                  Icon="dog.png"
                  ContentTemplate="{DataTemplate views:DogsPage}"
                  IsVisible="False" />
    <ShellContent Title="Monkeys"
                  Icon="monkey.png"
                  ContentTemplate="{DataTemplate views:MonkeysPage}" />
</TabBar>

In this example, the second tab is hidden.
