Connect to and manage PostgreSQL in Microsoft Purview

  • Article

This article outlines how to register PostgreSQL, and how to authenticate and interact with PostgreSQL in Microsoft Purview. For more information about Microsoft Purview, read the introductory article.

Supported capabilities

Metadata Extraction Full Scan Incremental Scan Scoped Scan Classification Labeling Access Policy Lineage Data Sharing Live view
Yes Yes No Yes No No No Yes No No

The supported PostgreSQL server versions are 8.x to 16.x.

When scanning PostgreSQL source, Microsoft Purview supports:

  • Extracting technical metadata including:

    • Server
    • Databases
    • Schemas
    • Tables including the columns
    • Views including the columns

  • Fetching static lineage on assets relationships among tables and views.

When setting up scan, you can choose to scan an entire PostgreSQL database, or scope the scan to a subset of schemas matching the given name(s) or name pattern(s).

Known limitations

When object is deleted from the data source, currently the subsequent scan won't automatically remove the corresponding asset in Microsoft Purview.

Prerequisites

Note

If your data store is not publicly accessible (if your data store limits access from on-premises network, private network or specific IPs, etc.), you will need to configure a self hosted integration runtime to connect to it.

Required permissions for scan

The PostgreSQL user must have read access to system tables in order to access advanced metadata.

Register

This section describes how to register PostgreSQL in Microsoft Purview using the Microsoft Purview governance portal.

Steps to register

To register a new PostgreSQL source in your data catalog, follow these steps:

  1. Navigate to your Microsoft Purview account in the Microsoft Purview governance portal.
  2. Select Data Map on the left navigation.
  3. Select Register
  4. On Register sources, select PostgreSQL. Select Continue.

On the Register sources (PostgreSQL) screen, follow these steps:

  1. Enter a Name that the data source will be listed within the Catalog.

  2. Enter the Server name to connect to a PostgreSQL source. This can either be:

    • A host name used to connect to the database server. For example: MyDatabaseServer.com
    • An IP address. For example: 192.169.1.2

  3. Enter the Port used to connect to the database server (5432 by default for PostgreSQL).

  4. Select a collection from the list.

  5. Finish to register the data source.

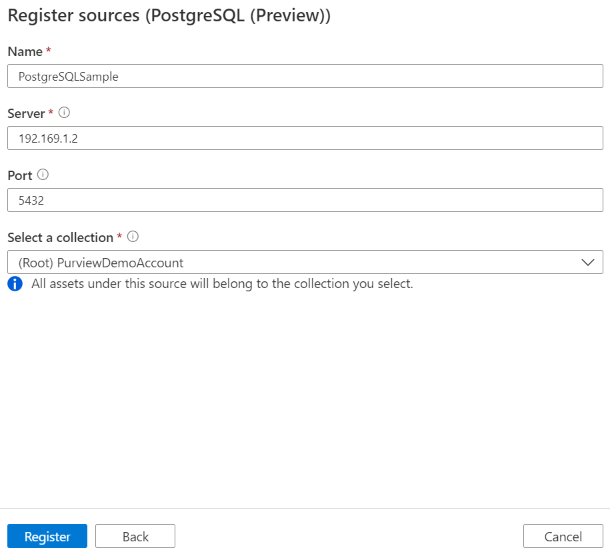

    register sources options

Scan

Follow the steps below to scan PostgreSQL to automatically identify assets. For more information about scanning in general, see our introduction to scans and ingestion.

Authentication for a scan

The supported authentication type for a PostgreSQL source is Basic authentication.

Create and run scan

To create and run a new scan, follow these steps:

  1. If your server is publicly accessible, skip to step two. Otherwise, you'll need to make sure your self-hosted integration runtime is configured:

    1. In the Microsoft Purview governance portal, got to the Management Center, and select Integration runtimes.
    2. Make sure a self-hosted integration runtime is available. If one isn't set up, use the steps mentioned in prerequisites to set up a self-hosted integration runtime.

  2. In the Microsoft Purview governance portal, navigate to Sources.

  3. Select the registered PostgreSQL source.

  4. Select + New scan.

  5. Provide the below details:

    1. Name: The name of the scan

    2. Connect via integration runtime: Select the Azure auto-resolved integration runtime if your server is publicly accessible, or your configured self-hosted integration runtime if it isn't publicly available.

    3. Credential: Select the credential to connect to your data source. Make sure to:

      • Select Basic Authentication while creating a credential.
      • Provide the user name used to connect to the database server in the User name input field.
      • Store the user password used to connect to the database server in the secret key.

    4. Database： Specify the name of the database instance to import.

    5. Schema: List subset of schemas to import expressed as a semicolon separated list. For example, schema1;schema2. All user schemas are imported if that list is empty. All system schemas (for example, SysAdmin) and objects are ignored by default.

      Acceptable schema name patterns can be static names or contain wildcard %. For example: A%;%B;%C%;D

      • Start with A or
      • End with B or
      • Contain C or
      • Equal D

      Usage of NOT and special characters aren't acceptable.

    6. Maximum memory available (applicable when using self-hosted integration runtime): Maximum memory (in GB) available on customer's VM to be used by scanning processes. This is dependent on the size of PostgreSQL source to be scanned.

      Note

      As a rule of thumb, please provide 1GB memory for every 1000 tables

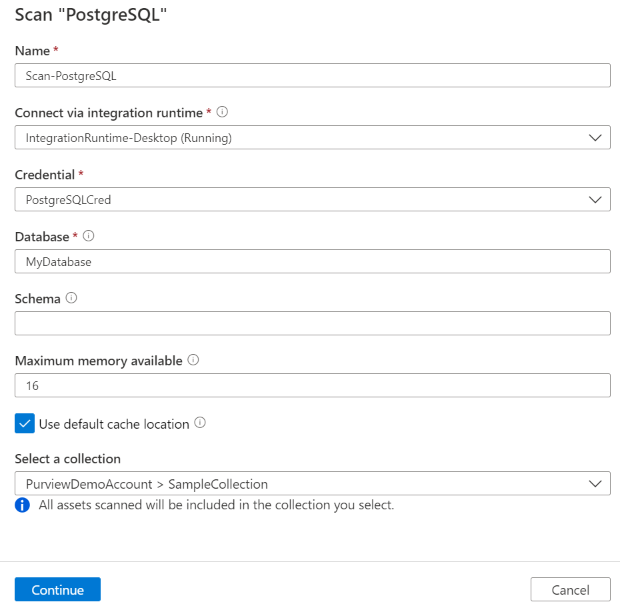

      scan PostgreSQL

  6. Select Test connection to validate the settings (available when using Azure Integration Runtime).

  7. Select Continue.

  8. Choose your scan trigger. You can set up a schedule or ran the scan once.

  9. Review your scan and select Save and Run.

View your scans and scan runs

To view existing scans:

  1. Go to the Microsoft Purview portal. On the left pane, select Data map.
  2. Select the data source. You can view a list of existing scans on that data source under Recent scans, or you can view all scans on the Scans tab.
  3. Select the scan that has results you want to view. The pane shows you all the previous scan runs, along with the status and metrics for each scan run.
  4. Select the run ID to check the scan run details.

Manage your scans

To edit, cancel, or delete a scan:

  1. Go to the Microsoft Purview portal. On the left pane, select Data Map.

  2. Select the data source. You can view a list of existing scans on that data source under Recent scans, or you can view all scans on the Scans tab.

  3. Select the scan that you want to manage. You can then:

    • Edit the scan by selecting Edit scan.
    • Cancel an in-progress scan by selecting Cancel scan run.
    • Delete your scan by selecting Delete scan.

Note

  • Deleting your scan does not delete catalog assets created from previous scans.

Lineage

After scanning your PostgreSQL source, you can browse data catalog or search data catalog to view the asset details.

Go to the asset -> lineage tab, you can see the asset relationship when applicable. Refer to the supported capabilities section on the supported PostgreSQL lineage scenarios. For more information about lineage in general, see data lineage and lineage user guide.

PostgreSQL lineage view
