Enable your Java Servlet web app to sign in users to your Microsoft Entra tenant with the Microsoft identity platform
Overview
This sample demonstrates a Java Servlet web app that signs users in to your Microsoft Entra tenant using the Microsoft Authentication Library (MSAL) for Java. It also demonstrates how to step-up the authentication challenge by requiring multi-factor authentication (MFA) for certain routes.
Note Make sure you understand the basic web site authentication sample first. This shows how to sign users in.
Scenario
This web application shows how to challenge users to authenticate for some routes and challenge users to authenticate and perform MFA for other routes.
- Some web site actions (routes) need the user to be authenticated and others require the user to be authenticated and to have passed the MFA challenge.
- An authentication context
c1
has already been created and associated with MFA - If an MFA route is accessed by the user, the ID token is checked for proof of MFA - a claim named
arcs
with the valueC1
- If an ID token does not exist (i.e., user is not authenticated at all) or if the claim does not exist (they have not passed the MFA challenge), the user is challenged to MFA. This means that they are redirected to the authorization page and a claims challenge is appended to the authorization URI.
Example claim challenge: {"id_token":{"acrs":{"essential":true,"value":"c1"}}}
Note MFA is one of the many Conditional Access controls available. Any of them may be used.
Contents
File/folder | Description |
---|---|
AppCreationScripts/ |
Scripts to automatically configure Microsoft Entra app registrations. |
src/main/java/com/microsoft/azuresamples/msal4j/authwebapp/ |
This directory contains the classes that define the web app's backend business logic. |
src/main/java/com/microsoft/azuresamples/msal4j/authservlets/ |
This directory contains the classes that are used for sign in and sign out endpoints. |
____Servlet.java |
All of the endpoints available are defined in .java classes ending in ____Servlet.java. |
src/main/java/com/microsoft/azuresamples/msal4j/helpers/ |
Helper classes for authentication. |
AuthenticationFilter.java |
Redirects unauthenticated requests to protected endpoints to a 401 page. |
src/main/resources/authentication.properties |
Microsoft Entra ID and program configuration. |
src/main/webapp/ |
This directory contains the UI (JSP templates) |
CHANGELOG.md |
List of changes to the sample. |
CONTRIBUTING.md |
Guidelines for contributing to the sample. |
LICENSE |
The license for the sample. |
Prerequisites
- JDK Version 8 or higher
- A Microsoft Entra premium tenant is required to work with Conditional Access policies.
- How to get a Microsoft Entra tenant
- A user account in your own Microsoft Entra tenant if you want to work with accounts in your organizational directory only (single-tenant mode). If have not yet created a user account in your Microsoft Entra tenant yet, you should do so before proceeding.
Setup
1. Clone or download this repository
From your shell or command line:
git clone https://github.com/Azure-Samples/ms-identity-msal-java-samples.git
cd 3-java-servlet-web-app/1-Authentication/sign-in-auth-context
or download and extract the repository .zip file.
⚠️ To avoid file path length limitations on Windows, clone the repository into a directory near the root of your hard drive.
2. Create a Microsoft Entra application registration for the website
Note This is identical to the basic web site authentication sample.
Details here
Register a new web app in the Microsoft Entra admin center. Following this guide, you must:
- Navigate to the Microsoft identity platform for developers App registrations page.
- Select New registration.
- In the Register an application page that appears, enter your application's registration information:
- In the Name section, enter a meaningful application name that will be displayed to users of the app, for example
java-servlet-webapp-authentication
. - Under Supported account types, select an option.
- Select Accounts in this organizational directory only if you're building an application for use only by users in your tenant (single-tenant).
- Select Accounts in any organizational directory if you'd like users in any Microsoft Entra tenant to be able to use your application (multi-tenant).
- Select Accounts in any organizational directory and personal Microsoft accounts for the widest set of customers (multi-tenant that also supports Microsoft personal accounts).
- Select Personal Microsoft accounts for use only by users of personal Microsoft accounts (e.g., Hotmail, Live, Skype, Xbox accounts).
- In the Redirect URI section, select Web in the combo-box and enter the following redirect URI:
http://localhost:8080/msal4j-servlet-auth/auth/redirect
.
- In the Name section, enter a meaningful application name that will be displayed to users of the app, for example
- Select Register to create the application.
- In the app's registration screen, find and note the Application (client) ID. You use this value in your app's configuration file(s) later in your code.
- Select Save to save your changes.
- In the app's registration screen, click on the Certificates & secrets blade in the left to open the page where we can generate secrets and upload certificates.
- In the Client secrets section, click on New client secret:
- Type a key description (for instance
app secret
), - Select one of the available key durations (In 1 year, In 2 years, or Never Expires) as per your security concerns.
- The generated key value will be displayed when you click the Add button. Copy the generated value for use in the steps later.
- You'll need this key later in your code's configuration files. This key value will not be displayed again, and is not retrievable by any other means, so make sure to note it from the Microsoft Entra admin center before navigating to any other screen or blade.
- Type a key description (for instance
Configure the web app (java-servlet-webapp-authentication) to use your app registration
Open the project in your IDE to configure the code.
In the steps below, "ClientID" is the same as "Application ID" or "AppId".
- Open the
./src/main/resources/authentication.properties
file - Find the string
{enter-your-tenant-id-here}
. Replace the existing value with you tenant id - Find the string
{enter-your-client-id-here}
and replace the existing value with the application ID (clientId) of thejava-servlet-webapp-authentication
application copied from the Microsoft Entra admin center. - Find the string
{enter-your-client-secret-here}
and replace the existing value with the key you saved during the creation of thejava-servlet-webapp-authentication
app, in the Microsoft Entra admin center.
3. Setup the MFA Conditional Access Context
- In the Microsoft Entra admin center, type Microsoft Entra Conditional Access in the search bar and select it.
Note: this is a different Microsoft Entra admin center section than Microsoft Entra ID
- Go to the
Authentication Contexts
page, and click onNew Authentication context
. Give it a name (e.g. "MFA") and select an ID of the Auth context from the list, for examplec1
. Ensure the "Publish To Apps" checkbox is checked. Make a note of the ID.
Note: We have already configured the conditional access auth context ID to c1
in the code for you but you can modify it in the authentication.properties
file.
Modify the value of app.protect.authContextIdMfa
to any ID you want but make sure it matches the ID you chose in the portal.

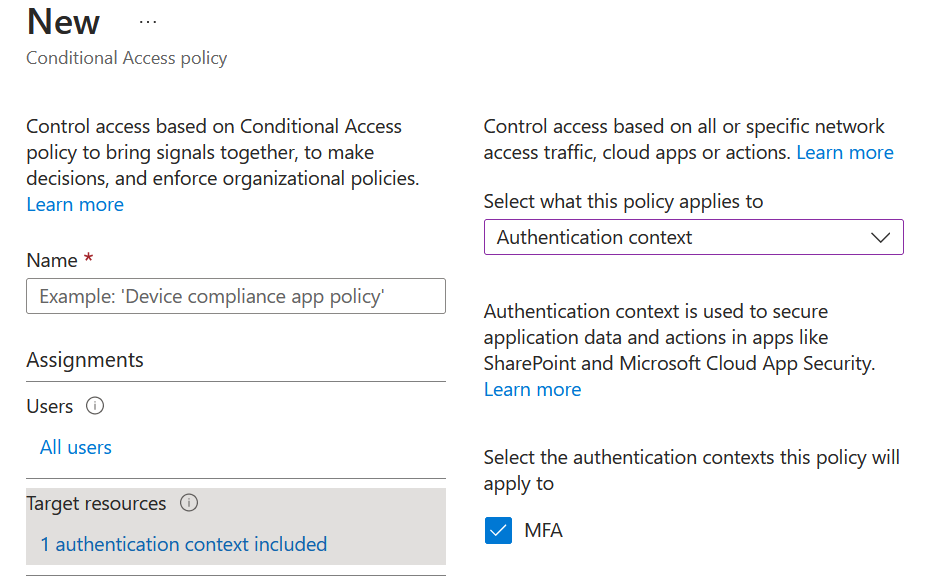

- Now go to Policies and create a new Conditional Access policy.
- Name it
MFA-app-policy
or something meaningful. - Select All Users or a subset of users.
- Select Target Resources and set it to Authentication Context. Then add the context you just created.
- You can skip the "Conditions" part of the flow. This policy will apply to all calls.
- In Grant, check the Require Multi-Factor Authentication policy.
- You can skip Session.
- Click the Select button then click Create.
- Name it
Running The Sample
Build .war File Using Maven
- Navigate to the directory containing the pom.xml file for this sample (the same directory as this README), and run the following Maven command:
mvn clean package
- This should generate a
.war
file which can be run on a variety of application servers
Deploying the Sample
The homepage for the sample is http://localhost:8080/msal4j-servlet-auth
as seen in the authentication.properties
file
Our samples can be deployed to a number of application servers, such as Tomcat, WebLogic, or Webshpere, and MSAL Java itself can generally be integrated into existing applications without changes to your existing deployment set up.
You can find instructions for deploying our samples here on MSAL Java's Github wiki.
Explore the sample
- In
authwebapp
there are 2 protected routes:token_details
requires simple authentication andtoken_details_mfa
which requires MFA. - The orchestration logic is in the
AuthenticationFilter
. It figures out the state of the user (authenticated, authenticated + MFA, not authenticated) and the requirements of the route (based on configuration). - If the auth requirement is not met, the user is challenged, meaning they are redirected to the Identity Provider (Microsoft Entra).
- To understand if a user meets the authentication context (MFA), the sample looks at the ID Token for a claim named
acrs
and valuec1
. - To challenge a user if they are not authenticated, the sample adds a claims challenge to the authorization URI
claims={"id_token":{"acrs":{"essential":true,"value":"c1"}}}
