Azure managed disk performance meter
This template allows you to run a managed disk performance test using fio utility.

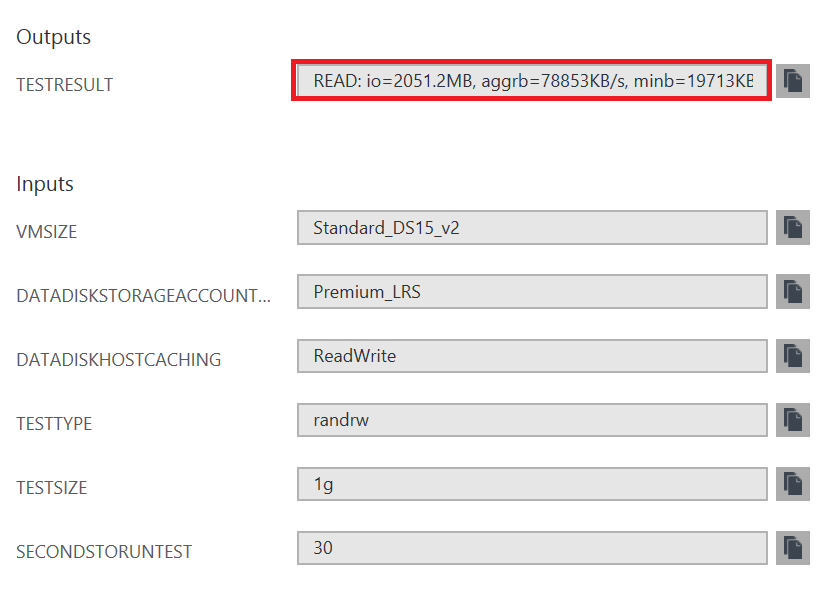

Upon template deployment you will have the managed disk performance automatically measured. You can see the measurements like this:
OutputsString : Name Type Value =============== ========================= ========== testresult String READ: io=2051.2MB, aggrb=78853KB/s, minb=19713KB/s, maxb=20024KB/s, mint=26222msec, maxt=26636msec; WRITE: io=2044.9MB, aggrb=78613KB/s, minb=19653KB/s, maxb=19963KB/s, mint=26222msec, maxt=26636msec;
To re-measure and get full ouput you can login to the test VM with credentials you provided during deployment and use this a command like this:
sudo fio --runtime 30 /opt/vmdiskperf/t
Or make another test, like this:
sudo echo -e '[io]\nrw=randrw\nsize=128m\ndirectory=/datadisk' | sudo fio -
In case you don't need to re-measure, it is safe to delete the created resource group.
Tags: Microsoft.Storage/storageAccounts, Microsoft.Network/publicIPAddresses, Microsoft.Network/virtualNetworks, Microsoft.Network/networkInterfaces, Microsoft.Network/networkSecurityGroups, Microsoft.Compute/virtualMachines, extensions, CustomScriptForLinux
