Code interpreter sample

09/30/2025

This sample demonstrates a Power Apps Component Framework (PCF) control that integrates with Code Interpreter enabled prompts. It can display interactive data visuals in HTML and Javascript or create file previews and downloads for PDF, Word, PowerPoint and Excel documents.

Features

Code Interpreter Integration: Seamlessly integrates with Code Interpreter enabled prompts that generate Word, PowerPoint, Excel, or PDF documents or interactive data visuals in HTML and Javascript.
Interactive Data Visuals: Display interative charts and graphs in Html and Javascript.
File Preview: Native preview support for PDF, Word (.docx), and Excel (.xlsx) documents.
Download Support: Direct download links for all supported file types.

Compatibility

This sample works for model-driven apps in Dataverse environments with AI capabilities and code intepreter enabled.

Applies to

Power Apps component framework

Get your own free development tenant by subscribing to Power Apps Developer Plan.

Version history

Version	Date	Comments
1.0	September 19, 2025	Initial release with PDF, Word, and Excel preview

Try this sample

You can try this sample without building it or writing any code. In the solutions folder of this sample find the following managed solution files:

Solution	Description
solutions/CodeInterpreterControlSolution.zip	Contains the PCF control for the code in this sample.
CodeInterpreterSample_1_0_0_0_managed.zip	Contains items to enable demonstrating the control without depending on existing tables: - A custom table named `sample_example`. - A model-driven application that includes data from the `sample_example` table. - Three code interpreter enabled AI models (prompts) that reference columns from the `sample_example` table.

Download and Import the CodeInterpreterSample_1_0_0_0_managed.zip and CodeInterpreterControlSolution.zip into your environment.

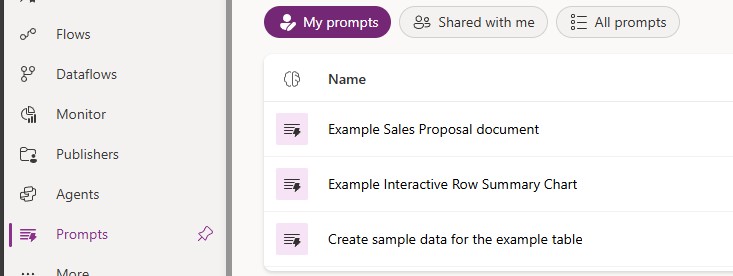

In Power Apps select AI hub, and then Prompts.
Locate the prompt named Create sample data for the example table and open it.
Click Test and observe the response to see sample records being adding into the Example table through code interpreter.
In Power Apps select Apps and locate the model-driven app named Code Interpreter example app.
Click the pencil icon to edit the app.
In the app, locate the Examples form and click the pencil icon to edit the form.
Select the section of the form with the title Add PCF components here.
Select Component from the menu and select Get More components at the bottom of the screen.
In the Get More components fly out, search for 'Code Interpreter Control'.
Select the control and select Add. You will now see the More components section with the Code Interpreter Control in the Components pane.
Drag Code Interpreter Control to the Add PCF components here section.
In the Model ID field, enter either b412c9a3-1b4f-45c4-956d-33bd4412be33 for the Example Sales Proposal document AI model or 6ed18606-78da-4903-a868-73c7b462b336 for the Example Interactive Row Summary Chart AI model.

Note: These ID values are known because they are set in the Code Interpreter Sample solution you installed in the first step. If you use a different ai model, you will need to query the AI Model (msdyn_AIModel) table to get the msdyn_aimodelid value to use instead.
For Record ID click Bind to table column and choose Example (Text) and click Done
Click Save and publish then Back
Click the play button in the upper right corner.
Select one of the Active Example records and observe code interpreter display either an interactive chart or document preview + download based on the Model ID chosen above.

Build this sample

Like all PCF samples, you can modify and build this sample.

Prerequisites

Install the Microsoft Power Platform CLI
Node.js and npm installed
Dataverse environment with AI Builder capabilities
A Code Interpreter enable prompt with a case-sensitive single input named RecordId in your environment. Review Code Interpreter documentation here

Dependencies

This project uses the following npm packages:

{
 "mammoth": "^1.9.1",
 "xlsx": "^0.18.5"
}

Configuration

This control exposes the following properties to

Property	Description
Model ID	ID of the Code Interpreter enabled AI model.
Entity ID	ID of the current record to process. Bind this to the unique identifier of your table. For example: Account (Text)

Build a solution with this sample

Follow the steps in the README.md to generate solutions containing the controls so you can import and try the sample components in your model-driven or canvas app.

Run the sample locally

To try this sample locally, follow these steps:

Clone the repository and navigate to the CodeInterpreterControl directory:

git clone https://github.com/microsoft/PowerApps-Samples
cd PowerApps-Samples\component-framework\CodeInterpreterControl

Install dependencies:
```
npm install
```
Build the project:
```
npm run build
```
Test locally:
```
npm start
```

Deploy to your Dataverse environment:

pac pcf push --publisher-prefix <your-prefix>

Enable 'Code Interpreter'

Follow the instructions to enable Code Interpreter in the Administration of code interpreter

Create a custom Code Interpreter prompt the sample can use

Go to Copilot Studio
Select your environment
Follow the instructions to Enable Code Interpreter in a prompt
In the prompt editor, select + Add content
Select Input of Text
Set name to RecordId (case-sensitive). Set Sample data to a single valid record id.
Finish creating a prompt that either displays interactive data visuals in HTML and Javascript or creates a PDF, Word, PowerPoint or Excel document (see examples below). Don't forget to include Knowledge of relevant columns (+ Add content > Knowledge > Dataverse ...)
Try it by clicking Test and viewing the output in Model response box.
Once you're satisfied click Save

Power Apps Component Framework

Disclaimer

THIS CODE IS PROVIDED AS IS WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR NON-INFRINGEMENT.
