GitHub Issue Manager sample agent

Browse code

GitHub Issue Manager is a sample solution for extending Microsoft 365 Copilot. It combines multiple extensibility options to create a full solution for managing issues in a GitHub repository. This sample consists of:

  • A Microsoft Graph connector that ingests GitHub issues. Ingesting the issues allows Microsoft 365 Copilot to reason over the contents of those issues.
  • A GitHub webhook (implemented as an Azure Function) that receives notifications when issues are created or updated. These notifications trigger the Microsoft Graph connector to ingest new issues or re-ingest updated issues.
  • A declarative agent configured to use the data from the Microsoft Graph connector to generate responses.
  • An API plugin (and corresponding API) that adds actions to the declarative agent, allowing it to label, assign, or close issues.

Prerequisites

Microsoft 365 account requirements

You need either:

  • A licensed Microsoft 365 Copilot user account in a Microsoft 365 subscription
  • A user account in a Microsoft 365 subscription that has enabled metered usage of Microsoft 365 Copilot

This user must have the ability to sideload custom apps. For details, see Teams Toolkit requirements.

To configure the Microsoft Graph connector, you will need administrator accounts with the following roles:

  • Privileged Role Administrator to grant tenant-wide application permission to the connector
  • Search Administrator to enable the connector in the Microsoft 365 admin center

A Global Administrator can also be used to perform both tasks.

Note

The administrator roles can be assigned to your user account, or you can ask your administrators to complete their respective steps.

Set up the sample

  1. Open the directory or folder that contains this project in Visual Studio Code.
  2. Select Teams Toolkit in the Activity Bar.
  3. In the Accounts section, sign in to Microsoft 365 and Azure with your user account.

Register an application in Microsoft Entra

Teams Toolkit will automate registering an application for you.

  1. Select Terminal then Run Task... from the Visual Studio Code menu. Alternatively, you can press CTRL+SHIFT+P and search for Tasks: Run Task.
  2. Select the register app task.
  3. Confirm that the ./src/local.settings.json file has been generated.

If you are unable to register an application using this method, you can register an application in the Microsoft Entra portal.

Create a persistent devtunnel

Creating a devtunnel will generate a URL that both GitHub and Microsoft 365 Copilot can use to connect to the sample running on your local machine.

  1. If you are not already logged in to the devtunnel CLI, use devtunnel user login --help to see the available login options. Login to the CLI before proceeding.

  2. Create the tunnel.

    devtunnel create --allow-anonymous

    Copy the Tunnel ID from the output.

  3. Add port 7071 to the tunnel.

    devtunnel port create -p 7071

  4. Start the dev tunnel.

    devtunnel host

  5. Copy the URL labeled Connect via browser. This is your devtunnel URL.

  6. Set the DevTunnel property in ./src/local.settings.json to your devtunnel URL.

  7. Add the following line in ./agent/env/.env.dev, replacing YOUR_DEVTUNNEL_URL with your devtunnel URL. If the file does not exist, create it.

    DEVTUNNEL_URL=YOUR_DEVTUNNEL_URL

Tip

If you need to restart your devtunnel, you can restart it using its Tunnel ID with the following command.

devtunnel host TUNNEL_ID

Configure GitHub access

This sample uses a personal access token to authenticate API calls to the GitHub API and a repository webhook to receive event notifications from GitHub.

  1. Create a fine-grained personal access token with the Read access to metadata and Read and Write access to issues permissions in the GitHub repository you want to manage issues for. For instructions, see Creating a fine-grained personal access token.

  2. Create a repository webhook using the following values:

    • Payload URL - Set to your devtunnel URL + /api/Notify. For example, if your devtunnel URL is https://xxxxxxxx-7071.use2.devtunnels.ms, you would set this to https://xxxxxxxx-7071.use2.devtunnels.ms/api/Notify.
    • Content type - application/json
    • Secret - Set a strong password
    • SSL verification - Enable SSL verification
    • Which events would you like to trigger this webhook? - Let me select individual events with Issues and Issue comments selected.

  3. Set the following values in ./src/local.settings.json:

    • Add the token in the GitHubOptions:PersonalAccessToken property
    • Add the password you set in the Secret value for the webhook in the GitHubOptions:WebhookSecret property
    • Add the repository owner in the GitHubOptions:RepoOwner property
    • Add the repository name in the GitHubOptions:RepoName property

Tip

You can find the repository's owner and name from the URL to the repository. For example, if the repository's URL is https://github.com/microsoftgraph/github-issue-manager, the repository's owner is microsoftgraph, and the repository name is github-issue-manager.

Initialize the Microsoft Graph connector

  1. In Visual Studio Code press CTRL+SHIFT+P and select Azurite: Start. This will start the Azurite emulator.
  2. Select Run then Start Debugging. Wait for the project to build and start.
  3. Open manage-connector.rest. Locate the POST http://localhost:7071/api/Initialize line and select the Send Request command above it. If you don't see Send Request, make sure you have the REST Client extension installed.
  4. Monitor the output in the Terminal window for a message that starts with You need to grant tenant-wide admin consent to the application in Entra ID. The message includes a link that your admin can use to grant tenant-wide consent. Do this before proceeding.
  5. Resend the request from manage-connect.rest.
  6. Monitor the output in the Terminal window for progress. The sample will create an external connection, register a schema for that connection, and then crawl all existing issues in the GitHub repository. This process may take several minutes, depending on the number of issues in your repository. When you see Crawl took X seconds in the output, the connector has been fully initialized.

Sideload the agent to Microsoft 365 Copilot

  1. Select Teams Toolkit in the Activity Bar.
  2. Select Provision.
  3. When prompted to enter an API key, enter any string 10 characters or longer. Wait for the actions to complete.

Note

The API key is ignored when running Azure Functions locally, so any value will work for local testing.

Using the sample

Important

Make sure that both the sample and the devtunnel are running before trying to use the sample in Microsoft 365 Copilot.

  1. Open your browser and navigate to https://m365.cloud.microsoft/chat?auth=2.

  2. If the right-hand pane with a list of agents is not visible, locate the panel icon in the top right of the page and select it to expand the panel.

    The panel icon in Microsoft 365 Copilot

  3. Select GitHub Issue Manager in the right-hand pane.

  4. Select one of the sample prompts, or try creating your own. The agent can get information about issues, add or remove labels, assign or unassign users, and close issues.

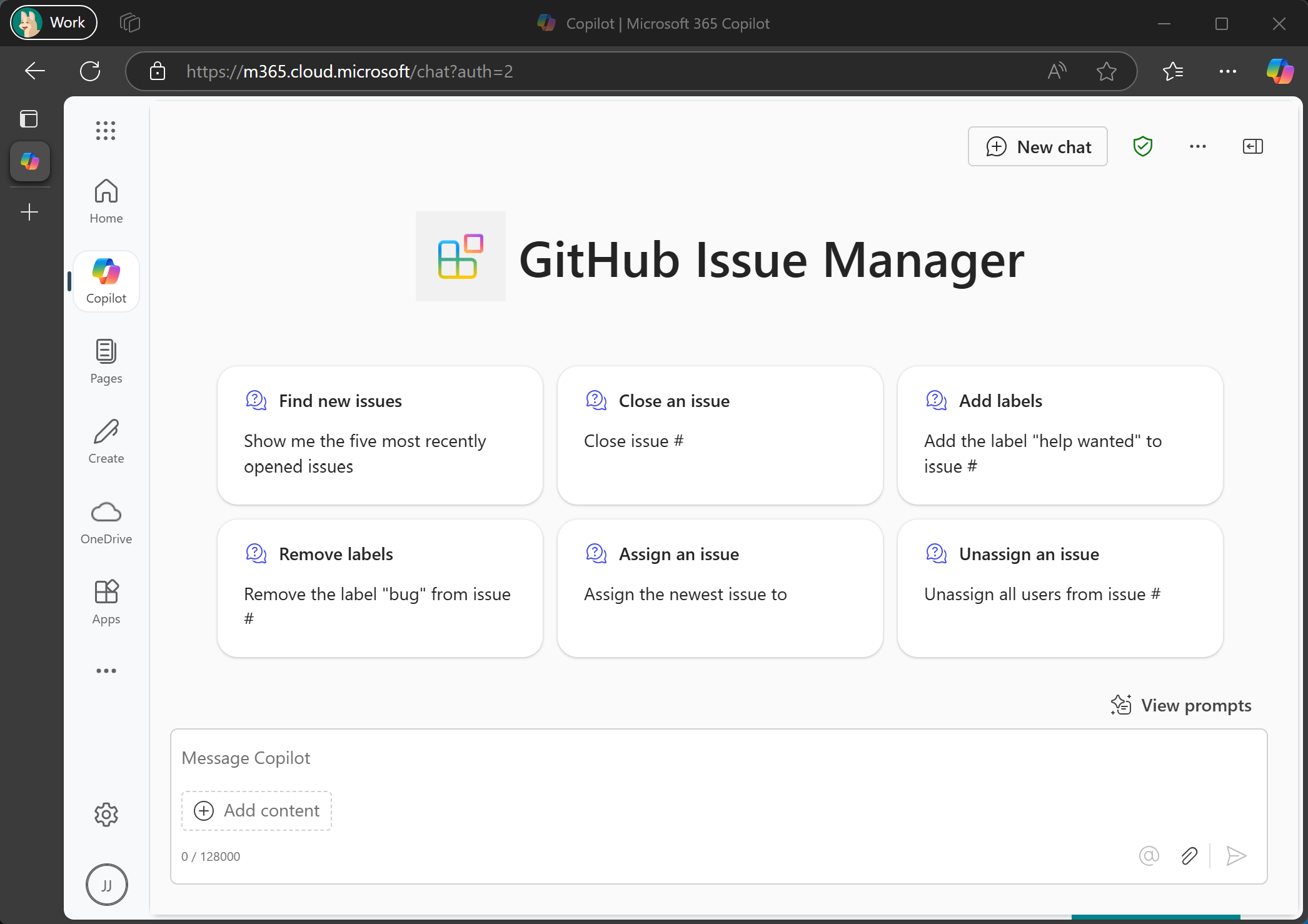

    The agent displaying its sample prompts
