Create a Word add-in with command buttons

Browse code

Summary

Learn how to build an Office Add-in that has a command button to show the task pane, and a menu dropdown button that can show the task pane, or get data.

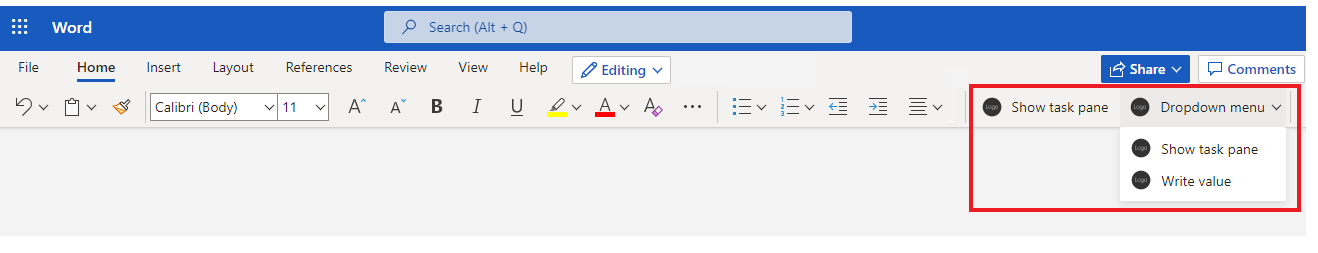

Screen shot of Word showing ribbon with Home tab selected and two buttons for the sample that show the task pane or show a dropdown menu.

Features

  • A button in the ribbon that shows the task pane.
  • A dropdown button in the ribbon with two menu commands.

Applies to

  • Word on Windows, Mac, and in a browser.

Prerequisites

  • Microsoft 365 - Get a free developer sandbox that provides a renewable 90-day Microsoft 365 E5 developer subscription.

Run the sample on Word on the web

This sample is hosted directly from this GitHub repo. Use the following steps to sideload the manifest.xml file to see the sample run.

  1. Download the manifest.xml file from the sample folder for Word.

  2. Open Office on the web.

  3. Choose Word, and then open a new document.

  4. On the Insert tab on the ribbon in the Add-ins section, choose Office Add-ins.

  5. On the Office Add-ins dialog, select the MY ADD-INS tab, choose Manage My Add-ins, and then Upload My Add-in.

    The Office Add-ins dialog with a drop-down in the upper right reading "Manage my add-ins" and a drop-down below it with the option "Upload My Add-in"

  6. Browse to the add-in manifest file, and then select Upload.

    The upload add-in dialog with buttons for browse, upload, and cancel.

  7. Verify that the add-in loaded successfully. You'll see a Show task pane button and Dropdown menu button on the Home tab on the ribbon.

On the Home tab, choose the Show task pane button to display the task pane of the add-in. Choose the Dropdown menu button to see a drop down menu. In the menu you can show the task pane, or choose Write value to call a command that writes the button's id to the current cell.

Run the sample on Word on Windows or Mac

Office Add-ins are cross-platform so you can also run them on Windows, Mac, and iPad. The following links will take you to documentation for how to sideload on Windows, Mac, or iPad. Be sure you have a local copy of the manifest.xml file for the Hello world sample. Then follow the sideloading instructions for your platform.

Configure a localhost web server and run the sample from localhost

If you prefer to configure a web server and host the add-in's web files from your computer, use the following steps.

  1. Install a recent version of npm and Node.js on your computer. To verify if you've already installed these tools, run the commands node -v and npm -v in your terminal.

  2. You need http-server to run the local web server. If you haven't installed this yet you can do this with the following command.

    npm install --global http-server

  3. You need Office-Addin-dev-certs to generate self-signed certificates to run the local web server. If you haven't installed this yet you can do this with the following command.

    npm install --global office-addin-dev-certs

  4. Clone or download this sample to a folder on your computer. Then go to that folder in a console or terminal window.

  5. Run the following command to generate a self-signed certificate that you can use for the web server.

    npx office-addin-dev-certs install

    The previous command will display the folder location where it generated the certificate files.

  6. Go to the folder location where the certificate files were generated. Copy the localhost.crt and localhost.key files to the hello world sample folder.

  7. Run the following command:

    http-server -S -C localhost.crt -K localhost.key --cors . -p 3000

    The http-server will run and host the current folder's files on localhost:3000.

Now that your localhost web server is running, sideload the manifest-localhost.xml file provided in the word folder. Using the manifest-localhost.xml file, follow the steps in Run the sample on Word on the web to sideload and run the add-in.

Key parts of this sample

Commands UI

The manifest.xml file defines all of the commands UI in the <ExtensionPoint> element. The ribbon buttons and dropdown menu are specified in the <OfficeTab> section. Because <OfficeTab id="TabHome"> specifies TabHome, the buttons are located on the Home ribbon tab.

For more information about ExtensionPoint elements and options, see Add ExtensionPoint elements.

Commands JavaScript

The manifest.xml file contains a <FunctionFile resid="Commands.Url"/> element that specifies where to find the JavaScript commands to run when buttons are used. The Commands.Url resource id points to /src/commands/commands.html. When a button command is chosen, commands.html is loaded, which then loads /src/commands/commands.js. This is where the ExecuteFunction actions are mapped from the manifest.xml file.

For example the following manifest XML maps to the writeValue function in commands.js.

<Action xsi:type="ExecuteFunction">
  <FunctionName>writeValue</FunctionName>
</Action>

async function writeValue(event) {
...

For more information about adding commands, see Add the FunctionFile element.
