Using Webhooks

Set Up Webhooks with SharePoint Embedded

Webhooks are automated messages that are transmitted by an application when a trigger is activated. They can be used in SPE to enable the automation of workflows, the integration of systems, and to respond to events in real-time.

You'll use webhooks to invoke the Azure Cognitive Services APIs from the application whenever an existing file is updated, or a new file is uploaded.

To set up webhooks with your current SharePoint Embedded application, you need to:

  1. Create and register a webhook endpoint to get notifications whenever there's a change in your container. This will be done using REST APIs.
  2. Connect to Graph and subscribe to changes. You can expose your application to the internet by either running it locally or deploying it on the cloud. For this tutorial, you'll be employing the former by utilizing ngrok and then subscribing to the changes by making a POST call.
  3. Perform any desired action by handling the webhook data. One such use case is covered in Enabling document processing with Azure Cognitive Services tutorial.

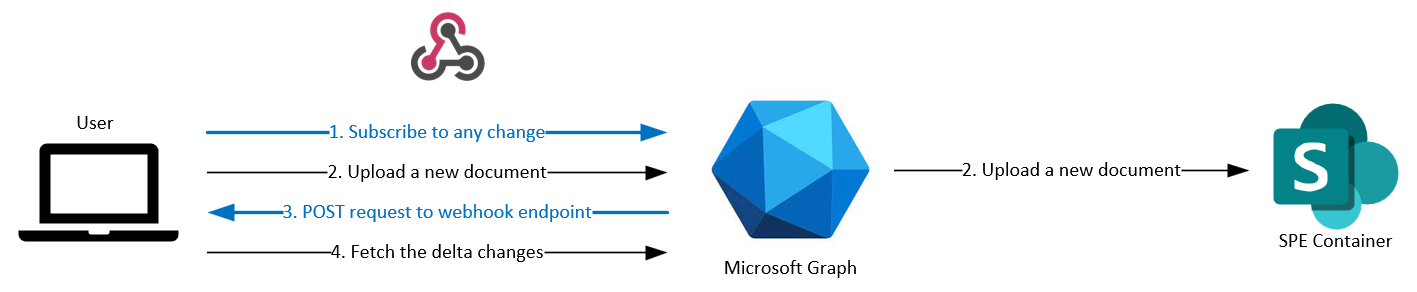

using webhooks schema

Tip

To learn more about the Microsoft Graph APIs used in this tutorial, see Create subscription.

Create and register a webhook

Open the index.ts file and add an endpoint onReceiptAdded:

server.post('/api/onReceiptAdded', async (req, res, next) => {
  try {
    const response = await onReceiptAdded(req, res);
    res.send(200, response)
  } catch (error: any) {
    res.send(500, { message: `Error in API server: ${error.message}` });
  }
  next();
});

You also need to add the query parser plugin at the top of this file so that it runs at server startup:

server.use(restify.plugins.bodyParser(), restify.plugins.queryParser());

Create onReceiptAdded.ts and implement the method onReceiptAdded to read validationToken and driveId. validationToken is required when Microsoft Graph makes a one-time call to verify the endpoint upon creation of the webhook subscription. driveId is the container-id for which the subscription is created.

require('isomorphic-fetch');

export const onReceiptAdded = async (req: Request, res: Response) => {

  const validationToken = req.query['validationToken'];
  if (validationToken) {
    res.send(200, validationToken, {"Content-Type":"text/plain"});
    return;
  }

  const driveId = req.query['driveId'];
  if (!driveId) {
    res.send(200, "Notification received without driveId, ignoring", {"Content-Type":"text/plain"});
    return;
  }

  console.log(`Received driveId: ${driveId}`);

  res.send(200, "");
  return;
}

Connect to Graph and subscribe to changes

Follow the documentation to create a tunnel for your backend server using ngrok.

After starting the app, run the following command in a terminal:

ngrok http 3001

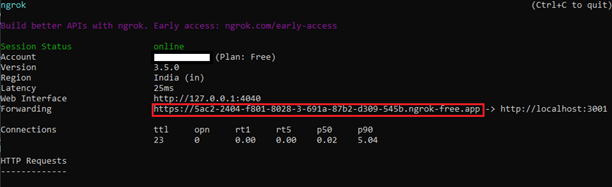

On successful completion, you should get the following output. The public-facing endpoint for the app is highlighted in the red rectangle:

ngrok registration

Once the tunneling is active, you can subscribe to delta changes in the container by adding the webhook URL. To do that, open Postman and make the following POST request with the appropriate graph access token and notificationUrl with the driveId appended as a query parameter to ensure that you get notifications for changes only in the desired container.

POST  https://graph.microsoft.com/v1.0/subscriptions
{
  "changeType": "updated",
  "notificationUrl":"https://5ac2-2404-f801-8028-3-691a-87b2-d309-545b.ngrok-free.app/api/onReceiptAdded?driveId={{ContainerId}}",
  "resource": "drives/{{ContainerId}}/root",
  "expirationDateTime": "2024-01-20T03:58:34.088Z",
  "clientState": ""
}

You can use the following code snippet for setting the max possible expiration time of 4230 minutes from the current time by adding this to the "Pre-request Script" section. It will set an environment variable that can be used in the request body.

var now = new Date()
var duration = 1000 * 60 * 4230; // max lifespan of driveItem subscription is 4230 minutes
var expiry = new Date(now.getTime() + duration);
var expiryDateTime = expiry.toISOString();

pm.environment.set("ContainerSubscriptionExpiry", expiryDateTime);

At this point, if you add/update any file in the container, you'll get a notification at the previously added endpoint (/api/onReceiptAdded) and a log message at the console: Received driveId: <containerId>
