Tenant-wide Deployment of SharePoint Framework Extensions

Tenant Wide Deployment option for SharePoint Framework (SPFx) Extensions is supported for application customizers and for List View Command Sets. It provides an easy option for tenant App Catalog managers to manage which extensions are activated by default across the tenant or based on web / list templates used in the sites.


SharePoint Framework extensions are supported with modern experiences regardless of the actual site template used when content site was created.

When developers create a new SharePoint Framework extension solution using standard SharePoint Framework Yeoman packages, automation is included in the solution package to activate extension across the tenant.


Starting with SharePoint Framework v1.6, default scaffolding will automatically create example files in SharePoint Solution to activate extension across the tenant if you chose to use the tenant-scoped deployment option.

SharePoint Framework solution will need to be configured to use Tenant-scoped solution deployment for SharePoint Framework solutions, to be able to automatically activate extensions across the tenant using Tenant Wide Deployment functionality. This means that the skipFeatureDeployment attribute in the package-solution.json will need to be set as true.

Controlling tenant wide deployment from App Catalog site collection

App catalog site collection is used to deploy SharePoint add-ins and SharePoint Framework components to the tenant. This site collection is created by tenant administrator and it is used to manage what customizations are available for end users in actual content site collections.

App catalog site collection contains a Tenant Wide Extensions list, which can be used to manage SharePoint Framework Extension activations in the tenant. This list can be accessed from the site contents page of the app catalog site.

Specific SharePoint Framework extensions can be activated in the tenant level by adding entries to the Tenant Wide Extension list. Each entry can be targeted to specific web template or a list type, depending on the functional requirements.

These list-specific configurations are resolved at runtime when end users are accessing pages in content site collections. This means that the changes applied to this list are available for both existing and new sites in the tenant.

SharePoint Framework solutions can contain automation that will add automatically entry to the Tenant Wide Extension list, when the solution is added


It may take up to 20 minutes before the functionality will be enabled after first entry added to the Tenant Wide Extensions list on a specific tenant.

Tenant wide deployment list description

Component ID has to exist in the tenant to be able to add entry for it.

Column Type Description
Title String Title of the entry. Can be descriptive entry for the registration.
Component Id Guid Manifest ID of the component. Has to be in GUID format and component must exists in the App Catalog.
Component Properties String Optional component properties.
Web Template String Can be used to target extension only to specific web template. See possible values in below table.
List template int List type as a number. See possible values from below table.
Location String Location of the entry. There are different support locations for application customizers and List View Command Sets.
Sequence int Sequence of the entry in rendering.
Host Properties String Additional server-side configuration, like pre-allocated height for placeholders.
Disabled Boolean Is the entry enabled or disabled.

For the Web Template column, any web template definition is technically supported. Following table defines the most commonly used templates.

Template Web Template ID
Group associated team site GROUP#0
Modern team site without a group STS#3
Classic team site STS#0
Classic publishing site BLANKINTERNET#0

For the List Template column any list ID is technically supported, but only subset of classic list types supports modern experiences.

List List Id
Custom List 100
Document library 101

Supported location values are following. These are specific for the component type.

Value Component Type Description
ClientSideExtension.ApplicationCustomizer Application Customizer Required for application customizer.
ClientSideExtension.ListViewCommandSet.ContextMenu ListView Command Set Show List View buttons in Context Menu for items in a list.
ClientSideExtension.ListViewCommandSet.CommandBar ListView Command Set Show List View buttons in Command Bar of the list.
ClientSideExtension.ListViewCommandSet ListView Command Set Show List View buttons in both context menu and command bar.


Technically this list defines the dynamic entries which will be automatically added to the Web or List UserCustomAction collection when a page from a site is being rendered. List information is cached and it's content output as part of the page rendering on runtime.

Automating tenant wide deployment from solution package

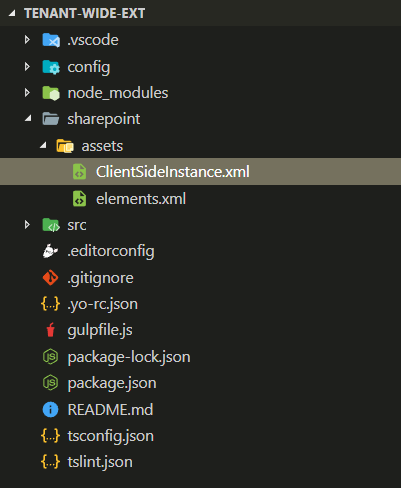

The SharePoint Framework generator adds the file ./sharepoint/assets/ClientSideInstance.xml to new solutions when the initial component type selected is an extension.

SharePoint client-side solution project

ClientSideInstance.xml is taken into account in the solution activation at the App Catalog if the skipFeatureDeployment attribute is set to true in the package-solution.json file.

This file contains by default following structure. ClientSideComponentInstance element instructs SharePoint to add automatically an entry to the Tenant Wide Deployment list when the solution package is added to the App Catalog.

<?xml version="1.0" encoding="utf-8"?>
<Elements xmlns="http://schemas.microsoft.com/sharepoint/">
      Properties="{&quot;testMessage&quot;:&quot;Test message&quot;}">

If you selected SharePoint Online only (latest) as the target environment selected when the SharePoint Framework solution was created, the ClientSideInstance.xml file is also referenced in the package-solution.json, so that it's included inside of the *.sppkg file, when you package your solution.


If you select another target environment, while the the ClientSideInstance.xml file is added to the project, it isn't included in the package-solution.json file. While SharePoint Server 2019 (that includes the SharePoint Framework v1.4, see Supported capabilities for details) supports tenant scoped deployment, it doesn't support tenant-wide deployment (added in SharePoint Framework v1.6, see Tenant-Wide Deployment of extensions for details).

If this file is referenced in the package-solution.json, uploading the generated *.sppkg file to the SharePoint Server 2019 tenant app catalog will throw an exception.


If you do not want this file to be present in the *.sppkg file, you can easily remove that from packaging process by updating package-solution.json file.

ClientSideComponentInstance element supports following attributes.

Attribute Mandatory Description
Title Yes Title of the entry. Can be descriptive entry for the registration.
Location Yes Location entry for the extension registration
ComponentId Yes Manifest ID of the component
Properties Yes Optional properties for the component. Notice that this is mandatory attribute in xml level, which can be set as empty string, if no properties are needed. Value also needs to be encoded properly so that the property values can be provided in the xml format.
ListTemplateId No Optional list template type ID to which extension should be activated
WebTemplateId No Optional web template id to define the site type where extension should be activated
Sequence No Optional activation sequence order for the extensions. Used if multiple extensions are activated on a same scope.
HostProperties No Optional server-side configurations, like defining pre-allocated height for placeholders.

Below xml definition shows how the optional values could be used as part of the registration.

<?xml version="1.0" encoding="utf-8"?>
<Elements xmlns="http://schemas.microsoft.com/sharepoint/">
      Properties="{&quot;testMessage&quot;:&quot;Test message&quot;}"

Trusting the solution during deployment

When an administrator adds a solution that has a ClientSideInstance.xml file inside of it to App Catalog, specific warning message is shows to ensure that presence of the automated configuration is known.

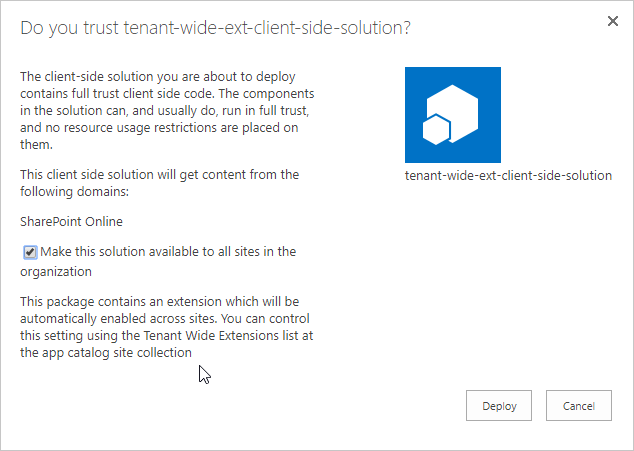

The following dialog is what administrators will see for app catalogs that use the classic experience, such as SharePoint on-premises deployments:

Trusting SharePoint Framework package deployed to tenant app catalog (classic experience)

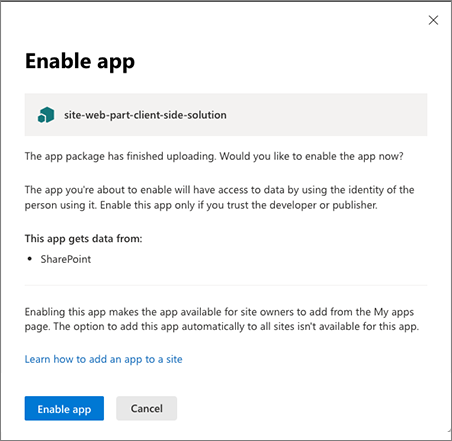

A similar, but slightly different, dialog is shown for the SharePoint modern experience, such as SharePoint Online deployments:

Trusting SharePoint Framework package deployed to tenant app catalog (modern experience)

After solution deployment, an administrator can change the deployment settings from the Tenant Wide Extension list.
