Create a Data Visualization Adaptive Card Extension

The SharePoint Framework v1.19 introduces a new Data Visualization Template that can be used to implement charts. This tutorial provides step-by-step guidance on implementing Data Visualization with Adaptive Card Extensions (ACEs).

Note

Before you start, complete the procedures in the following articles to ensure that you understand the basic flow of creating a custom Adaptive Card Extension: Build your first SharePoint Adaptive Card Extension

Important

Line chart data visualization type was released as part of the SPFx 1.19 release. Other data visualization types, such as the bar chart, donut chart, and pie charts, were introduced in the SPFx 1.20 release.

Scaffold an Adaptive Card Extension project

Create a new project directory for your project and change your current folder to that directory.

Create a new project by running the Yeoman SharePoint Generator from within the new directory you created:

yo @microsoft/sharepoint

When prompted, enter the following values (select the default option for all other prompts):

  • What is your solution name? dataVisualization-tutorial
  • Which type of client-side component to create? Adaptive Card Extension
  • Which template do you want to use? Data Visualization Card Template
  • What is your Adaptive Card Extension name? DataVisualization

At this point, Yeoman installs the required dependencies and scaffolds the solution files. This process might take few minutes.

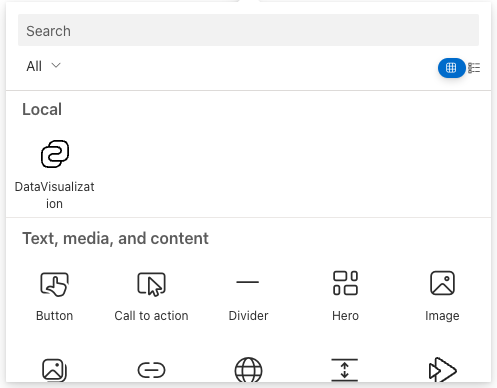

Next, run gulp serve from the command line in the root of the project. Select the add icon in the hosted workbench to open the toolbox, you see the Data Visualization card:

See the Data Visualization card icon in the workbench toolbox

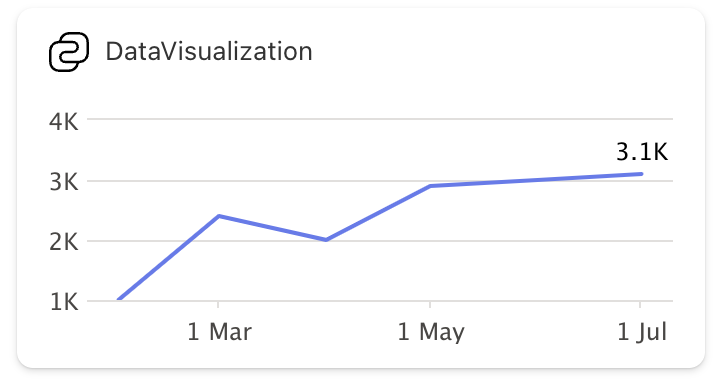

Select the DataVisualization component to add it to the workbench. The default rendering renders the line chart using mock data:

Default Data Visualization card

Explore the scaffolded code

Explore the Card View

Locate and open the following file: ./src/adaptiveCardExtensions/dataVisualization/cardView/CardView.ts. The Card View implements the BaseComponentsCardView base class cardViewParameters getter to specify the card configuration:

const seriesData : IDataPoint<Date>[] = [
  ... // omitted for brevity
];

export class CardView extends BaseComponentsCardView<..> {
  public get cardViewParameters(): IDataVisualizationCardViewParameters {
    return LineChartCardView({
      cardBar: {
        componentName: 'cardBar',
        title: this.properties.title
      },
      body: {
        componentName: 'dataVisualization',
        dataVisualizationKind: 'line',
        series: [{
          data: seriesData,
          lastDataPointLabel: '3.1K'
        }]
      }
    });
  }
}

Notice how the body section of the Card View specifies the dataVisualization component.

Explore possible layouts

Based on the configuration in Card View, a chart can be rendered in two layouts:

Regular

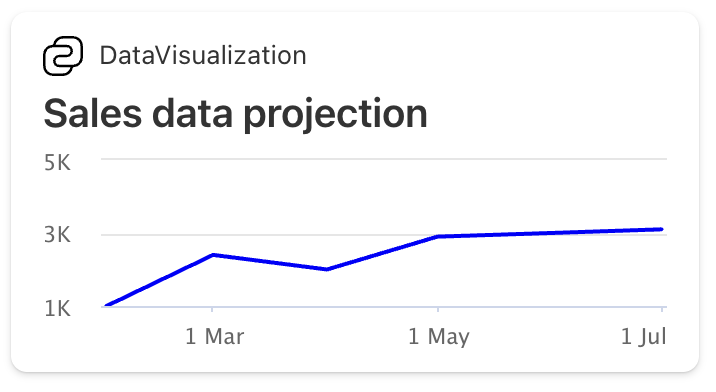

Adding zero or one component along with a dataVisualization component in the body:

Regular

Right side

Adding more than one component in the Card View along with dataVisualization component in the body renders the chart on the right side of the card. For example: Header and Footer along with dataVisualization component in body.

Locate & replace the cardViewParameters() getter with the following code to add a header and footer to the card:

public get cardViewParameters(): IDataVisualizationCardViewParameters {
  return LineChartCardView({
    cardBar: {
      componentName: 'cardBar',
      title: this.properties.title
    },
    header: {
      componentName: 'text',
      text: 'Sales Projection'
    },
    body: {
      componentName: 'dataVisualization',
      dataVisualizationKind: 'line',
      series: [{
          data: seriesData,
          lastDataPointLabel: '3.1K'
      }]
    },
    footer: {
      componentName: 'cardButton',
      title: 'View Details',
      action: {
        type: 'QuickView',
        parameters: {
          view: QUICK_VIEW_REGISTRY_ID
        }
      }
    }
  });
}

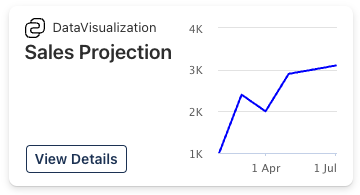

Chart on the right side

Explore the Quick Views

The ACE class is located in the following file: ./src/adaptiveCardExtensions/dataVisualization/quickView/QuickView.ts and mostly has the same code as Generic Card View.

Explore the ACE class

The ACE class is located in the following file: ./src/adaptiveCardExtensions/dataVisualization/dataVisualizationAdaptiveCardExtension.ts and mostly has the same code as Generic Card View.

Support for multiple data series in the chart

The ACE dataVisualization component supports multiple series lines in the chart. To add multiple lines to the chart, add other entries to the body.series array on the LineChartCardView object in the Card View.

For example, consider the following data series:

// Sample Data
const seriesData : IDataPoint<Date>[] = [
  { x: new Date(2024, 1, 1), y: 1000 },
  { x: new Date(2024, 2, 1), y: 2400 },
  { x: new Date(2024, 3, 1), y: 2000 },
  { x: new Date(2024, 4, 1), y: 2900 },
  { x: new Date(2024, 5, 1), y: 3000 },
  { x: new Date(2024, 6, 1), y: 3100 }
];

const seriesData2 : IDataPoint<Date>[] = [
  { x: new Date(2024, 1, 1), y: 600 },
  { x: new Date(2024, 2, 1), y: 1200 },
  { x: new Date(2024, 3, 1), y: 3200 },
  { x: new Date(2024, 4, 1), y: 2800 },
  { x: new Date(2024, 5, 1), y: 3600 },
  { x: new Date(2024, 6, 1), y: 4500 }
];

const seriesData3 : IDataPoint<Date>[] = [
  { x: new Date(2024, 1, 1), y: 5200 },
  { x: new Date(2024, 2, 1), y: 1000 },
  { x: new Date(2024, 3, 1), y: 1800 },
  { x: new Date(2024, 4, 1), y: 2900 },
  { x: new Date(2024, 5, 1), y: 600 },
  { x: new Date(2024, 6, 1), y: 400 }
];

Add all three series to the data visualization Card View and optionally set the color of specific series:

export class CardView extends BaseComponentsCardView<
  IRecentSalesAdaptiveCardExtensionProps,
  IRecentSalesAdaptiveCardExtensionState,
  IDataVisualizationCardViewParameters
> {
  public get cardViewParameters(): IDataVisualizationCardViewParameters {
    return LineChartCardView({
      cardBar: {
        componentName: 'cardBar',
        title: this.properties.title
      },
      body: {
        componentName: 'dataVisualization',
        dataVisualizationKind: 'line',
        series: [{
          data: seriesData,
          lastDataPointLabel: '3.1K'
        },
        {
          data: seriesData2,
          lastDataPointLabel: '4.5K',
          color: '#800080'
        },
        {
          data: seriesData3,
          lastDataPointLabel: '0.4K',
          color: '#01CBAE'
        }]
      }
    });
  }

  public get onCardSelection(): IQuickViewCardAction | IExternalLinkCardAction | undefined {
    return {
      type: 'QuickView',
      parameters: { view: QUICK_VIEW_REGISTRY_ID }
    };
  }
}

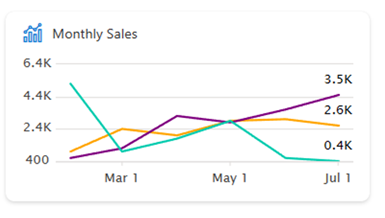

This card when in the large mode generates the following rendering:

Chart with three series displayed

Support for more chart types

The SharePoint Framework v1.20 introduces support for newer chart types, enabling developers to create visually appealing data visualizations like bar, pie, and donut charts.

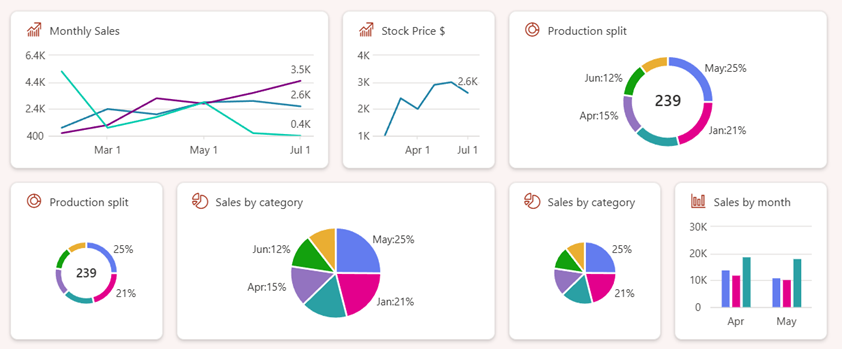

Screenshot of example ACE's using different data visualization options.

Bar Chart

To render a vertically grouped bar chart, follow this example:

// Sample Data
const seriesData: IDataPoint<string>[] = [
  { x: "Jan", y: 12986 },
  { x: "Feb", y: 13424 },
  { x: "Mar", y: 17118 },
  { x: "Apr", y: 14017 },
  { x: "May", y: 11245 }
];

const seriesData2: IDataPoint<string>[] = [
  { x: "Jan", y: 19631},
  { x: "Feb", y: 19905},
  { x: "Mar", y: 17098},
  { x: "Apr", y: 11918},
  { x: "May", y: 10357}
];

const seriesData3: IDataPoint<string>[] = [
  { x: "Jan", y: 19762},
  { x: "Feb", y: 12926},
  { x: "Mar", y: 17670},
  { x: "Apr", y: 19055},
  { x: "May", y: 18142}
];

Add all three series to the data visualization Card View and optionally set the name or color of the individual series:

export class CardView extends BaseComponentsCardView<
  IDataVisualizationAdaptiveCardExtensionProps,
  IDataVisualizationAdaptiveCardExtensionState,
  IDataVisualizationCardViewParameters
> {
  public get cardViewParameters(): IDataVisualizationCardViewParameters {
    return BarChartCardView({
      cardBar: {
        componentName: 'cardBar',
        title: this.properties.title
      },
      body: {
        componentName: 'dataVisualization',
        dataVisualizationKind: 'bar',
        series: [{
            data: seriesData,
            name: 'Africa'
        }, {
            data: seriesData2,
            name: 'Asia'
        }, {
            data: seriesData3,
            name: 'Europe'
        }]
      }
    });
  }
}

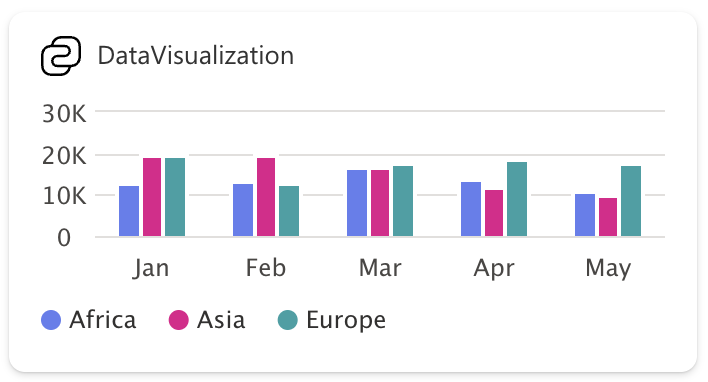

The rendered bar chart looks something like this:

Vertically grouped bar chart

Pie/Donut Charts

Here's an example of the CardView.ts file that renders a pie chart with the given data:

import {
  BaseComponentsCardView,
  IDataVisualizationCardViewParameters,
  PieChartCardView,
  IPieDataPoint,
} from '@microsoft/sp-adaptive-card-extension-base';
import {
  IDataVisualizationAdaptiveCardExtensionProps,
  IDataVisualizationAdaptiveCardExtensionState,
} from '../DataVisualizationAdaptiveCardExtension';

// Sample Data
const seriesData: IPieDataPoint[] = [
  { x: 'January', y: 50 },
  { x: 'February', y: 25, color: '#eaae32', showLabel: false },
  { x: 'March', y: 40, showLabel: false },
  { x: 'Apr', y: 35 },
  { x: 'May', y: 60 },
  { x: 'Jun', y: 29 }
];

export class CardView extends BaseComponentsCardView<
  IDataVisualizationAdaptiveCardExtensionProps,
  IDataVisualizationAdaptiveCardExtensionState,
  IDataVisualizationCardViewParameters
> {
  public get cardViewParameters(): IDataVisualizationCardViewParameters {
    return PieChartCardView({
      cardBar: {
        componentName: 'cardBar',
        title: this.properties.title
      },
      body: {
        componentName: 'dataVisualization',
        dataVisualizationKind: 'pie',
        isDonut: false,
        series: [{
            data: seriesData,
        }]
      }
    });
  }
}

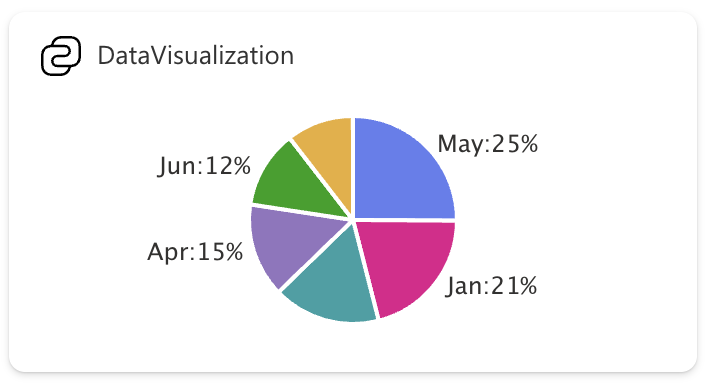

Notice how the dataVisualizationKind is set to pie and PieChartCardView is returned with the required parameters. Upon refreshing the card on the workbench, you see that a pie chart is rendered:

Pie chart example

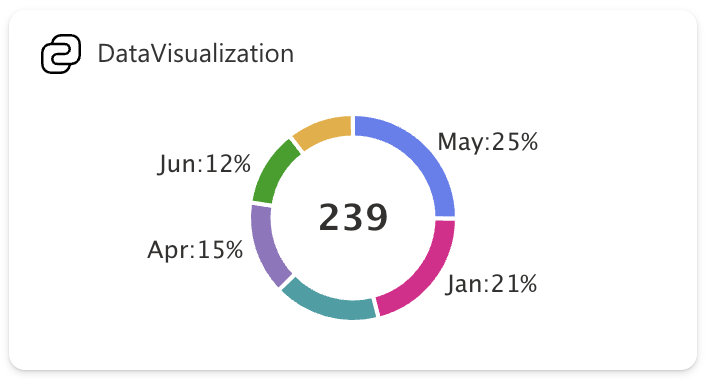

The isDonut flag indicates if the pie chart should be rendered as a donut chart, which is false by default. When set to true, the donut chart is rendered as follows:

Donut chart example

The numeric text in the center displays the sum of all the y values in the series.
