Universal Data Link (UDL) configuration
Applies to: SQL Server Azure SQL Database Azure SQL Managed Instance Azure Synapse Analytics Analytics Platform System (PDW)

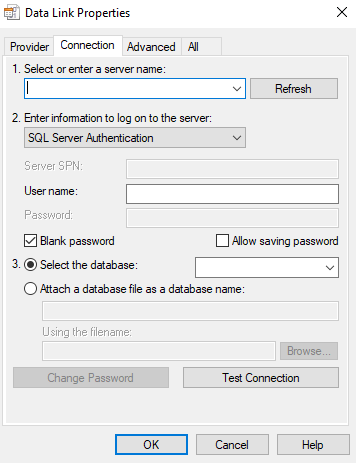

Use the Connection tab to specify how to connect to your data using the Microsoft OLE DB Driver for SQL Server.
The Connection tab is provider-specific and displays only the connection properties that are required by the Microsoft OLE DB Driver for SQL Server.
|Select or enter a server name||Select a server name from the drop-down list, or type the location of the server where the database you want to access is located. Selecting the database on the server is a separate action. Update the list by clicking "Refresh".|
|Enter information to sign in to the server||You can select the following authentication options from this drop-down list:
|Server SPN||If you use a trusted connection, you can specify a service principal name (SPN) for the server.|
|User name||Type the User ID to use for authentication when you sign in to the data source.|
|Password||Type the password to use for authentication when you sign in to the data source.|
|Blank password||When checked, enables the specified provider to use a blank password in the connection string.|
|Allow saving password||When checked, allows the password to be saved with the connection string. Whether the password is included in the connection string depends on the functionality of the calling application.
NOTE: If saved, the password is returned and saved unmasked and unencrypted.
|Use strong encryption for data||When checked, data that is passed through the connection will be encrypted. This option is only available for versions 18.x.x.|
|Trust server certificate||When unchecked, the server's certificate will be validated. Server's certificate must have the correct hostname of the server and issued by a trusted certificate authority. This option is only available for versions 18.x.x.|
|Select the database||Select or type the database name that you want to access.|
|Attach a database file as a database name||Specifies the name of the primary file for an attachable database. This database is attached and used as the default database for the data source. In the first textbox under this section, type the database name to use for the attached database file.
Type the full path to the database file to be attached in text box labeled
|Change Password||Displays Change SQL Server Password dialog.|
|Test Connection||Click to attempt a connection to the specified data source. If the connection fails, ensure that the settings are correct. For example, spelling errors and case sensitivity can cause failed connections.|
Use the Advanced tab to view and set additional initialization properties.
|Connect timeout||Specifies the amount of time (in seconds) that the Microsoft OLE DB Driver for SQL Server waits for initialization to complete. If initialization times out, an error is returned and the connection is not created.|
|Connect retry count||Specifies the number of times that the Microsoft OLE DB Driver for SQL Server will attempt to reconnect in the case of connection loss.|
|Connect retry interval||Specifies the amount of time (in seconds) that the Microsoft OLE DB Driver for SQL Server will wait between reconnection attempts.|
|Host name in certificate||The host name to be used in validating the SQL Server TLS/SSL certificate. If not set, the driver uses the server name on the connection URL as the host name to validate the SQL Server TLS/SSL certificate. This option is only available for versions 19.x.x.|
|Trust server certificate||When unchecked, the server's certificate will be validated. Server's certificate must have the correct hostname of the server and issued by a trusted certificate authority. This option is only available for versions 19.x.x.|
|Server certificate||Specifies the path to a certificate file to match against the SQL Server TLS/SSL certificate. This option can only be used when
Type the full path to the certificate file in the text box labeled
For more general Data Link connection information, see the Data Link API Overview.
Authenticate to Azure Active Directory using the OLE DB driver.
Prompt user for authentication credentials using the OLE DB driver.
