Table and Row Size in MemoryOptimized Tables
Applies to: SQL Server Azure SQL Database Azure SQL Managed Instance
Prior to SQL Server 2016 (13.x) the inrow data size of a memoryoptimized table couldn't be longer than 8,060 bytes. However, starting SQL Server 2016 (13.x) and in Azure SQL Database it is now possible to create a memoryoptimized table with multiple large columns (e.g., multiple varbinary(8000) columns) and LOB columns (i.e., varbinary(max), varchar(max), and nvarchar(max)) and perform operations on them using natively compiled TSQL modules and table types.
Columns that do not fit in the 8060 byte row size limit are placed offrow, in a separate internal table. Each offrow column has a corresponding internal table, which in turn has a single nonclustered index. For details about these internal tables used for offrow columns see sys.memory_optimized_tables_internal_attributes (TransactSQL).
There are certain scenarios where it is useful to compute the size of the row and the table:
How much memory does a table use?
The amount of memory used by the table cannot be calculated exactly. Many factors affect the amount of memory used. Factors such as pagebased memory allocation, locality, caching, and padding. Also, multiple versions of rows that either have active transactions associated or that are waiting for garbage collection.
The minimum size required for the data and indexes in the table is given by the calculation for [table size], discussed below.
Calculating memory use is at best an approximation and you are advised to include capacity planning in your deployment plans.
The data size of a row, and does it fit in the 8,060 byte row size limitation? To answer these questions, use the computation for [row body size], discussed below.
A memoryoptimized table consists of a collection of rows and indexes that contain pointers to rows. The following figure illustrates a table with indexes and rows, which in turn have row headers and bodies:
Memoryoptimized table, consisting of indexes and rows.
Computing Table Size
The inmemory size of a table, in bytes, is computed as follows:
[table size] = [size of index 1] + ... + [size of index n] + ([row size] * [row count])
The size of a hash index is fixed at table creation time and depends on the actual bucket count. The bucket_count
specified with the index definition is rounded up to the nearest power of 2 to obtain the actual bucket count. For example, if the specified bucket_count is 100000, the actual bucket count for the index is 131072.
[hash index size] = 8 * [actual bucket count]
The size of a nonclustered index is in the order of [row count] * [index key size]
.
The row size is computed by adding the header and the body:
[row size] = [row header size] + [actual row body size]
[row header size] = 24 + 8 * [number of indexes]
Computing Row Body Size
Row Structure The rows in a memoryoptimized table have the following components:
The row header contains the timestamp necessary to implement row versioning. The row header also contains the index pointer to implement the row chaining in the hash buckets (described above).
The row body contains the actual column data, which includes some auxiliary information like the null array for nullable columns and the offset array for variablelength data types.
The following figure illustrates the row structure for a table that has two indexes:
The begin and end timestamps indicate the period in which a particular row version is valid. Transactions that start in this interval can see this row version. For more details see Transactions with MemoryOptimized Tables.

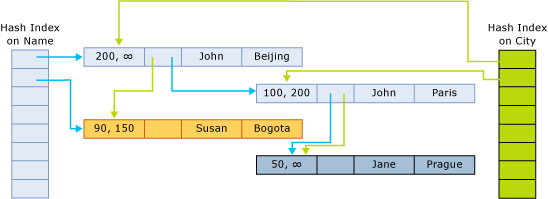

The index pointers point to the next row in the chain belonging to the hash bucket. The following figure illustrates the structure of a table with two columns (name, city), and with two indexes, one on the column name, and one on the column city.
In this figure, the names John and Jane are hashed to the first bucket. Susan is hashed to the second bucket. The cities Beijing and Bogota are hashed to the first bucket. Paris and Prague are hashed to the second bucket.
Thus, the chains for the hash index on name are as follows:
First bucket: (John, Beijing); (John, Paris); (Jane, Prague)
Second bucket: (Susan, Bogota)
The chains for the index on city are as follows:
First bucket: (John, Beijing), (Susan, Bogota)
Second bucket: (John, Paris), (Jane, Prague)
An end timestamp ∞ (infinity) indicates that this is the currently valid version of the row. The row has not been updated or deleted since this row version was written.
For a time greater than 200, the table contains the following rows:
Name  City

John  Beijing
Jane  Prague
However, any active transaction with begin time 100 will see the following version of the table:
Name  City

John  Paris
Jane  Prague
Susan  Bogata
The calculation of [row body size] is discussed in the following table.
There are two different computations for row body size: computed size and the actual size:
The computed size, denoted with computed row body size, is used to determine if the row size limitation of 8,060 bytes is exceeded.
The actual size, denoted with actual row body size, is the actual storage size of the row body in memory and in the checkpoint files.
Both computed row body size and actual row body size are calculated similarly. The only difference is the calculation of the size of (n)varchar(i) and varbinary(i) columns, as reflected at the bottom of the following table. The computed row body size uses the declared size i as the size of the column, while the actual row body size uses the actual size of the data.
The following table describes the calculation of the row body size, given as actual row body size = SUM(size of shallow types) + 2 + 2 * number of deep type columns.
Section  Size  Comments

Shallow type columns  SUM([size of shallow types]). Size in bytes of the individual types is as follows: Bit: 1 Tinyint: 1 Smallint: 2 Int: 4 Real: 4 Smalldatetime: 4 Smallmoney: 4 Bigint: 8 Datetime: 8 Datetime2: 8 Float: 8 Money: 8 Numeric (precision <=18): 8 Time: 8 Numeric(precision>18): 16 Uniqueidentifier: 16

Shallow column padding  Possible values are: 1 if there are deep type columns and the total data size of the shallow columns is as odd number. 0 otherwise
Deep types are the types (var)binary and (n)(var)char.
Offset array for deep type columns  Possible values are: 0 if there are no deep type columns 2 + 2 * [number of deep type columns] otherwise
Deep types are the types (var)binary and (n)(var)char.
NULL array  [number of nullable columns] / 8, rounded up to full bytes.  The array has one bit per nullable column. This is rounded up to full bytes.
NULL array padding  Possible values are: 1 if there are deep type columns and the size of the NULL array is an odd number of bytes. 0 otherwise
Deep types are the types (var)binary and (n)(var)char.
Padding  If there are no deep type columns: 0 If there are deep type columns, 07 bytes of padding is added, based on the largest alignment required by a shallow column. Each shallow column requires alignment equal to its size as documented above, except that GUID columns need alignment of 1 byte (not 16) and numeric columns always need alignment of 8 bytes (never 16). The largest alignment requirement among all shallow columns is used, and 07 bytes of padding is added in such a way that the total size so far (without the deep type columns) is a multiple of the required alignment.
Deep types are the types (var)binary and (n)(var)char.
Fixedlength deep type columns  SUM(size of fixed length deep type columns) The size of each column is as follows: i for char(i) and binary(i). 2 * i for nchar(i)
Fixedlength deep type columns are columns of type char(i), nchar(i), or binary(i).
Variable length deep type columns computed size  SUM(computed size of variable length deep type columns) The computed size of each column is as follows: i for varchar(i) and varbinary(i) 2 * i for nvarchar(i)
This row only applied to computed row body size. Variablelength deep type columns are columns of type varchar(i), nvarchar(i), or varbinary(i). The computed size is determined by the max length (i) of the column.
Variable length deep type columns actual size  SUM(actual size of variable length deep type columns) The actual size of each column is as follows: n, where n is the number of characters stored in the column, for varchar(i). 2 * n, where n is the number of characters stored in the column, for nvarchar(i). n, where n is the number of bytes stored in the column, for varbinary(i).
This row only applied to actual row body size. The actual size is determined by the data stored in the columns in the row.
Example: Table and Row Size Computation
For hash indexes, the actual bucket count is rounded up to the nearest power of 2. For example, if the specified bucket_count
is 100000, the actual bucket count for the index is 131072.
Consider an Orders table with the following definition:
CREATE TABLE dbo.Orders (
OrderID int NOT NULL
PRIMARY KEY NONCLUSTERED,
CustomerID int NOT NULL
INDEX IX_CustomerID HASH WITH (BUCKET_COUNT=10000),
OrderDate datetime NOT NULL,
OrderDescription nvarchar(1000)
) WITH (MEMORY_OPTIMIZED=ON)
GO
Notice that this table has one hash index and a nonclustered index (the primary key). It also has three fixedlength columns and one variablelength column, with one of the columns being NULLable (OrderDescription
). Let's assume the Orders
table has 8379 rows, and the average length of the values in the OrderDescription
column is 78 characters.
To determine the table size, first determine the size of the indexes. The bucket_count for both indexes is specified as 10000. This is rounded up to the nearest power of 2: 16384. Therefore, the total size of the indexes for the Orders table is:
8 * 16384 = 131072 bytes
What remains is the table data size, which is,
[row size] * [row count] = [row size] * 8379
(The example table has 8379 rows.) Now, we have:
[row size] = [row header size] + [actual row body size]
[row header size] = 24 + 8 * [number of indices] = 24 + 8 * 1 = 32 bytes
Next, let's calculate [actual row body size]:
Shallow type columns:
SUM([size of shallow types]) = 4 [int] + 4 [int] + 8 [datetime] = 16
Shallow column padding is 0, as the total shallow column size is even.
Offset array for deep type columns:
2 + 2 * [number of deep type columns] = 2 + 2 * 1 = 4
NULL array = 1
NULL array padding = 1, as the NULL array size is odd and there is a deep type column.
Padding
8 is the largest alignment requirement.
Size so far is 16 + 0 + 4 + 1 + 1 = 22.
Nearest multiple of 8 is 24.
Total padding is 24  22 = 2 bytes.
There are no fixedlength deep type columns (Fixedlength deep type columns: 0.).
The actual size of deep type column is 2 * 78 = 156. The single deep type column
OrderDescription
has typenvarchar
.
[actual row body size] = 24 + 156 = 180 bytes
To complete the calculation:
[row size] = 32 + 180 = 212 bytes
[table size] = 8 * 16384 + 212 * 8379 = 131072 + 1776348 = 1907420
Total table size in memory is thus approximately 2 megabytes. This does not account for potential overhead incurred by memory allocation as well as any row versioning required for the transactions accessing this table.
The actual memory allocated for and used by this table and its indexes can be obtained through the following query:
select * from sys.dm_db_xtp_table_memory_stats
where object_id = object_id('dbo.Orders')
Offrow Column Limitations
Certain limitations and caveats to using offrow columns in a memoryoptimized table are listed below:
 If there is a columnstore index on a memoryoptimized table, then all the columns must fit inrow.
 All index key columns must be stored inrow. If an index key column doesn't fit inrow, adding the index fails.
 Caveats on altering a memoryoptimized table with offrow columns.
 For LOBs the size limitation mirrors that of disk based tables (2GB limit on LOB values).
 For optimal performance, it is recommended to have most columns fit within 8060 bytes.
What's new for InMemory OLTP in SQL Server 2016 since CTP3 blog post further details some of these intricacies.
