SQL Trace
Applies to: SQL Server
In SQL Trace, events are gathered if they are instances of event classes listed in the trace definition. These events can be filtered out of the trace or queued for their destination. The destination can be a file or SQL Server Management Objects (SMO), which can use the trace information in applications that manage SQL Server.
Important
SQL Trace and SQL Server Profiler are deprecated. The Microsoft.SqlServer.Management.Trace namespace that contains the Microsoft SQL Server Trace and Replay objects are also deprecated.
This feature will be removed in a future version of SQL Server. Avoid using this feature in new development work, and plan to modify applications that currently use this feature.
Use Extended Events instead. For more information on Extended Events, see Quick Start: Extended events in SQL Server and SSMS XEvent Profiler.
Benefits of SQL Trace
Microsoft SQL Server provides Transact-SQL system stored procedures to create traces on an instance of the SQL Server Database Engine. These system stored procedures can be used from within your own applications to create traces manually, instead of using SQL Server Profiler. This allows you to write custom applications specific to the needs of your enterprise.

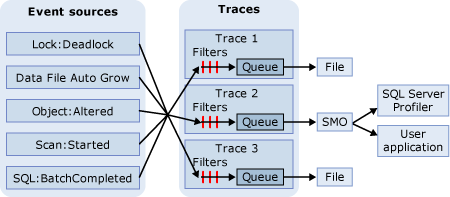

SQL Trace Architecture
Event Sources can be any source that produces the trace event, such as Transact-SQL batches or SQL Server events, such as deadlocks. For more information about events, see SQL Server Event Class Reference. After an event occurs, if the event class has been included in a trace definition, the event information is gathered by the trace. If filters have been defined for the event class in the trace definition, the filters are applied and the trace event information is passed to a queue. From the queue, the trace information is either written to a file or can be used by SMO in applications, such as SQL Server Profiler. The following diagram shows how SQL Trace gathers events during a tracing.
SQL Trace Terminology
The following terms describe the key concepts of SQL Trace.
Event
The occurrence of an action within an instance of the Microsoft SQL Server Database Engine.
Data column
An attribute of an event.
Event class
A type of event that can be traced. The event class contains all of the data columns that can be reported by an event.
Event category
A group of related event classes.
Trace (noun)
A collection of events and data returned by the Database Engine.
Trace (verb)
To collect and monitor events in an instance of SQL Server.
Tracedefinition
A collection of event classes, data columns and filters that identify the types of events to be collected during a trace.
Filter
Criteria that limit the events that are collected in a trace.
Trace file
A file created when a trace is saved.
Template
In SQL Server Profiler, a file that defines the event classes and data columns to be collected in a trace.
Trace table
In SQL Server Profiler, a table that is created when a trace is saved to a table.
Use Data Columns to Describe Returned Events
SQL Trace uses data columns in the trace output to describe events that are returned when the trace runs. The following table describes the SQL Server Profiler data columns, which are the same data columns as those used by SQL Trace, and indicates the columns that are selected by default.
Data column | Column number | Description |
---|---|---|
* ApplicationName | 10 | The name of the client application that created the connection to an instance of SQL Server. This column is populated with the values passed by the application and not the name of the program. |
BigintData1 | 52 | Value (bigint data type), which depends on the event class specified in the trace. |
BigintData2 | 53 | Value (bigint data type), which depends on the event class specified in the trace. |
* Binary Data | 2 | The binary value dependent on the event class that is captured in the trace. |
* ClientProcessID | 9 | The ID assigned by the host computer to the process where the client application is running. This data column is populated if the client process ID is provided by the client. |
ColumnPermissions | 44 | Indicates whether a column permission was set. You can parse the statement text to determine which permissions were applied to which columns. |
* CPU | 18 | The amount of CPU time (in milliseconds) that is used by the event. |
Database ID | 3 | The ID of the database specified by the USE database_name statement, or the ID of the default database if no USE database_namestatement has been issued for a given instance. SQL Server Profiler displays the name of the database if the ServerName data column is captured in the trace and the server is available. Determine the value for a database by using the DB_ID function. |
DatabaseName | 35 | The name of the database in which the user statement is running. |
DBUserName | 40 | The SQL Server user name of the client. |
* Duration | 13 | The duration (in microseconds) of the event. The server reports the duration of an event in microseconds (one millionth, or 10-6, of a second) and the amount of CPU time used by the event in milliseconds (one thousandth, or 10-3, of a second). The SQL Server Profiler graphical user interface displays the Duration column in milliseconds by default, but when a trace is saved to either a file or a database table, the Duration column value is written in microseconds. |
* EndTime | 15 | The time at which the event ended. This column is not populated for event classes that refer to an event that is starting, such as SQL:BatchStarting or SP:Starting. |
Error | 31 | The error number of a given event. Often this is the error number stored in sysmessages. |
* EventClass | 27 | The type of event class that is captured. |
EventSequence | 51 | Sequence number for this event. |
EventSubClass | 21 | The type of event subclass, which provides further information about each event class. For example, event subclass values for the Execution Warning event class represent the type of execution warning: 1 = Query wait. The query must wait for resources before it can execute; for example, memory. 2 = Query time-out. The query timed out while waiting for required resources to execute. This data column is not populated for all event classes. |
GUID | 54 | GUID value which depends on the event class specified in the trace. |
FileName | 36 | The logical name of the file that is modified. |
Handle | 33 | The integer used by ODBC, OLE DB, or DB-Library to coordinate server execution. |
HostName | 8 | The name of the computer on which the client is running. This data column is populated if the host name is provided by the client. To determine the host name, use the HOST_NAME function. |
IndexID | 24 | The ID for the index on the object affected by the event. To determine the index ID for an object, use the indid column of the sysindexes system table. |
IntegerData | 25 | The integer value dependent on the event class captured in the trace. |
IntegerData2 | 55 | The integer value dependent on the event class captured in the trace. |
IsSystem | 60 | Indicates whether the event occurred on a system process or a user process: 1 = system 0 = user |
LineNumber | 5 | Contains the number of the line that contains the error. For events that involve Transact-SQL statements, like SP:StmtStarting, the LineNumber contains the line number of the statement in the stored procedure or batch. |
LinkedServerName | 45 | Name of the linked server. |
* LoginName | 11 | The name of the login of the user (either SQL Server security login or the Windows login credentials in the form of DOMAIN\Username). |
LoginSid | 41 | The security identifier (SID) of the logged-in user. You can find this information in the sys.server_principals view of the master database. Each login to the server has a unique ID. |
MethodName | 47 | Name of the OLEDB method. |
Mode | 32 | The integer used by various events to describe a state the event is requesting or has received. |
NestLevel | 29 | The integer that represents the data returned by @@NESTLEVEL. |
NTDomainName | 7 | The Microsoft Windows domain to which the user belongs. |
* NTUserName | 6 | The Windows user name. |
ObjectID | 22 | The system-assigned ID of the object. |
ObjectID2 | 56 | The ID of the related object or entity, if available. |
ObjectName | 34 | The name of the object that is referenced. |
**ObjectType | 28 | The value representing the type of the object involved in the event. This value corresponds to the type column in sysobjects. |
Offset | 61 | The starting offset of the statement within the stored procedure or batch. |
OwnerID | 58 | For lock events only. The type of the object that owns a lock. |
OwnerName | 37 | The database user name of the object owner. |
ParentName | 59 | The name of the schema in which the object resides. |
Permissions | 19 | The integer value that represents the type of permissions checked. Values are: 1 = SELECT ALL 2 = UPDATE ALL 4 = REFERENCES ALL 8 = INSERT 16 = DELETE 32 = EXECUTE (procedures only) 4096 = SELECT ANY (at least one column) 8192 = UPDATE ANY 16384 = REFERENCES ANY |
ProviderName | 46 | Name of the OLEDB provider. |
* Reads | 16 | The number of read operations on the logical disk that are performed by the server on behalf of the event. These read operations include all reads from tables and buffers during the statement's execution. |
RequestID | 49 | ID of the request that contains the statement. |
RoleName | 38 | The name of the application role that is being enabled. |
RowCounts | 48 | The number of rows in the batch. |
ServerName | 26 | The name of the instance of SQL Server that is being traced. |
SessionLoginName | 64 | The login name of the user who originated the session. For example, if you connect to SQL Server using Login1 and execute a statement as Login2, SessionLoginName displays Login1, while LoginName displays Login2. This data column displays both SQL Server and Windows logins. |
Severity | 20 | The severity level of the exception event. |
SourceDatabaseID | 62 | The ID of the database in which the source of the object exists. |
* SPID | 12 | The server process ID (SPID) that is assigned by SQL Server to the process that is associated with the client. |
SqlHandle | 63 | 64-bit hash based on the text of an ad hoc query or the database and object ID of an SQL object. This value can be passed to sys.dm_exec_sql_text() to retrieve the associated SQL text. |
* StartTime | 14 | The time at which the event started, when available. |
State | 30 | Error state code. |
Success | 23 | Represents whether the event was successful. Values include: 1 = Success. 0 = Failure For example, a 1 means a successful permissions check, and a 0 means a failed check. |
TargetLoginName | 42 | For actions that target a login, the name of the targeted login; for example, to add a new login. |
TargetLoginSid | 43 | For actions that target a login, the SID of the targeted login; for example, to add a new login. |
TargetUserName | 39 | For actions that target a database user, the name of that user; for example, to grant permission to a user. |
* TextData | 1 | The text value dependent on the event class that is captured in the trace. However, if you trace a parameterized query, the variables are not displayed with data values in the TextData column. |
Transaction ID | 4 | The system-assigned ID of the transaction. |
Type | 57 | The integer value dependent on the event class captured in the trace. |
* Writes | 17 | The number of physical disk write operations that are performed by the server on behalf of the event. |
XactSequence | 50 | A token to describe the current transaction. |
* These data columns are populated by default for all events.
** For more information about the ObjectType data column, see ObjectType Trace Event Column.
SQL Trace Tasks
Task Description | Topic |
---|---|
Describes how to create and run traces using Transact-SQL stored procedures. | Create and Run Traces Using Transact-SQL Stored Procedures |
Describes how to create manual traces using stored procedures on an instance of the SQL Server Database Engine. | Create Manual Traces using Stored Procedures |
Describes how to save trace results to the file where the trace results are written. | Save Trace Results to a File |
Describes how to improve access to trace data by using space in the temp directory. | Improve Access to Trace Data |
Describes how to use stored procedures to create a trace. | Create a Trace (Transact-SQL) |
Describes how to use stored procedures to create a filter that retrieves only the information you need on an event being traced. | Set a Trace Filter (Transact-SQL) |
Describes how to use stored procedures to modify an existing trace. | Modify an Existing Trace (Transact-SQL) |
Describes how to use built-in functions to view a saved trace. | View a Saved Trace (Transact-SQL) |
Describes how to use built-in functions to view trace filter information. | View Filter Information (Transact-SQL) |
Describes how to use stored procedures to delete a trace. | Delete a Trace (Transact-SQL) |
Describes how to minimize the performance cost incurred by a trace. | Optimize SQL Trace |
Describes how to filter a trace to minimize the overhead that is incurred during a trace. | Filter a Trace |
Describes how to minimize the amount of data that the trace collects. | Limit Trace File and Table Sizes |
Describes the two ways to schedule tracing in Microsoft SQL Server. | Schedule Traces |
