Compute capacity limits by edition of SQL Server

Article
2025-02-11

Applies to: SQL Server

This article discusses compute capacity limits for editions of SQL Server and how they differ in physical and virtualized environments with simultaneous multithreading (SMT) processors. On Intel CPUs, SMT is called Hyper-Threading.

Overview

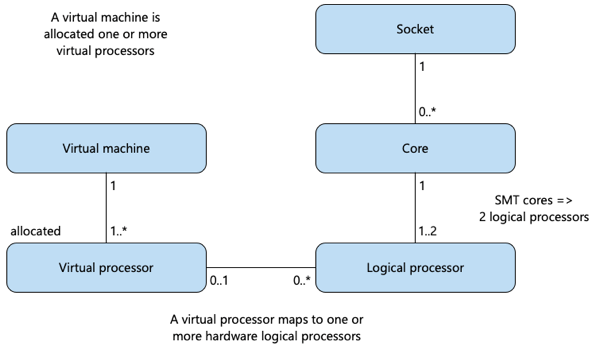

Diagram showing the mappings to compute capacity limits.

This table describes the notations in the preceding diagram:

Value	Description
0..1	Zero or one
1	Exactly one
1..*	One or more
0..*	Zero or more
1..2	One or two

To elaborate further:

A virtual machine (VM) has one or more virtual processors.
One or more virtual processors are allocated to exactly one virtual machine.
Zero or one virtual processor is mapped to zero or more logical processors. When the mapping of virtual processors to logical processors is:
- One to zero: represents an unbound logical processor not used by the guest operating systems.
- One to many: represents an overcommit.
- Zero to many: represents the absence of virtual machine on the host system. So VMs don't use any logical processors.
A socket is mapped to zero or more cores. When the socket-to-core mapping is:
- One to zero: represents an empty socket. No chip is installed.
- One to one: represents a single-core chip installed in the socket. This mapping is rare these days.
- One to many: represents a multi-core chip installed in the socket. Typical values are 2, 4, and 8.
A core is mapped to one or two logical processors. When the mapping of cores to logical processors is:
- One to one: SMT is off.
- One to two: SMT is on.

The following definitions apply to the terms used in this article:

A thread or logical processor is one logical computing engine from the perspective of SQL Server, the operating system, an application, or a driver.
A core is a processor unit. It can consist of one or more logical processors.
A physical processor can consist of one or more cores. A physical processor is the same as a processor package or a socket.

Limit number of logical cores per NUMA node to 64

You can experience issues such as stack dumps on servers with more than 64 logical processors per NUMA node. A BIOS or firmware configuration can reduce the logical core count presented to the operating system to a maximum of 64 logical processors per NUMA node.

Caution

SQL Server 2022 (16.x) Cumulative Update 11 introduced a breaking change, where the Database Engine doesn't start if it detects more than 64 logical cores per NUMA node.

Starting from SQL Server 2022 (16.x) Cumulative Update 15, Setup produces a warning that this configuration is unsupported and will result in the Database Engine service being stopped and disabled. The warning is also included in Setup logs.

You can reduce the logical core count per NUMA node in an Azure Virtual Machine, by disabling SMT. For bare-metal SQL Server instances, you can reduce the logical core count with sub-NUMA clustering (SNC) or Nodes per Socket (NPS) options.

Disable SMT in an Azure Virtual Machine

SQL Server has a supported limit of 64 logical cores per NUMA node. In some cases, the Azure Mv3-series VM might exceed this limit, which prevents SQL Server from starting, or allowing it to run with degraded performance. To disable SMT, make the following changes using PowerShell and the Registry Editor (reg.exe). Be sure to back up your registry before editing it.

Check the number of logical cores. SMT is enabled if the ratio is 2:1 (the number of logical cores is twice the number of cores).
```
Get-CimInstance -ClassName Win32_Processor | Select-Object -Property "NumberOfCores", "NumberOfLogicalProcessors"
```

Disable SMT with the following two registry changes, then reboot the VM.

reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 8264 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Check the number of logical cores once again. The number of logical cores should match the number of cores.

Get-CimInstance -ClassName Win32_Processor | Select-Object -Property "NumberOfCores", "NumberOfLogicalProcessors"

Reduce logical core count on bare-metal instances

The following sections describe how to reduce the logical core count on bare-metal instances of SQL Server.

Intel Xeon CPU

On third, fourth, and fifth generation Intel Xeon CPUs, you can enable sub-NUMA clustering (SNC), formerly called Cluster-on-Die (CoD), resulting in two NUMA domains within a single physical socket.

Note

Sixth generation Intel Xeon CPUs come with sub-NUMA clustering (SNC2 or SNC3) enabled by default. In some CPU models, the default SNC configuration could result in more than 64 logical processors per NUMA node. You should activate the Intel virtual NUMA feature in the BIOS/firmware, alongside SNC2 or SNC3, for these CPU models.

Configuration setting	Description
SNC disabled ¹	Disables sub-NUMA clustering.
SNC2 enabled ²	Presents two NUMA nodes per socket.
SNC3 enabled ²	Presents three NUMA nodes per socket.
Intel VirtualNuma enabled ³	Creates multiple virtual nodes within a single physical NUMA node.

¹ Default for third, fourth, and fifth generation Intel Xeon CPUs.

² Default for sixth generation Intel Xeon CPUs and later.

³ Only available on sixth generation Intel Xeon CPUs and later. Use this setting for high core count CPUs, where the number of logical processors per NUMA node exceeds 64 when using the SNC defaults.

AMD CPU

On AMD CPUs, you can enable various Nodes per Socket (NPS) options.

Configuration setting	Description
`NPS0`	In a dual socket system, NUMA presents as a single node with all memory channels interleaved across the node.
`NPS1` (default)	This configuration presents one NUMA node per socket.
`NPS2`	This configuration presents two NUMA nodes per socket, similar to SNC.
`NPS4`	This configuration presents four NUMA nodes per socket.

Remarks

Systems with more than one physical processor or systems with physical processors that have multiple cores and/or SMT enable the operating system to execute multiple tasks simultaneously. Each thread of execution appears as a logical processor. For example, if your computer has two quad-core processors with SMT enabled and two threads per core, you have 16 logical processors: 2 processors x 4 cores per processor x 2 threads per core. It's worth noting that:

The compute capacity of a logical processor from a single thread of an SMT core is less than the compute capacity of a logical processor from that same core with SMT disabled.
The compute capacity of the two logical processors in the SMT core is greater than the compute capacity of the same core with SMT disabled.

Each edition of SQL Server has two compute capacity limits:

A maximum number of sockets (or physical processors or processor packages)
A maximum number of cores as reported by the operating system

These limits apply to a single instance of SQL Server. They represent the maximum compute capacity that a single instance uses. They don't constrain the server where the instance might be deployed. In fact, deploying multiple instances of SQL Server on the same physical server is an efficient way to use the compute capacity of a physical server with more sockets and/or cores than the capacity limits allow.

The following table specifies the compute capacity limits for a single instance of each edition of SQL Server:

SQL Server edition	Maximum compute capacity for a single instance (SQL Server Database Engine)	Maximum compute capacity for a single instance (AS, RS)
Enterprise edition: Core-based licensing ¹	Operating system maximum	Operating system maximum
Developer	Operating system maximum	Operating system maximum
Standard	Limited to lesser of 4 sockets or 24 cores	Limited to lesser of 4 sockets or 24 cores
Express	Limited to lesser of 1 socket or 4 cores	Limited to lesser of 1 socket or 4 cores

¹ Enterprise edition with Server + Client Access License (CAL) licensing is limited to 20 cores per SQL Server instance. (This licensing isn't available for new agreements.) There are no limits under the Core-based Server Licensing model.

In a virtualized environment, the compute capacity limit is based on the number of logical processors, not cores. The reason is that the processor architecture isn't visible to the guest applications.

For example, a server that has four sockets populated with quad-core processors and the ability to enable two SMT threads per core contains 32 logical processors with SMT enabled. But it contains only 16 logical processors with SMT disabled. These logical processors can be mapped to virtual machines on the server. The virtual machines' compute load on that logical processor is mapped to a thread of execution on the physical processor in the host server.

You might want to disable SMT when the performance for each virtual processor is important. You can configure SMT by using a BIOS setting for the processor during the BIOS setup, but it's typically a server-scoped operation that affects all workloads running on the server. You might consider separating workloads that run in virtualized environments, from workloads that would benefit from the SMT performance boost in a physical operating system environment.
