Create a dashboard with the Tile widget in the Web console

  • Article

In System Center Operations Manager version 2019 and later, the Web console provides a monitoring interface for a management group that can be opened on any computer using any browser that has connectivity to the Web console server. The following steps describe how to add a Tile widget to a dashboard in the new HTML5 Web console. It displays a summary tile showing the health and number of alerts for the object that match a criteria.

Add widget to dashboard

  1. Open a web browser on any computer and enter http://<web host>/OperationsManager, where web host is the name of the computer hosting the web console.

  2. From the left pane in the Web console, select + New dashboard.

    Screenshot showing select New Dashboard in Web console.

  3. On the Create New Dashboard page, provide a name and description for the dashboard you want to create.

    Screenshot showing specify name and description for new dashboard.

  4. You can save the dashboard in an existing unsealed management pack by selecting the management pack from the Management Pack dropdown list or you can save the dashboard by creating a new management pack by selecting New next to the Management Pack dropdown list and provide a name, description, and optionally a version number.

    Screenshot showing specify name and description for new MP.

  5. When you've completed specifying where to save the new dashboard to, select OK.

  6. Select Save after providing a name and description for the new dashboard.

  7. On the blank empty dashboard, you see the dashboard name, Add Widget, Edit Dashboard, Delete dashboard, and View in fullscreen options on the top of the page.

    Screenshot showing New dashboard canvas.

  8. Select Tile Widget from the Select Widget dropdown list.

  9. In the Tile widget pane, select scope for the widget by selecting either Groups or Class.

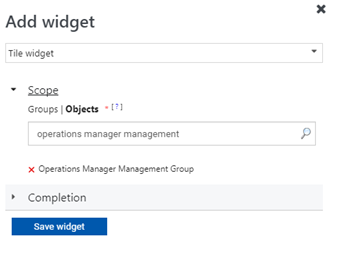

    Screenshot showing select scope for Tile widget.

    For either option selected, you can search by keyword in the list. As you begin typing, the list filters based on your input. You can select an individual group or class or multiple from the returned results.

  10. Complete the configuration by providing a Name, Description, and Widget refresh interval (default interval is 5 minutes) for the widget. Select Save Widget to save your new dashboard.

After the widget has been created, it displays a summary tile showing the health and number of alerts for the object that match a defined criteria. The tile represents health information into the following categories - A for availability, P for performance, C for configuration, and S for security. The color for each category represents the overall health of all the monitors under that category for the specified object.

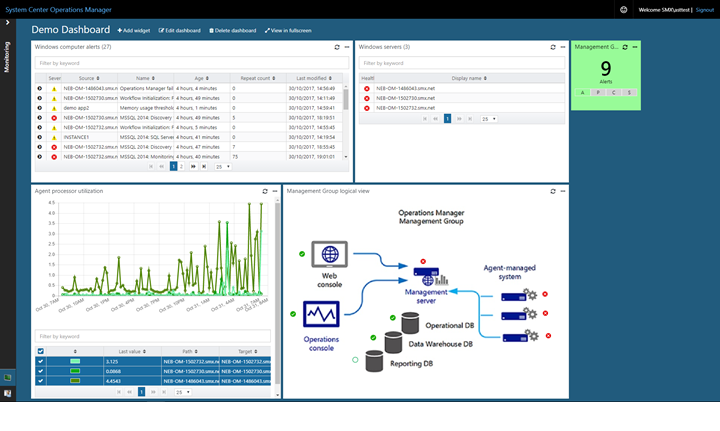

Screenshot showing Completed example of Tile widget in dashboard.

Select the object name in the Tile widget to launch Health Explorer for the specific object.

Next steps

To learn how to create a dashboard in the new web console with the Custom widget, see How create a dashboard with the Custom widget in the Web console.
