Configuring Datacenter Dashboard

It's recommended to store datacenter dashboards in a separate management pack to allow easy exporting and reusing configured views.

Creating Management Pack

To create a new management pack, perform the following steps:

  1. Open the Administration view and select Management Packs.

  2. Right-click Management Packs and select Create Management Pack.

Creating Datacenter Dashboard

To create a new datacenter dashboard, perform the following steps:

  1. Open the Operations Manager console.

  2. In the Monitoring view, right-click a folder for a new dashboard, and select New > Dashboard View.

  3. At the Template step, select SQL Server Dashboards and select Next.

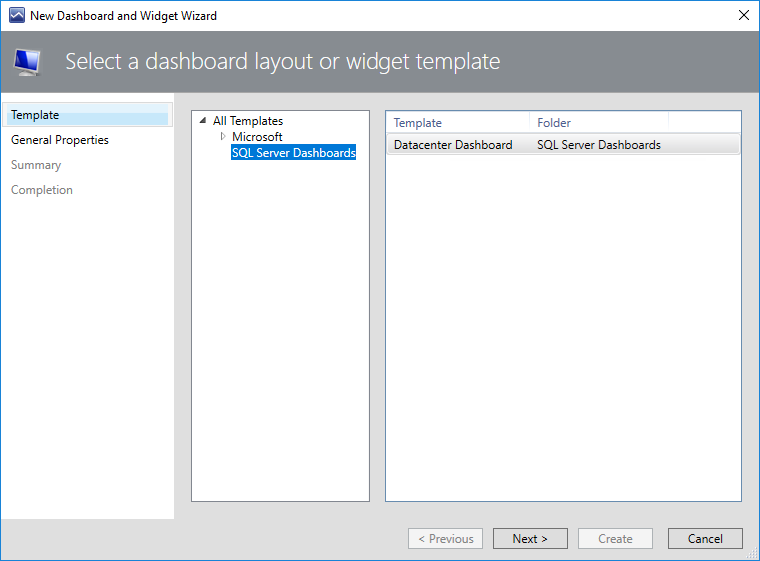

    Screenshot showing Select a template.

  4. At the General Properties step, specify a name and description for the template.

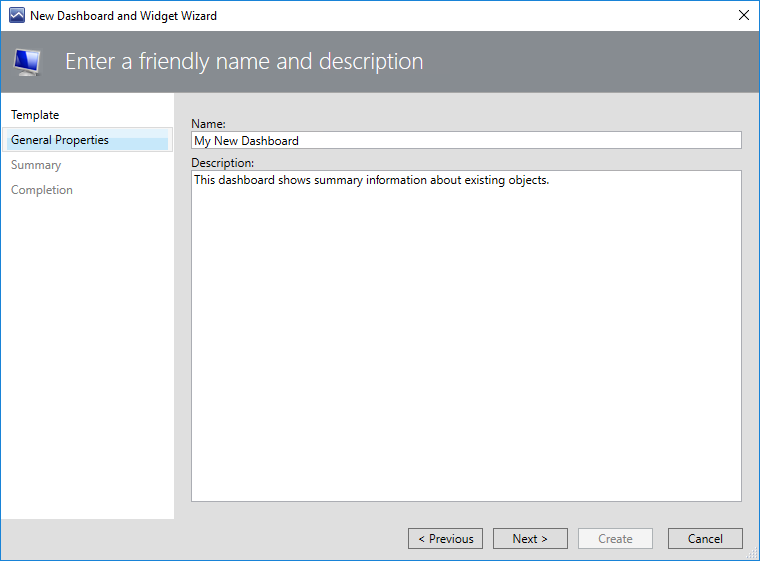

    Screenshot showing General properties.

  5. At the Summary step, select Create and wait until the dashboard view is created.

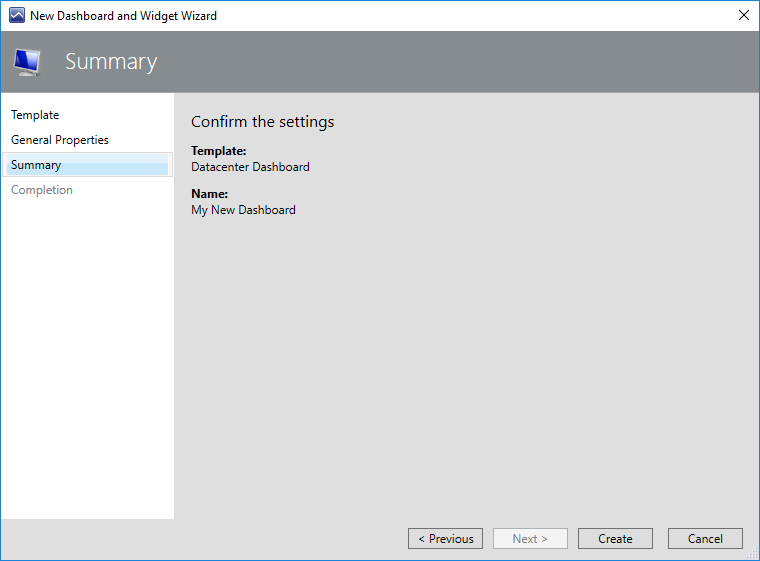

    Screenshot showing Summary information.

  6. At the Completion step, select Close.

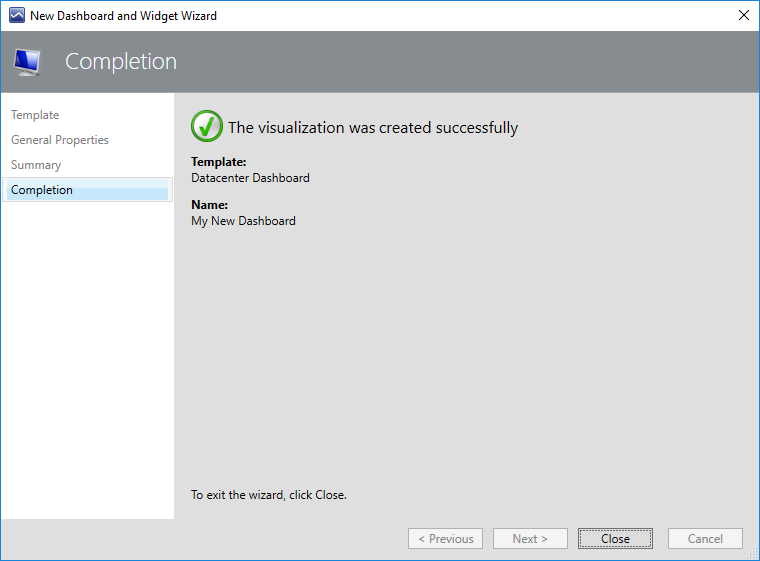

    Screenshot showing Final step of the wizard.

A new dashboard has no groups by default and only the Home note (not clickable) that represents the root of breadcrumbs and datacenter menu is available.

While the dashboard is in the Loading… state, the hamburger button and the Home title aren't displayed.
