Exercise - Deploy a scale set in the Azure portal

Completed

In the example scenario, you've decided to use a scale set to run the web application for the shipping company. Using a scale set, the shipping company can maintain short response times for users as the workload varies.

Your first task is to create a scale set. You'll configure it to run a web server, in this case nginx. When you've configured the scale set correctly, you'll deploy your web application. Then you'll set up a health probe that Azure will use to verify the availability of each VM in the scale set. Finally, you'll test the scale set by sending requests from a web browser.

Note

This exercise is optional. If you don't have an Azure account, you can read through the instructions so you understand how to use the REST API to retrieve metrics.

If you want to complete this exercise, but you don't have an Azure subscription or prefer not to use your own account, create a free account before you begin.

Deploy a Virtual Machine Scale Set

1. Sign in to the Azure portal and open Azure Cloud Shell.

2. In Cloud Shell, start the code editor and create a file named cloud-init.yaml.

   code cloud-init.yaml


3. Add the following text to the file:

   #cloud-config
   package_upgrade: true
   packages:
     - nginx
   write_files:
     - owner: www-data:www-data
     - path: /var/www/html/index.html
       content: |
           Hello world from Virtual Machine Scale Set !
   runcmd:
     - service nginx restart


   This file contains configuration information to install nginx on the VMs in the scale set.

4. Press Ctrl+S to save the file, then press Ctrl+Q to close the code editor.

5. Run the following command to create a new resource group named scalesetrg for your scale set:

   az group create --location eastus --name myResourceGroup


6. Run the following command to create the Virtual Machine Scale Set:

   az vmss create \
     --resource-group myResourceGroup \
     --name webServerScaleSet \
     --image UbuntuLTS \
     --upgrade-policy-mode automatic \
     --custom-data cloud-init.yaml \
     --admin-username azureuser \
     --generate-ssh-keys


   By default, the new Virtual Machine Scale Set has two instances and a load balancer.

   Note

   The custom-data flag specifies that the VM configuration should use the settings in the cloud-init.yaml file after the VM has been created. You can use a cloud-init file to install additional packages, configure security, and write to files when the machine is first installed.

   For more information, see Cloud-init support for VMs in Azure.

Configure the Virtual Machine Scale Set

1. Run the following command to add a health probe to the load balancer:

   az network lb probe create \
     --lb-name webServerScaleSetLB \
     --resource-group myResourceGroup \
     --name webServerHealth \
     --port 80 \
     --protocol Http \
     --path /


   The health probe pings the root of the website through port 80. If the website doesn't respond, the server is considered unavailable. The load balancer won't route traffic to the server.

2. Run the following command to configure the load balancer to route HTTP traffic to the instances in the scale set:

   az network lb rule create \
     --resource-group myResourceGroup \
     --name webServerLoadBalancerRuleWeb \
     --lb-name webServerScaleSetLB \
     --probe-name webServerHealth \
     --backend-pool-name webServerScaleSetLBBEPool \
     --backend-port 80 \
     --frontend-ip-name loadBalancerFrontEnd \
     --frontend-port 80 \
     --protocol tcp


Test the Virtual Machine Scale Set

1. In the Azure portal, on the left, select Resource groups > scalesetrg.

2. Select the webServerScaleSet Virtual Machine Scale Set.

3. On the Overview page, note the public IP address of the Virtual Machine Scale Set.

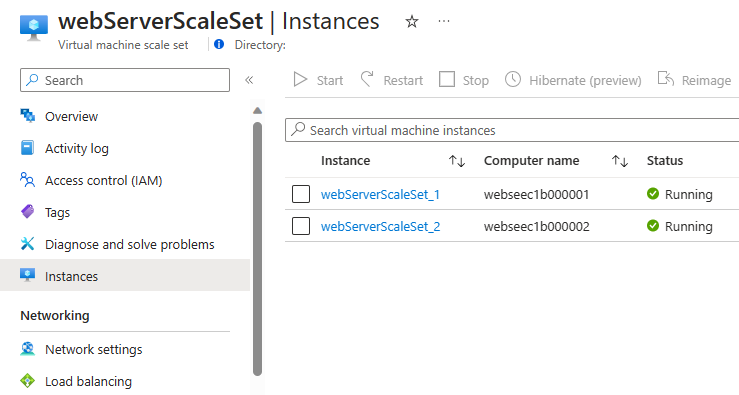

4. Under Settings, select Instances. Verify that the scale set contains two running VMs.



5. Select an instance and navigate to the Properties tab. Verify that the VMs are running Ubuntu Linux.



6. In your web browser, go to the public IP address of the scale set. Verify that the message Hello World from Virtual Machine Scale Set ! appears.
