Exercise - Run your web app locally

Completed 100 XP

Choose an Integrated Development Environment (IDE) or the shell

Visual Studio Code .NET CLI

In this exercise, you will:

• Run your web app locally and view it in a browser.
• Review how the web app is served.

Run the web app and view in a browser

Run the web app in Visual Studio Code and view in a browser:

1. In Visual Studio Code, press F5 to run the app.

   Visual Studio Code:

   • Triggers the .NET CLI command dotnet run which builds and runs the application.
   • Attaches the debugger to the running application.

   The first time the project is run in Visual Studio Code, the Select debugger prompt is displayed.

2. At the Select debugger prompt in the Command Palette at the top of the Visual Studio Code UI, select C#. At the next prompt, select the default launch configuration (C#: MyWebApp [Default Configuration]):



   The default browser is launched at http://localhost:{PORT}, which displays the app's response. The {PORT} placeholder is the random port assigned to the app when the app's project is created. If you need to change the port due to a local port conflict, change the port in the project's Properties/launchSettings.json file.

   The response displayed in the browser:



3. Close the browser window.

4. In Visual Studio, either:

   • From the Run menu, select Stop Debugging.
   • Press Shift+F5 on the keyboard.

Run the web app using the .NET CLI:

1. From a terminal or the command line, navigate to the MyWebApp project directory that contains your MyWebApp.csproj file.

2. Build and Run the app with the following command:

   .NET CLI

   dotnet run


   The project is built, run, and shows the following output on the command line:

   Output

   C:\MyWebApp> dotnet run
   Building...
   info: Microsoft.Hosting.Lifetime[14]
           Now listening on: http://localhost:5267
   info: Microsoft.Hosting.Lifetime[0]
           Application started. Press Ctrl+C to shut down.


   Since the port number in the URL provided is set randomly in configuration at project creation, your endpoint might have a different port number.

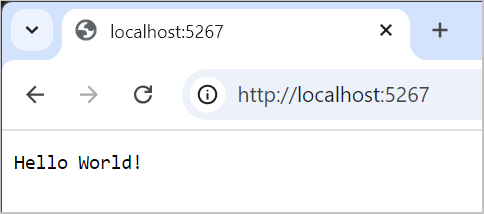

3. Open a browser to the URL generated at your own command line output, the app's response Hello World! is displayed:



4. To shut down the app, press Ctrl+C at the command line.

How the web app is served

When the app is built and run, the following steps occur:

Build and Configuration:

• MSBuild is invoked to restore dependencies and compile the project. MSBuild processes the MyWebApp.csproj project file and compiles the source code into an assembly.
• The app reads configuration settings, including the settings specified in launchSettings.json for the default launch profile (the first one listed).

Host Setup:

• The WebApplication.CreateBuilder method in Program.cs sets up the web host. By default, this method configures Kestrel as the web server. Kestrel is a cross-platform web server for ASP.NET Core designed for high performance.
• Kestrel starts listening for incoming HTTP requests on the configured URLs, including HTTPS if specified.

Request Handling:

• When a request is received, Kestrel forwards it to the ASP.NET Core middleware pipeline.
• The middleware pipeline processes the request through a series of middleware components, which can handle tasks such as authentication, logging, and routing.
• If the request matches a defined route, the corresponding endpoint is executed. In this case, the app.MapGet("/", () => "Hello World!") endpoint handles requests to the root URL and returns the string Hello World!.

Response:

• The response, which in this case is the string "Hello World!", is sent back through the middleware pipeline to Kestrel, which then sends it back to the client.

---
