Exercise - Create subscriptions in Azure API Management

  • 10 minutes

You can use the Azure API Management user interface in the Azure portal to create subscriptions and obtain subscription keys for use in client apps.

Suppose your weather company has decided to make its meteorological data available to clients that subscribe and pay for this service. The critical requirement is to only allow access to clients that are allocated a key. As lead developer, you need to create an API gateway. You'll use the gateway to publish a RESTful Weather API that exposes an OpenAPI endpoint. You'll then secure the endpoint and allocate a client key.

In this unit, you'll:

  • Publish a RESTful Weather API
  • Deploy an API Management gateway
  • Expose the Weather API through the gateway endpoint
  • Restrict access based on a subscription key

Important

You need your own Azure subscription to run this exercise, and you might incur charges. If you don't already have an Azure subscription, create a free account before you begin.

Deploy the Weather Web API

You've developed a .NET Core app that returns weather information. The app includes Swashbuckle to generate OpenAPI documentation.

To save time, let's start by running a script to host our API in Azure. The script performs the following steps:

  • Create an Azure App Service plan in the free tier
  • Create a Web API within an Azure App Service, configured for Git deployment from a local repo
  • Set account-level deployment credentials for our app
  • Configure Git locally
  • Deploy our Web API to our App Service instance

  1. Sign in to the Azure portal.

  2. In the Azure taskbar, select the Cloud Shell icon to open Azure Cloud Shell.

    Screenshot of Cloud Shell icon in taskbar.

  3. Run the following git clone command in Azure Cloud Shell to clone the repo that contains the source for our app, and our setup script from GitHub.

    git clone https://github.com/MicrosoftDocs/mslearn-control-authentication-with-apim.git

  4. Go to the repo folder directory locally by running the following cd command.

    cd mslearn-control-authentication-with-apim

  5. As its name suggests, setup.sh is the script you'll run to create our API. It will generate a public web app that exposes an OpenAPI interface.

    bash setup.sh

    The script has seven parts and takes about a minute to run. Observe that, during deployment, all dependencies needed for our app to run are automatically installed on the remote App Service.

    When the script has finished, it outputs two URLS, a Swagger URL, and an Example URL. You can use these URLs to test the app deployment.

  6. To test that our app deployed correctly, copy and paste the Swagger URL from Azure Cloud Shell output into your favorite browser. The browser should display the Swagger UI for our app, and declare the following RESTful endpoints:

    • api/weather/{latitude}/{longitude}, which returns meteorological data for the current day given the specified latitude and longitude (double values).
    • api/weather/{date}/{latitude}/{longitude}, which returns meteorological data for the specified day (date value) at the specified latitude and longitude (double values).

    Swagger view.

  7. Finally, copy and save the Example URL from Azure Cloud Shell output. This location is the Swagger JSON URL. You'll need it later in this exercise.

Deploy an API gateway

The next step in this exercise is to create an API gateway in the Azure portal. In the next exercise, you'll use this gateway to publish your API.

  1. Sign into the Azure portal.

  2. On the Azure resource menu or from the Home page, under Azure services, select Create a resource. The Create a resource pane appears.

  3. In the resource menu, select Integration, and in the results, select API Management. The Install API Management gateway pane appears.

  4. On the Basics tab, enter the following values for each setting.

    Setting Value
    Project details
    Subscription Select your subscription.
    Resource group Select a new or existing resource group. A resource group is a logical container that holds related resources for an Azure solution.
    Instance details
    Region Select an available region.
    Resource name Enter apim-WeatherData<random number>; the random number is to ensure that the name is globally unique. Make a note of this resource name; it will be the API gateway name that you'll need it later in this exercise.
    Workspace name Enter Weather-Company.
    Administrator email The email address to receive all system notifications.
    Pricing tier
    Pricing tier From the dropdown list, select Consumption.

  5. Select Review + create, and after validation passes, select Create.

    Note

    The Consumption tier provides fast deployment for testing and has a pay-for-use pricing model. The overall API management experience is similar to the other pricing tiers.

You can view the progress of the deployment, along with the resources that are being created.

Import the API

After deployment has completed, import the Weather API into the API Management gateway by using the following procedure.

  1. Select Go to resource. The Overview pane of the API Management service for your resource appears.

  2. In the left menu pane, under APIs, select APIs. The APIs pane for your API Management service appears, with template selections for creating/displaying an API.

  3. Under Create from definition, select OpenAPI. The Create from OpenAPI specification dialog box appears.

  4. In the OpenAPI specification field, paste the Swagger JSON URL that you saved earlier in the exercise. When you press Enter or select a different area of the dialog box, other fields will be populated for you. This data is imported from the OpenAPI specification that Swagger created.

  5. Accept the defaults for all the other settings, and then select Create.

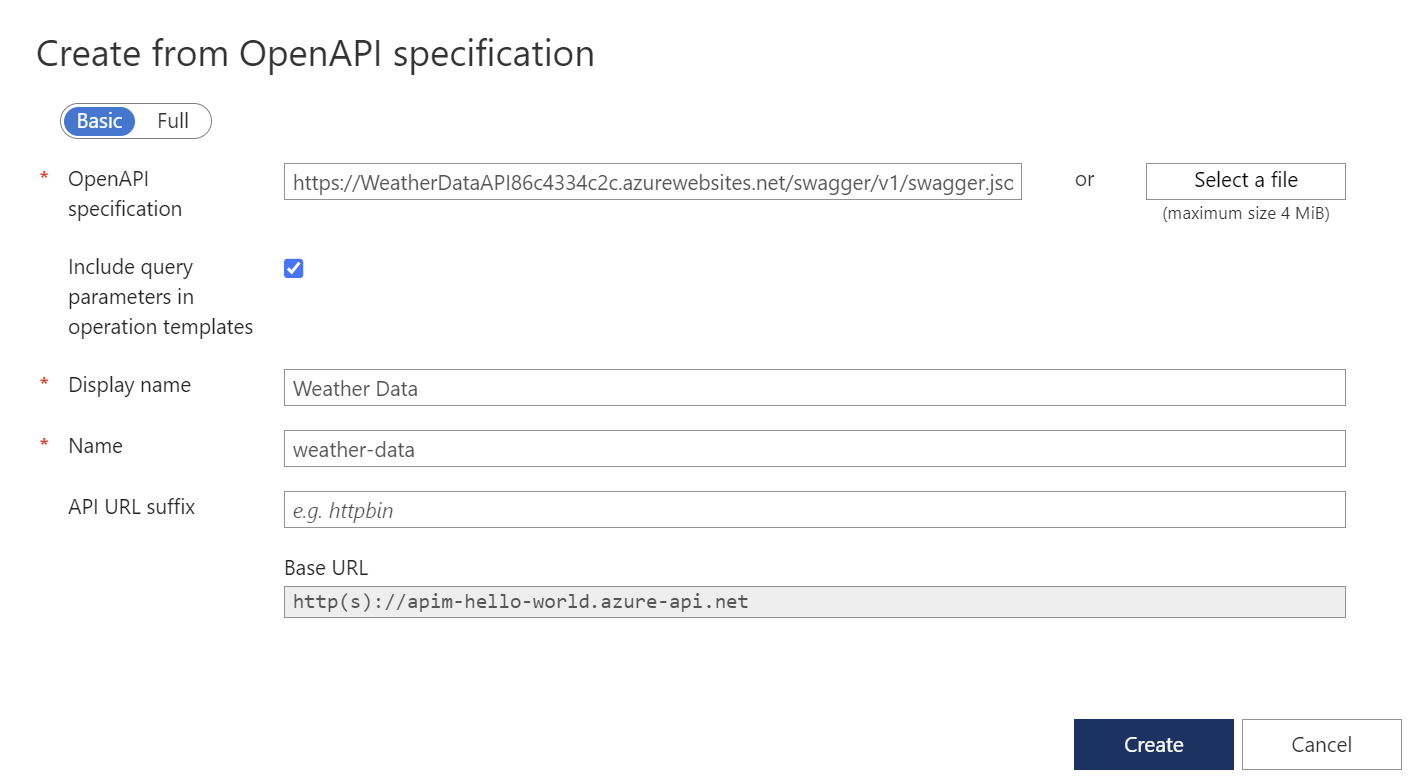

    Screenshot of dialog box with swagger.json url highlighted.

The Design tab of the Weather Data API displays all operations, which consists of two GET operations.

Add a subscription key to access the Weather API

The final step is to add a subscription key for the Weather Data API.

  1. In the left menu pane, under APIs, select Subscriptions. The Subscriptions pane for your API Management service appears.

  2. On the top menu bar, select Add subscription. The New subscription pane appears.

    Screenshot showing how to add a new subscription.

  3. Enter the following values for each setting.

    Setting Value
    Name weather-data-subscription
    Display name Weather Data Subscription
    Allow tracing No checkmark
    Scope From the dropdown list, select API.
    API From the dropdown list, select Weather Data.

  4. Select Create. The Subscriptions pane lists two subscriptions, Built-in all-access subscription and your Weather Data Subscription.

  5. At the end of the Weather Data Subscription row, select the ellipsis, and in the context menu select Show/hide keys. The Primary and Secondary key values show.

  6. Copy the Primary key from Weather Data Subscription to your clipboard and save it in something like Notepad. You'll need this key in the next step.

Test the subscription key

The API is secured with a key. Now, we'll test the API without and with the key to demonstrate secure access.

  1. Make a request without passing a subscription key. In Azure Cloud Shell, run the following cURL command. Substitute the [Name Of Gateway] placeholder with the resource name for the API gateway (apim-WeatherDataNNNN) that you created in the previous task.

    curl -X GET https://[Name Of Gateway].azure-api.net/api/Weather/53/-1

    This command has no subscription key and should return a 401 Access Denied error, similar to the following.

    { "statusCode": 401, "message": "Access denied due to missing subscription key. Make sure to include subscription key when making requests to an API." }

  2. Now, run the following command. Substitute the Name Of Gateway placeholder with the resource name for the API gateway (apim-WeatherDataNNNN). Also, substitute the Primary Key placeholder with the primary key you copied from the show/hide step.

    curl -X GET https://[Name Of Gateway].azure-api.net/api/Weather/53/-1 \
  -H 'Ocp-Apim-Subscription-Key: [Primary Key]'

    If you included the closing quote, this command should result in a successful response similar to the following code.

    {"mainOutlook":{"temperature":32,"humidity":34},"wind":{"speed":11,"direction":239.0},"date":"2019-05-16T00:00:00+00:00","latitude":53.0,"longitude":-1.0}
