Call an action to pull in Dataverse for Teams data

Completed

With the Call an action node, copilots can interact with Power Automate flows. You can use these flows to trigger automated processes or connect with Dataverse for Teams data, Microsoft Lists, or other data sources.

For example, the Event Contacts copilot could provide the Sales Project team members from a Dataverse for Teams table. Instead of editing the copilot when changes are made to this team, you can update the table.

Step 1 - Create a Dataverse for Teams table

To create a Dataverse for Teams table, follow these steps:

  1. Create a new Dataverse for Teams table in the same team as the copilot. Remember that you'll need to create it by using Power Apps for Teams. In Power Apps for Teams, select the Build tab, and then select your Team.

  2. Select See all below the Items created for [your team name], to bring up the Team Solution list. The Team Solution list includes all of the Apps, copilots, Cloud flows, Tables, etc. that have been built in Dataverse for Teams for the selected Team. If you've selected the same Team that you created your Event Contacts copilot in, you'll see it in the Solution list.

  3. From the Team Solution ribbon at the top, select New > Table.

    Screenshot of the Build tab with new menu and table selected.

    Name your new table Sales Project Team and select Save. The columns and data types to use are as follows:

    Column Data type
    Name Text
    Email Address Email

    You'll need to add the Email Address column to your table before continuing to the next step.

  4. Add new rows for each of the four contacts.

    Name Email Address
    Joseph Price JosephP@contoso.com
    Nathan Rigby NathanR@contoso.com
    Amber Rodriguez AmberR@contoso.com
    Monica Thomson MonicaT@contoso.com
  5. When complete, return to Microsoft Copilot Studio for Teams.

Step 2 - Create a copilot topic with an Action step

To add an action, follow these steps:

  1. In Microsoft Copilot Studio for Teams, select the Copilots tab from the ribbon, then find/select your Event Contact copilot to open it.

  2. Go to your list of Topics.

  3. Create a new topic by selecting New topic > From blank from the Topics ribbon. To name the topic select Details from the ribbon. Enter "Sales Project Team" into the Name field.

  4. Select Trigger phrases and enter each of the following, press + after each entry:

    sales project team

    sales project info

    sales team info

    sales project members

    sales project info

  5. On the authoring canvas inside the Message node, enter:

    Let me look up the Sales Project Team!

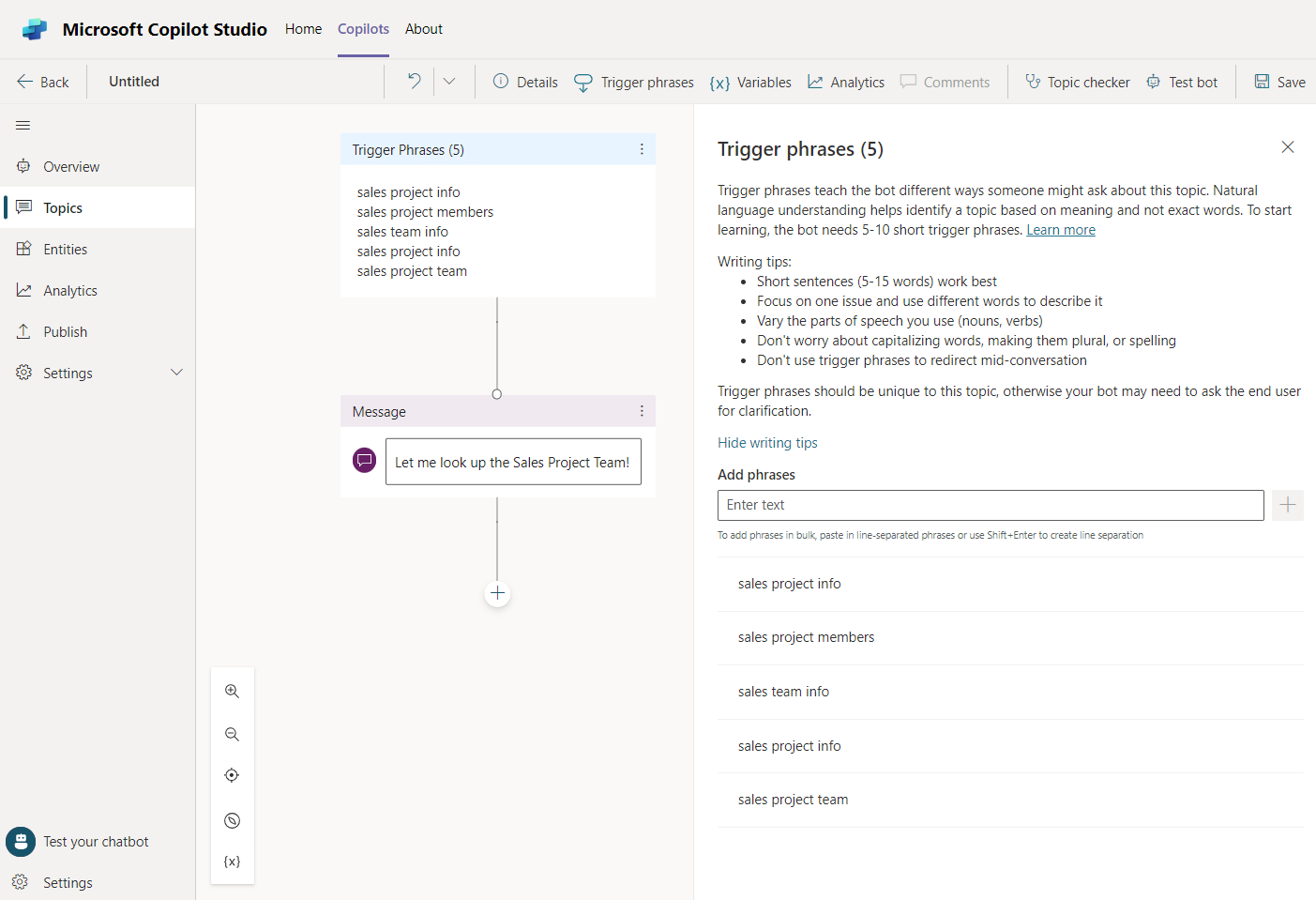

    Screenshot of the setup with the name and trigger phrases.

  6. Now, select the Save button from the ribbon to save your topic. Any changes that you haven't saved at this point could be lost when you switch to Power Automate to create the flow.

  7. Add a new node after the Message node and then select Call an action > Create a flow. Copilot Studio might present you an option box to remind you to save your topic before leaving. If you've already saved it, select Leave. This action opens the Power Automate studio inside of Copilot Studio.

    There are some common templates available to immediately choose from. Each template allows you to pass information to the flow when it's triggered. As the flow finishes, it can pass information back to the copilot. If you want to look at some more template options, you can select See more templates. Some notables include:

    Power Virtual Agents Flow Template - This template only has the steps to receive and send information to the copilot.

    Send a message to a Teams channel - Trigger a Teams message from the copilot.

    Send an adaptive card to a Teams channel - Trigger an adaptive card to provide information into a Teams channel.

  8. Select the one called Power Virtual Agents Flow Template (it might be called Microsoft Copilot Studio Flow Template).

  9. Rename the flow to Get Sales Team Members.

  10. Create a variable to hold the information that you want to provide back to the copilot. Select the Insert new step icon and select Add an action.

  11. In the search box, enter "variable" and then, under Actions, select Initialize variable.

  12. Enter "varContactInfo" for the Name and then select String for the type. Leave the Value blank.

  13. Now we need a step to access the data from Dataverse from Teams. Under the Initialize variable step, select the Insert new step icon and select Add an action. Search for the Microsoft Dataverse connector then select List Rows as the trigger.

  14. For Table name, select the Sales Project Team from the dropdown. (You can input "sales" in the input field to filter the list.)

    The List rows action pulls all table rows into an array. An array is a type of variable that can hold more than one value at a time. To work with data in the array, you need to go through each row and add the data to your varContactInfo variable.

  15. Select the Insert new step icon after List rows. Select Add an action.

  16. In the search box, enter Control and then, under Actions, select Apply to each.

  17. In the Select an output from previous steps field, select the text box to add Dynamic content. Then select value from under the List rows action.

  18. Select Add an action within the Apply to each step to continue.

  19. In the Choose and operation search box, enter variable and then, under Actions, select Append to string variable.

  20. In the Append to string variable step select varContactInfo for the Name.

  21. For the Value of the Append to string variable action, we're going to create a bulleted list with the name and email of each person. Power Automate uses Markdown syntax when formatting text. To indicate a bulleted list in Markdown, you'll use the asterisk character * at the line's start. (To learn more about Markdown, see the Summary section at the end of this module.)

    In the Value text box:

    1. Enter an asterisk * and then add a space.
    2. Under dynamic content List rows, select Name and then add a space.
    3. Under dynamic content List rows, select Email Address.
    4. Press Enter to start a new line.

    We're done with this step.

  22. Select the Return value(s) to Microsoft Copilot Studio step at the bottom of the flow, and then select + Add an output.

  23. Select Text as the type of output.

  24. In the Enter Title text box, enter ContactData.

  25. For the Enter value to respond field, select the input field and then select varContactInfo under the Variables section.

    Your flow should now resemble the following image:

    Screenshot of the Get Sales Team Members flow.

  26. Select Save from the Power Automate ribbon to finish editing the flow. Power Automate automatically runs the Flow Checker to look for problems. You might see a warning about "...OData filter queries..." but you can ignore that. Select Close to exit Power Automate and return to the copilot editor.

  27. Select the Add node icon after the Message node and then select Call an action.

  28. The flow that you created will appear in the list. Select Get Sales Team Members.

  29. Add a Show a message step after the Action node.

  30. Click inside the text box to bring up the menu. Select ContactData under Insert variable {X}.

  31. Select Save from the Topic editing ribbon and wait for the topic to save. If the Test bot pane isn't visible, select the Test bot menu option.

Enter one of the trigger phrases to test the copilot. If you've done it correctly, your test copilot will provide the four names and email addresses of your Sales Project Team.

Copilot Studio can work through Power Automate flows to help you look up a single record in Dataverse for Teams based on the user's needs. For example, a user might want the contact information for a particular person based on their job title. While outside the scope of this module, Dataverse List Rows can use filters based on choices that the user has made in the copilot. For more information regarding OData queries like this, see the Summary unit at the end of this module.
