Assemble composed models

Completed

You can create a composed model by assembling custom models in Azure AI Document Intelligence or in your own code.

In your polling company, you want to create a composed model that will categorize and correctly analyze all the versions of your main political polling form. You need to know how to compose models.

Here, you'll learn how to create composed models.

Create a composed model in Document Intelligence Studio

Before you start creating a composed model, you'll need:

• An Azure AI Document Intelligence resource in your Azure subscription.
• A set of custom models, trained and labeled, that you want to add to the composed model.

If you prefer to use a Graphical User Interface (GUI), you can create a composed model in the Azure AI Document Intelligence Studio:

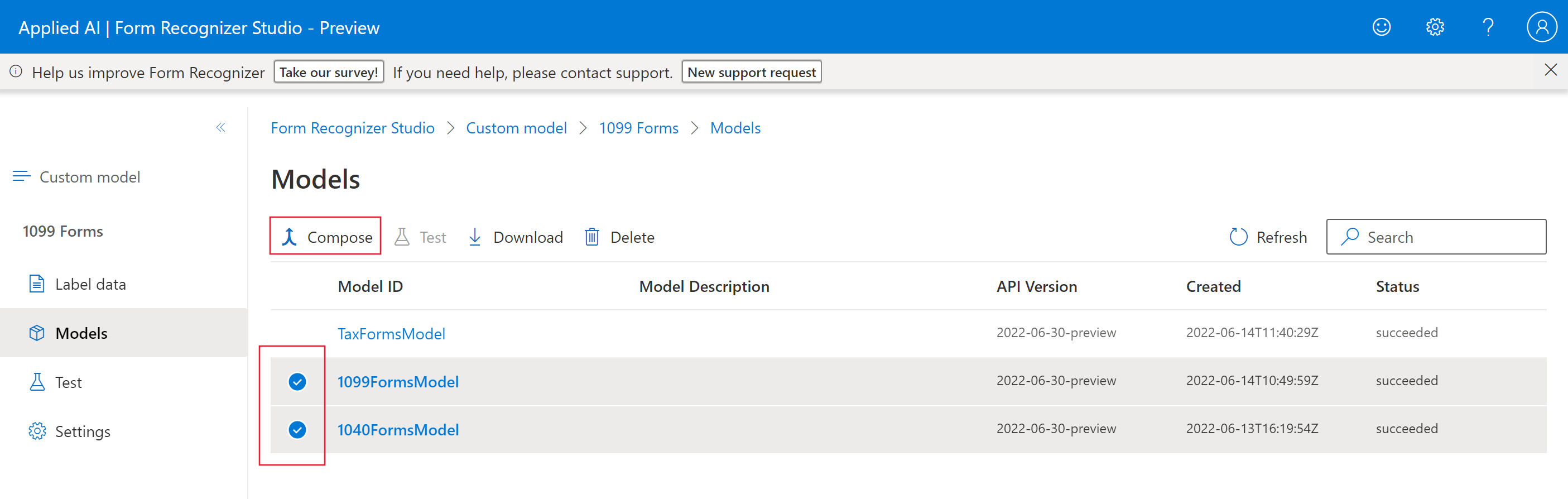

1. In Azure AI Document Intelligence Studio, on the home page, select Custom model.

2. Under My Projects select one of the custom models and then in the left navigation, select Models.

3. In the Models list, select all the models that you want to include in the new composed model, and then select Compose.



4. In the Compose a new model dialog, enter a Model ID and a Description for the composed model and then select Compose.

Create a composed model in code

If you're using one of the Azure AI Document Intelligence SDKs to create a composed model by executing code, you have to start by creating an instance of the DocumentModelAdministrationClient object, and connecting it to Azure AI Document Intelligence with its endpoint and API key:

string endpoint = "<endpoint>";
string apiKey = "<apiKey>";
var credential = new AzureKeyCredential(apiKey);
var client = new DocumentModelAdministrationClient(new Uri(endpoint), credential);

To create the composed model, assemble the model IDs of all the custom models in a List, and then pass that list to the StartCreateComposedModelAsync() method:

List<string> modelIds = new List<string>()
{
    firstCustomModel.ModelId,
    secondCustomModel.ModelId,
    thirdCustomModel.ModelId,
};

BuildModelOperation operation = await client.StartCreateComposedModelAsync(modelIds, modelDescription: "Composed model example");
Response<DocumentModel> operationResponse = await operation.WaitForCompletionAsync();

Once the composed model has been created, you can send a form to it for analysis using the same code you would use to send a form to any other custom model. Remember to specify the model ID of the composed model in your call.

In the results, use the docType property to determine the constituent custom model that was used to analyze each document.

Learn more

• Compose custom models
