Exercise - Create the app and deploy to Azure - Training

10 minutes

In order to work through a remote debugging exercise with App Service, you'll first need to create an application and deploy it to Azure. The Razor Pages sample app you'll create allows users to search for GitHub repositories by organization. However, the app also contains a subtle bug that you will troubleshoot using Visual Studio after it has been deployed.

Create the sample app

You can create the sample app for this module using Visual Studio. The sample app allows you to search for GitHub organizations by name and display their repositories in a simple table.

Inside Visual Studio, select File > New Project.
In the Create a new project dialog, search for ASP.NET and select the ASP.NET Core Web App option. Make sure to choose the Razor Pages project template instead of the Model-View-Controller option, then select Next.
On the Configure your new project dialog, name the project GitHubBrowser, leave the rest of the settings at their defaults, and then choose Next.

Important

Make sure to name your project GitHubBrowser for the code snippets below to work with matching namespaces. If you name your project something else, you'll need to update the namespace in the code snippets.
On the Additional information step, choose .NET 6.0 and then select Create. This exercise can also work with earlier versions of .NET, such as .NET 5.0 or .NET Core 3.1.

After Visual Studio creates the project, expand the Pages folder in the solution explorer and open the Index.cshtml file. Replace the contents of Index.cshtml with the following code:

@page
@model IndexModel

<h1 class="display-6">Welcome to the GitHub searcher!</h1>
<p class="mb-3">Enter the name of a GitHub organization such as "Microsoft" or "Azure" to browse its repositories.</p>

<form method="post" class="form mb-5">
    <div class="form-group mb-3">
        <input type="text" class="form-control" asp-for="@Model.SearchTerm" />
    </div>
    <input class="btn btn-success" type="submit" value="Search" />
</form>

<table class="table table-striped table-bordered">
    <thead>
        <tr>
            <td>Name</td>
            <td>Description</td>
            <td>Link</td>
        </tr>
    </thead>
    @foreach (var item in Model.Repos)
    {
        <tr>
            <td>@item.Name</td>
            <td>@Html.Raw(item.Description)</td>
            <td><a class="btn btn-secondary" href="@item.HtmlUrl">Browse</a></td>
        </tr>
    }
</table>

This Razor code provides a basic search form to browse for GitHub organizations and displays the results in a table.

In the solution explorer, expand the arrow next to Index.cshtml to reveal the Index.cshtml.cs file. Double click the Index.cshtml.cs file to open it, and replace its contents with the following code:

using Microsoft.AspNetCore.Mvc;
using Microsoft.AspNetCore.Mvc.RazorPages;
using Microsoft.Net.Http.Headers;
using System.Text.Json;
using System.Text.Json.Serialization;

namespace GitHubBrowser.Pages
{
    public class IndexModel : PageModel
    {
        private readonly IConfiguration _env;

        [BindProperty]
        public string SearchTerm { get; set; }

        public IEnumerable<GitRepo> Repos { get; set; } = new List<GitRepo>();

        public IndexModel(IConfiguration env)
        {
            _env = env;
        }

        public IActionResult OnGet()
        {
            return Page();
        }

        public async Task<IActionResult> OnPost()
        {
            var client = new HttpClient();

            var githubUrl = _env["GitHubUrl"];
            var searchUrl = $"{githubUrl}/orgs/{SearchTerm}/repos";
            var httpRequestMessage = new HttpRequestMessage(HttpMethod.Get, searchUrl)
            {
                Headers =
                {
                    { HeaderNames.UserAgent, "dotnet" }
                }
            };

            var httpResponseMessage = await client.SendAsync(httpRequestMessage);
            var content = await httpResponseMessage.Content.ReadAsStringAsync();
            Repos = JsonSerializer.Deserialize<IEnumerable<GitRepo>>(content);

            return Page();
        }
    }

    public class GitRepo
    {
        [JsonPropertyName("name")]
        public string Name { get; set; }

        [JsonPropertyName("description")]
        public string Description { get; set; }

        [JsonPropertyName("html_url")]
        public string HtmlUrl { get; set; }
    }
}

The preceding code contains two important methods:

The OnGet method handles initially loading the search page.
The OnPost method handles the form submission. The method pulls the GitHub API URL from the appsettings.Development.json file using the configuration service and makes an HTTP request with the submitted search term as a parameter. The items returned from the API are then assigned to a property and rendered using a table in the Index.cshtml file.

In the Visual Studio Solution Explorer, expand the arrow next to the appsettings.json file. Open the appsettings.Development.json file and replace its contents with the following code:
```
{
  "GitHubURL": "https://api.github.com",
  "DetailedErrors": true,
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.AspNetCore": "Warning"
    }
  }
}
```
This file provides some essential configuration values for the app, including the URL of the GitHub API that is used to retrieve an organization's repositories.
Test the app locally by pressing the run button at the top of Visual Studio. The app should load in the browser and present a form to use for search queries. For example, search dotnet to browse repos for that GitHub organization to get an idea of what the results should look like.

Deploy the app to Azure

Next, you need to deploy the app to Azure so others can use it to browse repositories. You can deploy the app using Visual Studio and the steps below.

If you are using the Learn sandbox, you may need to log out and log in again inside of Visual Studio for your subscription information to refresh. You can manage your account by clicking on the name icon in the upper right of Visual Studio, choose Account settings, and then choose sign out, then sign in. Make sure you are logged into the same account you used to create the sandbox.

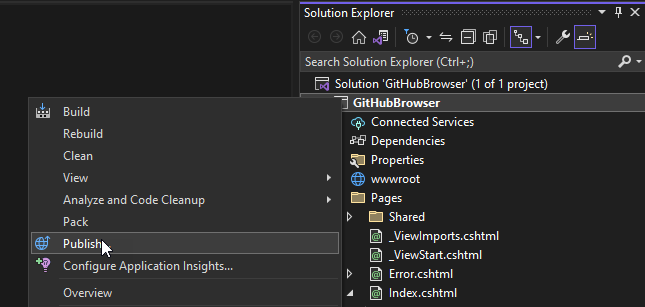

Right click on the project node in the solution explorer, and then select Publish.
In the publishing dialog, select Azure as the Target, and then select Next.
On the Specific Target step, select Azure App Service (Windows), and then choose Next.
For the App Service step, make sure you're signed into the correct Azure Account in the upper right of the dialog.

Remember, for the Learn sandbox, you may need to sign out of Visual Studio and sign in to make the sandbox subscription available, as described previously.
Select the subscription you would like to deploy to.

For the Learn sandbox environment, check whether the Concierge Subscription has loaded by clicking the Refresh button. If it's available, select it. If it's not available, continue with the next step.
Create a new app service instance by selecting the green + Create new icon.

Note

For the sandbox environment, you may need to wait while Visual Studio loads the subscription information. This may take some time.

In the new app service dialog, enter or verify the following values:

Setting	Value
Name	Enter `GitHubBrowser123`, where `123` are three random numbers of your choosing to ensure your App Service name and domain is unique across Azure.
Subscription name	If you are using the Learn sandbox environment, select the `Concierge Subscription`, otherwise select your own.
Resource group	Choose the default [sandbox resource group name] if you are using the sandbox, or select New... to create your own new group with a name such as `mslearn-github-browser`.
Hosting plan	If you are using the Learn sandbox, leave the default value. If you are using your own subscription, select New... and enter a name of `mslearn-github-browser-plan` and choose your instance size. (Tip: If you are using the Learn sandbox and the default hosting plan doesn't appear, switch the resource group to a new group and then switch back to the default group.)

A screenshot of the create app service workflow.

Select Create to close the dialog, and Visual Studio will take a moment to create the App Service instance for you.

Once the App Service is created, select the new instance, and then choose Finish. If you see a blank screen instead, try proceeding to the next step.
Visual Studio will display a summary view of the publishing profile. Select Publish in the upper right corner to deploy your app to Azure. This process may take a little time to complete.

When the deployment finishes Visual Studio will launch a web browser to the home page of your app. At first, it appears that everything is working correctly.

Next, enter dotnet again in the GitHubBrowser app's search box, and at this point you'll receive an error page instead of the table of results. This error didn't happen locally, and you can use Visual Studio to figure out why.

A screenshot of the application error.

Enable remote debugging

Before you can debug this issue with Visual Studio, you must enable the remote debugging feature on the App Service. This setting will allow the Visual Studio debugger to connect to the main App Service web hosting process.

If you're using the Learn sandbox, open the Learn sandbox Azure portal. Make sure to sign in with the same account that you opened the sandbox. If you're not using the sandbox, sign into your own Azure portal.

Locate your deployed application in the Azure portal. You can find your app by browsing to the App Services page and then selecting the GitHubBrowser123 app. You can also search for the App Service instance directly by name in the search bar at the top.

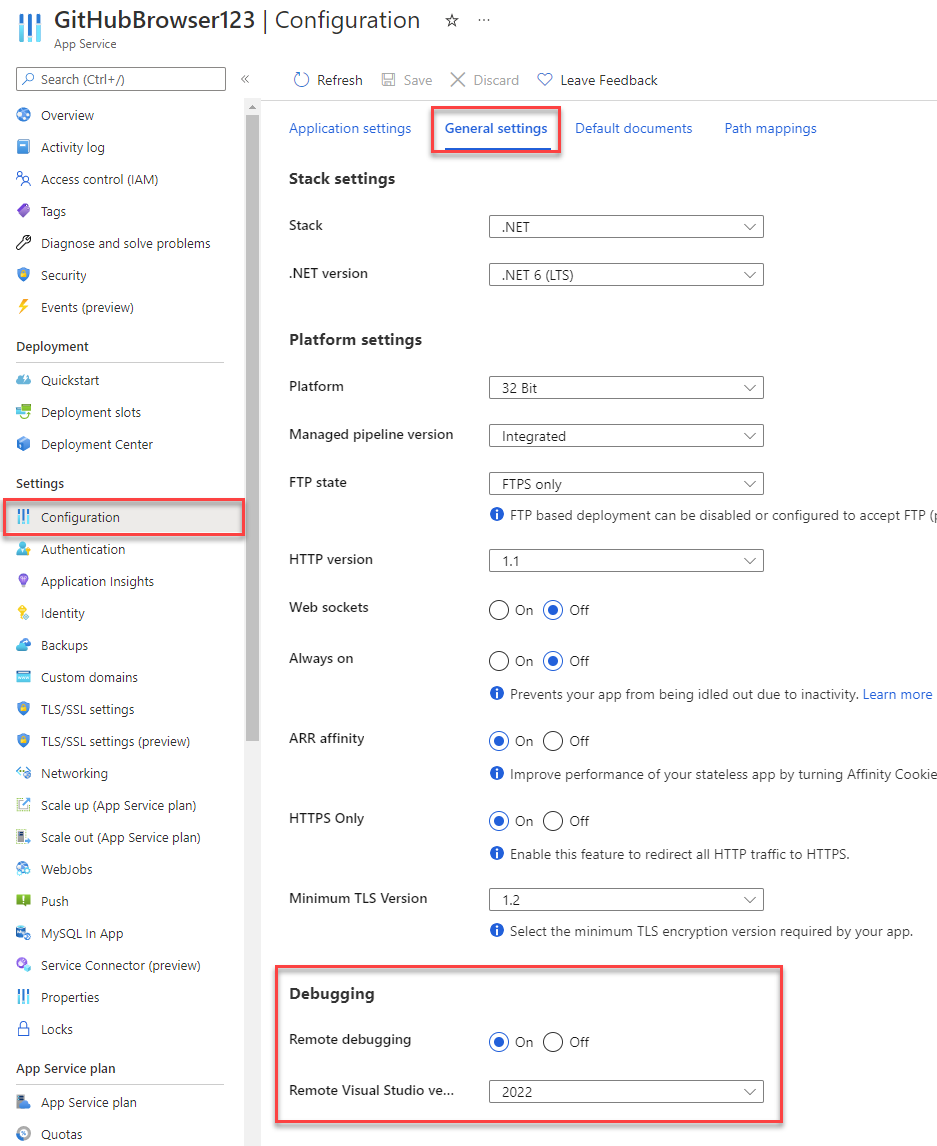

On the App Service settings page, select Configuration on the left navigation, and then switch to the General Settings tab.
Towards the bottom of the page, make sure to set the Remote Debugging feature to On and select Visual Studio 2022 as the Remote Visual Studio version.
Select Save at the top of the page to persist your changes.

Your app service instance now supports remote debugging through Visual Studio.
