Understand Office Add-ins fundamentals

Completed

The Office Add-ins platform enables you to extend the functionality of Office applications. In this unit, you'll explore various ways you can use add-ins to extend and interact with Office applications. You'll also learn about configuring your add-in using the add-in's manifest file.

Understand task pane and content add-ins

Office Add-ins provide several options for how your solution can interact with an Office application. In this unit, we discuss two of those options:

• Task pane
• Content

Task pane add-ins

Task pane add-ins allow user interaction through a panel displayed within an Office application. Through the task pane interface, you can enable the user to modify documents or emails, view data from a data source, and more. In the following image, the task pane is the panel that's displayed to the right of the document.

Task pane add-in displayed within an Office application

In newer versions of Word, Excel, and PowerPoint, you can configure the task pane to be displayed automatically when a user opens a file. The user will need to have your add-in installed first to activate this behavior.

Define the task pane add-in type

As described previously, an add-in's manifest file defines the settings and capabilities of the add-in.

To configure an add-in as a task pane add-in for any Office application except Outlook, set the xsi:type attribute to TaskPaneApp within the OfficeApp element of the manifest file, as shown in the following example.

<OfficeApp
  ...
  xsi:type="TaskPaneApp">
   ...
</OfficeApp>

To configure an add-in for Outlook, set the xsi:type attribute to MailApp within the OfficeApp element of the manifest file, as shown in the following example.

<OfficeApp
  ...
  xsi:type="MailApp">
   ...
</OfficeApp>

Content add-ins

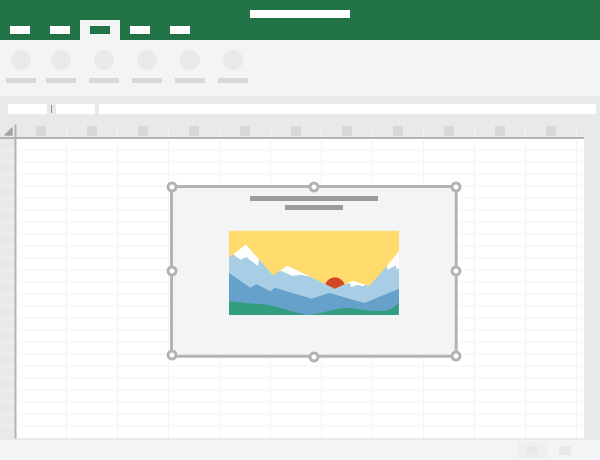

Content add-ins can be used to insert an object into an Excel spreadsheet or PowerPoint presentation. That object can be a web-based data visualization, media, or other external content. In the following image, the content add-in is displayed near the center of the document.

Content add-in loaded within an Office application

Define the content add-in type

As described previously, an add-in's manifest file defines the settings and capabilities of the add-in. To configure an add-in as a content add-in, set the xsi:type attribute to ContentApp within the OfficeApp element of the manifest file, as shown in the following example.

<OfficeApp
  ...
  xsi:type="ContentApp">
   ...
</OfficeApp>

Understand Office Add-ins dialogs

The Office Add-ins platform enables you to display a dialog for your users to:

• Sign into an integrated service (for example, authenticate with Microsoft Account, Google, or Facebook).
• Confirm the user's action.
• Run a task that might be too confined in a task pane (for example, view a video).

The dialog window isn't modal, meaning that your user can continue to interact with the Office application and your add-in while the dialog window is displayed. The following image shows a dialog being displayed in an Office application.

Dialog displayed in an Office application

Understand Office Add-ins custom functions

Office Add-ins enable you to create custom JavaScript or TypeScript functions that can be accessed like built-in Excel functions such as SUM().

The following image shows a custom function called SPHEREVOLUME being entered in Excel.

Custom function being entered in Excel

The following code sample shows the JavaScript code for the SPHEREVOLUME() function shown previously.

/**
 * Returns the volume of a sphere.
 * @customfunction
 * @param {number} radius
 */
function sphereVolume(radius) {
  return (Math.pow(radius, 3) * 4 * Math.PI) / 3;
}

Where can you use custom functions?

Custom functions are available in Excel on the following platforms.

• Windows (connected to a Microsoft 365 subscription)
• macOS (connected to a Microsoft 365 subscription)
• Web browser

Define the custom function add-in type

To configure an add-in to contain custom functions, the key settings in the manifest are as follows for Excel add-ins.

<OfficeApp
  ...
  xsi:type="TaskPaneApp">
   ...
  <Hosts>
    <Host Name="Workbook"/>
  </Hosts>
   ...
  <VersionOverrides xmlns="http://schemas.microsoft.com/office/taskpaneappversionoverrides" xsi:type="VersionOverridesV1_0">
    <Hosts>
      <Host xsi:type="Workbook">
        <AllFormFactors>
          <ExtensionPoint xsi:type="CustomFunctions">
            ...
          </ExtensionPoint>
        </AllFormFactors>
      </Host>
    </Hosts>
   ...
  </VersionOverrides>
</OfficeApp>

Understand add-in commands

Add-in commands are UI elements that extend the Office UI and start actions in your add-in. You can use add-in commands to add a button on the ribbon or an item to a context menu. When users select an add-in command, they start actions such as running JavaScript code, or showing a page of the add-in in a task pane. Add-in commands help users find and use your add-in, which can help increase your add-in's adoption and reuse, and improve customer retention.

Add-in commands in Excel, Word, PowerPoint, and OneNote

You can configure an add-in so that a user can run it by selecting:

• Office application's ribbon or command overflow menu button
  • Key manifest setting: <ExtensionPoint xsi:type="PrimaryCommandSurface">.
• Context menu item
  • Key manifest setting: <ExtensionPoint xsi:type="ContextMenu">.

An add-in command can also open a submenu with more commands.

Note

Content add-ins don't currently support add-in commands.

The following image shows three add-in commands (custom buttons) added to the Data tab of the Excel ribbon.

Add-in commands in Excel on Windows

Add-in commands in Outlook

You can configure an add-in so that a user can run it by selecting a button in the Office ribbon or command overflow menu when the user is:

• Reading a message in the reading pane or in a pop-out window.
  • Key manifest setting: <ExtensionPoint xsi:type="MessageReadCommandSurface">.
• Composing a message.
  • Key manifest setting: <ExtensionPoint xsi:type="MessageComposeCommandSurface">.
• Creating or viewing an appointment or meeting as the organizer.
  • Key manifest setting: <ExtensionPoint xsi:type="AppointmentOrganizerCommandSurface">.
• Viewing a meeting as an attendee.
  • Key manifest setting: <ExtensionPoint xsi:type="AppointmentAttendeeCommandSurface">.

An add-in command can also open a submenu with more commands.

The following images show three add-in commands (custom buttons) added to the ribbon in Outlook. In the first image, the buttons are rendered in a regular state; in the second image, the buttons are rendered in a collapsed state.

Add-in commands in Outlook on Windows

Where can you use add-in commands?

Add-in commands are available in Excel, Outlook, OneNote, PowerPoint, and Word as shown in the following table.

Platform	Major Office version	Subscription or one-time purchase?	Notes
Windows	Not applicable	connected to Microsoft 365 subscription	Not available in OneNote
	2021	one-time purchase	Not available in OneNote
	2019	one-time purchase	Not available in OneNote
	2016	one-time purchase	Only available in Outlook on Exchange 2016 (requires post-release update) or later. Not available in Office other applications.
	2013	one-time purchase	Only available in Outlook on Exchange 2016 or later. Requires post-release updates for Outlook and Exchange 2016. Not available in other Office applications.
macOS	Not applicable	connected to Microsoft 365 subscription	Not available in OneNote
	2021	one-time purchase	Not available in OneNote
	2019	one-time purchase	Not available in OneNote
	2016	one-time purchase	Not available in OneNote
iOS	Not applicable	connected to Microsoft 365 subscription	Only available in Outlook
Android	Not applicable	connected to Microsoft 365 subscription	Only available in Outlook
web browser	Not applicable	Not applicable	Available in all supported Office applications

Understand the purpose of the add-in manifest

An Office Add-in's XML manifest file defines the settings and capabilities of the add-in. You can configure it to control how your add-in is rendered and behaves in the targeted Office applications.

What the manifest defines

In the manifest, you define key information about the add-in, including:

• Add-in metadata (for example, ID, version, description, display name, default locale)
• Information about how the add-in integrates with Office (for example, target applications, custom functionality, add-in commands)
• Location of images the add-in should use for branding and command iconography
• Permissions that the add-in requires
• Dimensions of the add-in (for example, default dimensions for content add-ins, requested height for Outlook add-ins)
• Rules that specify when the add-in should activate in a message or appointment (Outlook only)

How the manifest is used

An add-in manifest is used in the following ways:

• The Office applications where your add-in runs use information from the manifest to render add-in UI and wire up custom buttons or menu entries.
• If you publish your add-in to AppSource:
  • Information from the manifest (name, description, author, logo, and so on) is used to create the app entry that's displayed to potential customers in AppSource.
  • The AppSource validation process reads information from the manifest and validates that your add-in runs on expected platforms.

Summary

The Office Add-ins platform enables you to extend the functionality of Office applications. In this unit, you explored various ways you can use add-ins to extend and interact with Office applications. You also learned about configuring your add-in using the add-in's manifest file.

Fundamental concepts about Office Add-ins

1.

Which of the following statements is true about Office Add-ins?

Add-ins can run only in Office on Windows, Mac, and iPad/iOS.

Microsoft 365 administrators can use centralized deployment to deploy add-ins across their organization.

A developer publishes their add-in to AppSource to hide it from the general public.

2.

The user needs to sign in to access add-in functionality within an Office application. Which Office Add-in platform feature should the developer display to facilitate the sign-in process?

add-in command

custom function

dialog

3.

What file defines the settings and capabilities of an Office Add-in?

dialog file

manifest file

web.config file
