Understand modern vision models

  • 5 minutes

CNNs have been at the core of computer vision solutions for many years. While they're commonly used to solve image classification problems as described previously, they're also the basis for more complex computer vision models. For example, object detection models combine CNN feature extraction layers with the identification of regions of interest in images to locate multiple classes of object in the same image.

Transformers

Most advances in computer vision over the decades have been driven by improvements in CNN-based models. However, in another AI discipline - natural language processing (NLP), another type of neural network architecture, called a transformer has enabled the development of sophisticated models for language. Transformers work by processing huge volumes of data, and encoding language tokens (representing individual words or phrases) as vector-based embeddings (arrays of numeric values). You can think of an embedding as representing a set of dimensions that each represent some semantic attribute of the token. The embeddings are created such that tokens that are commonly used in the same context define vectors that are more closely aligned than unrelated words.

As a simple example, the following diagram shows some words encoded as three-dimensional vectors, and plotted in a 3D space:

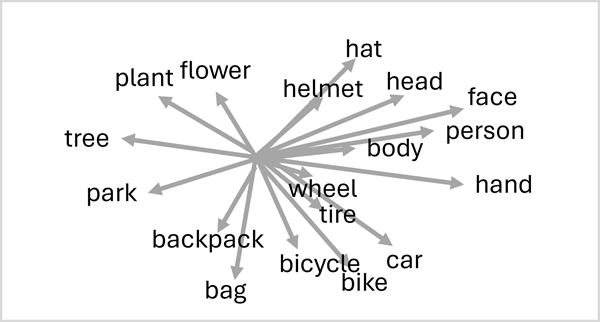

Diagram of token vectors in a 3D space.

Tokens that are semantically similar are encoded in similar directions, creating a semantic language model that makes it possible to build sophisticated NLP solutions for text analysis, translation, language generation, and other tasks.

Note

We've used only three dimensions, because that's easy to visualize. In reality, encoders in transformer networks create vectors with many more dimensions, defining complex semantic relationships between tokens based on linear algebraic calculations. The math involved is complex, as is the architecture of a transformer model. Our goal here is just to provide a conceptual understanding of how encoding creates a model that encapsulates relationships between entities.

Multi-modal models

The success of transformers as a way to build language models has led AI researchers to consider whether the same approach would be effective for image data. The result is the development of multi-modal models, in which the model is trained using a large volume of captioned images, with no fixed labels. An image encoder extracts features from images based on pixel values and combines them with text embeddings created by a language encoder. The overall model encapsulates relationships between natural language token embeddings and image features, as shown here:

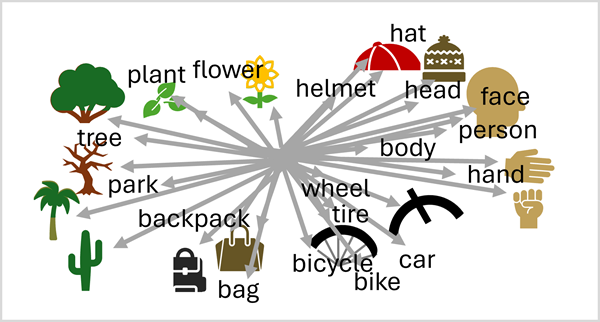

Diagram of a multi-modal model that encapsulates relationships between natural language vectors and image features.

Bringing it all together

Modern vision models are trained with huge volumes of captioned images from the internet and include both a language encoder and an image encoder. Often users will interact with and adapted foundation models. Foundation models are pre-trained general models on which you can build multiple adaptive models for specialist tasks. For example, you can adapt a foundation model to perform:

  • Image classification: Identifying to which category an image belongs.
  • Object detection: Locating individual objects within an image.
  • Captioning: Generating appropriate descriptions of images.
  • Tagging: Compiling a list of relevant text tags for an image.

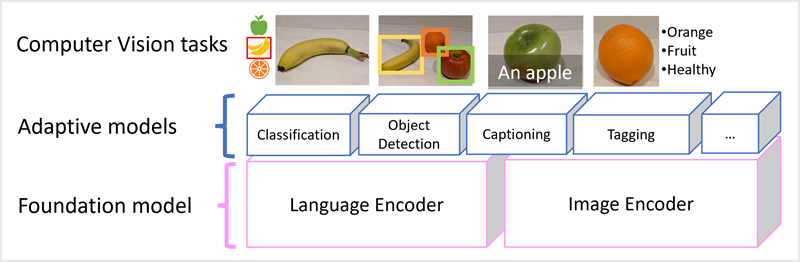

Diagram of a Florence model as a foundation model with multiple adaptive models built on it.

Multi-modal models are at the cutting edge of computer vision and AI in general, and are expected to drive advances in the kinds of solution that AI makes possible.
