Investigate caching, skewing, spilling, shuffle

Completed

A query that ran fine yesterday now takes three times longer. A job that processed millions of records suddenly fails with memory errors. These situations often trace back to four common performance issues: caching problems, data skew, memory spill, and excessive shuffle. Knowing how to investigate these issues using Azure Databricks diagnostic tools helps you restore performance quickly.

Use diagnostic tools to identify issues

Azure Databricks provides three primary tools for investigating performance problems. Each offers a different perspective on what's happening during query execution.

The Directed Acyclic Graph (DAG) visualizes your query's execution plan. It shows how data flows through operators and where transformations occur. By examining the DAG, you identify where bottlenecks happen and understand the sequence of operations Spark performs.

The Spark UI provides detailed metrics about job execution, including stages, tasks, and resource consumption. You access it by navigating to your cluster's page and selecting Spark UI. The Jobs page shows timeline views, stage durations, and task distributions that reveal problems with skew, spill, and shuffle.

The query profile offers a breakdown of query execution for SQL warehouse workloads. It highlights slow operations and shows metrics like time spent, rows processed, and memory consumption for each operator. Access it through Query History in the sidebar, then select a query and choose See query profile.

Tip

Start your investigation with the DAG to understand the overall execution flow. Then use the Spark UI or query profile to drill into specific stages where time is spent.

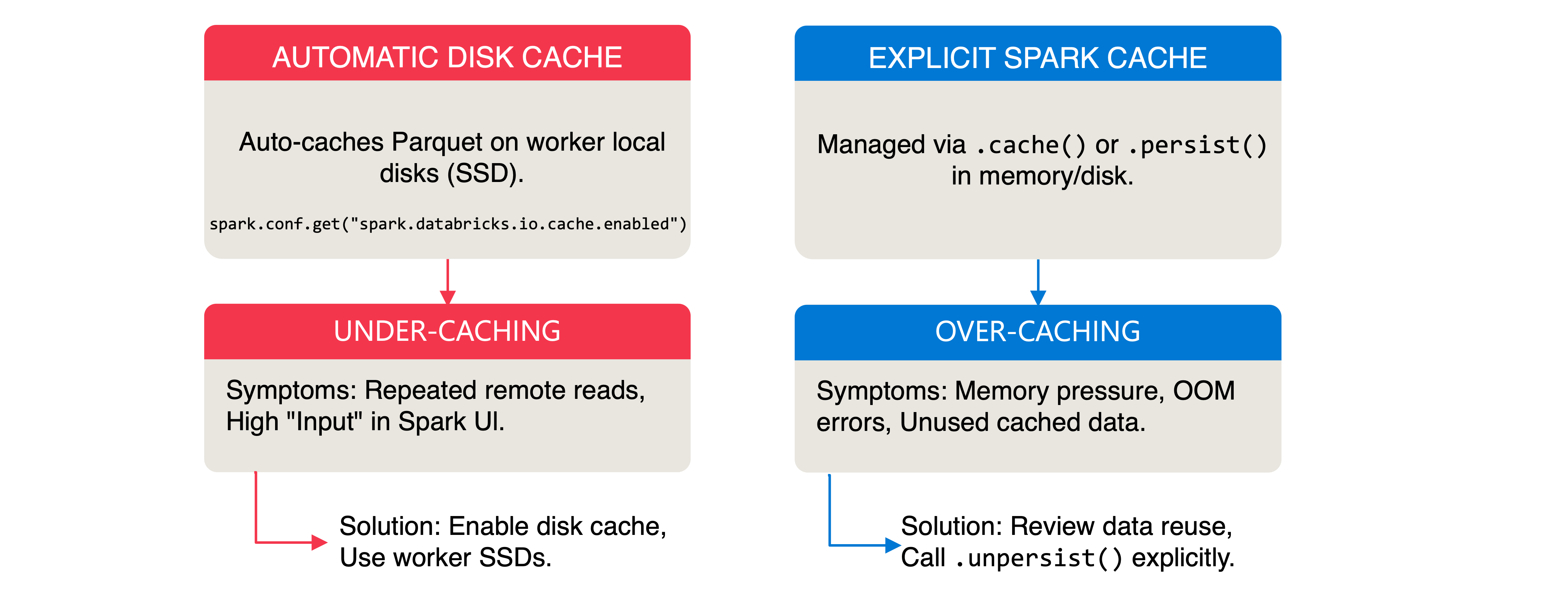

Investigate caching issues

Caching keeps frequently accessed data in memory or on local disks, avoiding repeated reads from remote storage. Azure Databricks uses disk cache (formerly called Delta cache) to automatically cache Parquet data files on worker nodes. This caching happens transparently when you read data.

To check if disk cache is enabled, run:

spark.conf.get("spark.databricks.io.cache.enabled")

When investigating caching problems, consider these scenarios:

Under-caching means data is read repeatedly from remote storage when it could be served from cache. The Spark UI shows high Input values for stages that read the same data multiple times. Enable disk cache and use worker nodes with SSD storage for better performance.

Over-caching consumes memory that Spark needs for processing. If you see memory pressure or out-of-memory errors, review whether cached data is actually being reused. Spark cache (using .cache() or .persist()) requires explicit management, unlike automatic disk caching.

Unlike automatic disk cache, Spark cache requires you to call .unpersist() when you no longer need the cached data:

df.unpersist()

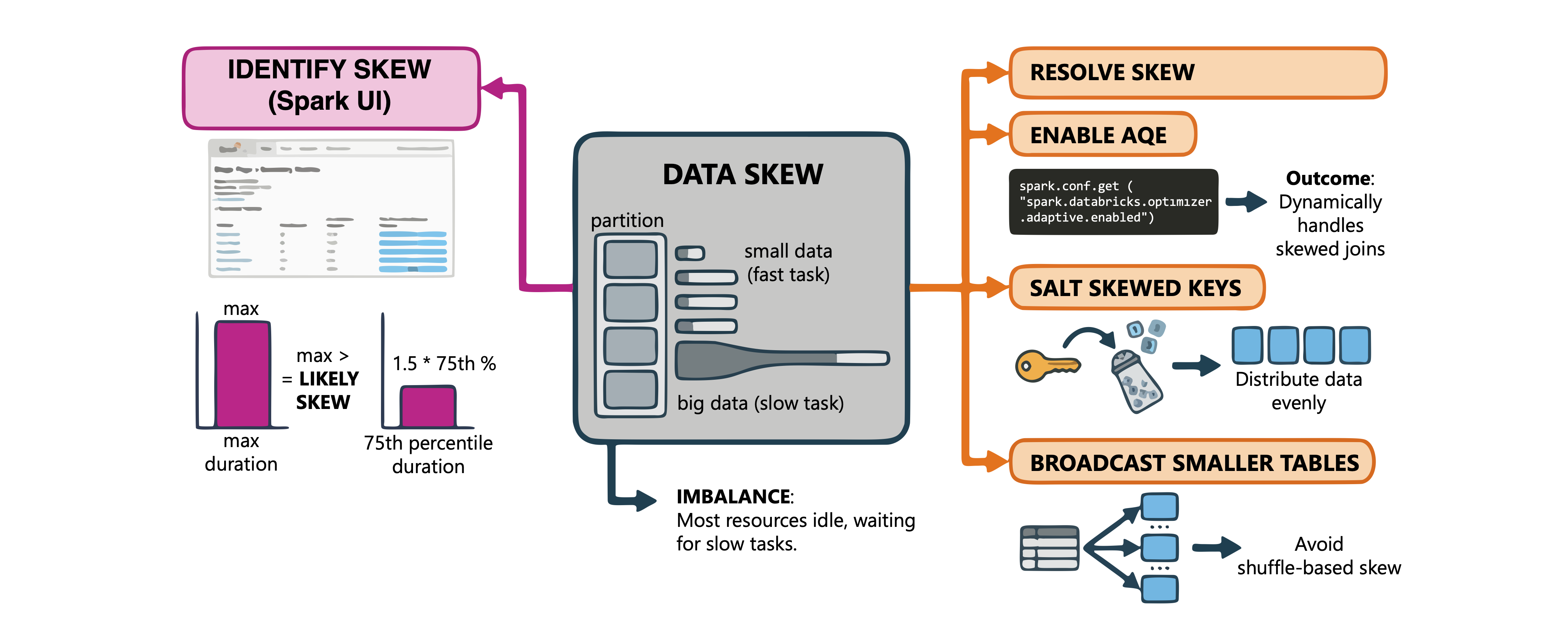

Investigate data skew

Data skew occurs when some partitions contain significantly more data than others. This imbalance causes a few tasks to run much longer than the rest, leaving most cluster resources idle while waiting for slow tasks to complete.

To identify skew in the Spark UI, navigate to the stage's page and scroll to Summary Metrics. Compare the Max duration to the 75th percentile. If the Max is more than 50% higher than the 75th percentile, you might have skew.

Common causes of skew include:

• Uneven key distribution in joins or aggregations (for example, a single customer ID appearing in 90% of records)
• Null values that all route to the same partition
• Time-based partitioning where recent dates have far more data

To resolve skew:

• Enable Adaptive Query Execution (AQE), which dynamically handles skewed sort-merge and shuffle hash joins. AQE is enabled by default. Verify it's enabled:

spark.conf.get("spark.databricks.optimizer.adaptive.enabled")

• Salt skewed keys by adding a random component to distribute data more evenly across partitions.

• Broadcast smaller tables for joins where one table fits in memory to avoid shuffle-based skew.

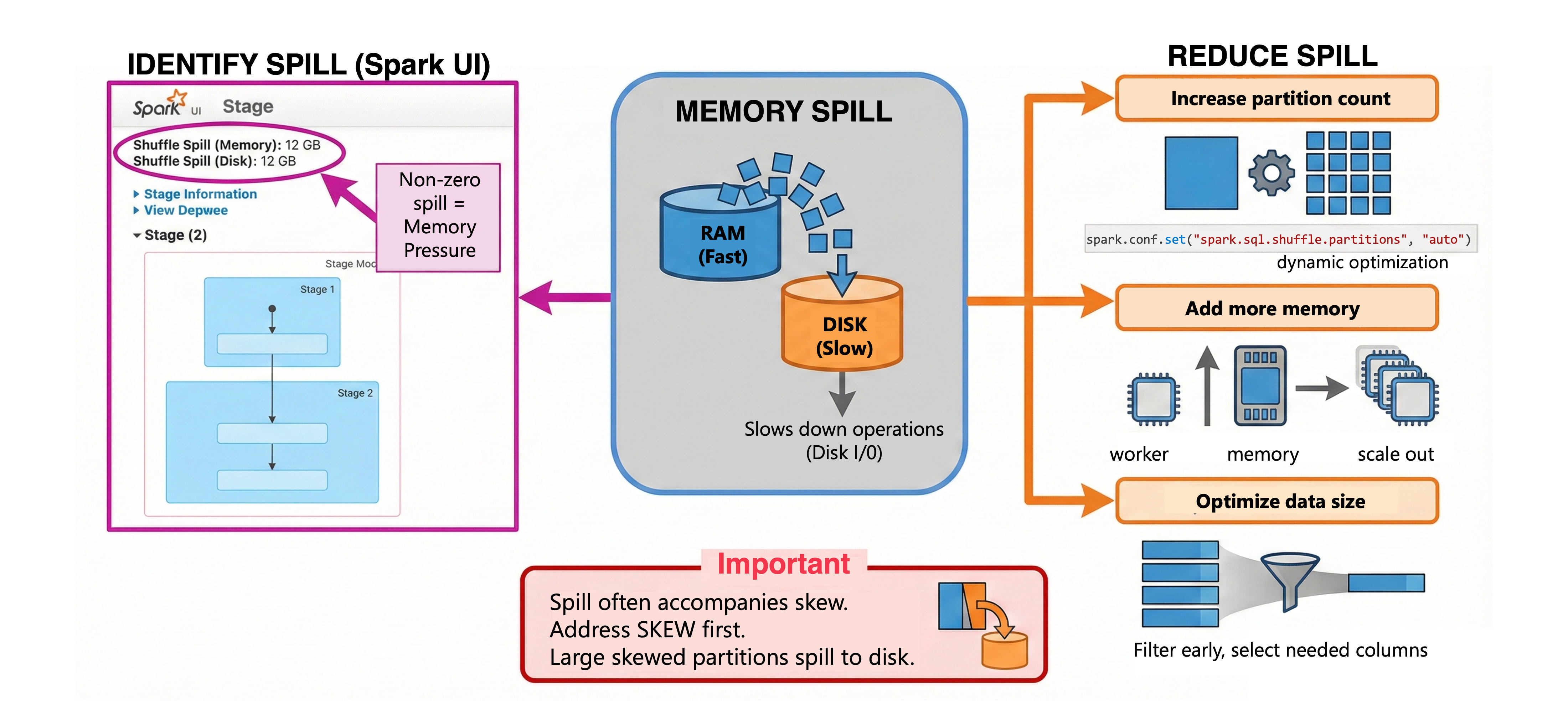

Investigate memory spill

Spill happens when Spark runs out of memory during processing and writes intermediate data to disk. This disk I/O significantly slows down operations. Spill commonly occurs during shuffle operations, aggregations, or when partitions are too large.

The Spark UI shows spill metrics at the top of each stage's page. Look for Shuffle Spill (Memory) and Shuffle Spill (Disk) values. Any non-zero spill indicates memory pressure.

To reduce spill:

• Increase partition count to reduce data per partition. Set shuffle partitions to auto for dynamic optimization:

spark.conf.set("spark.sql.shuffle.partitions", "auto")

• Add more memory by choosing worker nodes with higher memory-to-core ratios or increasing the number of workers.

• Optimize data size by selecting only needed columns and filtering early in your pipeline. Reducing the data processed at each stage lowers memory requirements.

Important

Spill often accompanies skew. When a single partition grows too large for memory, it spills to disk. Address skew first, and spill problems often resolve as a side effect.

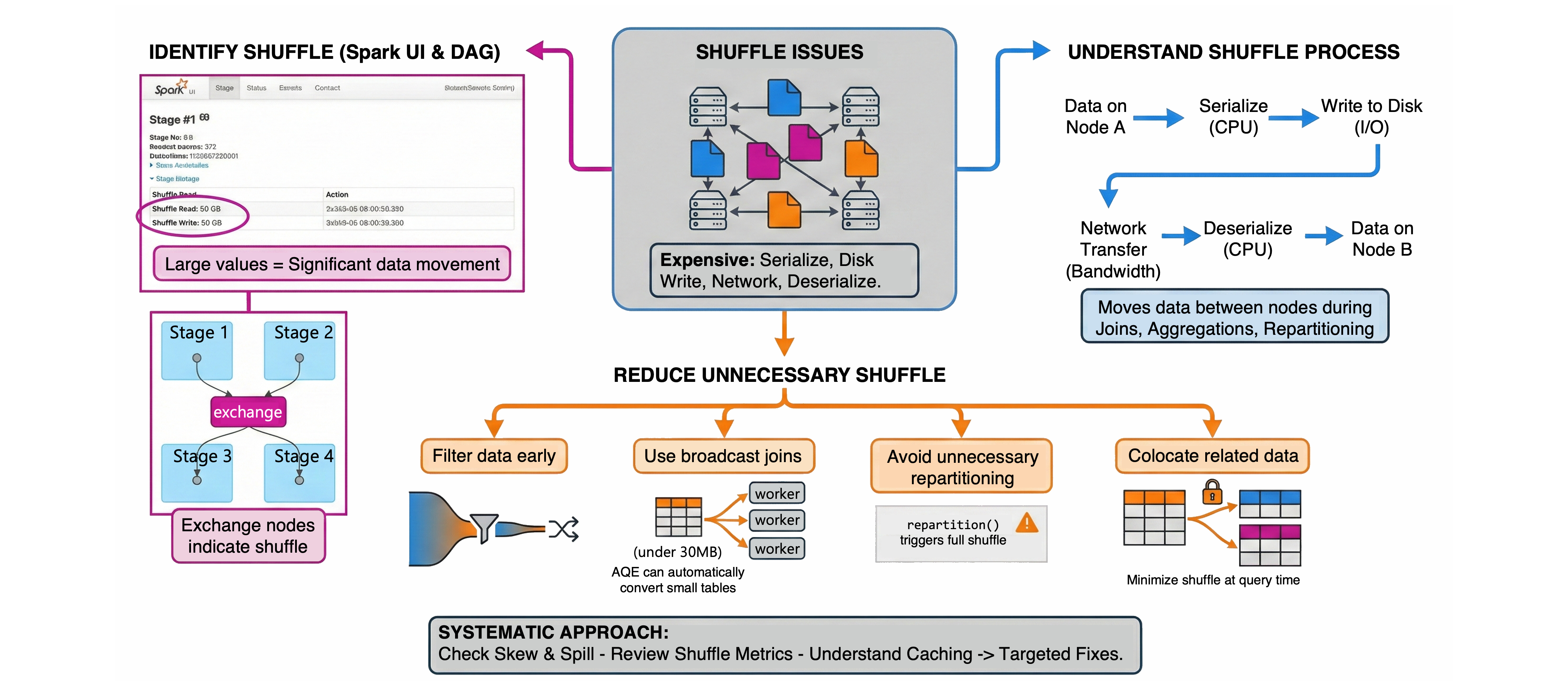

Investigate shuffle issues

Shuffle moves data between nodes during operations like joins, aggregations, and repartitioning. While sometimes necessary, excessive shuffle is expensive because it involves serializing data, writing to disk, transferring across the network, and deserializing.

In the Spark UI, check the Shuffle Read and Shuffle Write columns for each stage. Large shuffle values indicate significant data movement. The DAG shows where shuffle operations occur as exchange nodes.

Reduce unnecessary shuffle with these approaches:

• Filter data early before joins or aggregations to reduce the data that must be shuffled.

• Use broadcast joins when one table is small. AQE can automatically convert sort-merge joins to broadcast joins at runtime when a table is smaller than spark.databricks.adaptive.autoBroadcastJoinThreshold (30 MB by default).

• Avoid unnecessary repartitioning. Each call to repartition() triggers a full shuffle.

• Colocate related data. If you frequently join two tables on the same key, consider bucketing or partitioning them similarly to minimize shuffle at query time.

The query profile in SQL warehouses shows shuffle as Shuffle operators in the DAG. Select these operators to see metrics like data size and number of partitions exchanged.

By systematically checking for skew and spill in the Spark UI, reviewing shuffle metrics, and understanding your caching behavior, you can diagnose most performance issues and apply targeted fixes.
