Implement log streaming with Azure Log Analytics

  • 8 minutes

When your Azure Databricks environment grows beyond a single workspace, tracking what happens across clusters, jobs, and users becomes a challenge. Log streaming to Azure Log Analytics solves this by centralizing all your diagnostic and audit logs in one place, enabling queries, alerts, and dashboards.

In this unit, you learn how log streaming works, how to query Databricks logs in Azure Log Analytics, and how to create alerts for proactive monitoring.

Understand the log streaming architecture

Log streaming sends diagnostic data from Azure Databricks to Azure Log Analytics, typically within 15 minutes of an event. This integration uses Azure diagnostic settings, which capture events from your Azure Databricks workspace and route them to a Log Analytics workspace. Diagnostic settings can also archive logs to a storage account or stream them to an event hub.

Consider a typical scenario: Your organization runs multiple Azure Databricks workspaces across different teams. Without centralized logging, investigating a failed job requires connecting to each workspace individually and searching through scattered logs. With log streaming configured, you query all events from a single interface.

The data flow works as follows:

  1. Azure Databricks generates audit and diagnostic events for actions like cluster creation, job runs, notebook execution, and permission changes.
  2. Azure diagnostic settings capture these events and stream them to your configured destination.
  3. Log Analytics ingests the events into service-specific tables.
  4. You query, visualize, and alert on this data using Kusto Query Language (KQL).

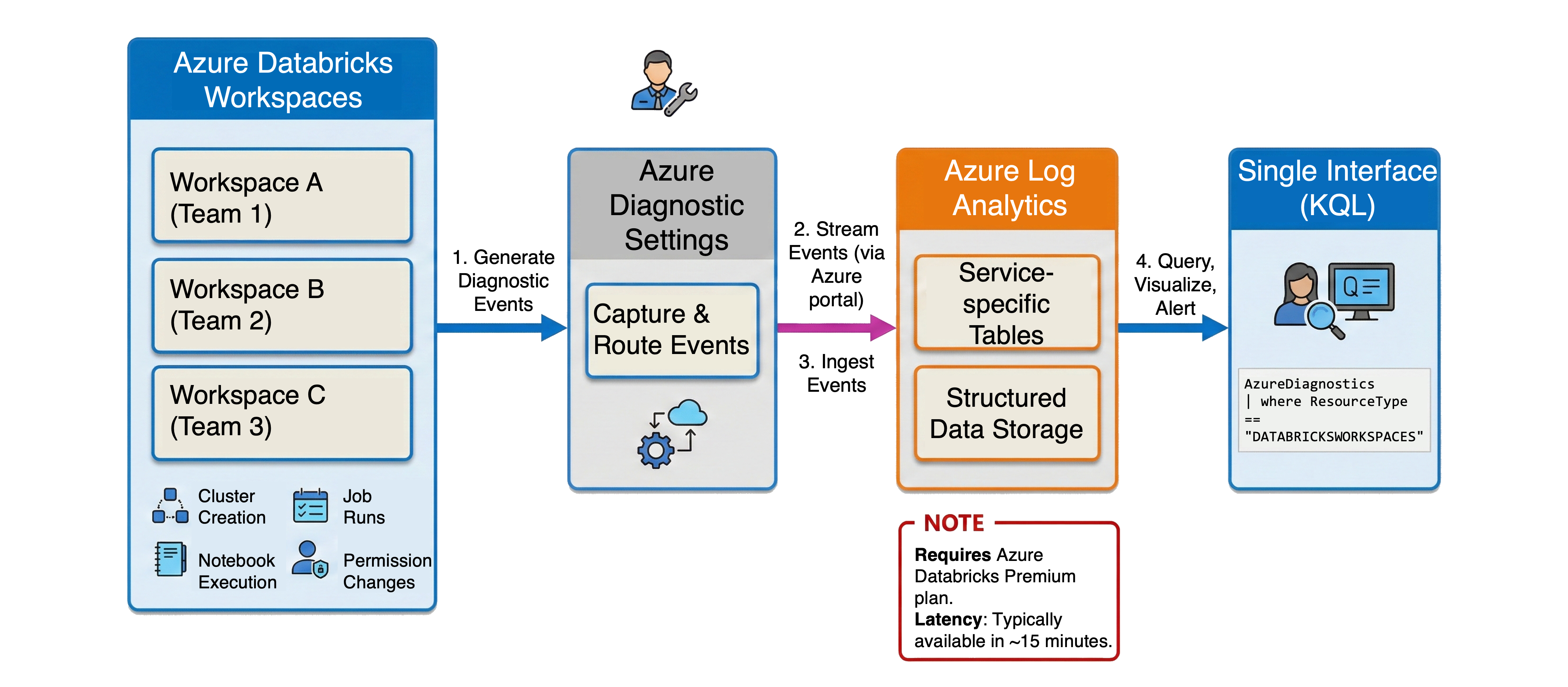

Diagram explaining log streaming architecture.

Platform administrators typically configure the diagnostic settings through the Azure portal by selecting Diagnostic settings in the Monitoring section of the Azure Databricks resource and choosing Send to Log Analytics. As a data engineer, you focus on using the logs for monitoring and troubleshooting.

Note

Diagnostic logs require the Azure Databricks Premium plan. Logs typically become available within 15 minutes of the event occurring, but Azure Databricks doesn't guarantee a delivery time.

Note

For querying audit logs within Azure Databricks itself, Databricks recommends using the system.access.audit system table. Log streaming to Azure Log Analytics is the preferred approach when you need cross-service centralized monitoring, KQL-based alerting, or integration with Azure Monitor and other Azure services.

Explore the Azure Databricks log tables

Azure Log Analytics organizes Azure Databricks logs into purpose-specific tables. Each table captures events from a particular service or feature, making it easier to focus your queries.

The most commonly used tables include:

Table Description
DatabricksClusters Cluster creation, termination, resizing, and configuration changes
DatabricksJobs Job creation, runs, failures, and schedule modifications
DatabricksNotebook Notebook execution, creation, and modification events
DatabricksSQL SQL warehouse creation, modification, and related events
DatabricksUnityCatalog Unity Catalog events, including table creation, deletion, and updates
DatabricksWorkspace Workspace-level operations and administrative actions
DatabricksSecrets Secret scope and secret access events

Each table contains standard columns for event tracking:

  • TimeGenerated - When the event occurred
  • OperationName - The action performed
  • Identity - The user or service principal that initiated the action
  • SourceIPAddress - Where the request originated
  • RequestParams - Details about the request
  • Response - The outcome including status codes

Understanding these tables helps you target your queries efficiently. For job-related issues, start with DatabricksJobs. For security investigations, focus on DatabricksSecrets and DatabricksUnityCatalog.

Query logs with Kusto Query Language

Kusto Query Language (KQL) enables you to search, filter, and analyze your Azure Databricks logs. You access Log Analytics by navigating to your workspace in the Azure portal and selecting Logs from the sidebar.

Start with a simple query to explore recent job events:

DatabricksJobs
| where TimeGenerated > ago(24h)
| project TimeGenerated, OperationName, Identity, SourceIPAddress
| order by TimeGenerated desc
| take 100

This query retrieves the most recent 100 job-related events from the past 24 hours, displaying the timestamp, operation, user, and source IP.

Investigate failed job runs

When jobs fail, you need to identify patterns. The following query finds all job failures and groups them by operation:

DatabricksJobs
| where TimeGenerated > ago(7d)
| where Response contains "error" or Response contains "failed"
| summarize FailureCount = count() by OperationName, bin(TimeGenerated, 1h)
| order by FailureCount desc

This query reveals which operations fail most frequently and when failures cluster together, helping you spot systemic issues.

Track cluster usage patterns

Understanding cluster behavior helps optimize costs. This query shows cluster events by type:

DatabricksClusters
| where TimeGenerated > ago(7d)
| summarize EventCount = count() by OperationName
| order by EventCount desc

Monitor table access patterns

For security and compliance, track who is creating, modifying, or deleting tables across your workspaces:

DatabricksUnityCatalog
| where TimeGenerated > ago(24h)
| where ActionName in~ ("createTable", "deleteTable", "updateTables")
| project TimeGenerated, Identity, ActionName, RequestParams
| order by TimeGenerated desc

Tip

Save frequently used queries to the Query explorer in Log Analytics. You can organize queries into folders and share them with your team.

Create alerts for proactive monitoring

Queries help you investigate past events. Alerts notify you when specific conditions occur, enabling proactive response.

To create an alert from a query:

  1. Run your query in Log Analytics.
  2. Select New alert rule from the toolbar.
  3. Configure the Condition with thresholds that match your requirements.
  4. Define an Action group to specify who receives notifications and how.

Consider setting up alerts for these common scenarios:

Job failures exceed threshold: Alert when more than five job failures occur within an hour.

DatabricksJobs
| where TimeGenerated > ago(1h)
| where Response contains "error" or Response contains "failed"
| summarize FailureCount = count()
| where FailureCount > 5

Unusual table operations: Alert when table create or delete operations occur outside business hours, which might indicate unauthorized data modification.

DatabricksUnityCatalog
| where TimeGenerated > ago(1h)
| where hourofday(TimeGenerated) < 6 or hourofday(TimeGenerated) > 20
| where ActionName in~ ("createTable", "deleteTable")
| summarize OperationCount = count() by Identity
| where OperationCount > 5

Cluster creation spikes: Alert when cluster creation events exceed normal patterns, which might indicate runaway automation or unauthorized activity.

Action groups support multiple notification methods including email, SMS, Azure mobile app, and integration with IT service management tools.

Apply log analysis for troubleshooting

Log streaming transforms troubleshooting from reactive investigation to systematic analysis. Here are practical approaches for common scenarios:

Diagnosing job failures: Start with the DatabricksJobs table to find the failed run. Cross-reference with DatabricksClusters to check if the underlying cluster had issues. Review DatabricksNotebook logs if the job runs notebook code.

Investigating performance issues: Query cluster events to identify scaling patterns. Look for frequent autoscaling events that might indicate undersized initial configurations.

Security incident response: Use DatabricksUnityCatalog and DatabricksSecrets tables to trace data access. Correlate with SourceIPAddress to identify unusual access locations.

Cost attribution: Combine cluster and job logs with Azure cost data to understand which teams or projects drive consumption.

With logs centralized in Azure Log Analytics, you build views of your Azure Databricks environment. This visibility supports both day-to-day operations and long-term planning decisions.
