Exercise - Create a trigger-based patient journey

Completed

In this exercise, you'll create a patient trigger by using the Customer Insights – Journey app in Microsoft Cloud for Healthcare and use the patient trigger to create for the patient journey.

Task: Create a patient trigger

  1. Switch back to Power Apps portal. Navigate to Apps on the left navigation pane and launch Customer Insights – Journeys app by selecting the play button.

  2. On the Customer Insights – Journeys app, on the left-navigation pane, under Engagement, select Triggers.

  3. Select + New Trigger on the command bar.

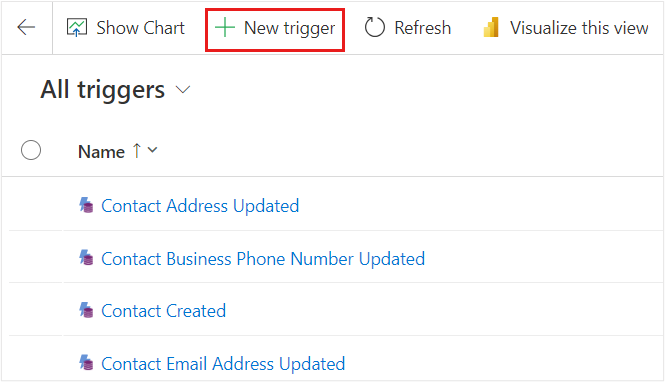

    Screenshot of new trigger button.

  4. Enter details for the new trigger as follows:

    • Name the new trigger - Encounter Details Updated.

    • What action will activate the trigger? - Select When a record related to the customer is created or updated.

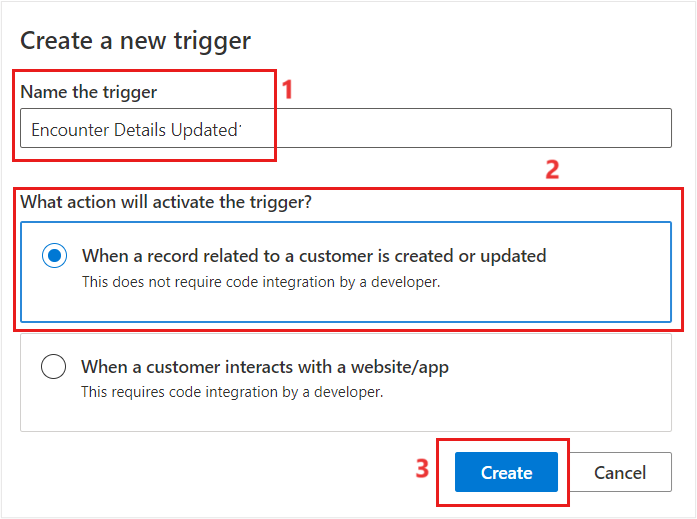

    Screenshot of the create trigger page with the Create button.

  5. Select Create.

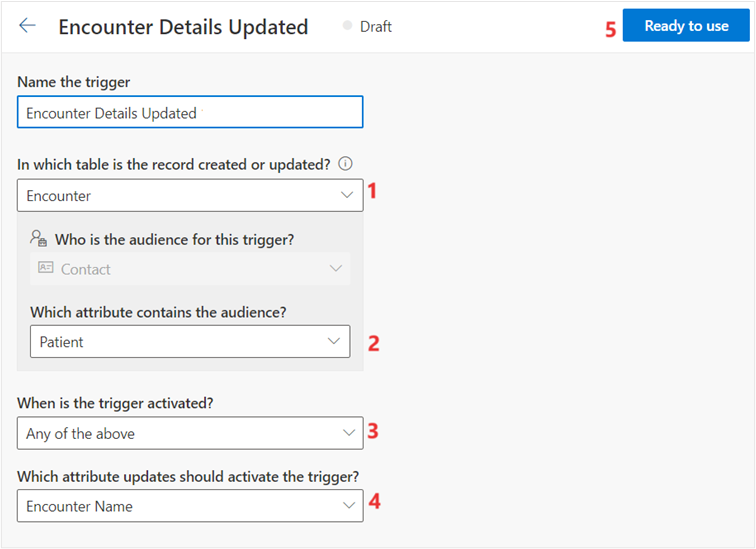

    Screenshot of the trigger details page.

  6. Enter the following details:

    • In which table is the record created or updated? – Search for Encounter and select the option from the list.

    • Which attribute contains the audience? – Patient

    • When is the trigger activated? – Any of the above

    • Which attribute updates should activate the trigger? – Encounter Name

    After the trigger is saved. It is now ready to use to set up the patient journey.

  7. Select Ready to use.

    Screenshot of the trigger encounter details page with Ready to use button.

Task: Create a trigger-based patient journey

  1. Select Journeys on the left navigation pane.

  2. Select + New Journey on the command bar.

    Screenshot of new journey button.

  3. Enter the following details for the new journey:

    • Name the new journey - Encounter Details Updated.

    • Choose the type of the journey - Trigger-based.

    • Choose a trigger – Select Encounter Details Updated.

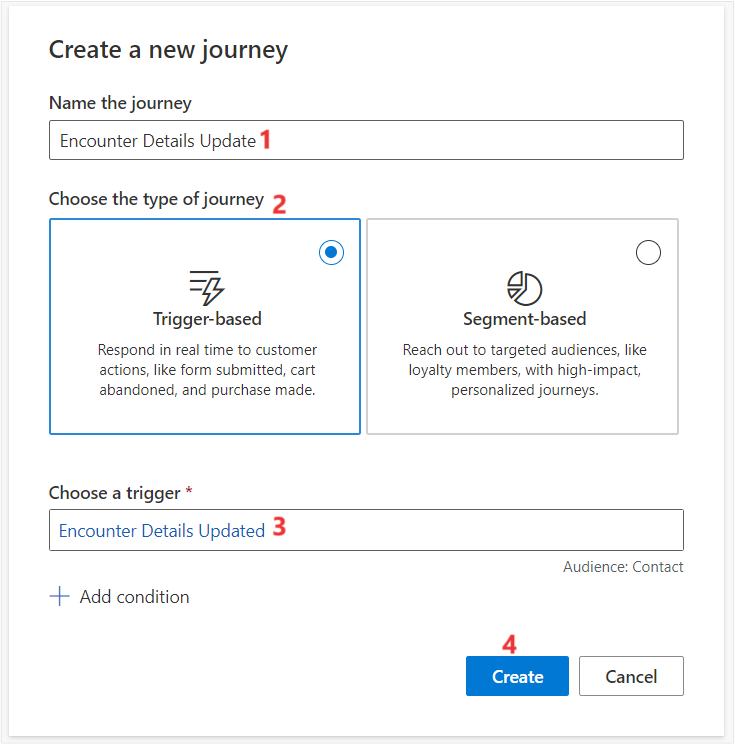

    Screenshot of the new journey details page.

  4. Select Create.

  5. Select Save to save the journey.

  6. Select Publish on the journey.

    Screenshot of the Publish option on the Active Journeys page.

    The status of the journey now is Live.

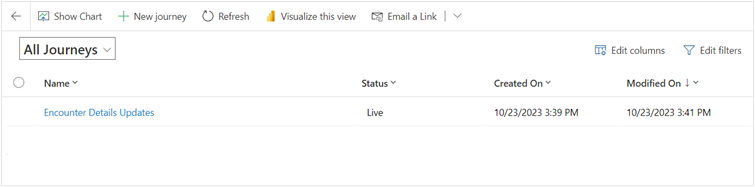

    Screenshot of the journey once it is live.
