Document your code flows with Mermaid

Completed

Besides writing text or code, Polyglot Notebooks is capable of rendering Mermaid diagrams.

Mermaid is a language that allows you express different types of charts and diagrams using text. Polyglot Notebooks can take code written for Mermaid and render it. A good use case is to show how your code works.

Let's work on an example that documents a purchase flow.

Imagine you want to document how your API works when a payment is processed from a purchase. Here's the Mermaid code from a checkout method where code is called in steps through various layers:

class CheckoutService {
    private \_cart;
    private \_cardService;
    private \_shippingService;

    public CheckoutService(
        Cart cart,
        CardService cardService,
        ShippingService shippingService) {
        this.\_cart = cart;
        this.\_cardService = cardService;
        this.\_shippingService = shippingService;
    }

    public void Checkout() {
        if(this.\_cart.GetTotal() > 0) {
            let responseCode = this.\_cardService.Charge(new Card("Visa", "1234"));

            if (responseCode != 200) {
                throw new Exception("Unable to charge card");
            }

            this.\_shippingService.Ship("123 Main St", this.\_cart);
        }
    }
}

You want to quickly show through a visual how this code works, so you use a Mermaid code like so:

sequenceDiagram
    CheckoutService ->> CardService: Charge(card)
    CardService -->> CheckoutService: OK, payment cleared
    CheckoutService -) ShippingService: Ship(cart)
    ShippingService -->> CheckoutService: OK, "shipping cart content"

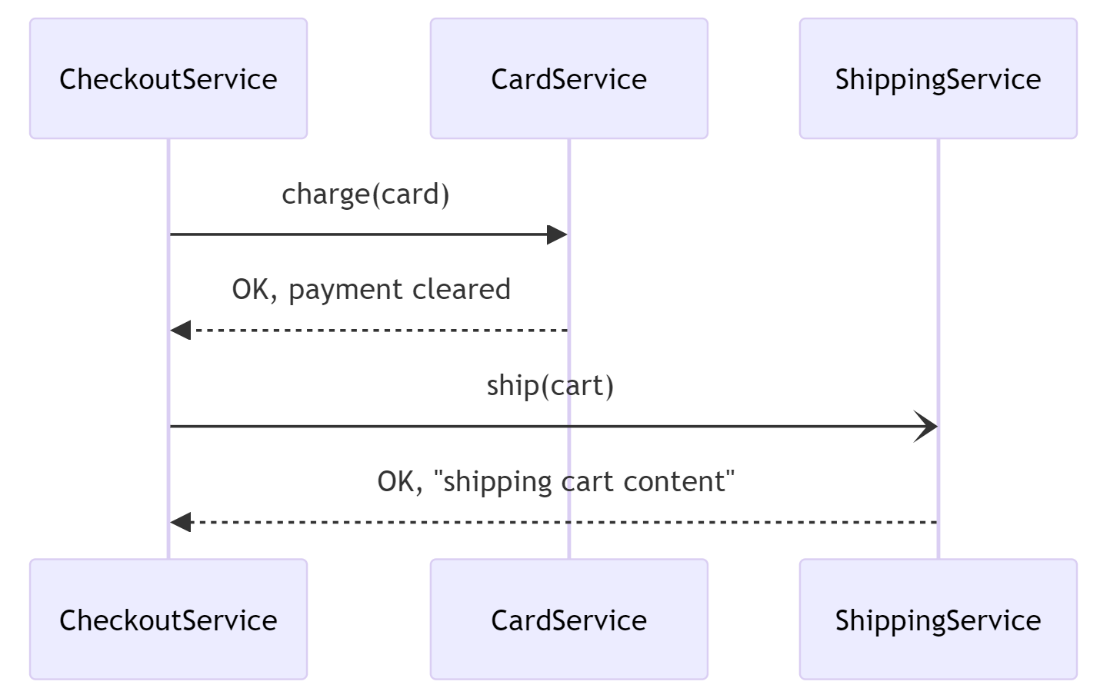

Finally, by putting the Mermaid code in a code cell, you get a nice rendering like so:

The preceding visual from the Mermaid rendering is easier to comprehend at first glance, and you can also share it with nontechnical stakeholders to show how the system works.
