Build a custom connector for existing API

In this exercise, you'll create your first custom connector for an existing API called Contoso Invoicing.

Important

Use a test environment with Microsoft Dataverse provisioned. If you don't have a test environment, you can sign up for the Power Apps Community Plan.

Task: Review the API

To review the API, follow these steps:

Go to Contoso Invoicing.

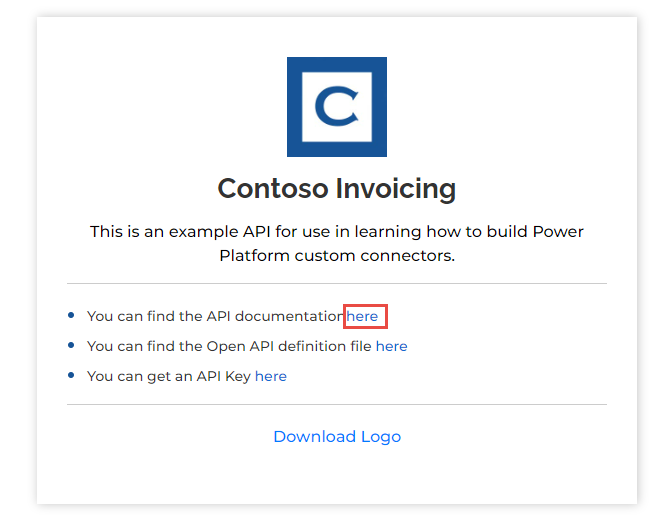

Select the documentation link.
Review the available operations.
Select to expand and review each operation.
Close the documentation browser tab or window.
Select the Open API definition link.

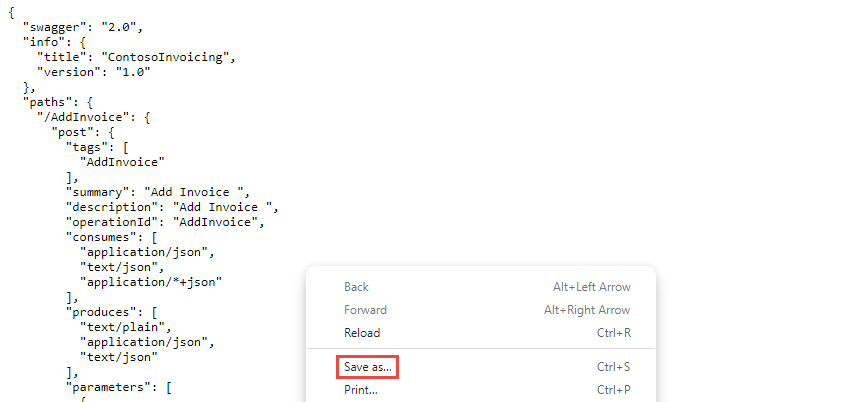

The following image shows an example of the OpenAPI version of what was shown on the documentation page. Right-click and select Save as.
Save the file locally. You'll use this file later in the exercise.
Close the definition browser tab or window.
Select the API Key link.
Copy and save your API key because you'll need it later.
Select Return to home.
Select Download Logo.
Save the logo image locally; you'll use it later.

To create a new solution, follow these steps:

Go to Power Apps maker portal and make sure that you are in the correct environment.

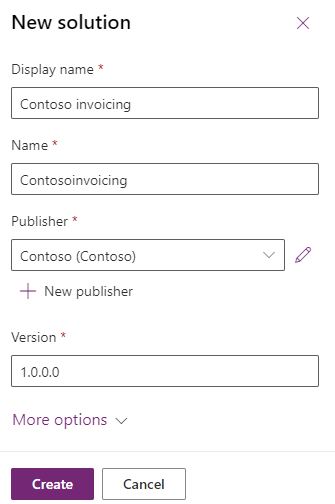

Select Solutions > + New solution.
Enter Contoso invoicing for the Display name and select + New publisher.
Enter Contoso for Display name, Contoso for Name, contoso for Prefix, and then select Save.
Select Contoso for Publisher, and then select Create. When you're working on a real project, it's best to create your own publisher.
Don't navigate away from this page after selecting Create.

To create a new connector, follow these steps:

Open the Contoso invoicing solution that you created.

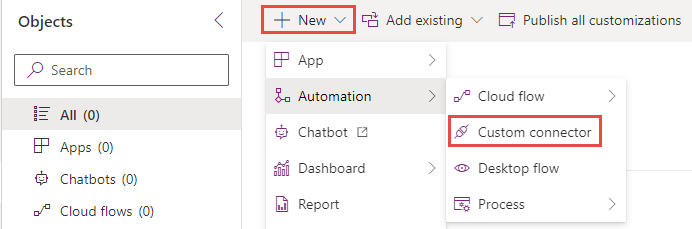

Select + New > Automation > Custom connector.

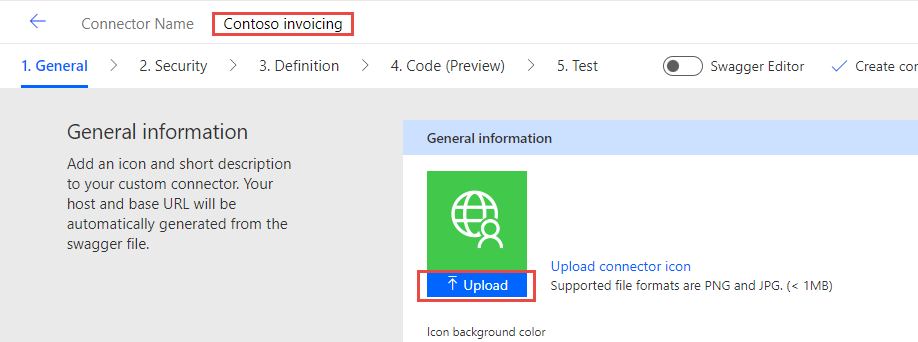

Enter Contoso invoicing for the Connector name and then select to Upload the image.
Select the connector logo image that you downloaded in Task 1: Review the API.
Enter #175497 for Icon background color.
Enter Custom connector for Contoso Invoicing API for Description.
Enter contosoinvoicingtest.azurewebsites.net for Host.
Select Create connector.
Don't navigate away from this page.

To import the OpenAPI definition, follow these steps:

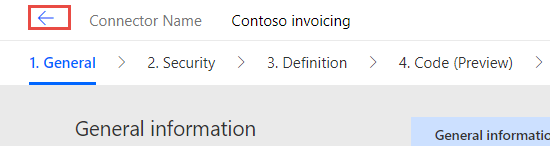

Select the arrow next to Connector Name.

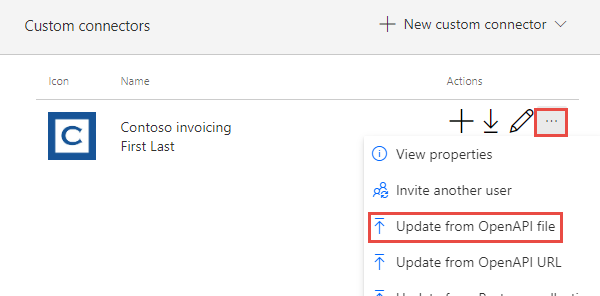

Select the ellipsis (...) button of the connector and then select Update from OpenAPI file.
Select Import.
Select the swagger.json file that you downloaded in Task 1: Review the API and then select Open.
Select Continue.
Fill in the host URL as contosoinvoicingtest.azurewebsites.net and then select Security.
Notice that the fields are filled out from the imported file.
Don't navigate away from this page.

To review and adjust definitions, follow these steps:

Select the Definition tab.
Take a few minutes to review the operations that were imported.
Notice the blue information circle next to GetInvoice.

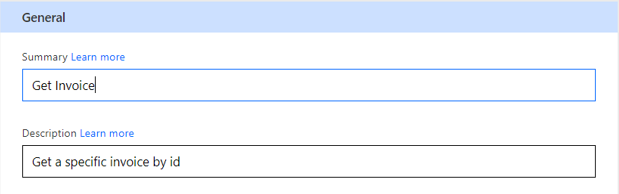

Select the GetInvoice operation.
Notice that the operation indicates a missing Summary.
Enter Get Invoice as the Summary to improve the usability.
Notice the blue information circle next to the PayInvoice operation and that it indicates a missing Description.
Enter Pay an invoice as the Description.
Delete both NewInvoice operations because you won't use them.

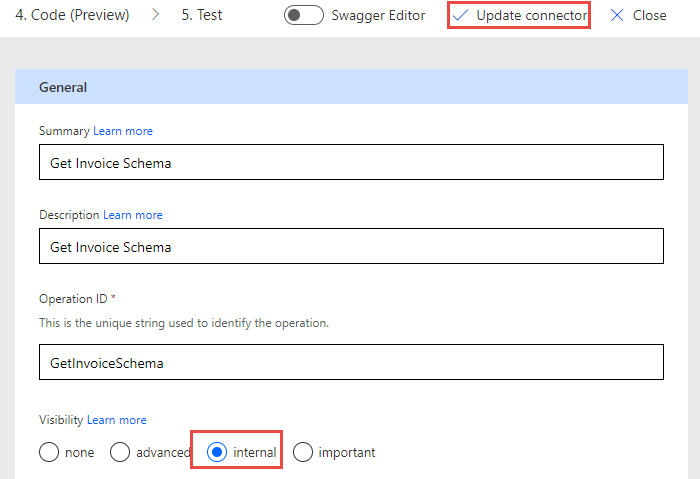

Select the GetInvoiceSchema operation.
Modify the Visibility option to internal so that people don't see it in their action list.
Select Update connector.
Don't navigate away from this page.

To test the connector, follow these steps:

Select the Test tab.
Select + New connection.
Paste in the API Key that you saved in Task 1: Review the API and then select Create connection.
Select the Refresh button.

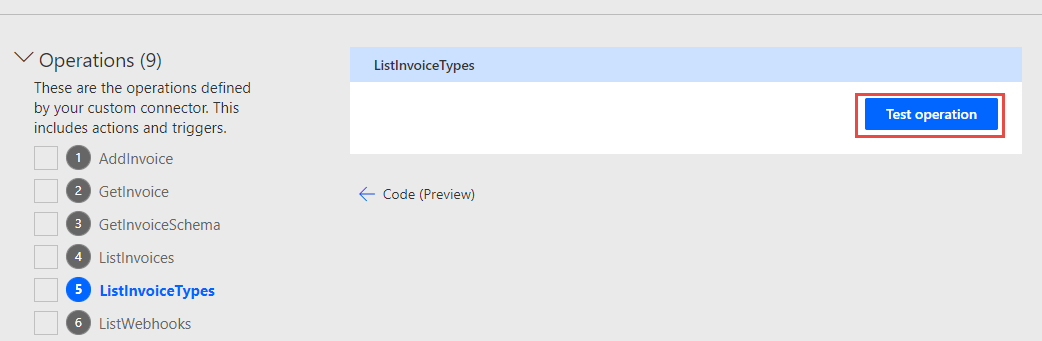

Select ListInvoiceTypes > Test Operation.
You should see the invoice types data in the body area.

In this task, you'll create a canvas application and use the custom connector you created to display a list of invoices.

navigate to Power Apps maker portal and make sure that you are in the correct environment.
Select Solutions and open the Contoso invoicing solution you created.

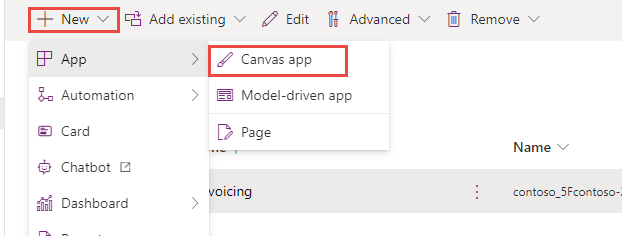

Select + New and then select App > Canvas app.
Enter Contoso invoicing app for App name, select Phone for Format, and then select Create.

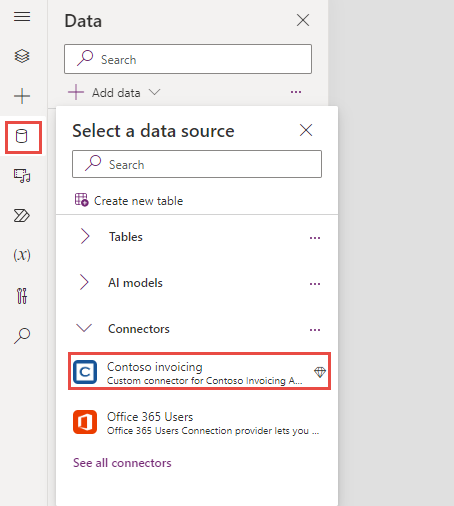

Select the Data tab, select + Add data, expand Connectors, and then select the Contoso invoicing custom connector you created.
Select the + Add a connector.
Paste in the API Key that you saved in Task 1: Review the API and then select Connect.
Select Got it on the premium warning popup.
Select the Tree view tab.

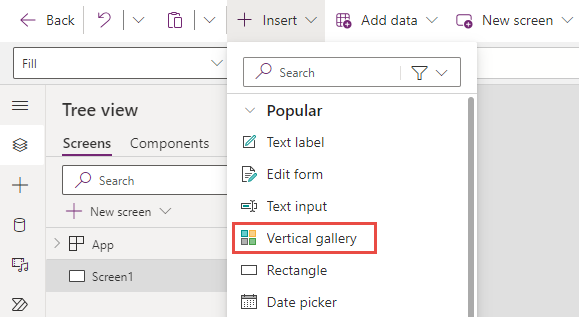

Select + Insert and then select Vertical gallery.

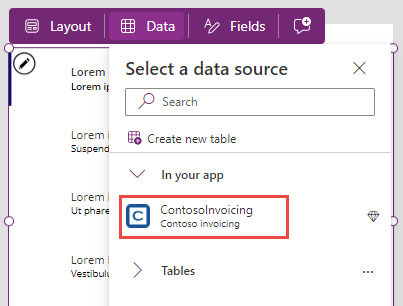

Select ContosoInvoicing for Data.

Set the Items to the value below.

ContosoInvoicing.ListInvoices().invoices
