Use a Synapse notebook activity in a pipeline

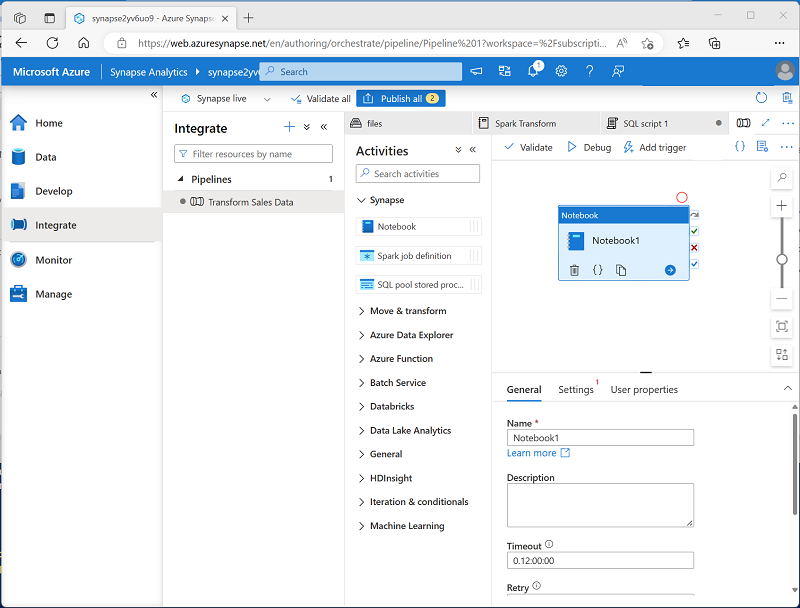

To run a Spark notebook in a pipeline, you must add a notebook activity and configure it appropriately. You'll find the Notebook activity in the Synapse section of the activities pane in the Azure Synapse Analytics pipeline designer.
Tip
You can also add a notebook to a pipeline from within the notebook editor.
To configure the notebook activity, edit the settings in the properties pane beneath the pipeline designer canvas. Notebook activity specific settings include:
- Notebook: The notebook you want to run. You can select an existing notebook in your Azure Synapse Analytics workspace, or create a new one.
- Spark pool: The Apache Spark pool on which the notebook should be run.
- Executor size: The node size for the worker nodes in the pool, which determines the number of processor cores and the amount of memory allocated to worker nodes.
- Dynamically allocate executors: Configures Spark dynamic allocation, enabling the pool to automatically scale up and down to support the workload.
- Min executors: The minimum number of executors to be allocated.
- Max executors: The maximum number of executors to be allocated.
- Driver size: The node size for the driver node.
