Troubleshoot AKS upgrade, scaling, and failed-state errors

Summary

Use this article to troubleshoot failed Azure Kubernetes Service (AKS) upgrades or scaling operations, or a cluster or node pool with a Failed provisioning state. Start by finding the error for the affected resource, then follow the matching resolution. In AKS APIs and this article, a node pool is also called an agent pool.

Prerequisites

• For the CLI steps, Azure CLI version 2.85.0 or later, signed in to the subscription that contains the AKS cluster. See Install the Azure CLI.
• The aks-preview Azure CLI extension, which is required for az aks operation show-latest and az aks kollect. Install or update the extension by running az extension add --name aks-preview --upgrade --yes.
• Permission to read the AKS cluster, agent pools, and operations.
• For the kubectl checks, kubectl installed, network access to the cluster's Kubernetes API, and permission to read the nodes, pods, events, ConfigMaps, and node auto-provisioning (NAP) resources used in those checks.
• To query the Azure activity log, the Microsoft.Insights/eventtypes/values/read permission at the applicable scope. The built-in Monitoring Reader and Reader roles include this permission. For more information, see Roles, permissions, and security in Azure Monitor
• To query cluster autoscaler control plane logs, an Azure Monitor diagnostic setting that sends the cluster-autoscaler log category to a Log Analytics workspace. For more information, see Configure resource log collection for the AKS control plane and Diagnostic settings in Azure Monitor.

Identify the failed resource or operation

First, identify whether the failure affects the cluster, an AKS agent pool, or nodes managed by NAP. Then, check the operation details for the error.

Azure CLI

1. Check the cluster state and operation owner.

   az aks show \
       --resource-group <resource-group-name> \
       --name <cluster-name> \
       --query "{ProvisioningState:provisioningState, PowerState:powerState.code, NodeProvisioningMode:nodeProvisioningProfile.mode, AutoUpgradeChannel:autoUpgradeProfile.upgradeChannel, NodeOSUpgradeChannel:autoUpgradeProfile.nodeOSUpgradeChannel}" \
       --output table


   For upgrades, compare the time of the failure with the cluster and node OS auto-upgrade settings and maintenance schedules. An enabled channel alone doesn't tell you what started a particular upgrade.

   If NodeProvisioningMode is Auto and NAP-managed capacity is affected, skip step 2 and use NAP troubleshooting. Step 2 still applies to a traditional AKS system agent pool on that cluster.

2. If an AKS agent pool is affected, check its state and scaling configuration.

   az aks nodepool show \
       --resource-group <resource-group-name> \
       --cluster-name <cluster-name> \
       --name <node-pool-name> \
       --query "{ProvisioningState:provisioningState, PowerState:powerState.code, PoolType:typePropertiesType, Count:count, AutoscalerEnabled:enableAutoScaling, MinCount:minCount, MaxCount:maxCount}" \
       --output table


   For PoolType = VirtualMachines, also check its scale profiles and node status.

   az aks nodepool show \
       --resource-group <resource-group-name> \
       --cluster-name <cluster-name> \
       --name <node-pool-name> \
       --query "{ScaleProfiles:virtualMachinesProfile.scale, CurrentNodes:virtualMachineNodesStatus}" \
       --output json


   If you're investigating unexpected scaling on a pool with AutoscalerEnabled set to true or with an autoscale profile, use Scenario 2: Cluster autoscaler doesn't scale. For a failed upgrade or another AKS operation, continue below even if autoscaling is enabled.

3. Retrieve the latest AKS operation and error.

   az aks operation show-latest \
       --resource-group <resource-group-name> \
       --name <cluster-name> \
       --query "{OperationId:name, Status:status, StartTime:startTime, EndTime:endTime, Error:error}" \
       --output json


   For an AKS agent pool operation, add --nodepool-name <node-pool-name>. Don't use this parameter for a NAP Kubernetes NodePool. Check that the operation's timestamps match the failed attempt; a later operation might have replaced it as the latest result.

   For more information, see az aks operation.

4. If the operation doesn't explain the failure, check the activity log.

   Rejected requests might not appear as the latest operation. <target-resource-id> is the full Azure Resource Manager (ARM) ID of the resource whose activity log you want to query, not the AKS operation ID.

   For a cluster operation, get the cluster resource ID.

   az aks show \
       --resource-group <resource-group-name> \
       --name <cluster-name> \
       --query id --output tsv


   For an agent-pool operation, get that pool's resource ID.

   az aks nodepool show \
       --resource-group <resource-group-name> \
       --cluster-name <cluster-name> \
       --name <node-pool-name> \
       --query id --output tsv


   Replace <target-resource-id> in the following commands with the ID for the affected resource. For the backing-compute checks later in this article, use the VM or VMSS instance resource ID instead. Adjust --offset to include the failed attempt.

   az monitor activity-log list \
       --resource-id <target-resource-id> \
       --offset 24h \
       --status Failed \
       --query "[].{Time:eventTimestamp, Operation:operationName.localizedValue, Caller:caller, Error:properties.statusMessage, EventId:eventDataId, ActivityLogOperationId:operationId, CorrelationId:correlationId}" \
       --output json


   Record the caller, error code, subcode, and message, the AKS operation ID, and the activity log event, operation, and correlation IDs.

Azure portal

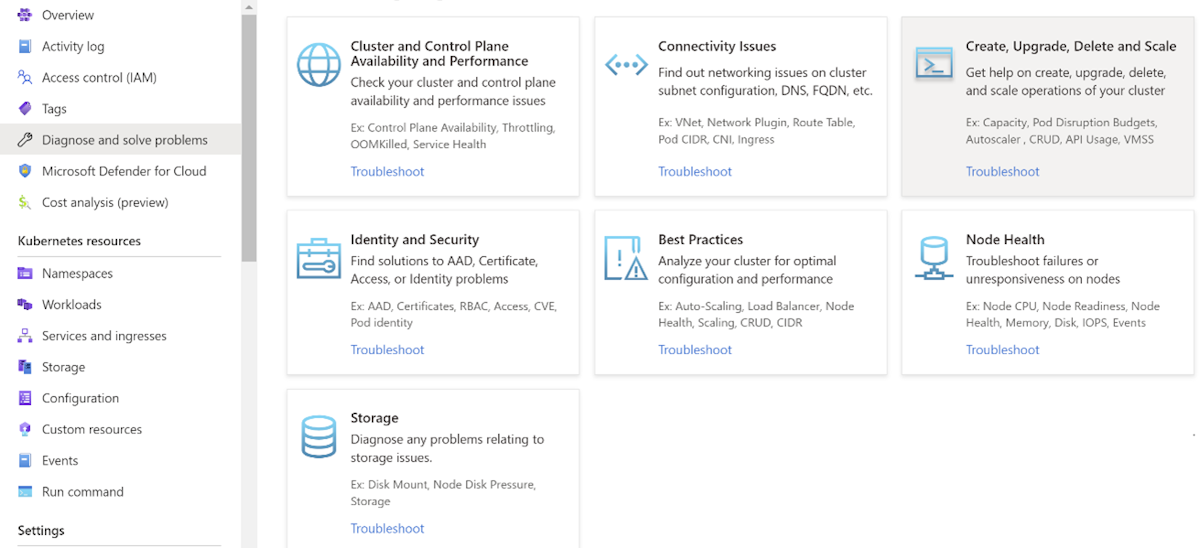

1. On the AKS cluster page, select Diagnose and solve problems, and then select Provisioning State Check. Review the cluster and agent pool provisioning states.

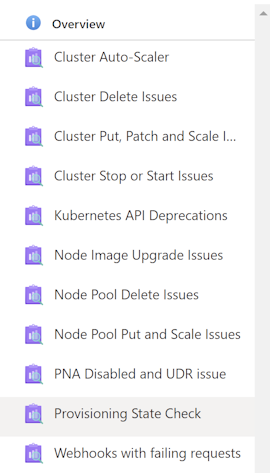

   Also open the diagnostic that matches the failed create, upgrade, delete, or scale operation.



2. If the issue affects an AKS agent pool, open Node pools and check its state and autoscale configuration. For NAP-managed capacity, use Scenario 3: NAP-managed capacity or node failure.

3. For an upgrade issue, review the configured cluster and node OS auto-upgrade channels and planned maintenance schedules.

4. On the AKS cluster page, select Activity log. Set Status to Failed, and adjust the timespan to include the attempted operation.



5. Open the failed upgrade, scale, or update event. Review the event summary and JSON data, and record the caller, error code, subcode, and message, and the event, operation, and correlation IDs.



If you don't know what started the upgrade, check whether the cluster belongs to Azure Kubernetes Fleet Manager. In the Azure portal, search for Kubernetes Fleet Manager, open the relevant Fleet resource, and check Member clusters and Update runs. The AKS operation caller alone doesn't reliably identify a Fleet-initiated upgrade. If Fleet started it, use the update run to find the failed member, then troubleshoot that member's AKS error here. Don't start a separate upgrade on the member while the Fleet run is active. See Update Kubernetes and node images across multiple clusters.

Collect supporting node diagnostics

For node registration, readiness, or bootstrap problems, check the node as well as the Azure operation.

For an affected node that registers with Kubernetes, run the following command.

kubectl get node <node-name> --output wide
kubectl describe node <node-name>

Look for reasons, messages, and timestamps in Conditions and Events. For more details, check the node logs:

• For kubelet or registration problems, see Get kubelet logs from AKS nodes.
• For Linux provisioning or CSE failures, review /var/log/azure/cluster-provision.log for errors from the provisioning script. Also check the Azure Linux Agent log at /var/log/waagent.log and extension logs under /var/log/azure/. See Troubleshoot Node Not Ready failures caused by CSE errors and Troubleshoot Linux VM extensions for general diagnostic guidance.

If the node doesn't register, kubectl describe node can't retrieve it. Use the Azure provisioning and VM extension errors instead. For a NAP node, also inspect its NodeClaim as described in NAP troubleshooting. For broader log collection, see Additional logging and diagnostic tools.

Inspect backing compute if no specific error is found

If the AKS operation, activity log, and node diagnostics still don't explain the failure, inspect the backing VM or virtual machine scale set instance in the cluster's node resource group. Check its provisioning state, VM extension status, and activity log.

For a VirtualMachines agent pool, use az aks machine list and show to identify the machine and its backing VM. For a virtual machine scale sets agent pool, inspect the affected scale set instance. For NAP-managed capacity, use the backing VM resource ID from the NodeClaim provider ID.

For a VMSS extension failure, see VM extension provisioning errors in Virtual Machine Scale Sets to identify the affected instance and extension.

If the error matches an AKS issue in Failed operation or resource, follow that guidance. The table isn't a complete guide to VM or virtual machine scale sets failures. If the evidence points to a VM or virtual machine scale sets platform, guest-agent, host, or disk problem, or the cause is still unclear, contact Microsoft Support and request investigation with the Azure Compute (VM/VMSS) team alongside AKS support. Include the cluster and compute resource IDs, affected instance, failure time in UTC, extension status and logs, and activity log correlation IDs.

Make direct changes to AKS-managed VMs, scale sets, or extensions only when Microsoft Support directs you to do so. The generic VM and virtual machine scale sets articles also include repair steps that you shouldn't apply independently to AKS nodes. See AKS support policies.

Use additional logging and diagnostic tools

Start with the operation and activity log error. If you need to investigate node or workload behavior, these tools can provide more context:

• Azure Monitor provides Kubernetes monitoring data, including container logs, Kubernetes events, and node and pod performance data. Use it to compare the time of the failure with cluster or workload changes. See Kubernetes monitoring in Azure Monitor.
• AKS Periscope collects node and pod logs, connectivity results, Kubernetes object descriptions, and other diagnostic information. The az aks kollect command deploys Periscope and uploads the results to Azure Blob Storage. For usage, prerequisites, and data-collection considerations, see Deploy Periscope to an AKS cluster.

Resolve the issue

Scenario 1: Active or conflicting operation

If the latest operation doesn't have a terminal status (Succeeded, Failed, or Canceled), don't start another upgrade, scale, or reconciliation operation on the managed cluster or affected node pool until the active operation finishes.

Use the troubleshooting article that matches the error:

• For OperationNotAllowed that identifies another AKS operation as the blocker, see Cluster pending operation errors. If the response has HTTP status 429 or TooManyRequests details, use the throttling row in Failed operation or resource.
• For AKSOperationPreempted or AKSOperationPreemptedByDelete, see Troubleshoot AKSOperationPreempted errors.

If the operation runs longer than expected, review Abort an AKS long-running operation before canceling it. Canceling an operation doesn't roll back changes that AKS already applied.

Scenario 2: Cluster autoscaler doesn't scale

An unexpected node count on an autoscaled pool doesn't necessarily mean a scale operation failed. Check whether cluster autoscaler decided to add or remove a node. If it requested a change that failed in Azure, use the error in Failed operation or resource.

Check the cluster autoscaler events and status:

kubectl get events --all-namespaces --field-selector source=cluster-autoscaler,reason=NotTriggerScaleUp
kubectl get events --all-namespaces --field-selector source=cluster-autoscaler,type=Warning
kubectl get configmap --namespace kube-system cluster-autoscaler-status --output yaml

In the Azure portal, you can also open Node pools and review Autoscale events, Autoscale warnings, and Scale-up not triggered. For control plane log queries, see Retrieve cluster autoscaler logs and status.

For a scale-out issue, list pending pods by running the following command.

kubectl get pods --all-namespaces --field-selector=status.phase=Pending

Check that the pool is below its maximum count and that a new node in that pool could run a pending pod. Use kubectl describe pod <pod-name> --namespace <namespace> to read the FailedScheduling events. Check resource requests, selectors and affinity, taints and tolerations, topology rules, and volume requirements. If the autoscaler requested a node, check the AKS error for quota, capacity, subnet IP, or node provisioning failures.

For a scale-in issue, check that the pool is above its minimum count, the scale-down delays have elapsed, and the node is underutilized. A cluster-autoscaler.kubernetes.io/scale-down-disabled: "true" node annotation or pods that can't be safely moved can prevent removal. See What types of pods can prevent cluster autoscaler from removing a node?. If node removal starts but fails, use Failed operation or resource.

Don't manually scale a node pool while cluster autoscaler is enabled. For Cannot scale cluster autoscaler enabled node pool, see Cluster autoscaler can't scale and shows "cannot scale cluster autoscaler enabled node pool" error. For Failed to fix node group sizes, see Cluster autoscaler fails to scale with "failed to fix node group sizes" error.

Scenario 3: NAP-managed capacity or node failure

Use this section when NodeProvisioningMode is Auto and the affected nodes are managed by NAP. NAP uses Kubernetes NodePool and NodeClaim resources and creates an individual Azure VM for each node. These resources are separate from the cluster's traditional AKS system agent pool.

The az aks nodepool and az aks machine commands don't query NAP-managed capacity. Don't use az aks nodepool scale to add or remove NAP nodes, and don't modify a NAP VM directly in the node resource group.

Check the pending workloads, NAP-managed nodes, Kubernetes NodePool resources, and NodeClaim resources by running the following commands.

kubectl get pods --all-namespaces --field-selector=status.phase=Pending
kubectl get nodes --selector=karpenter.sh/nodepool --output wide
kubectl get nodepools.karpenter.sh
kubectl get nodeclaims.karpenter.sh

For a scale-out issue, review the pending pod's FailedScheduling events by running the following command. Then, inspect the applicable Kubernetes NodePool.

kubectl describe nodepool.karpenter.sh <node-pool-name>

If no NodeClaim appears, compare the NodePool conditions, requirements, taints, limits, and VM sizes with the pending pod's resource, scheduling, and volume requirements.

If NAP creates a NodeClaim, inspect it by running the following command.

kubectl describe nodeclaim.karpenter.sh <node-claim-name>

Check the NodeClaim conditions and events to see where provisioning stopped: launch, registration, initialization, or readiness. For an Azure provisioning error, use Failed operation or resource. If a backing VM exists, copy the /subscriptions/... ARM resource ID from the NodeClaim provider ID and use it with the activity log command in Identify the failed resource or operation.

If an existing NAP node is NotReady or its VM is in a Failed provisioning state, match the node name to the NODE column from kubectl get nodeclaims.karpenter.sh. Then, inspect both resources by running the following commands.

kubectl describe node <node-name>
kubectl describe nodeclaim.karpenter.sh <node-claim-name>

For a scale-in issue, check the Kubernetes NodePool disruption budgets and consolidation settings, along with PDBs and pods that can't move. If removal starts but the node or NodeClaim remains, inspect its conditions and events for the blocker.

If NAP doesn't create a NodeClaim or initiate node removal, see Troubleshoot node auto-provisioning in AKS. If NAP initiates the capacity change but the Azure operation fails, use Failed operation or resource.

Failed operation or resource

Find the error code or message from the failed operation in the following table. If AKS returns a wrapper such as UpgradeVMSSAgentPoolFailed or ScaleVMSSAgentPoolFailed, look for a more specific error in its subcode or details, when available.

Error or symptom	Resolution
TooManyRequests, Throttled, SubscriptionRequestsThrottled, or OperationNotAllowed with HTTP status 429 or throttling details	Honor the Retry-After interval and reduce the request rate before retrying. See Troubleshoot SubscriptionRequestsThrottled error code (429). To identify throttling by source, user agent, and operation in the portal, see Analyze and identify errors by using AKS Diagnose and Solve Problems.
ReconcileMachineFailed, a VirtualMachines agent pool or machine doesn't reach its desired state, or the request reports an invalid scale profile	Check the agent pool's manual or autoscale profiles. Use az aks machine list or az aks machine show to identify the affected machine, its backing VM resource ID, and any status or error that the Machine API returns. See Virtual Machines node pools in AKS and az aks machine.
InvalidParameter, ValidationError, AgentPoolUpgradeVersionNotAllowed, a version incompatibility, or an unsupported configuration	Correct the value or combination identified in the error. For upgrades, check the Kubernetes version upgrade rules and available node images. Don't retry the same invalid request.
SubscriptionNotRegistered or MissingSubscriptionRegistration	Register the resource provider identified in the error. For AKS, run az provider register --namespace Microsoft.ContainerService. See Troubleshoot the MissingSubscriptionRegistration error code.
ReadOnlyDisabledSubscription	Resolve the subscription status, billing, or credit issue before retrying. See Reactivate a disabled Azure subscription.
QuotaExceeded, ResourceGroupQuotaExceeded, PublicIPCountLimitReached, or another quota error	Check which resource reached its limit. An upgrade can require temporary surge capacity. See Troubleshoot the QuotaExceeded error code and Troubleshoot the PublicIPCountLimitReached error code.
PublicIpPrefixOutOfIpAddressesForVMScaleSet	The configured public IP prefix doesn't have enough available addresses for the requested node count. Check the required count, including upgrade surge capacity, and use a prefix with sufficient addresses or reduce the requested node count before retrying.
SubnetIsFull or insufficient IP addresses	Troubleshoot the SubnetIsFull error code. Check the affected agent pool's subnet and account for upgrade surge capacity.
AllocationFailed, ZonalAllocationFailed, SkuNotAvailable, OverconstrainedAllocationRequest, or OverconstrainedZonalAllocationRequest	Troubleshoot ZonalAllocationFailed or AllocationFailed errors. Regional capacity, SKU or zone availability, and subscription quota are different constraints.
InvalidLoadBalancerProfileAllocatedOutboundPorts	The node count, allocated outbound ports per node, and number of outbound IPs don't provide enough SNAT ports. Include upgrade surge nodes in the calculation. See InvalidLoadBalancerProfileAllocatedOutboundPorts error code.
UpgradeFailed, PodDrainFailure, UnsatisfiablePDB, a pod eviction that returns Too Many Requests, or another node drain or eviction failure	A restrictive PDB, a pod that doesn't terminate, an admission webhook, or the drain timeout can block an upgrade, manual scale-in, or controller-managed scale-in. Review the affected pod and drain details in the error. See Troubleshoot UpgradeFailed errors due to eviction failures caused by PDBs and Troubleshoot the UnsatisfiablePDB error code.
UpgradeBlockedOnDeprecatedAPIUsage	Mitigate stopped upgrade operations due to deprecated APIs. Migrate from deprecated APIs instead of bypassing validation whenever possible.
OperationBlockedByNodeDisruptionPolicy, OperationOutsideNodeDisruptionWindow, or InternalOperationError with a message about evaluating Node Disruption Policy	Check nodeDisruptionProfile.nodeDisruptionPolicy. For AllowDuringMaintenanceWindow, check the aksManagedNodeOSUpgradeSchedule configuration and wait for the allowed window. For an internal policy-evaluation error, retry once. To proceed outside the window, with a Block policy, or after a persistent evaluation error, temporarily set the policy to Allow only if you intend to permit the disruption. Restore the original policy after the operation. For a persistent evaluation error, also contact AKS support with the operation and correlation IDs. See Configure Node Disruption Policy in AKS.
AgentCountNotMatch or a VM count mismatch reported during the failed operation	Compare the expected and actual counts if the error includes them. For a VMSS pool, check whether Azure Monitor Autoscale or another system changed the scale set during an AKS operation. If Azure Monitor Autoscale is enabled, disable it and use AKS cluster autoscaler instead. For a VirtualMachines pool, compare the running VM count with the manual profile totals or autoscale minimums. Don't change backing VMs or scale sets directly. Once no related operation is active, retry once. If the mismatch persists, contact AKS support with the operation and correlation IDs.
NodesNotReady, UpgradeNodesNotRegistered, or a node-readiness issue during the failed operation	Identify the affected node and collect supporting node diagnostics. See Basic troubleshooting of Node Not Ready failures and the VM extension error guidance in this table.
ControlPlaneAPIServerNotReady	AKS couldn't connect to the Kubernetes API server. Check API server availability and the network, DNS, firewall, or private-cluster path between AKS and the API server. If kubectl requests also time out, have high latency, or repeatedly return HTTP 429 or 5xx responses, use the AKS diagnostics and see Troubleshoot API server and etcd problems in AKS.
VMExtensionProvisioningError, OutboundConnFailVMExtensionError, K8SDownloadTimeoutVMExtensionError, CniDownloadTimeoutVMExtensionError, K8SAPIServerConnFailVMExtensionError, K8SAPIServerDNSLookupFailVMExtensionError, or a message that contains VMExtensionError_VHDFileNotFound	Use the specific subcode or CSE message to identify the failed node provisioning step and follow the corresponding troubleshooting article: Outbound connectivity failure, Kubernetes binaries download timeout, CNI binaries download timeout, K8SAPIServerConnFailVMExtensionError, K8SAPIServerDNSLookupFailVMExtensionError, ERR_VHD_FILE_NOT_FOUND, or CSE errors that cause Node Not Ready.
RequestDisallowedByPolicy, ResourceLocked, ScopeLocked, or InvalidResourceReference	Correct the policy assignment, remove the blocking management lock, or restore the missing or modified dependency before retrying. See RequestDisallowedByPolicy error with Azure Policy, Lock Azure resources to protect your infrastructure, and Troubleshoot the InvalidResourceReference error code. If the message reports a missing Log Analytics workspace, see "Unable to get log analytics workspace info" error.
CreateOrUpdateVirtualNetworkLinkFailed or a private DNS reconciliation error	Correct the private DNS zone permissions, links, or conflicting resources identified in the error. See CreateOrUpdateVirtualNetworkLinkFailed error.
AuthorizationFailed, LinkedAuthorizationFailed, or an identity or role-assignment error	Grant the principal or object ID identified in the error the required action on the specified scope. See Resolve the LinkedAuthorizationFailed error.
InternalOperationError, ServiceUnavailable, or TimedoutOrCancelled without an actionable underlying error	Verify that no operation is still active and check the target's current state. If kubectl requests also time out, have high latency, or repeatedly return HTTP 429 or 5xx responses, use the AKS diagnostics and see Troubleshoot API server and etcd problems in AKS. Otherwise, retry once. If the error persists, collect the operation and correlation IDs and create a support request.

Retry, reconcile, and verify

Resolve the error you found in Identify the failed resource or operation by using the matching guidance in Failed operation or resource. Before retrying, check that no related operation is still running. Choose the method in the following section that matches how you started the operation.

Retry a direct AKS upgrade or manual scale

Retry the original operation once, using the same resource and intended settings. Choose one of the following examples; don't run them together as a sequence. For a Fleet-initiated upgrade, use Retry a Fleet update run instead.

For a full cluster Kubernetes upgrade, run the following command.

az aks upgrade \
    --resource-group <resource-group-name> \
    --name <cluster-name> \
    --kubernetes-version <target-kubernetes-version>

If you originally requested a control-plane-only upgrade, keep --control-plane-only so the retry doesn't also upgrade the node pools.

For a single AKS agent-pool Kubernetes upgrade, run the following command.

az aks nodepool upgrade \
    --resource-group <resource-group-name> \
    --cluster-name <cluster-name> \
    --name <node-pool-name> \
    --kubernetes-version <target-kubernetes-version>

For a node-image-only upgrade, run the following command using the cluster or agent-pool command with --node-image-only instead of --kubernetes-version. Keep the same scope: one pool or all pools.

For a manual scale operation on a VirtualMachineScaleSets agent pool with cluster autoscaler disabled, run the following command to specify the intended total count, not the number of nodes to add or remove.

az aks nodepool scale \
    --resource-group <resource-group-name> \
    --cluster-name <cluster-name> \
    --name <node-pool-name> \
    --node-count <target-node-count>

For a VirtualMachines agent pool, if the failed operation changed the count of an existing manual scale profile, run the following command to use az aks nodepool manual-scale update.

az aks nodepool manual-scale update \
    --resource-group <resource-group-name> \
    --cluster-name <cluster-name> \
    --name <node-pool-name> \
    --current-vm-sizes "<existing-profile-vm-size>" \
    --node-count <target-profile-node-count>

Use the VM size from the existing manual profile in virtualMachinesProfile.scale. A manual profile has one VM size; the count applies to that profile, not the whole pool. This example updates an existing manual profile, not an autoscale profile or a profile creation or deletion. Recheck the scale profiles and machine states afterward.

Verify controller-managed scaling

After you correct the cause, let cluster autoscaler or NAP reevaluate the workload. Use the following checks to see whether scaling resumes; don't trigger a manual scale to retry it.

• For cluster autoscaler, run the following command to rerun the event checks in Scenario 2: Cluster autoscaler doesn't scale and check its status.

  kubectl get configmap --namespace kube-system cluster-autoscaler-status --output yaml


  Check that it adds capacity when pending pods need it, or removes an underutilized node when the pods can move. Account for the pool's minimum and maximum counts and scale-down delays.

• For NAP, inspect the NodeClaim state by running the following command.

  kubectl get nodeclaims.karpenter.sh


  For scale-out, check that the new NodeClaim becomes ready. For scale-in, check that the selected node is removed. If scaling stalls, return to Scenario 3: NAP-managed capacity or node failure.

Retry a Fleet update run

After fixing the member-cluster failure, run the following commands to check the Fleet update run. If the run is Failed, restart that same run once, then inspect its progress. These commands require the fleet Azure CLI extension.

az fleet updaterun start \
    --resource-group <fleet-resource-group-name> \
    --fleet-name <fleet-name> \
    --name <update-run-name>

az fleet updaterun show \
    --resource-group <fleet-resource-group-name> \
    --fleet-name <fleet-name> \
    --name <update-run-name> \
    --output json

Check the affected member's result, not just the update run's overall status. Keep the retry in Fleet rather than starting a separate upgrade on the member. See Manage an update run and az fleet updaterun.

Reconcile a failed cluster or node pool

If there's no original operation to retry but the cluster or agent pool is still Failed, reconcile that resource. First, confirm that you fixed the error and that no related operation is running.

For the cluster, run the following command.

az aks update \
    --resource-group <resource-group-name> \
    --name <cluster-name> \
    --yes

For an AKS agent pool, run the following command.

az aks nodepool update \
    --resource-group <resource-group-name> \
    --cluster-name <cluster-name> \
    --name <node-pool-name>

Run only the command for the failed resource. az aks nodepool update doesn't apply to a NAP Kubernetes NodePool or NodeClaim. Reconciliation won't fix an unresolved quota, policy, network, capacity, or configuration error.

Repeat the state checks in Identify the failed resource or operation. Confirm that the cluster or agent pool has a Succeeded provisioning state and that a direct AKS operation has a Succeeded status. Also check what you set out to change: the Kubernetes version, node count, scale profile, or node readiness.

If the operation fails again, use the new error details instead of repeatedly retrying.
