This article helps you resolve issues with UI automation actions (such as clicking an SAP UI element) that occur because the application isn't fully dots per inch (DPI) aware.
Symptoms
When you try to click an SAP UI element, the mouse cursor moves and appears to locate the element. However, the cursor isn't positioned over the correct element, causing the click action to fail.
Cause
This issue occurs because the SAP application isn't fully DPI aware and might not always scale properly on high-DPI displays. When a user captures an element on a machine other than the one where the flow is run, and the two machines have different screen resolutions, the flow might fail. This behavior can also occur on machines with multiple screens.
Resolution

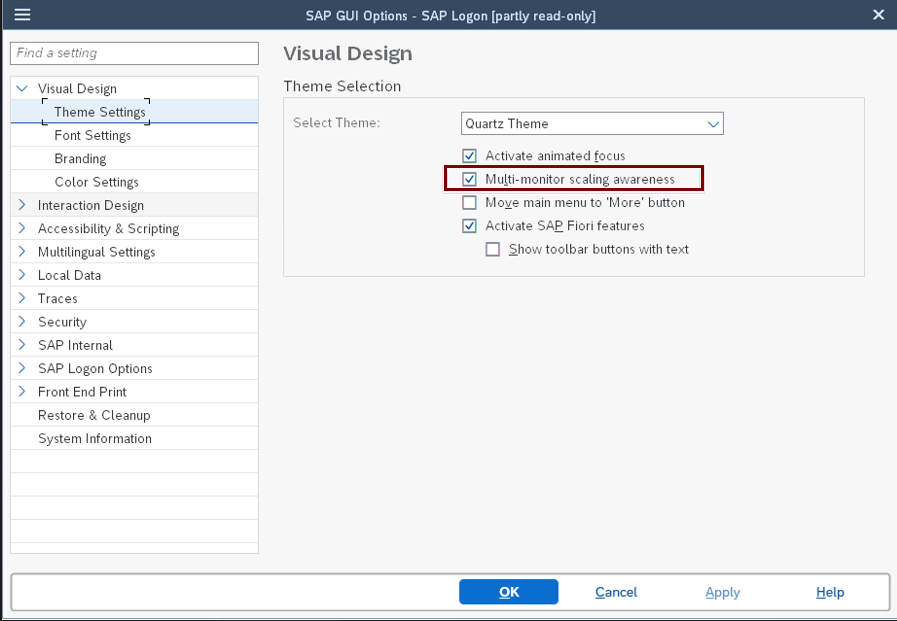

In the SAP application, go to SAP settings > Visual Design > Theme Settings and enable the Multi-monitor scaling awareness option.
Note
This option isn't available in all themes.
On Windows, go to System > Display and set the Scale to 100%.
