Remediating MCA issues, part 2: Calculate and change MCA on your affected computers

This article discusses how to calculate and implement new values for the MaxConcurrentApi parameter.

Applies to:   Windows Server 2012 and later versions, Windows 8 and later versions

Summary

Now that you have a list of servers that might benefit from a change in MaxConcurrentApi, you have to determine what the new value should be. To do this, follow these general steps for each affected server:

1. Collect general performance statistics to establish baselines for the affected server.
2. Collect tuning-related performance statistics while the server is processing the maximum client requests. For example, in an email server scenario, the best time to collect the performance data is when users arrive at work and check their email messages.
3. Use the performance data to calculate a MaxConcurrentApi value that's tuned for that server.
4. If the calculated value isn't equal to the default value, and is less than the maximum value, set the calculated value in the registry.
5. Collect fresh performance statistics to check that the change made an improvement. Check performance against the baseline.

Important

• Before you change MaxConcurrentApi on a production server, change it in a test environment. Make sure that the change does not cause other performance issues. Such a change can take up memory and disk resources on servers that use older hardware.
• Be aware that load conditions might change based on each scenario and business environment. Therefore, if the service load changes, you might have to recalculate the MaxConcurrentApi value.

Set the performance baseline

Before you make any changes, monitor the servers that you suspect have MCA issues long enough to establish performance baselines (especially during peak load periods). Continue monitoring after you make any MaxConcurrentApi changes. The performance baselines provide the data that you need to determine the effects of the new MaxConcurrentApi values. The same data can also help you identify the root cause of your environment's performance issues (see Part 3 of this series).

At a minimum, you should monitor the following counters to establish a performance baseline and to verify the effectiveness of any MaxConcurrentApi changes.

Performance counter set	Purpose
Memory	Track the overall system memory to to make sure that the system isn't being overtaxed.
Physical Disk or Logical Disk	Track the disk I/O to make sure that the disks aren't overtaxed. This is important if Netlogon logging is enabled (which it should be if you're tracking this problem).
Process (lsass.exe, at a minimum)	For this baseline, lsass.exe is the most interesting because this is where Netlogon operates. However, it never hurts to have a view of the processes in case a problem does arise after you change MaxConcurrentApi.
Processor	Monitor the processor load.
Network Interface	Optional, but recommended.
Netlogon	Track Netlogon performance counters to get a holistic view of Netlogon functions. You can use the counters to detect delays in authentication and also the time-outs themselves. Monitoring these counters provides a quick way (outside of the Netlogon logs) to determine whether authentication time-outs are occurring. You still have to use the Netlogon logs for proper trending and analysis (such as to determine how many users are affected, how often they were affected, the exact error codes, and the source of the "bad" authentication).

Collect the tuning-related statistics

This section describes how to use Performance Monitor (Perfmon.msc, also available on the Tools menu in Server Manager) to collect the data that you have to calculate MaxConcurrentApi.

Configure Performance Monitor as follows:

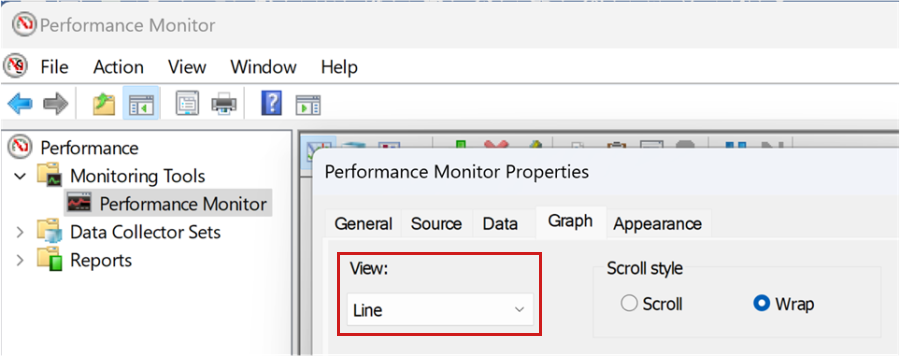

• Duration. Set the Duration value in the Performance Monitor properties. We recommend that you use a value in the range of 90 to 120 seconds.



• Counters. Add the following counters from the Netlogon object.

  Counter	Instance
  Semaphore Acquires	_Total
  Semaphore Timeouts	_Total
  Average Semaphore Hold Time	_Total

  Note

  You can obtain most of the values that you need from the Performance Monitor Line view. However, for the Average Semaphore Hold Time value, use the Report view.


Collect the following values from Performance Monitor:

• <Duration> = Constant that defines the data collection interval.
• <Semaphore_Acquires> = The change in value of the Netlogon Semaphore Acquires counter during the specified duration. The counter is cumulative. The Minimum value is the starting value, and the Maximum value is the ending value.
• <Semaphore_Timeouts> = The change in value of the Netlogon Semaphore Timeouts counter during the specified duration. The counter is cumulative. The Minimum value is the starting value, and the Maximum value is the ending value.
• <Avg_Semaphore_Hold_Time> = The value of the Netlogon Average Semaphore Hold Time counter. To see the value as calculated across the specified duration, set the Performance Monitor view to Report instead of Line.

Note

If the value of any of these counters is zero, the server doesn't need a new MaxConcurrentApi value.

Calculate the new MaxConcurrentApi value

Use the following equation to determine the MCA value for a server:

(<Semaphore_Acquires> + <Semaphore_Timeouts>) × <Avg_Semaphore_Hold_Time> / <Duration> = <MaxConcurrentApiI>

Compare the calculated value to the default and maximum value for the server's role, as listed in the following table.

Operating system type or role	Default threads (per secure channel)	Maximum threads
Domain controllers Windows Server 2012 and later versions	10	150
Member servers Windows 2012 and later versions	10	150
Workstations Windows 8 and later versions	1	150 Note: It's unlikely that you'll need a value that's greater than 1 on a workstation.

Note

• Earlier versions of Windows that have reached their End of Support date have different default and maximum values for MaxConcurrentApi. If you have an MCA issue that involves an unsupported version of Windows, upgrade to a more recent Windows version instead of trying to change the MaxConcurrentApi value.
• The values in this table reflect conditions in which no communication delays exist between the authenticating system (that sends the authentication request, such as an app server) and the domain controller in the target domain.

If the value that you calculate for MaxConcurrentApi is greater than the default value and less than 150, change the server's MaxConcurrentApi value, as described in the next section.

Important

If the value that you calculate is equal to or greater than 150, changing MaxConcurrentApi won't solve the issue. Check your environment for underlying issues, and consider adding servers to support the authentication request load (see Part 3 of this series).

Change MaxConcurrentApi

You have to configure MaxConcurrentApi in the server's registry. No comparable Group Policy setting exists.

Important

This section, method, or task contains steps that tell you how to modify the registry. However, serious problems might occur if you modify the registry incorrectly. Therefore, make sure that you follow these steps carefully. For protection, back up the registry before you modify it so that you can restore it if a problem occurs. For more information about how to back up and restore the registry, see How to back up and restore the registry in Windows.

To change the MaxConcurrentApi setting, follow these steps:

1. Select Start, enter regedit, and then select Registry Editor in the search results.

2. Select the following registry subkey: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Netlogon\Parameters

3. Select Edit > New > DWORD Value, and then enter MaxConcurrentApi.

4. Select Edit > Modify, and then enter the decimal value of the new MaxConcurrentApi setting.

5. Open a Command Prompt window, and then run the following commands, in sequence:

   net stop netlogon
   net start netlogon


Verify the new MaxConcurrentApi setting

As described in Set the performance baseline, continue monitoring server performance after you change the server's MaxConcurrentApi value. Concentrate on the following performance counters:

• Memory
• Physical Disk or Logical Disk
• Process
• Processor
• Network Interface
• Netlogon

Ideally, performance should improve after you change MaxConcurrentApi.

Example: Calculating a tuned MaxConcurrentApi value

This section continues the example that started in part 1 of this series. The example data revealed that the server had a significant MCA issue.

To collect the information that's required for the calculations, Performance Monitor is configured as follows:

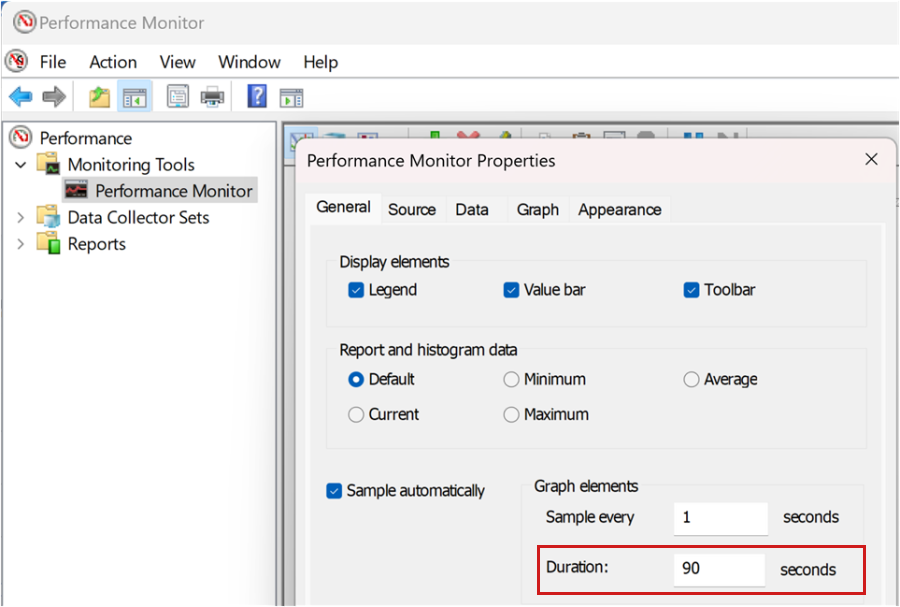

• The Duration property is 90 seconds.
• The following three counters are visible:
  • Semaphore Acquires (_Total)
  • Semaphore Timeouts (_Total)
  • Average Semaphore Hold Time (_Total)

The first value to add to the equation is the known value, /<Duration>.

(<Semaphore_Acquires> + <Semaphore_Timeouts>) × <Avg_Semaphore_Hold_Time> / 90 = <MaxConcurrentApi>

Determine the Average Semaphore Hold Time value

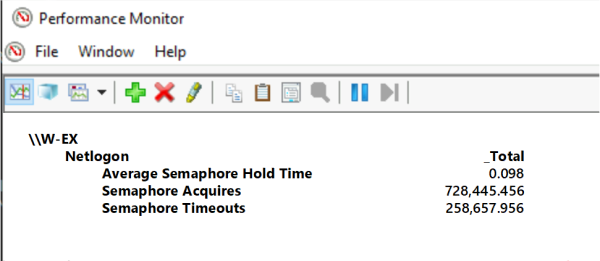

The best way to find Average Semaphore Hold Time is to switch to the Report view in Performance Monitor. To do this, select Change graph type > Report on the Performance Monitor toolbar. The Report view resembles the following:

Now add the Average Semaphore Hold Time to the equation.

(<Semaphore_Acquires> + <Semaphore_Timeouts>) × 0.098 / 90 = <MaxConcurrentApi>

This value is the only value that you have to obtain from the Report view. For the remaining values, you have to switch back to Line view (in the toolbar, select Change graph type > Line).

Determine the Semaphore Timeouts value

The example in Part 1 used Semaphore Timeouts to determine whether the server had an MCA issue. In this step, you have to recalculate this value by using the 90-second duration.

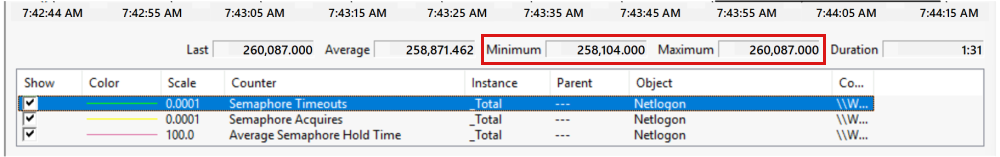

Subtracting the minimum value from the maximum value produces a value of 1,983.

(<Semaphore_Acquires> + 1,983) × 0.098 / 90 = <MaxConcurrentApi>

Determine the Semaphore Acquires value

Similar to the Semaphore Timeouts value, the Semaphore Acquires data is cumulative over the duration period that appears in Performance Monitor.

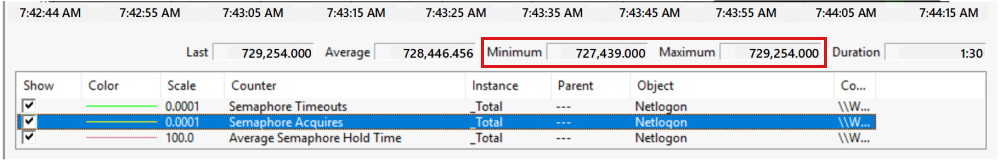

Subtracting the minimum value from the maximum value produces a value of 1,833.

(1,833 + 1,983) × 0.098 / 90 = <MaxConcurrentApi>

Calculate MaxConcurrentApi

The equation produces a value of 4.1552 for MaxConcurrentApi. The registry entry requires an integer value, but 4 might not be sufficient. In this case, 5 is a safe value to use.

Next steps

• Remediating MCA issues, part 3: Troubleshoot the underlying causes of an MCA issue
