Error 0x80090322 when you connect PowerShell to a remote server via WinRM

This article provides a resolution to the 0x80090322 error when connecting PowerShell to a remote server via Windows Remote Management (WinRM).

Applies to: Supported versions of Windows and Windows Server
Original KB number: 4549715

Symptoms

Let's say you're attempting to start a PowerShell session with a remote server. When you run the Enter-PSSession -Computername <FQDN> command, you receive the following error:

Enter-PSSession : Connecting to remote server <FQDN> failed with the following error message : WinRM cannot process the request. The following error with error code 0x80090322 occurred while using Kerberos authentication: An unknown security error occurred.

Cause

By default, PowerShell uses an HTTP service principal name (SPN) in the format HTTP/<FQDN> to connect to the remote server. This issue occurs when the SPN is already registered to another service account in the forest or manually registered to a web service running on the computer.

Resolution

First, we need to identify the SPN. Run the command setspn -q http/<FQDN> to identify if this SPN is registered to a service account.

Then, use one of these options to resolve this issue:

Option 1

Validate if you still need the SPN registration on a service account. Remove the SPN registration if not required.

Option 2

Set up a dedicated SPN for WinRM by specifying the port number. Run these commands to register the SPN:

Setspn -s HTTP/servername:5985 <servername>
Setspn -s HTTP/FQDN:5985 <servername>

For example:

Setspn -s HTTP/Mem1:5985 Mem1
Setspn -s HTTP/Mem1.contoso.com:5985 Mem1

Use the following PowerShell command to specify a port for the Enter-PSSession command:

Enter-PSSession -ComputerName <servername or FQDN> -SessionOption (New-PSSessionOption -IncludePortInSPN)

For example:

Enter-PSSession -Computername mem1.contoso.com -SessionOption (New-PSSessionOption -IncludePortInSPN)

Option 3

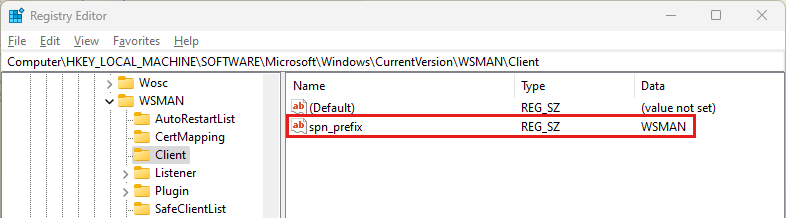

Configure the WinRM client to use a Web Services-Management (WSMAN) SPN instead of an HTTP SPN by creating the following registry value:

Key: HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\WSMAN\Client
Value name: spn_prefix
Value type: REG_SZ (string)
Value data: WSMAN

Note

This operation must be done on the client machine.

The Kerberos request would look like the following example after making the registry change. In a Ticket Granting Server (TGS) request, the SPN is WSMAN/mem1.contoso.com instead of HTTP/mem1.contoso.com.

Client.contoso.com DC1.contoso.com KerberosV5 KerberosV5:TGS Request Realm: CONTOSO.COM Sname: WSMAN/mem1.contoso.com

You can also use the reg add command:

reg add HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\WSMAN\Client /v spn_prefix /t REG_SZ /d "WSMAN" /f

After that, add the following SPNs to the computer account:

Setspn -s WSMAN/<servername> <servername>
Setspn -s WSMAN/<servername>.<domainname> <servername>

For example:

Setspn -s WSMAN/mem1 mem1
Setspn -s WSMAN/mem1.contoso.com mem1
