Tutorial: Create a matching game WinForms app

In this series of four tutorials, you build a matching game, where the player matches pairs of hidden icons.

Use these tutorials to learn about the following tasks in the Visual Studio Integrated Design Environment (IDE).

  • Store objects, such as icons, in a List<T> object.
  • Use a foreach loop in C# or a For Each loop in Visual Basic to iterate through items in a list.
  • Keep track of a form's state by using reference variables.
  • Build an event handler to respond to events that you can use with multiple objects.
  • Make a timer that counts down and then fires an event exactly once after being started.

When you finish, you'll have a complete game.

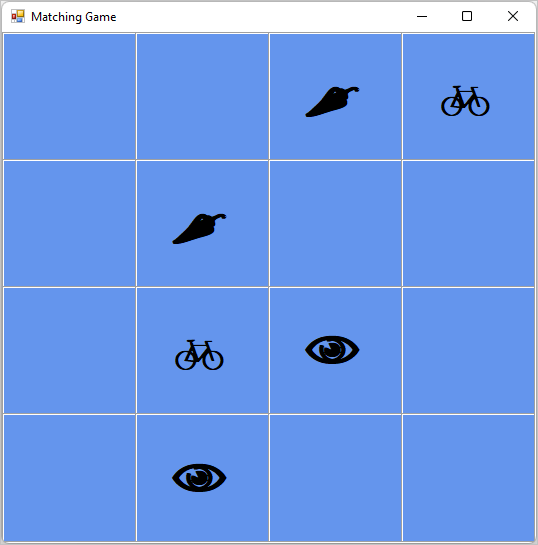

Screenshot shows the game that you create, with several matching icons displayed in a grid.

In this first tutorial, you learn how to:

  • Create a Visual Studio project that uses Windows Forms.
  • Add and format a layout element.
  • Add and format labels to display.


You need Visual Studio to complete this tutorial. Visit the Visual Studio downloads page for a free version.

Create your Windows Forms match game project

When you create your matching game, the first step is to create a Windows Forms App project.

  1. Open Visual Studio.

  2. On the start window, select Create a new project.

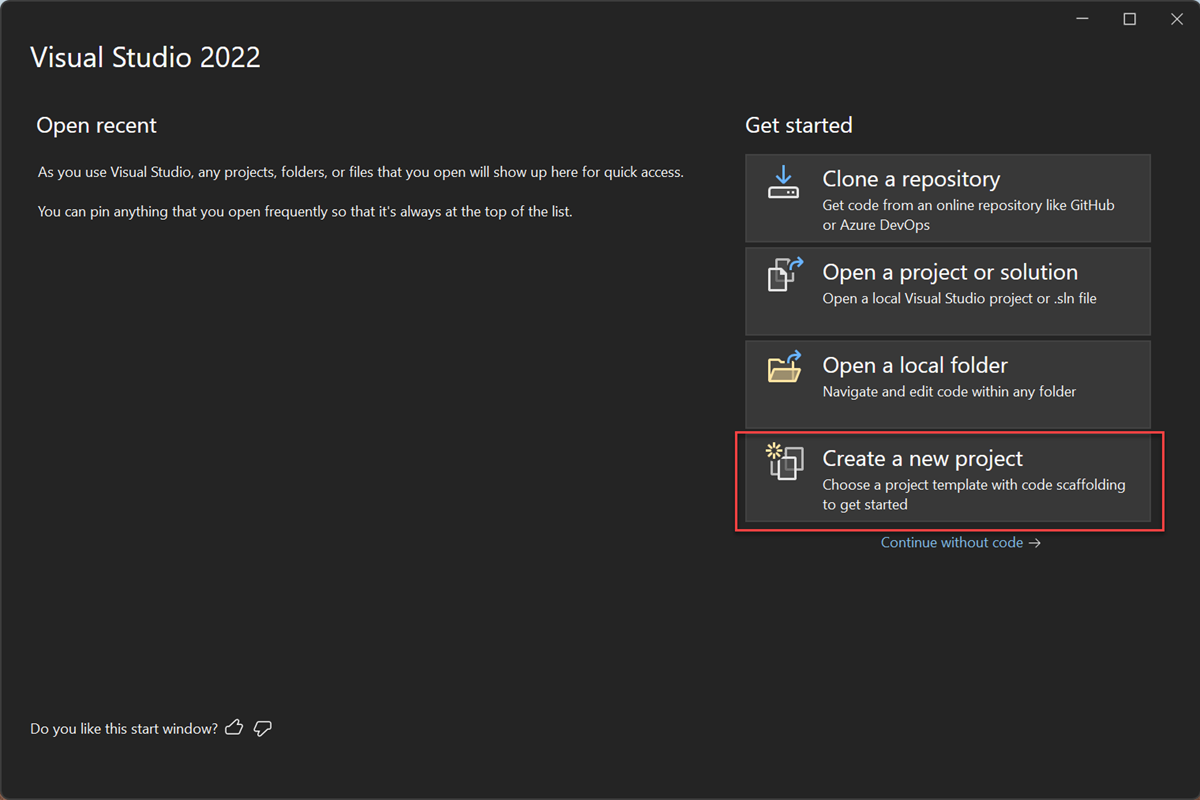

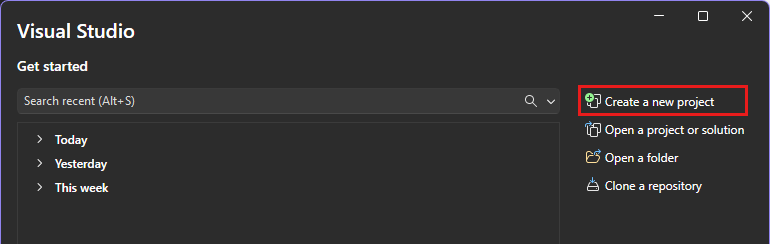

    Screenshot shows the Create a new project option in the Visual Studio start window.

  3. On the Create a new project window, search for Windows Forms. Then select Desktop from the All project types list.

  4. Select the Windows Forms App (.NET Framework) template for either C# or Visual Basic, and then select Next.

    Screenshot shows the Create a new project dialog box with Windows Forms entered and options for Windows Forms App.


    If you don't see the Windows Forms App (.NET Framework) template, you can install it from the Create a new project window. In the Not finding what you're looking for? message, select the Install more tools and features link.

    Screenshot shows the Install more tools and features link from the Not finding what you're looking for message in the Create new project dialog box.

    Next, in Visual Studio Installer, select .NET desktop development.

    Screenshot shows .NET Core workload in the Visual Studio Installer.

    Select Modify in the Visual Studio Installer. You might be prompted to save your work. Next, select Continue to install the workload.

  5. In the Configure your new project window, name your project MatchingGame, then select Create.

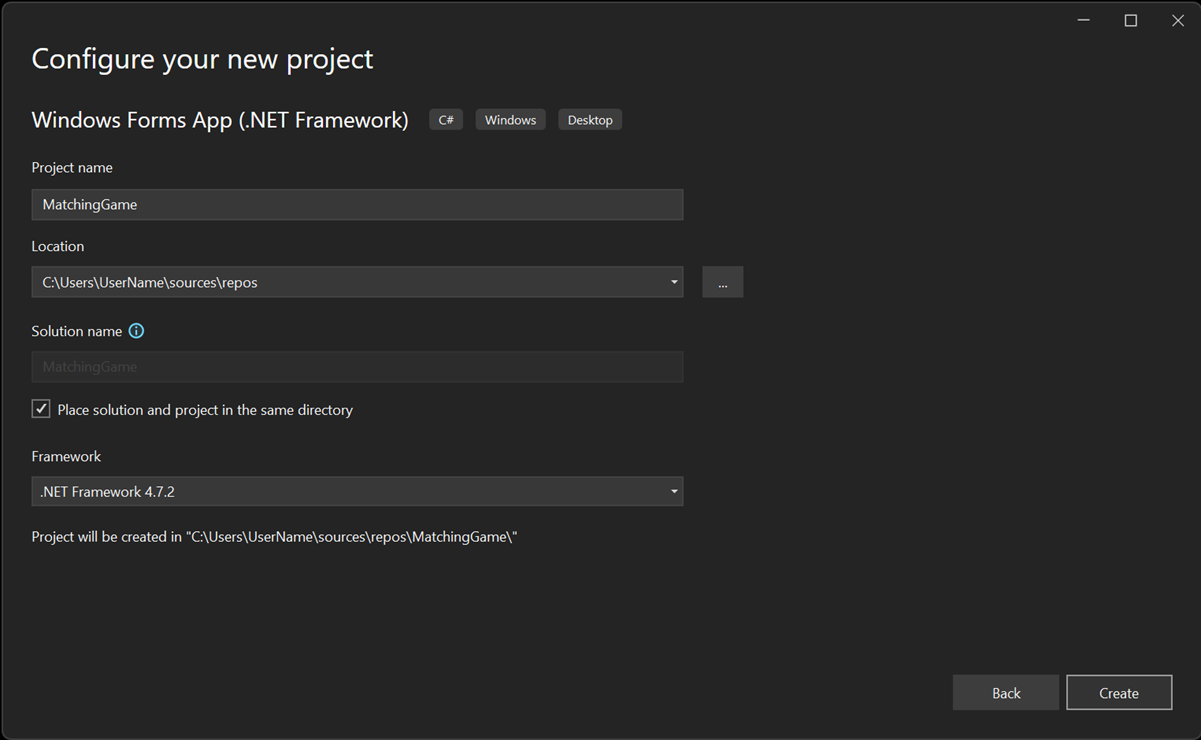

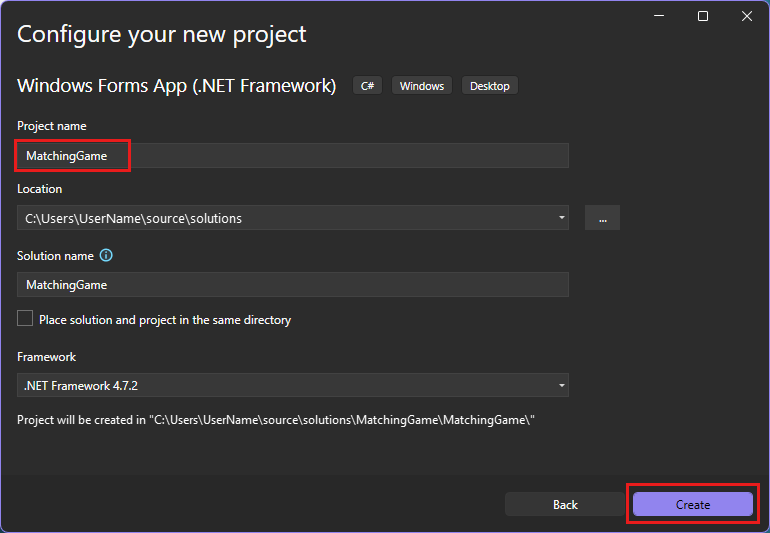

    Screenshot shows the Configure your new project.

Visual Studio creates a solution for your app. A solution is a container for all of the projects and files needed by your app.

At this point, Visual Studio displays an empty form in the Windows Form Designer.

Create a layout for your game

In this section, you create the four-by-four grid of the game.

  1. Click on the form to select the Windows Forms Designer. The tab reads Form1.cs [Design] for C# or Form1.vb [Design] for Visual Basic. In the Properties window, set the following form properties.

    • Change the Text property from Form1 to Matching Game. This text appears at the top of the game window.
    • Set the size of the form. You can change it either by setting the Size property to 550, 550, or by dragging the corner of the form until you see the correct size at the bottom of the Visual Studio IDE.
  2. Select the Toolbox tab on the left side of the IDE. If you don't see it, select View > Toolbox from the menu bar or Ctrl+Alt+X.

  3. Drag a TableLayoutPanel control from the Containers category in the toolbox or double-click it. Set the following properties for the panel in the Properties window.

    • Set the BackColor property to CornflowerBlue. To do set this property, select the arrow next to the BackColor property. In the BackColor dialog box, select Web. In the available color names, select CornflowerBlue.


      The colors are not in alphabetical order, and CornflowerBlue is near the bottom of the list.

    • Set the Dock property to Fill from the dropdown list by selecting the large middle button. This option spreads the table out so that it covers the entire form.

    • Set the CellBorderStyle property to Inset. This value provides visual borders between each cell on the board.

    • Select the triangle button in the upper-right corner of the TableLayoutPanel to display its task menu. On the task menu, select Add Row twice to add two more rows. Then select Add Column twice to add two more columns.

    • On the task menu, select Edit Rows and Columns to open the Column and Row Styles window. For each column, select the Percent option, and then set each column's width to 25 percent.

    • Select Rows from the list at the top of the window, and then set each row's height to 25 percent.

    • When you're done, select OK to save your changes.

Your TableLayoutPanel is now a four-by-four grid with 16 equally-sized square cells. These rows and columns are where the icons appear later.

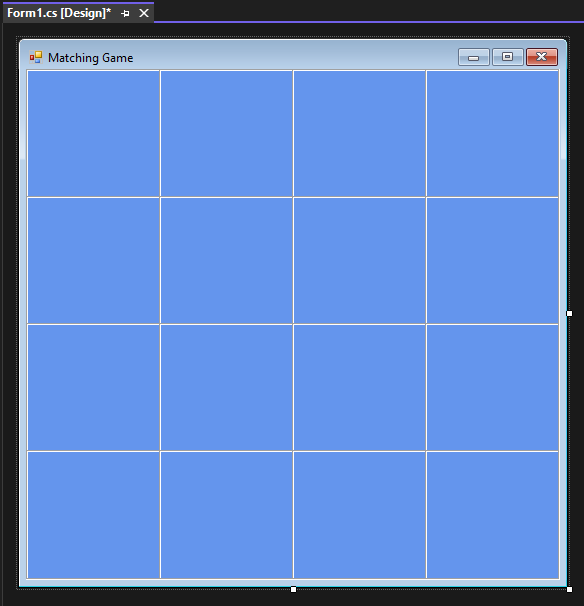

Screenshot shows the Forms tab with a four by four grid.

Add and format labels to display

In this section, you create and format labels to display during the game.

  1. Be certain that the TableLayoutPanel is selected in the form editor. You should see tableLayoutPanel1 at the top of the Properties window. If it isn't selected, select the TableLayoutPanel on the form, or select it from the list at the top of the Properties window.

  2. Open the toolbox, as before, and open the Common Controls category. Add a Label control to the upper-left cell of the TableLayoutPanel. The label control is now selected in the IDE. Set the following properties for it.

    • Set the BackColor property of the label to CornflowerBlue.
    • Set the AutoSize property to False.
    • Set the Dock property to Fill.
    • Set the TextAlign property to MiddleCenter by choosing the drop-down button next to the property, and then selecting the middle button. This value ensures the icon appears in the middle of the cell.
    • Select the Font property. An ellipsis (...) button appears. Select the ellipsis and set the Font value to Webdings, the Font Style to Bold, and the Size to 48.
    • Set the Text property of the label to the letter c.

    The upper-left cell of the TableLayoutPanel now contains a black box centered on a blue background.


    Webdings is a font of icons that ships with the Windows operating system. In your matching game, the player matches pairs of icons. This font displays the icons to match. If the Webdings icons don't display properly on the form, set the UseCompatibleTextRendering property of labels on the form to True.

    Instead of c, try different letters in the Text property. An exclamation point is a spider, an uppercase N is an eye, and a comma is a chili pepper.

  3. Select your Label control and copy it to the next cell in the TableLayoutPanel. Select the Ctrl+C keys, or on the menu bar, Edit > Copy. Then paste it by using Ctrl+V or Edit > Paste.

    A copy of the first Label appears in the second cell of the TableLayoutPanel. Paste it again, and another Label appears in the third cell. Keep pasting Label controls until all of the cells are filled.

This step completes the layout for your form.

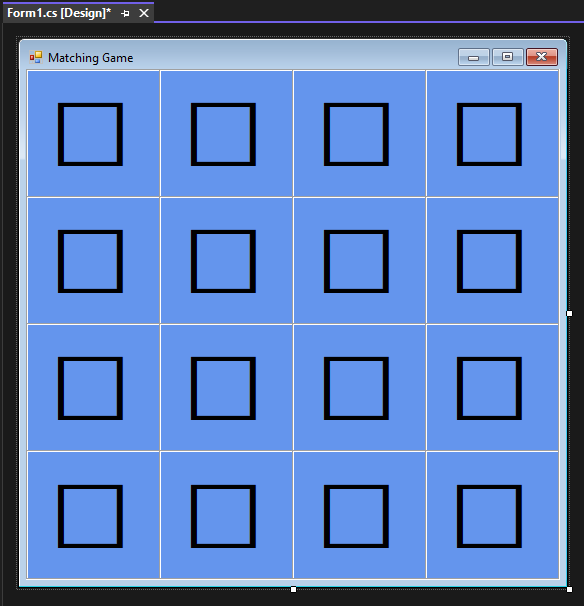

Screenshot shows the matching game form with sixteen black squares.

Next steps

Advance to the next tutorial to learn how to assign a random icon to each label and add event handlers to labels.
