View file read and write information to help improve performance

The File IO tool provides file read and write information with files read during the profiling session. The files are autogenerated in a report after collection and arranged by their target process with aggregate information displayed.


  1. Select Alt+F2 to open the performance profiler in Visual Studio.

  2. Select the File IO check box.

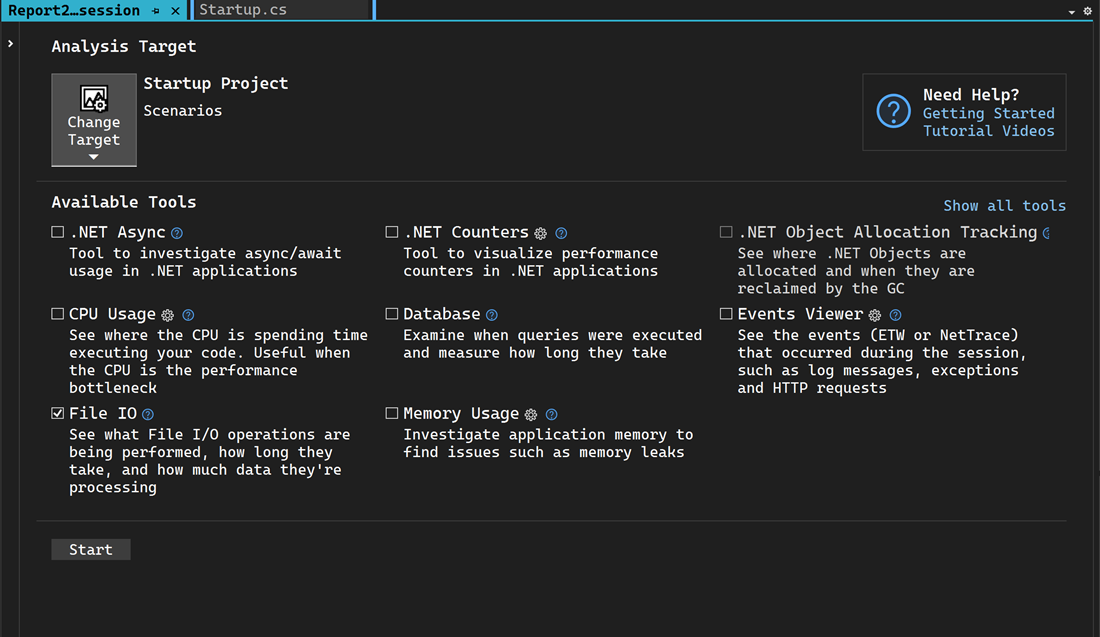

    Screenshot showing File IO tool selected.


    If the tool isn't available for selection, clear every other tool's check box because some tools need to run alone. To learn more about running tools together, see Screenshot showing how to use profiling tools from the command line..

    If the tool still isn't available, check that your project meets the preceding requirements. Make sure your project is in Release mode to capture the most accurate data.

  3. Select the Start button to run the tool.

  4. Select Yes when prompted.

  5. After the tool starts running, go through the scenario you want to profile in your app. Then select Stop collection or close the app to see your data.

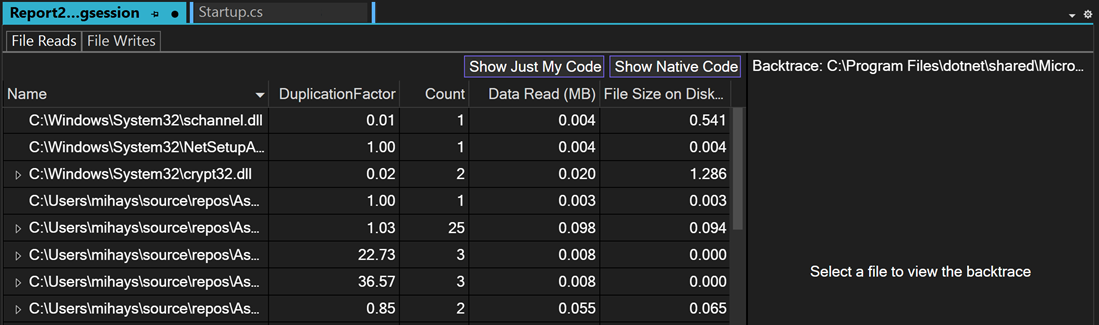

Screenshot showing File IO tool stopped.

Analyze the File IO report

Select File Reads to view all the File Reads on one page and select File Writes for writes. If you right-click on one of the rows, you can go to the source in your code. If an aggregate row was read multiple times, expand it to see the individual read operations for that file with its frequency, if they were read multiple times.

Screenshot showing File Reads selected.

The Duplication Factor for an individual file read is the number of bytes read from the file divided by the size of the file. For an aggregate read, it's the total number of bytes read from the file divided by the average size of the file across all read operations. The same logic applies for file writes. Duplication Factor shows if you're reading or writing more than what you need to from the file. If you have a duplication factor of 3x, that means the number of bytes you're reading from the file is 3 times the size of the file itself, which may be an indication that you're reading and processing more than you realized. This can indicate a place where caching the result of the file read and processing could improve your app's performance.

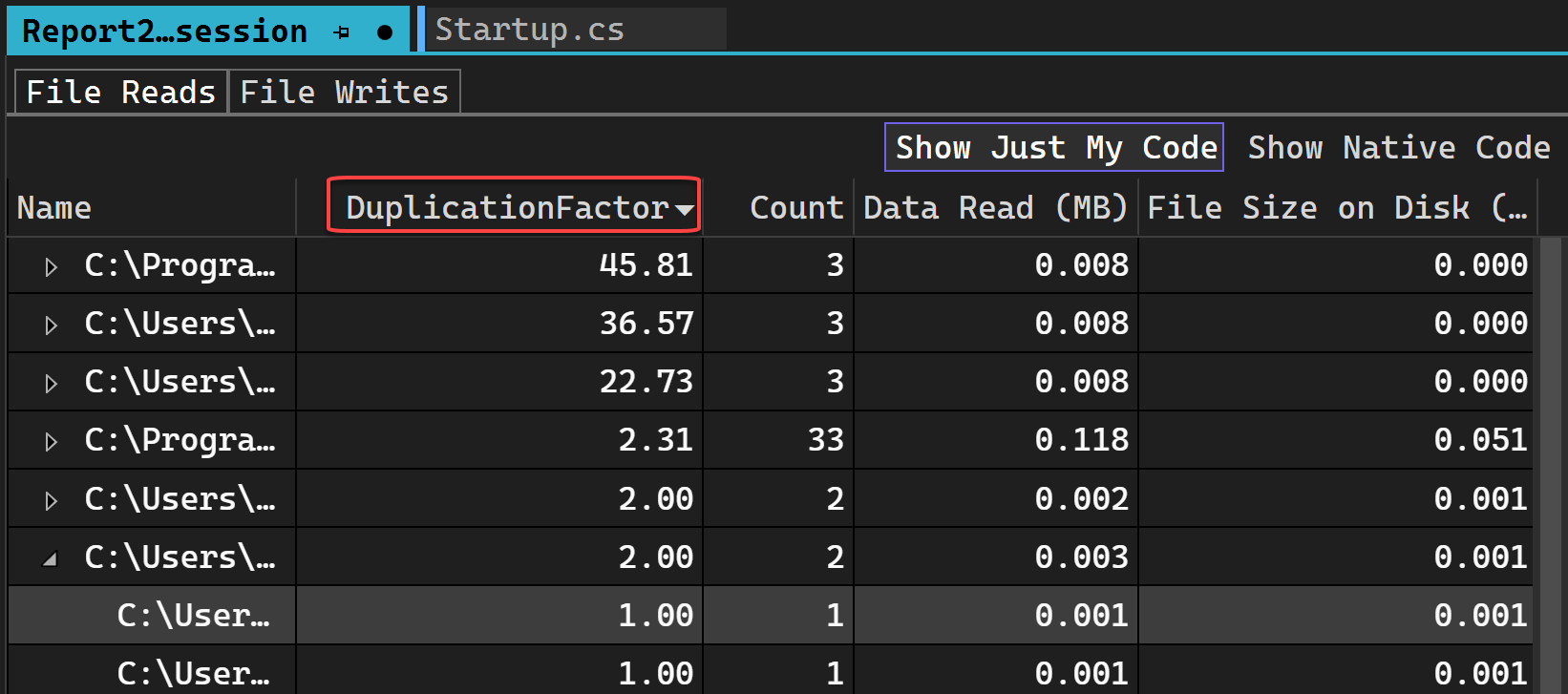

Screenshot showing Duplication Factor selected.

Double-clicking any file will cause it to be loaded in the Backtraces view. This view loads for any file in either reads or writes, allowing you to see where the read or write is happening in your code.

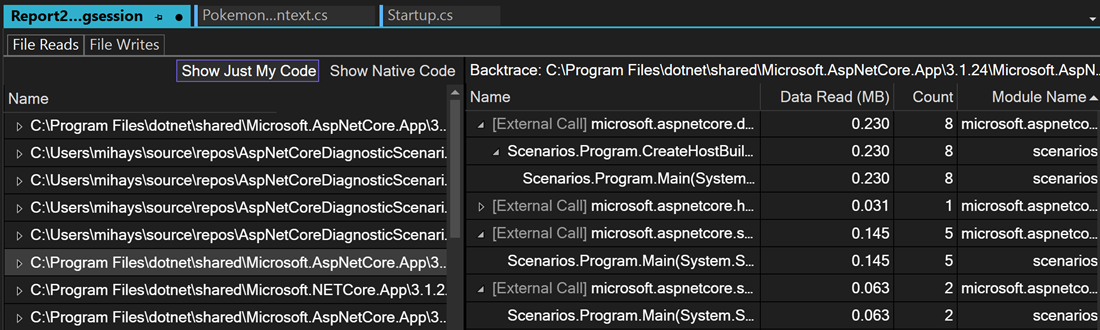

Screenshot showing Backtraces view selected.


Only Data Read, Data Written, and Count are currently supported.


Caching the file read is not the correct fix as the OS already does that. Instead, cache what the file reads are translated into.
