BM-64-EVB-C2 board

  • Article

The BM64 is a dual-mode Bluetooth v5.0 radio designed for use in headsets, speakers, or multi-speaker peripherals. More information can be found via the BM64 page from Microchip Technology Incorporated. The BM-64-EVB-C2 allows the BM64 to be utilized as a stand-alone device, allowing for connection to a test machine without the need for a Traduci. More information can be found on the Microchip Technology BM-64-EVB-C2 page.

Device Name Parameter Usage Example
BM64 bm64 RunPairingTests.bat bm64

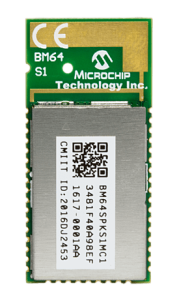

Close-up photo of the BM64 Bluetooth device.

Supported tests

Required Hardware

The BM-64-EVB-C2 can be purchased from DigiKey.

Note

The BM-64-EVB development occurred with the Class 2 stereo audio module version (BM-64-EVB-C2) but should be compatible with the Class 1 audio module (BM-64-EVB-C1).

BM64 Device on BM64 Evaluation Board

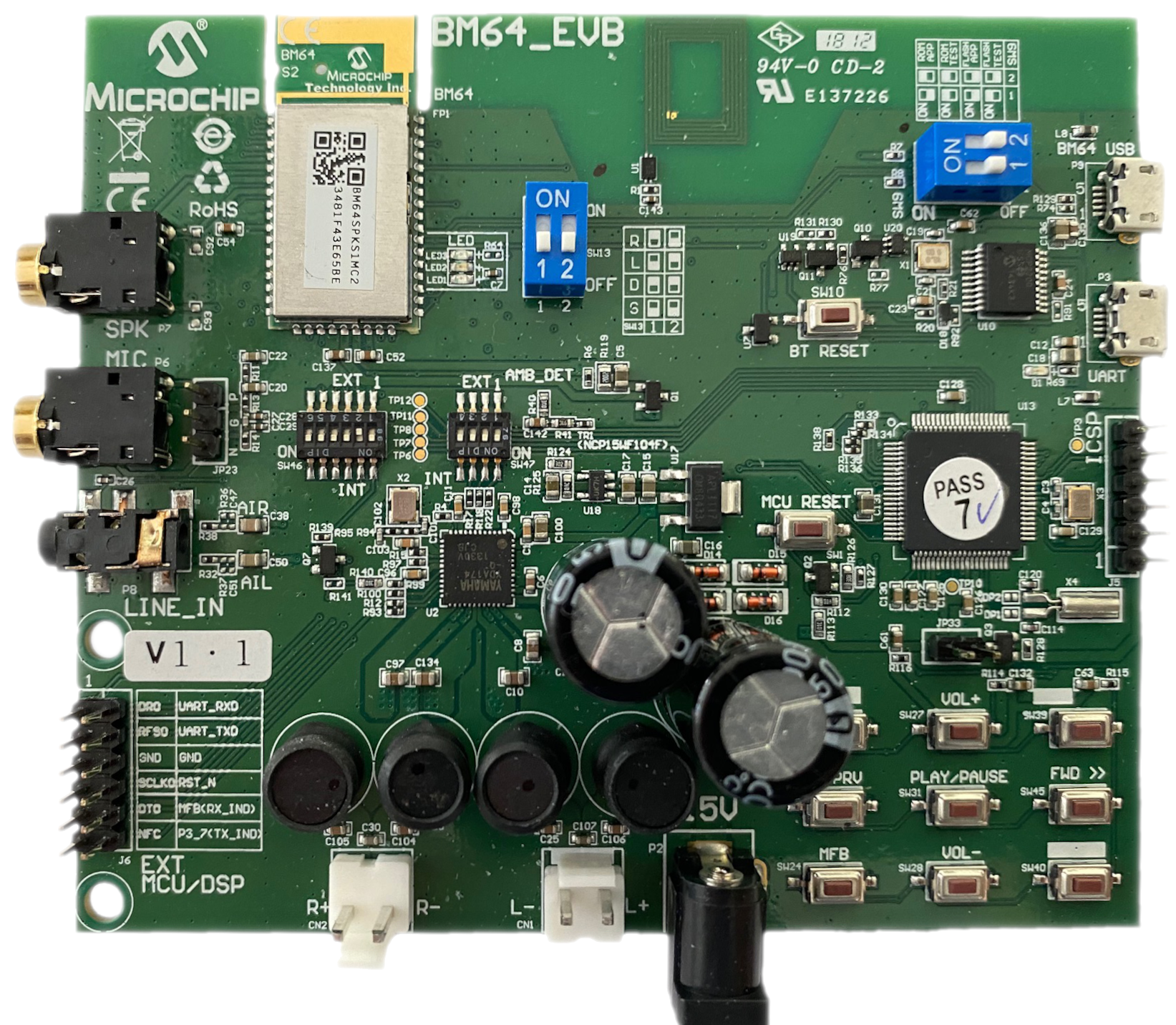

Photo of the BM-64-EVB evaluation board.

Getting Started

Caution

Before powering on the board via USB or barrel connector, remove the jumper on JP33, if it is installed. Failure to do so may result in a boot loop that prevents enumeration during future power ups and may render the board unusable for the purposes of BTP testing.

In order to use the BM-64-EVB-C2 with BTP, the firmware and EEPROM settings for the BM64 must be updated from the factory default. Additionally, the PIC microcontroller should also be updated to ensure stability.

Download and extract the newest BM64 software kit from Microchip on the Documents/Software Libraries/Firmware tab (DSPK v2.1.3 was used for this development).

Some configuration notes before starting:

  • For using external MCU / PC control (For running BM64 firmware, EEPROM updates, BTP tests)
    • SW13 should have all positions switched to OFF
    • SW46 should have all positions switched to OFF
    • SW47 should have all positions switched to OFF
  • For using internal MCU control (For running stand-alone Microchip examples)
    • SW46 should have all positions switched to ON except for #2
    • SW47 should have all positions switched to ON
  • JP33 should be connected ONLY if uploading new firmware to the PIC microcontroller.
  • SW9 should be configured based on the current goal
Goal 1 State 2 State
Run Application (BTP Tests) OFF OFF
Upload new firmware to BM64 ON ON
Upload new EEPROM to BM64 ON OFF

Note

  • All firmware and EEPROM files should come from the same software package.
  • When running the tools included in the DSPK, a Microsoft Defender SmartScreen notification of running the app putting your PC at risk may appear the first time it is run. Click More Info and then Run anyway.

Flashing Firmware for the BM64

This section explains how to upload new firmware for the BM64. The isupdate.exe tool (found at DSPK v2.x.y Package\Tools\FlashUpdate Tool) is used to upload new hex files to the BM64.

  1. Set SW9 position 1 and 2 to both ON and ensure JP33 is removed.

  2. Plug the Micro-B USB cable into P3 (labeled UART on the EVB).

  3. Start the isupdate.exe tool and select the COM port associated with the BM-64-EVB-C2 (use Device Manager and look for Ports (COM & LPT)).

  4. The settings should be a baud rate set to 115200, image num set to 16, memory set to flash, subtype set to Serial Flash. After being set, select Connect.

    • If the connection is correct, then Device should be populated with information and Port connect -> COM# should be in the bottom pane. It should look like the following image (with corresponding COM ports).

    • The given baud rate only applies to the default device for this example. If EEPROM changes have occurred to modify the baud rate of the BM64, use that new value instead.

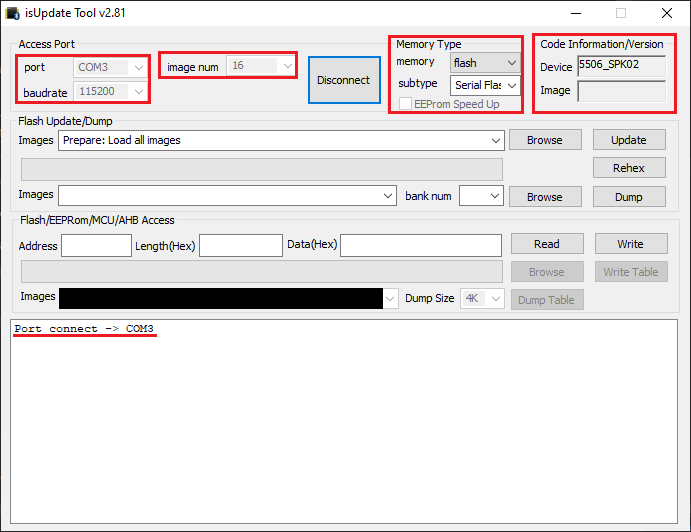

      Screenshot of the isUpdate tool displaying successful connection.

  5. Select Browse and navigate to the BM64 hex files in the DSPK (found at DSPK v2.x.y Package\Software\Firmware Image\BM64 Firmware). Highlight all 16 files (BT5506_SHS_FLASH.H00 through BT5506_SHS_FLASH.H15) simultaneously and select Open.

  6. Select Update to update the BM64's firmware. The bottom pane shows progress as the update occurs. DO NOT INTERRUPT THIS PROCESS AT THE RISK OF CORRUPTING THE DEVICE.

  7. End of Write Memory appears in the bottom pane once the update process is completed. Afterwards, select Disconnect. Wait until port disconnect message in the bottom pane appears.

  8. Remove the Micro-B USB cable, set SW9 position 1 and 2 to both OFF, and then plug the Micro-B USB back into P3.

Updating EEPROM for the BM64

This section explains how to upload new EEPROM parameters for the BM64. The EEPROM update process involves using the UITool_IS206x_012_DualModeSPK_v2.x.y.exe tool (found at DSPK v2.x.y Package\Tools\UI Tool) to make a user interface files to set parameters such as baud rate or enabling UART. It then involves using the DSPTool_IS206X_012_DUALMODESPK2.1_E1.0_V13.exe tool (found at DSPK v2.x.y Package\Tools\DSP Tool) to make a DSP file for setting speaker and input filtering configurations. After a UI and DSP file are generated, the process utilizes the MPET.exe tool (found at DSPK v2.x.y Package\Tools\MP_V2.x.y) to combine for the full EEPROM .ipf file. Using the generated .ipf tool, the actual upload of the EEPROM to the BM64 occurs with the EEPROM_Tool.exe tool (found at DSPK v2.x.y Package\Tools\EEPROM_Tool).

Follow the guide provided by Microchip for updating the BM64 EEPROM, specifically sections 3.4 - "CONFIGURING BM64 MODULE" and 3.5 - "UPDATING EEPROM PARAMETERS". Here are some important modifications to the guide:

  • Section 3.4.1 - "UI Tool Configuration" Modifications:
    • 3.4.1.3: Load the UITool_IS206x_012_DualModeSPK_v2.x.y_BM64_EVB.txt UI parameters starting text file.
    • 3.4.1.4: Select "BM64CLS2" for the IC Package if using a BM-64-EVB-C2 and "BM64CLS1" if using a BM-64-EVB-C1 board.
    • 3.4.1.6: Changing the Name Fragment is optional and doesn't affect use (if changed, make sure the name is more than 0 and less than 32 ASCII characters).
    • 3.4.1.12: Don't overwrite an existing table when wanting to use the default table if there's a critical error with the board.
  • Section 3.4.2 - "DSP Tool Configuration" Modifications:
    • 3.4.2.1: Select "IS206X_012_DUALMODESPK2.1_E1.0" (or similar) for the IC Version.
  • Section 3.4.3 - "MPET Tool Configuration" Modifications:
    • 3.4.3.3: Select "IS206X_012_DUALMODESPK2.1_E1.0.4.1_1214.bin" (or similar) for the default .bin file.
    • 3.4.3.5: Add and merge the files created in Section 3.4.1 and Section 3.4.2 of the guide.
    • 3.4.3.8: The popup may not occur depending on the version of DPSK being used, which doesn't affect performance.
  • Section 3.5 - "UPDATING EEPROM PARAMETERS" Modifications:
    • 3.5.1: Unplug the USB, if not already, before starting.
    • 3.5.5: Use the .ipf generated from Section 3.4.3. Additionally, a pop up may occur warning of the size of file of the .ipf. Select OK (this warning happens with default tables as well).
    • 3.5.6: DO NOT INTERRUPT THIS PROCESS AT THE RISK OF CORRUPTING THE DEVICE.

Verifying installation with SPKCommand

After firmware and EEPROM updates occur, the UART messaging capabilities of the BM-64-EVB-C2 necessary for communicating with BTP can be verified using the SPKCommand tool included in the DSPK.

  1. Set SW9 position 1 and 2 to both OFF and ensure JP33 jumper is removed.

  2. Plug the Micro-B USB cable into P3 (labeled UART on the EVB).

  3. Start the SPKCommandSetTool vA.B.exe (found at DSPK v2.x.y Package\Tools\SPKCommandSetTool).

    • Set the Port to the COM port associated with the BM-64-EVB.
    • Set the Baudrate to 19200 per the EEPROM updates.

  4. Select on the Open button. Messages may appear in the bottom log to the right.

  5. Select on the Information tab and select on the Update button.

    • If UART messages are being communicated correctly, the information such as the Local Device Name and Bluetooth Address is populated, and the logs show both Event: and Command: messages followed by hex codes representing the UART message contents.
    • If no BM64 information is populated and only Command: messages are seen in the logs, try closing and reopening the connection. If the expected behavior still doesn't occur, refer to the Further Help section.

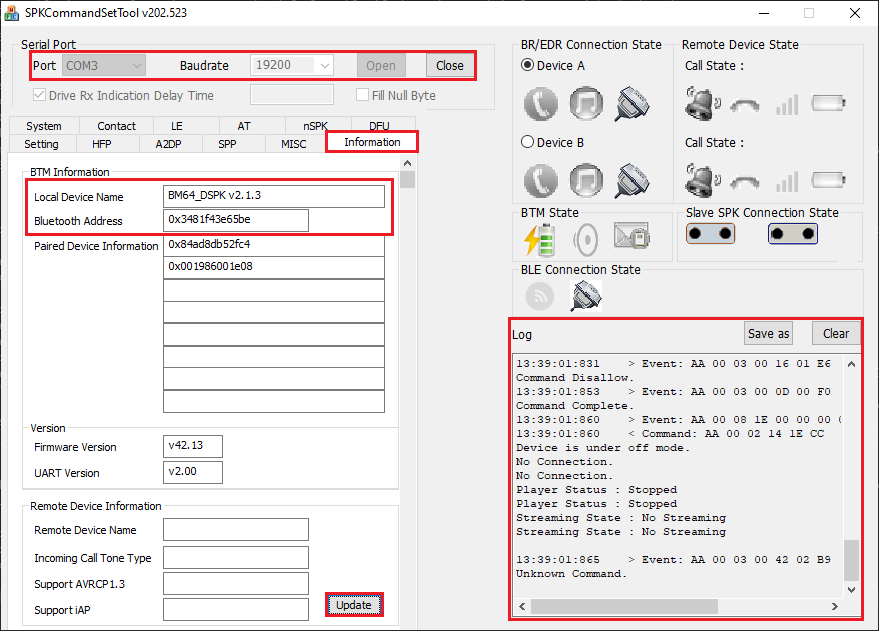

    Screenshot of the SPKCommand tool showing successful communication.

Using the BM-64-EVB

After new firmware and EEPROM are installed, make sure JP33 jumper is removed and SW9 positions 1, and 2 are both OFF. Set all positions of SW13, SW46 and SW47 to OFF; the same settings as in the verifying installation with SPKCommand.

After settings are verified, connect a Micro-B USB cable between P3 (labeled UART on the EVB) and the test machine. Optionally, 3.5mm jack headphones or speakers can be connected to P7 (labeled SPK on the EVB) for audio output if enabled in the EEPROM. If external speakers are to be used, the board must have the 15V barrel jack for powering the audio amp.

To run BTP using the BM-64-EVB, make sure the software is correctly installed following Setting up BTP Software. Additionally, refer to the pairing tests and audio test for running the tests supported by BTP for the BM-64-EVB.

(Optional) Installing Firmware for the PIC Microcontroller

This section explains how to upload new firmware for the on-board PIC microcontroller. The PIC microcontroller is only used for stand-alone Microchip BM-64-EVB-C2 examples (like controlling music with push-buttons) and isn't necessary for using the BTP tests.

Note

  • Use the same DSPK version for the PIC Microcontroller firmware as was used for the firmware and EEPROM of the BM64 for compatibility
  • The steps were accomplished with the MPLAB Snap, but other ICSP compatible programmers may work.

  1. Download the MPLAB X IDE/IPE from Microchip.

  2. Connect a jumper on JP33. Set SW9 positions 1 and 2 to both OFF, SW46 should have all positions switched to ON expect for #2, and SW47 should have all positions switched to ON.

  3. Plug the 15V DC power adapter into the P2 jack for supplying power to MCU.

  4. Plug the MPLAB Snap into the ICSP J5 header and the USB cable to the Snap.

    • Ensure the orientation is correct (arrow on Snap points to pin 1 on J5 header).

  5. Open the MPLAB X IPE.exe and configure the given parameters:

    • For Device, select PIC18F85J10 (the product name of the target MCU).
    • For Tool, it should be auto populated by the Snap if plugged into USB.

  6. Select Connect (if successful, the target device should be found in the output screen).

  7. Load the hex file included in the DSPK (found at DSPK v2.x.y Package\Software\Firmware Image\PIC18 Image).

  8. Most likely, a warning saying debug bits are set will appear after the Hex file is loaded. If so, go to the menu and select Settings->Advanced Mode and enter the password.

  9. After the password is entered (and the hex file is still loaded correctly), select Program.

  10. After successful programming (checksum should match), select Disconnect and remove the Snap.

  11. Remove the JP33 jumper before attempting any other functions.

Further Help

If verifying installation with SPKCommand isn't successful after the firmware and EEPROM updates, UART messages aren't being passed between the computer and the BM64. There are a few methods for correcting the issue.

Confirm Setup and Power Cycle

The first common issue is the board isn't configured correctly using switches and jumpers for running SPKCommand / BTP. A few key component configurations on the board to check are as follows:

  • SW9: Ensure positions 1 and 2 are both set to OFF.
  • P3: Verify the Micro-B USB is plugged into the UART port.
  • JP33: Verify the jumper is removed.
  • SW13: Ensure all positions are switched to OFF
  • SW46: Ensure all positions are switched to OFF (in the direction of the BM64 radio on the board)
  • SW47: Ensure all positions are switched to OFF (in the direction of the BM64 radio on the board)

After these switches, ports, and jumpers are verified, unplug, wait at least 10 seconds or longer, and replug the Micro-B USB. Even if the configurations are correct, a power cycle of unplugging and plugging may help. If verifying installation with SPKCommand still doesn't work, continue with the following suggestions.

Using MSPK SPKCommand

Another solution is using a different version of the SPKCommand. To do so, download and extract the MSPK v1.35 BM64 software kit from Microchip on the Documents/Software Libraries/Firmware tab. Inside the MSPK v1.35 kit, locate the SPKCommandSetTool v192.006.exe tool (found at BM64 Software & Tools (MSPKv1.35)\Tools\SPK CommandSet Tool). Run through the same instructions in the verifying installation with SPKCommand using the MSPK v1.35 version of the SPKCommand tool. If BM-64-EVB-C2 correctly responds using the MSPK v1.35 tool, then the board can be used with BTP.

Features

  • UART data connection with custom packet structure
  • Supports SPP, A2DP, HFP, and AVRCP profiles
  • Bluetooth v5.0
  • Supports Bluetooth dual-mode (BDR/EDR/BLE)
  • Supports AAC and SBC codecs
  • Heavily featured, surface mount module
  • Using BM-64-EVB-C2 doesn't require a Traduci

Known test failures

With version 1.7.2, both standalone audio tests fail as do some audio-HID tests due to backend architecture changes. If these architecture changes break you, file a bug or email btpsupport@microsoft.com
