Reliability measure failure report
If your driver is cancelled due to a reliability measure failure, you will receive a report detailing the specifics of the failure.
Location of the report
When a driver completes flighting, a bug is created and assigned to you. The bug includes a Decision Snapshot, a report on the state of the measures at the time of flight completion. If the driver is cancelled due to a reliability measure failing during release monitoring, the same bug includes a Reliability Measure Failure Report. It is added to the RejectionReports.zip file as an attachment to that bug. Inside the zip file, the report filename is ReliabilityMeasureReport.pdf.
How to read the report
The report contains the following sections:
- Title
- Summary
- Driver Level Details
- Cohort Level Details
- Failure Hash Reported From Drivers
- Cabs reported recently
Title
The Title section describes the driver, including the submitter company name, the date the report was generated, the shipping label number, the driver name, and the driver version.

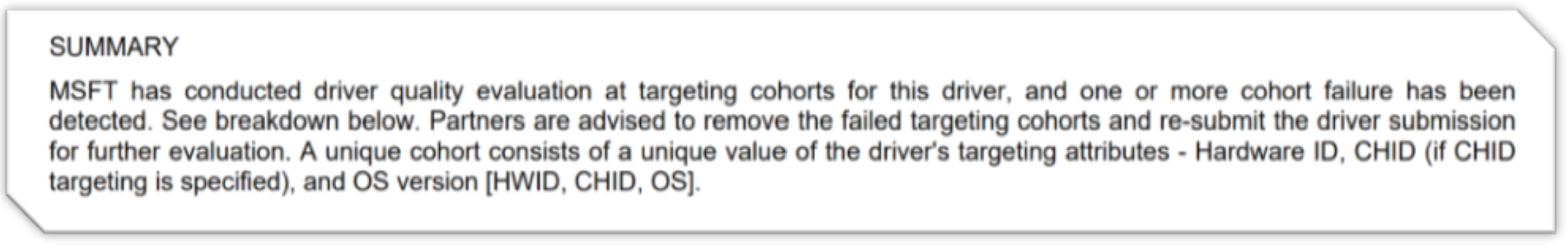

Summary
The Summary section provides basic information about what type of analysis was done and what you can do to address the issue.

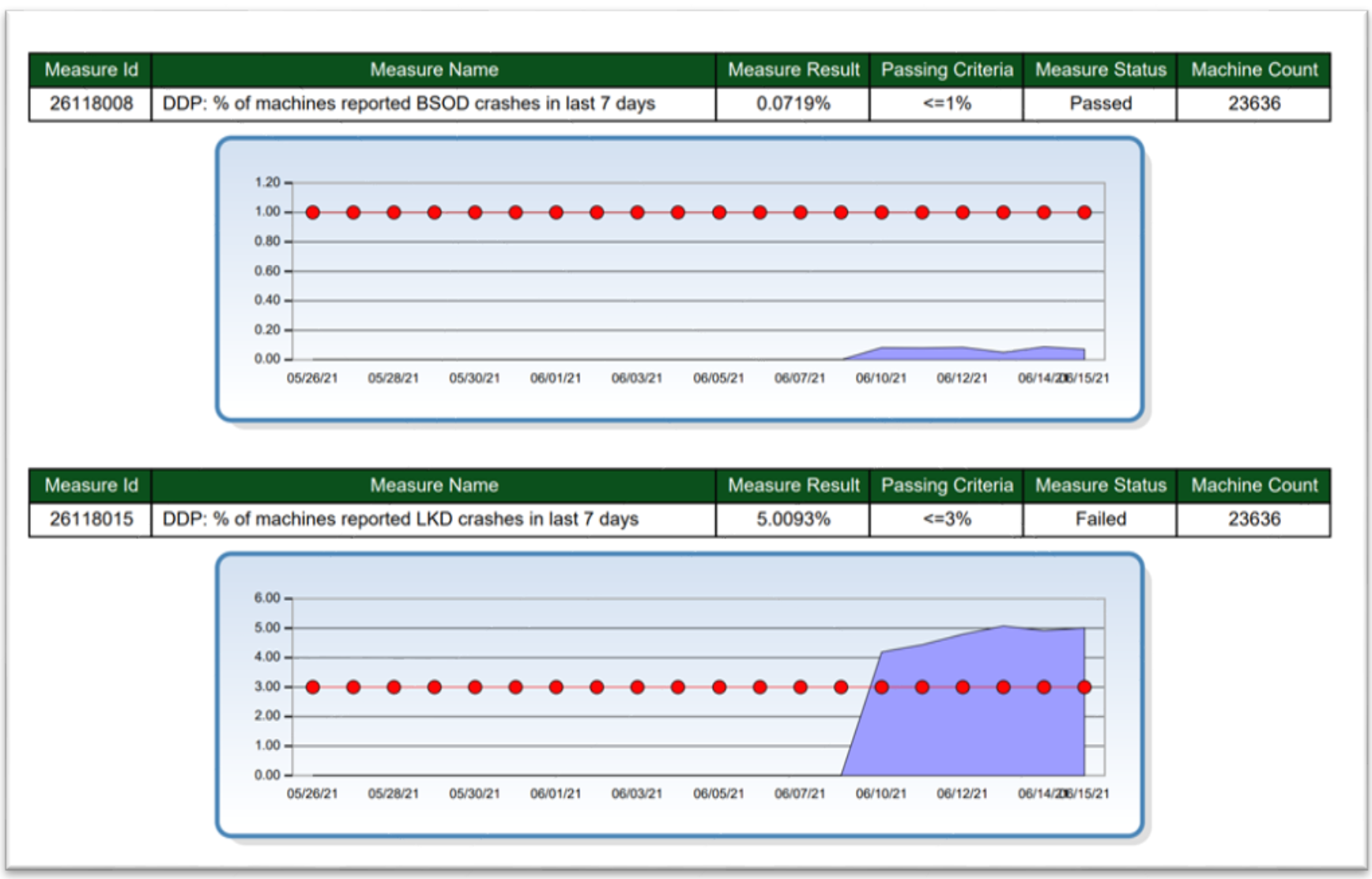

Driver Level Details
The Driver Level Details Section provides details specific to the reliability measure failures that led the driver to be rejected.
In this section, you will find:
- The measure ID to look up in the Measure Dictionary and the Flight Report
- The name of the failing measure
- The result of the measure at the time of the report
- The passing criteria
- The status of the measure
- The number of machines that have adopted the driver and were used to calculate the measure
- Timeline with the evolution of measure result (purple) and passing criteria (red) over time
Two potentially evaluated metrics:
- Measure 26118008: Percent of machines that reported stop errors in last 7 days
- Measure 26118015: Percent of machines that reported a live kernel dump in last 7 days

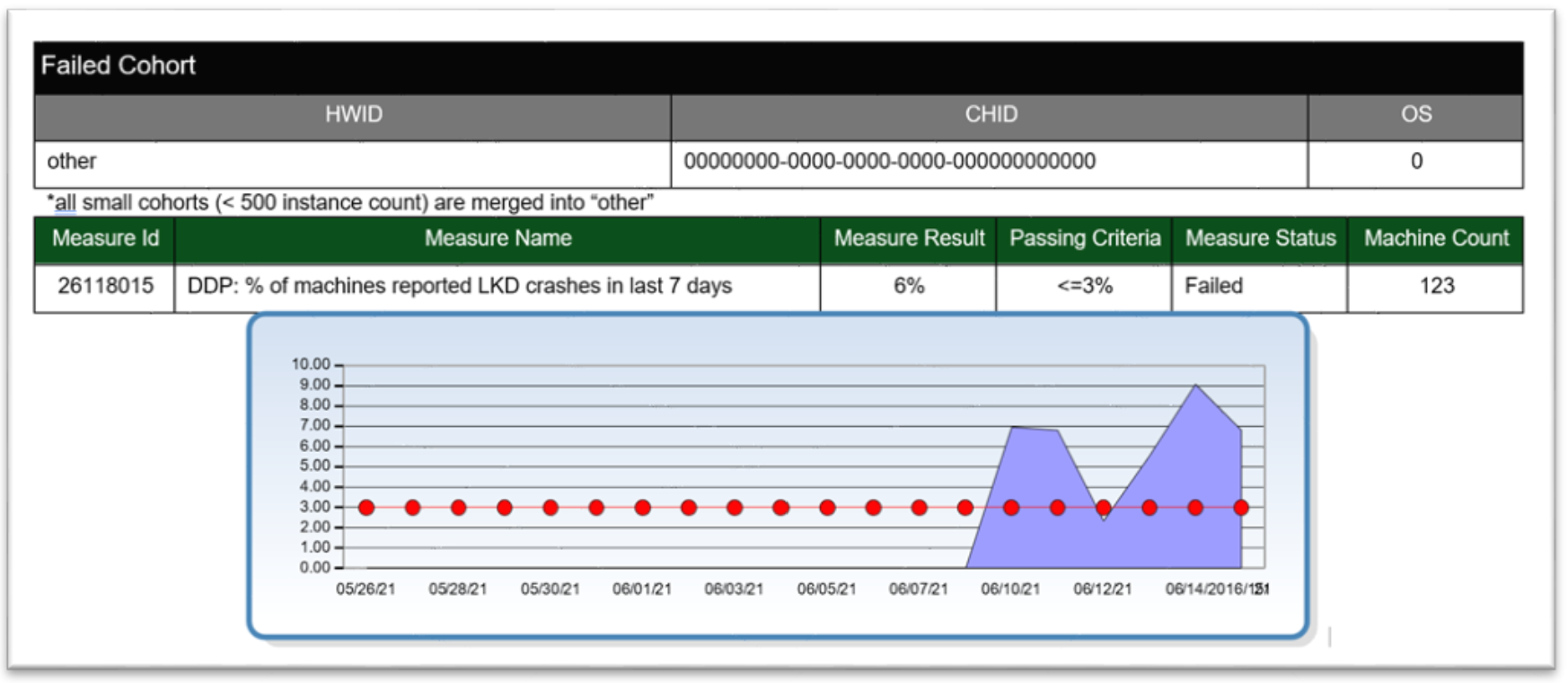

Cohort Level Details
The Cohort Level Details section includes information about the reliability failures that were found, at a cohort level. This section will repeat for each failing cohort that is found.
The Cohort Level Details section lists a targeting cohort (Hardware ID, CHID, and OS version) where the failure was found. This is followed by the list of measures that failed for that targeting cohort, including:
- The measure ID to look up in the Measure Dictionary and the Flight Report
- The name of the failing measure
- The result of the measure at the time of the report
- The passing criteria
- The status of the measure
- The number of machines in that cohort that have adopted the driver and were used to calculate the measure
- Timeline with the evolution of measure result (purple) and passing criteria (red) over time
Two potentially evaluated metrics:
- Measure 26118008: Percent of machines reported stop errors in last 7 days
- Measure 26118015: Percent of machines that reported a live kernel dump in last 7 days
Note
All small cohorts with less than 500 instances are merged into the "other" cohort.

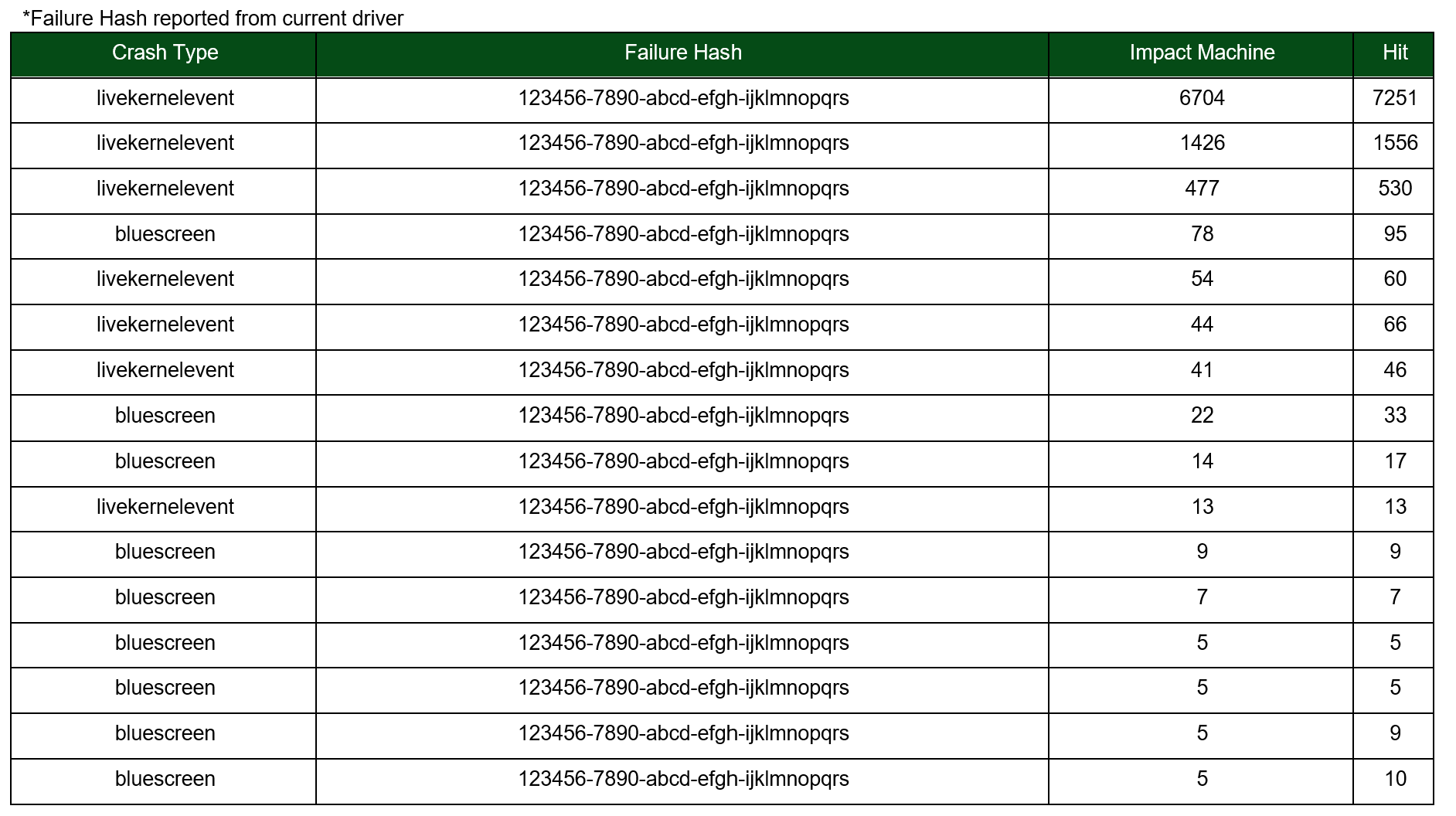

Failure Hash Reported From Drivers
The Failure Hash Reported From Drivers section provides information on crash types and failure hash reported from the current driver.

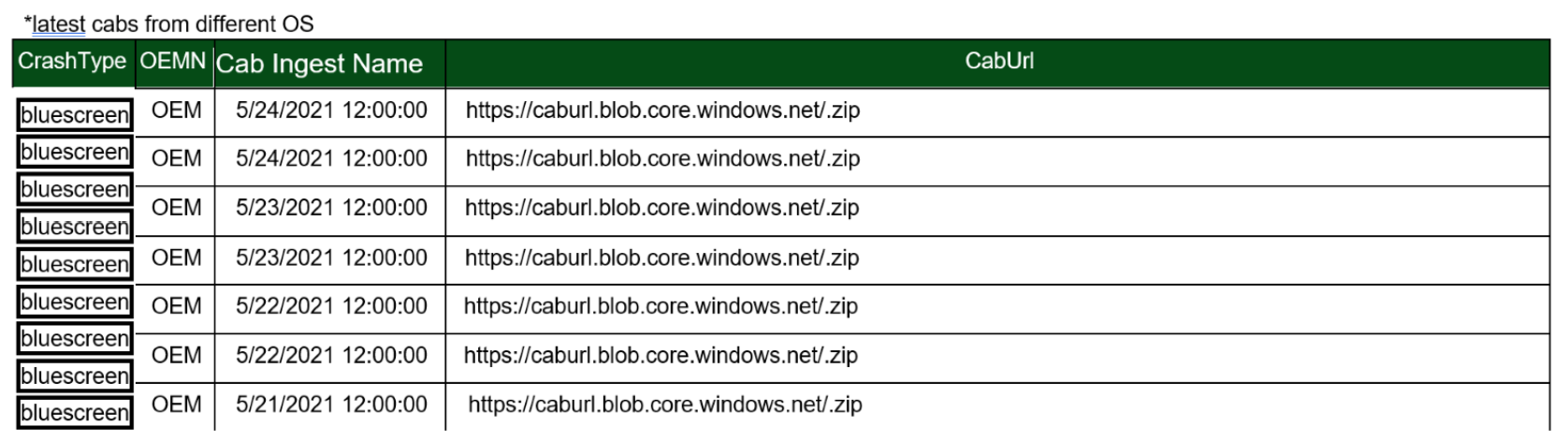

Cabs reported recently
This section includes details of the cabs recently reported from machines running the failing driver.
