Firmware Upgrade for eSIM

2023-03-14

Overview

This document describes the Windows OS changes that support firmware updates for eSIM devices.

Windows Update (WU) is the model used for the firmware patches. In this model, the eSIM device vendor authors a UMDF driver and adds it to a WU package along with the firmware patch. The package is published to the WU and will be downloaded & installed on Windows devices containing the card vendor’s eSIM device. Once installed the card vendor’s driver writes the firmware patch using the Smart Card WinRT API. Microsoft enables this by providing a UMDF driver for the ISO interface of the eSIM and exposing it as a smart card via the existing Smart Card WinRT API.

The modem ISO interface has a 255-byte limitation as the max Application Protocol Data Unit (APDU) size and is therefore too slow for full firmware OS updates (TRC/PBL image). For full firmware OS updates, Microsoft provides a separate smart card UMDF driver which uses the SPB interface of the eSIM as the transport.

The following acronyms are used in this section:

ACPI: Advanced Configuration and Power Interface
APDU: Application Protocol Data Unit
ATR: Answer to Reset
eUICC: Embedded Universal Integrated Circuit Card
FW: Firmware
HCP: Host Controller Protocol
HWID: Hardware ID
ISO: International Organization for Standardization
MF: Master File
MSFT: Microsoft
OEM: Original Equipment Manufacturer
PBL: Primary bootloader
RPC: Remote Procedure Call
ScardSvr: Smart Cards for Windows Service
Scard WinRT: Smart Card Windows Runtime
SC DDI: Smart Card DDI
sHDLC: Simplified High Level Data Link Control
SPB: Simple Peripheral Bus
SPI: Serial Peripheral Interface
TRC: Tamper Resistant Chip
WwanSvc: WWAN Service

High Level Design for Firmware Patch Update

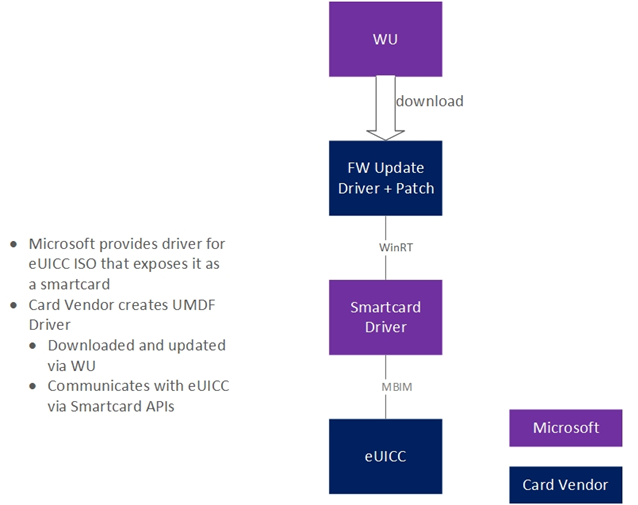

Diagram that shows the high level design for firmware patch update.

High Level Design for Firmware OS Update

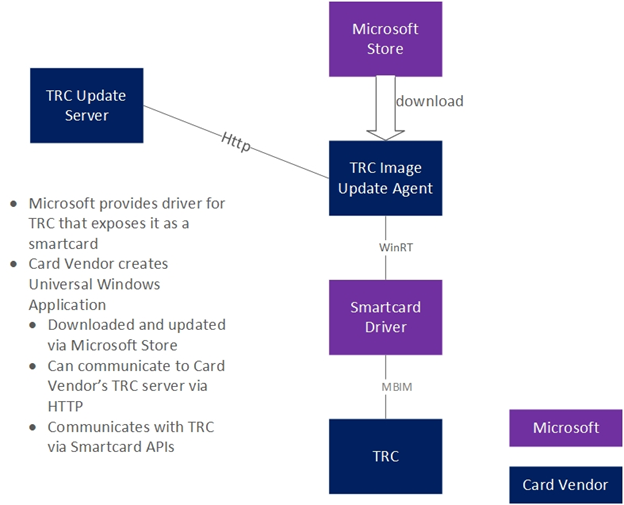

Diagram that shows the high level design for firmware OS update.

Firmware Upgrade Architecture

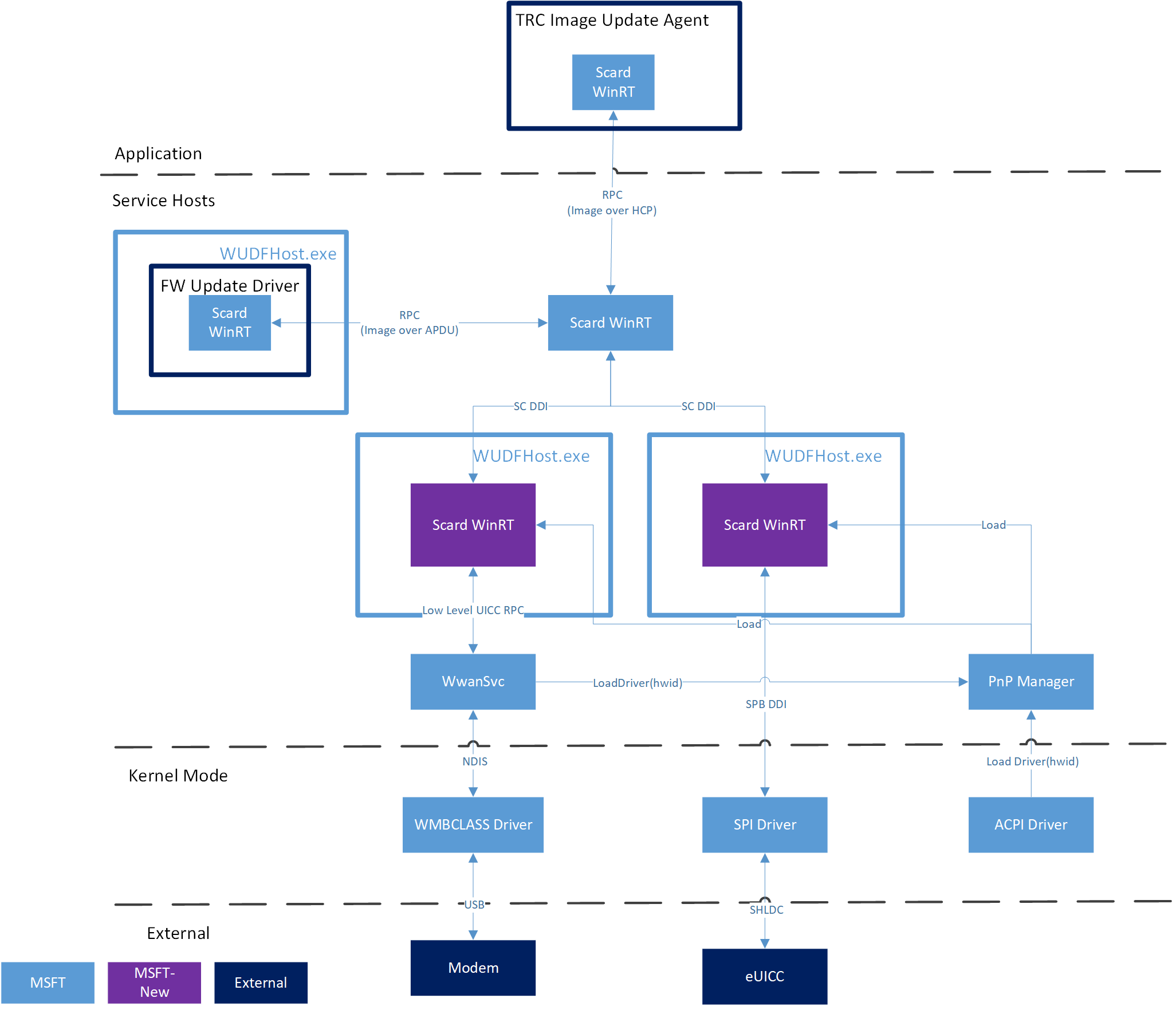

Block diagram illustrating the firmware upgrade process for eSIM.

For Windows 10, version 1703 the card vendor will deliver firmware updates on APDUs over the ISO interface. Updates for full images (PBL HCP) on HCP packets over the SPI interface are planned for the Windows 10, version 1709 time frame.

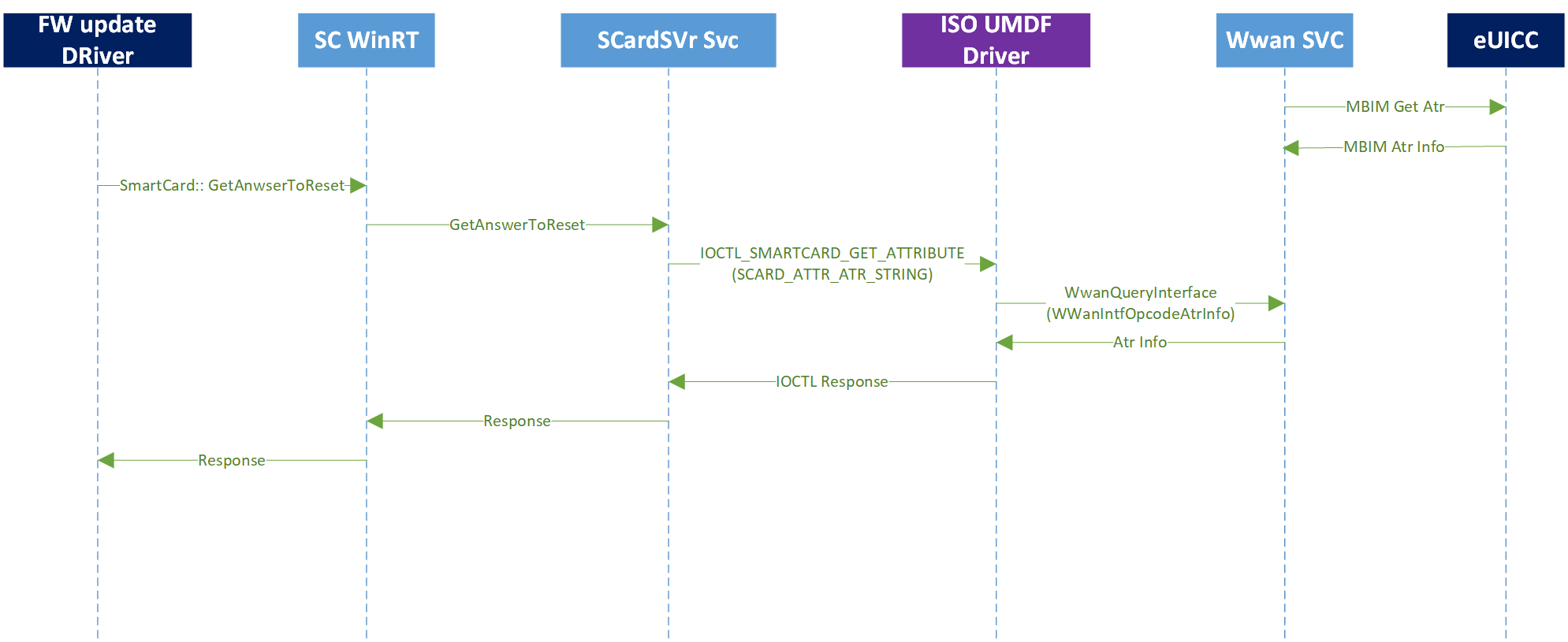

The ISO UMDF driver is loaded by the WWAN Service when the WWAN Service detects an eSIM based on the ATR information. The ISO UMDF driver sends APDUs to the eUICC via the modem using the low-level UICC access RPC of the WWAN Service.

The SPI UMDF driver is loaded by PnP based on the hardware ID in the ACPI entry for the eSIM card. The SPI UMDF driver sends sHDLC frames to the TRC on the card via the SPB IOCTL interface.

On the upper layer both drivers will implement the Smart Card DDI that provides low-level access for interacting with smart cards. This will expose both the ISO and SPI interfaces of the eSIM as a smart card via the Smart Card WinRT API.

In devices where the SPI interface to eSIM is available, OEMs are expected to add the Microsoft UICC SPI driver HWID to the ACPI table as a hardware compatible ID. The HWID for the Microsoft UICC SPI driver is ACPI\MSFTUICCSPB.

UMDF drivers

UMDF drivers will implement the following Smart Card IOCTLs:

Usage	DDI
Smart card states	IOCTL_SMARTCARD_GET_STATE IOCTL_SMARTCARD_IS_ABSENT IOCTL_SMARTCARD_IS_PRESENT IOCTL_SMARTCARD_POWER
Smart card attributes	IOCTL_SMARTCARD_GET_ATTRIBUTE IOCTL_SMARTCARD_SET_ATTRIBUTE
Smart card communication	IOCTL_SMARTCARD_SET_PROTOCOL IOCTL_SMARTCARD_TRANSMIT

Requirements for smart card devices

Define the following device properties:

Define	Name	Type	FormatID	Value
Device interface guid	System.Devices.InterfaceClassGuid -- PKEY_Devices_InterfaceClassGuid	Guid -- VT_CLSID	{026E516E-B814-414B-83CD-856D6FEF4822}, 4, DEVPROP_TYPE_GUID	{DEEBE6AD-9E01-47E2-A3B2-A66AA2C036C9}
ReaderKind	System.Devices.SmartCards.ReaderKind -- PKEY_Devices_SmartCards_ReaderKind	Byte -- VT_UI1 (should be INT16 Bug 9550228)	{D6B5B883-18BD-4B4D-B2EC-9E38AFFEDA82}, 2, DEVPROP_TYPE_BYTE	SmartCardReaderKind_Uicc
ReaderName	DEVPKEY_Device_ReaderName (0xD6B5B883, 0x18BD, 0x4B4D, 0xB2, 0xEC, 0x9E, 0x38, 0xAF, 0xFE, 0xDA, 0x82, 0x03)	String -- VT_LPWSTR (For variants: VT_BSTR)	{D6B5B883-18BD-4B4D-B2EC-9E38AFFEDA82}, 3, DEVPROP_TYPE_STRING	CustomName
AppAccessRestrictionsFlags	System.Devices.SmartCards.ReaderKind -- PKEY_Devices_SmartCards_AppAccessRestrictionsFlags	Byte -- VT_UI1	{D6B5B883-18BD-4B4D-B2EC-9E38AFFEDA82}, 4, DEVPROP_TYPE_BYTE	PrivilegedAppOnly (1)

The ISO UMDF driver sets additional custom dev properties on the Smart Card reader devnode:

Define	Name	Type	FormatID	Value
RadioName	DEVPKEY_MbbDevice_RadioName	: DEVPROP_TYPE_GUID	{41e061f2-9999-4b33-bf42-f950cbfd5f2e}, 1, DEVPROP_TYPE_GUID	RadioInterfaceGuid
SlotId	DEVPKEY_MbbDevice_SlotId	DEVPROP_TYPE_UINT32	{c4c66992-3bcc-4f96-9a85-bd807235fbe1}, 2, DEVPROP_TYPE_UINT32	SlotId
IsEmbedded	DEVPKEY_MbbDevice_IsEmbedded	DEVPROP_TYPE_BOOLEAN	{7d08a710-b448-4148-8049-0aa12e5fd2dd}, 3, DEVPROP_TYPE_BOOLEAN	IsEmbedded

These properties are used to uniquely name the smart card readers and identify the reader that is attached to the correct eSIM card. For example: IsEmbedded=True and SlotId=1.

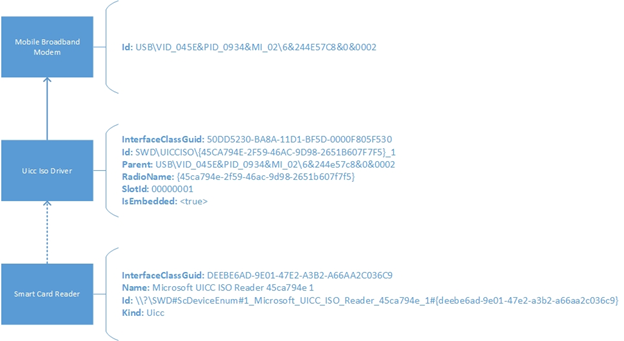

Diagram displaying additional custom properties for UICC ISO Smart Card Driver DevNode.

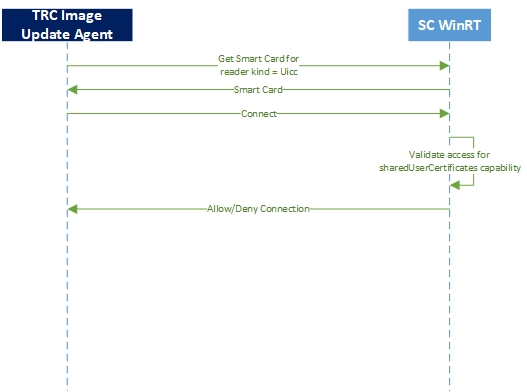

The TRC Image Update Agent is required to have sharedUserCertificates capability which allows access to the Smart Card WinRT API. The sharedUserCertificates capability is a restricted capability that is only given to enterprises with certain credentials. Once the access is granted, the app can connect to the TRC on the device via the Smart Card API and send commands to the card.

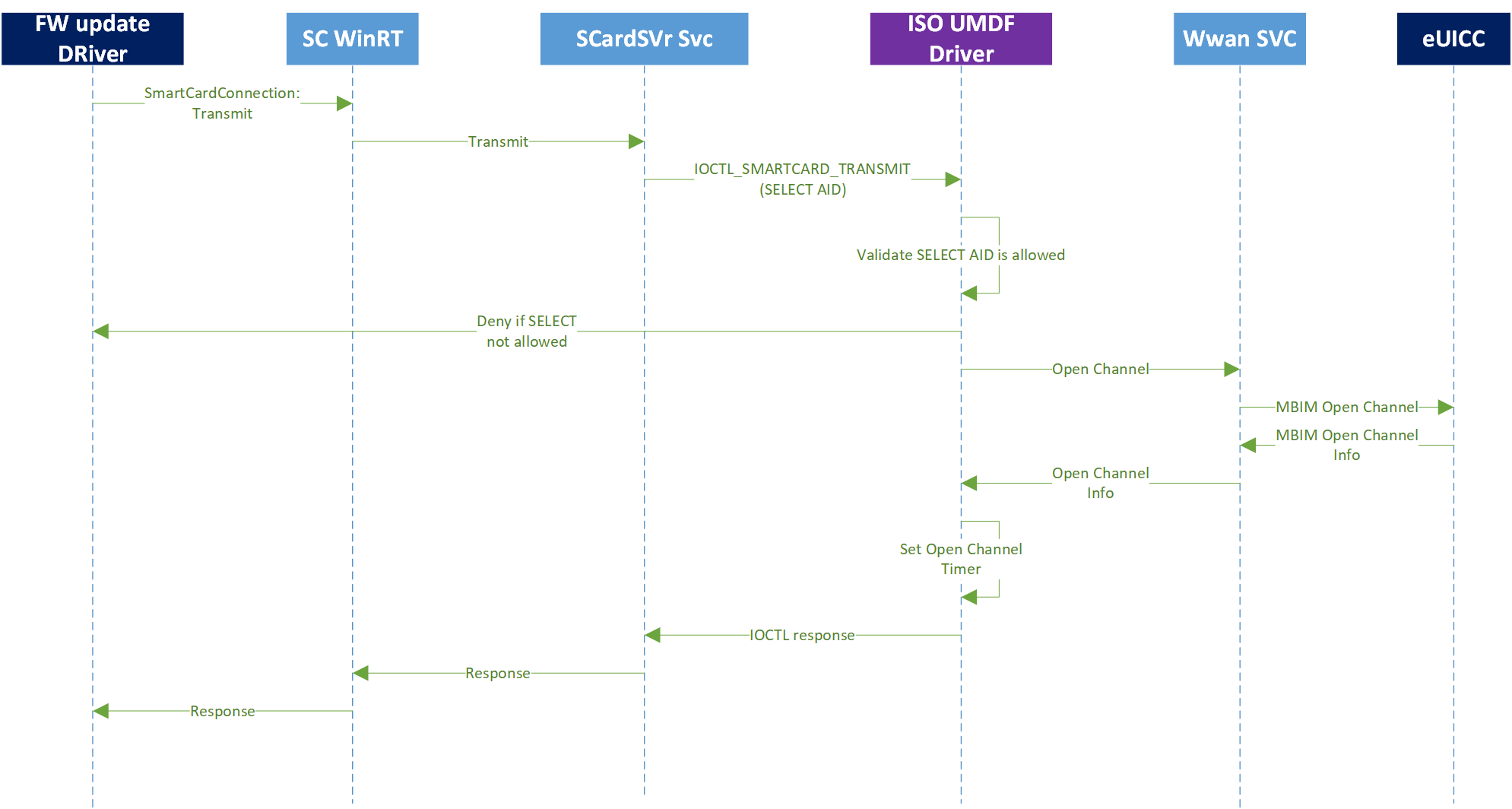

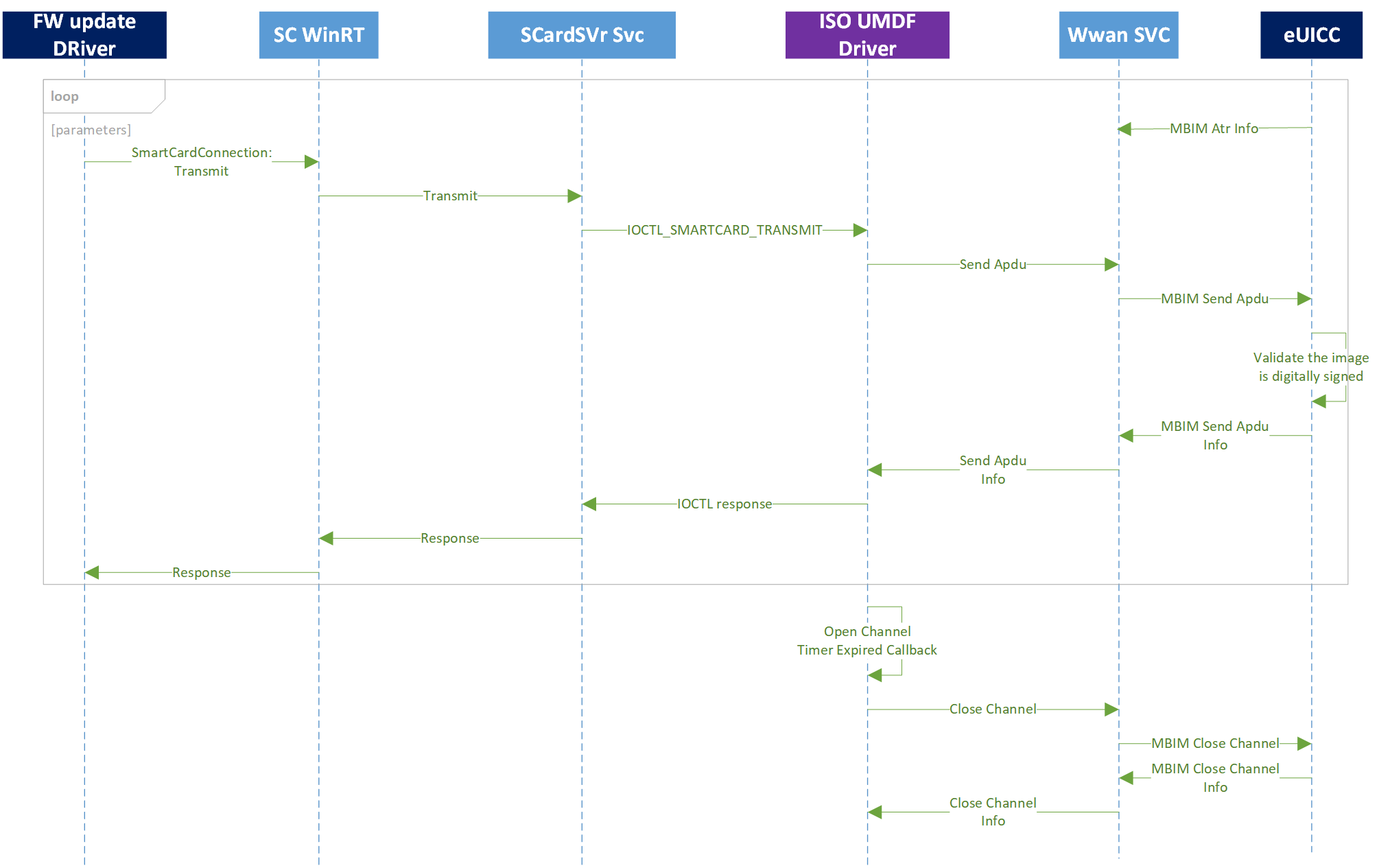

It is expected that the firmware patch is carried over APDUs. Because the Smart Card WinRT API only exposes transmitting APDUs and not channel management functions such as open/close, the UMDF driver will inspect the APDUs and look for a SELECT by AID command. If the driver finds a SELECT by AID command, it will be interpreted as opening a logical channel using the Wwan RPC API. The UMDF driver will always validate that the AID is allowlisted, otherwise it will deny the request. Because there is no close or disconnect IOCTL in the SC DDI, the UMDF driver has no way of knowing when the transmission ends and when to close the logical channel. To prevent leaking of the logical channels, the UMDF driver will set a 5 minute timer when a logical channel is opened and will close the channel when the timer expires. The 5 minutes should be long enough as a firmware update is expected to run up to 2.5 minutes maximum. If the UMDF driver detects a new SELECT by AID command, then it will close the previously opened channel and reset the timer for the new logical channel. Note that 5 minute timeout is measured from the last transmitted APDU. In other words, transmitting an APDU over an existing channel resets the timer.

To prevent from opening channels against random UICC apps, the ISO UMDF driver will permit app IDs that are required for an update and restrict access to only these apps. The card vendor helps identify the app IDs and the OEM adds the IDs as registry entries. It is also expected that the UICC app in the card will perform digital signature checks on the firmware to protect against malicious apps sending data.

COSA Setting

CellCore/PerDevice/eSIM/FwUpdate/AllowedAppIdList

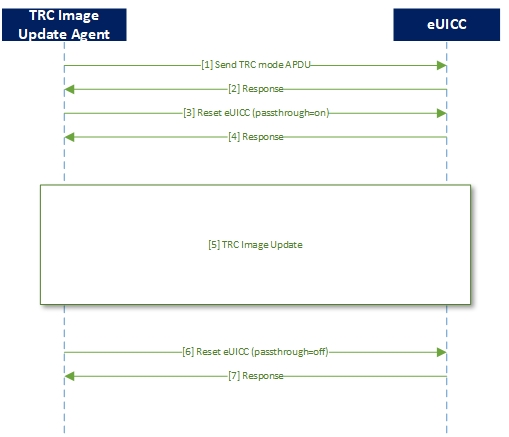

During a full firmware OS update it is important that the UICC apps that are involved are not accessed by the modem. To achieve this the TRC Image Update Agent will send a special APDU that instructs the eUICC to go in to the TRC/PBL mode. The TRC app will then ask the modem to go into the passthrough mode and reset the card. The card will boot as an empty MF. Once the update is done, the modem will be asked to reset the card again. This time both the modem and the card will get back to normal mode.
