Configure certificate templates for ML-DSA

This article describes how to configure Active Directory Certificate Services (AD CS) certificate templates to use Module-Lattice-Based Digital Signature Algorithm (ML-DSA) as the public key algorithm. After configuring certificate templates, users and computers with appropriate permissions can enroll for ML-DSA certificates.

ML-DSA is a signature-only algorithm and doesn't support encryption operations. This limitation means you must configure the certificate template for signing, and Application Policies (EKU) and Key Usage extensions must not include encryption-related options.

Prerequisites

  • A Root CA and Subordinate CA configured with ML-DSA. See Configure a certification authority to use ML-DSA.
  • Membership in Domain Admins or equivalent to manage certificate templates.
  • Access to the Certificate Templates console on a computer with AD CS management tools installed.
  • For client enrollment testing: a domain-joined client running Windows 11, version 24H2 or 25H2 with the 2025-10 non-security update (KB5067036) or later installed.

Review ML-DSA template requirements

A certificate template must meet two requirements to support ML-DSA as the public key algorithm:

  • Cryptography API: Next Generation (CNG) provider: Set the provider to a non-legacy Cryptographic Service Provider (CSP), such as Key Storage Provider. Post-quantum cryptography (PQC) algorithms like ML-DSA are only supported by CNG providers.
  • Signature purpose: Set the Purpose under Request Handling to Signature. ML-DSA supports only signing operations, not encryption.

To make CNG providers available in the template, set both the Certification Authority and Certificate recipient compatibility settings to at least Windows Server 2008.

Built-in templates compatible with ML-DSA

The following built-in templates have their Purpose set to Signature by default. As a result, ML-DSA algorithms are available after setting Key Storage Provider on the Cryptography tab.

  • User Signature Only
  • Authenticated Session
  • Code Signing
  • Trust List Signing
  • Enrollment Agent
  • Exchange Signature Only
  • Exchange Enrollment Agent (Offline request)
  • Enrollment Agent (Computer)
  • Root Certification Authority
  • Subordinate Certification Authority
  • Cross Certification Authority
  • OCSP Response Signing

To use any other template, change the Purpose to Signature on the Request Handling tab before configuring ML-DSA.

Extension compatibility

When configuring templates for ML-DSA, also ensure the following extensions are compatible:

  • Application Policies (EKU): Don't include encryption-related OIDs such as Encrypting File System or Secure E-mail.
  • Key Usage: Don't include encryption options such as Allow key exchange only with key encryption.

Configure a code signing template with ML-DSA

To create an ML-DSA code signing template, duplicate the built-in Code Signing template. The built-in template defaults to a compatibility setting of Windows Server 2003, which doesn't support CNG providers. The duplicated template lets you update the compatibility settings so ML-DSA algorithms become available.

  1. Open the Certificate Templates console. Right-click the Code Signing template, and then select Duplicate Template.

  2. On the Compatibility tab:

    • Set Certification Authority to Windows Server 2008 or later.
    • Set Certificate recipient to Windows Vista / Server 2008 or later.

  3. On the General tab, enter a Template display name (for example, PQC Code Signing) and configure the validity and renewal periods as needed.

  4. On the Request Handling tab, confirm the Purpose is set to Signature.

  5. On the Cryptography tab:

    • Set Provider Category to Key Storage Provider.
    • Set Algorithm name to an ML-DSA parameter set (for example, ML-DSA:44). The Minimum key size and Request hash fields update automatically.

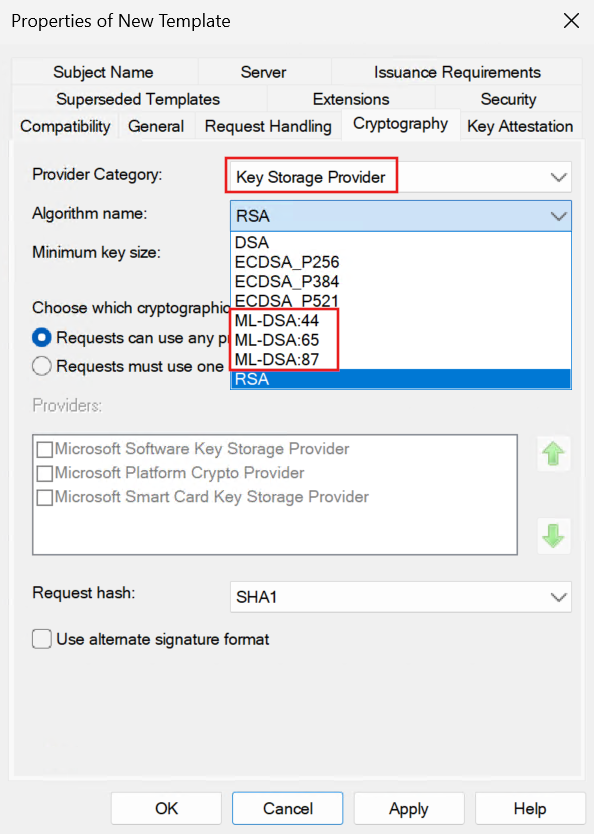

    Screenshot of the certificate template Cryptography tab with Provider Category set to Key Storage Provider and the Algorithm name dropdown showing the ML-DSA:44, ML-DSA:65, and ML-DSA:87 options.

    The completed Cryptography tab for the code signing template shows the ML-DSA parameter set selected, with the Minimum key size and Request hash fields populated automatically.

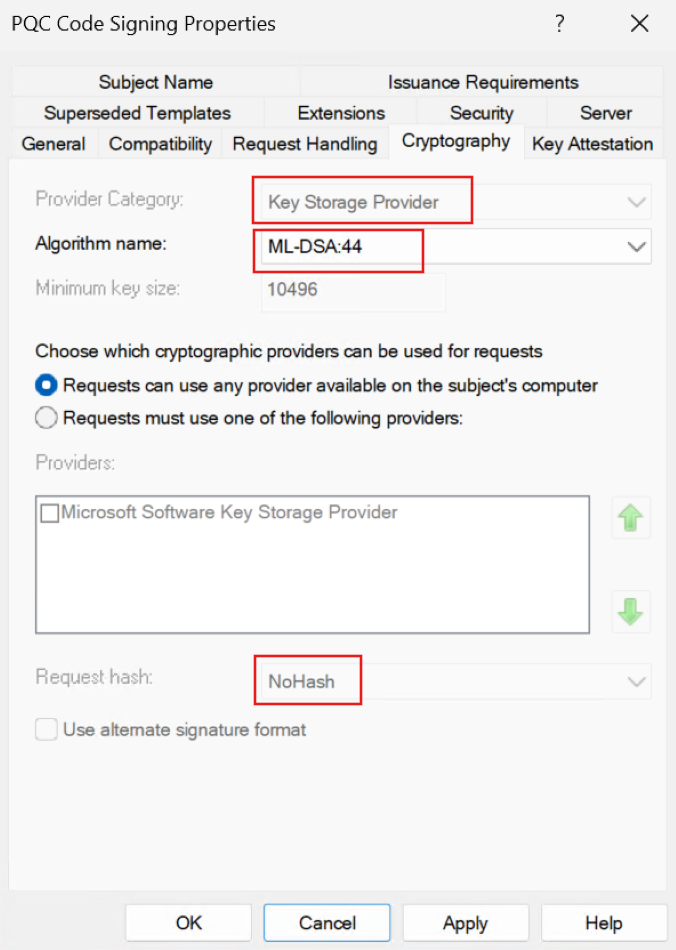

    Screenshot of the PQC Code Signing template Cryptography tab with Provider Category set to Key Storage Provider, Algorithm name set to ML-DSA:44, and Request hash set to NoHash.

  6. On the Security tab, grant Enroll and Autoenroll permissions to the appropriate users or groups.

  7. Select OK to save the template.

  8. In the Certification Authority console on the issuing CA, right-click Certificate Templates, select New > Certificate Template to Issue, and then select the template you created.

After you publish the template, see Enroll for an ML-DSA certificate to request a certificate.

Configure a TLS certificate template with ML-DSA

Configure an ML-DSA TLS certificate template by duplicating the built-in Web Server template. Because the default Web Server template uses Signature and encryption as its Purpose, you must change the Purpose to Signature for ML-DSA compatibility.

  1. Open the Certificate Templates console. Right-click the Web Server template, and then select Duplicate Template.

  2. On the Compatibility tab:

    • Set Certification Authority to Windows Server 2008 or later.
    • Set Certificate recipient to Windows Vista / Server 2008 or later.

  3. On the General tab, enter a Template display name (for example, PQC Web Server).

  4. On the Request Handling tab, change the Purpose to Signature.

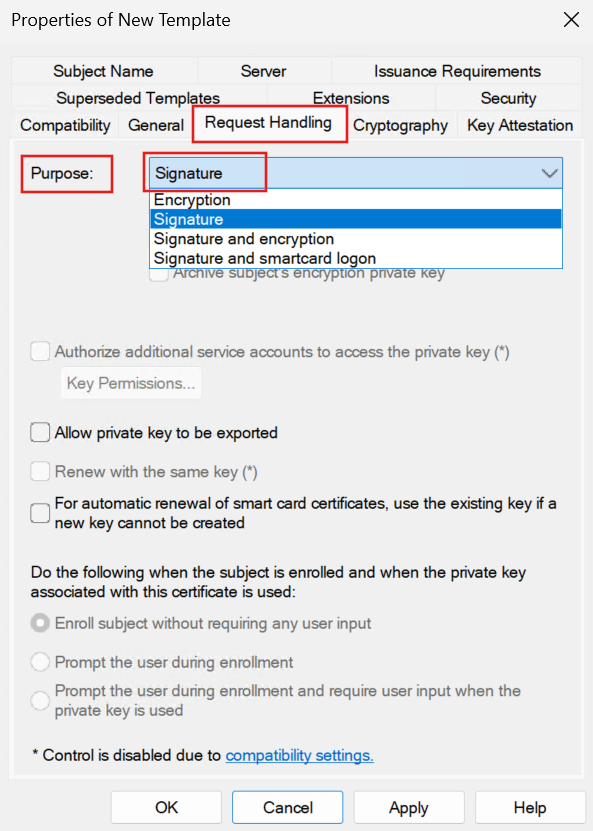

    Screenshot of the Web Server template Request Handling tab with Purpose set to Signature.

  5. On the Cryptography tab:

    • Set Provider Category to Key Storage Provider.
    • Set Algorithm name to the desired ML-DSA parameter set (for example, ML-DSA:65).

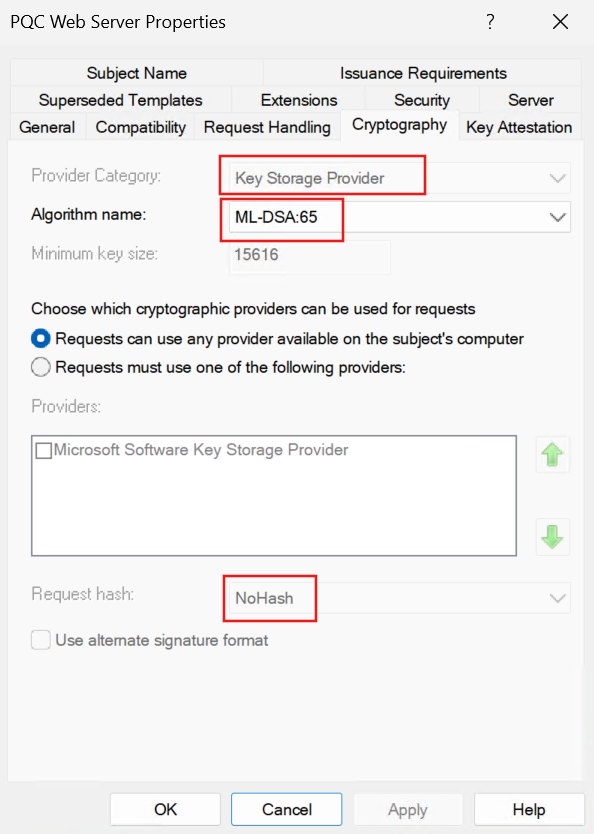

    Screenshot of the PQC Web Server template Cryptography tab with Provider Category set to Key Storage Provider and Algorithm name set to ML-DSA:65.

  6. On the Extensions tab, verify that Application Policies includes only Server Authentication and doesn't include encryption-related policies.

  7. On the Security tab, grant Enroll permissions to the appropriate computer accounts or groups.

  8. Select OK to save the template, and then publish it on the issuing CA.

You can configure client TLS certificate templates, such as User and Computer, the same way. Make sure the Application Policies (EKU) extension doesn't include Encrypting File System or Secure E-mail.

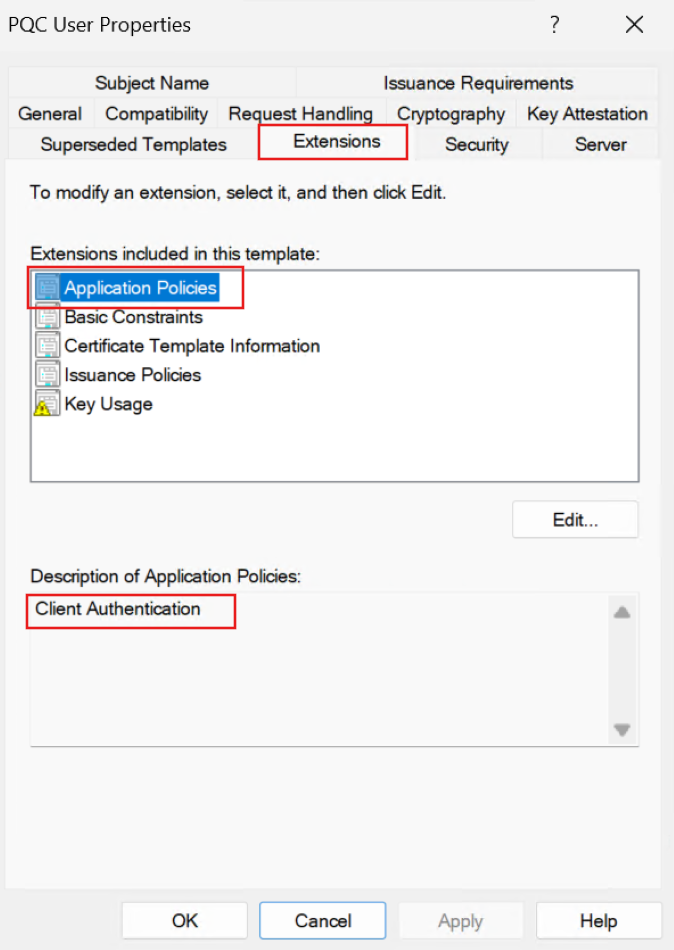

Screenshot of the PQC User template Extensions tab with Application Policies selected and Client Authentication listed in the Description of Application Policies.

Enroll for an ML-DSA certificate

After you configure and publish an ML-DSA template on the issuing CA, users with the appropriate permissions can enroll for ML-DSA certificates. The following sections describe two enrollment methods.

Enroll by using certmgr.msc

Use the graphical certificate enrollment tool to request a certificate from the published ML-DSA template.

  1. Sign in to the client machine as a user with Enroll permissions on the published template.

  2. Open certmgr.msc (for user certificates) or certlm.msc (for computer certificates).

  3. Expand Personal, right-click Certificates, and then select All Tasks > Request New Certificate.

  4. In the Certificate Enrollment wizard, select the published ML-DSA template (for example, PQC Code Signing or PQC Web Server), and then select Enroll.

  5. After enrollment succeeds, open the issued certificate and verify on the Details tab:

    • Signature algorithm: Shows the issuing CA's ML-DSA parameter set.
    • Public key: Shows the template's ML-DSA parameter set and key size.

    Note

    For Web Server templates, enroll by using the Local Computer certificate store (certlm.msc) instead of the current user store (certmgr.msc). Grant permissions to the computer object that needs the certificate.

Enroll by using an INF file and certreq

This method uses an INF file and the certreq.exe tool to request a certificate. It's useful for scripted or automated scenarios.

  1. Create a text file named request.inf with the following content. This example requests a code signing certificate by using ML-DSA-44:

    [Version]
Signature="$Windows NT$"

[NewRequest]
Subject = "CN=<subject-name>"
KeyUsage = 0x80
Keyspec = AT_SIGNATURE
ProviderName = "Microsoft Software Key Storage Provider"
ProviderType = 0
HashAlgorithm = NoHash
KeyAlgorithm = "ML-DSA:44"
Exportable = TRUE
RequestType = PKCS10
SMIME = False

[EnhancedKeyUsageExtension]
OID=1.3.6.1.5.5.7.3.3
Critical=FALSE

[Extensions]
2.5.29.19 = "{text}CA=False"

[RequestAttributes]
CertificateTemplate = <template-name>

    Replace <subject-name> with the certificate subject and <template-name> with the name of your published template.

    For a TLS certificate, use the following changes:

    • Set KeyAlgorithm = "ML-DSA:65" (or the parameter set that your template uses).
    • In [EnhancedKeyUsageExtension], use OID=1.3.6.1.5.5.7.3.1 for Server Authentication.
    • Set CertificateTemplate to your TLS template name.

  2. Generate the certificate request:

    certreq -new request.inf request.req

  3. Submit the request to the CA:

    certreq -submit request.req certificate.cer

  4. Install the issued certificate:

    certreq -accept certificate.cer

Verify the issued ML-DSA certificate

After enrollment, verify that the CA issued the ML-DSA certificate correctly:

  1. Open certmgr.msc or certlm.msc and go to Personal > Certificates.

  2. Double-click the issued certificate to open it.

  3. On the Details tab, confirm:

    • Signature algorithm: Shows the issuing CA's ML-DSA parameter set.
    • Public key: Shows the ML-DSA parameter set that the template specifies.
    • Enhanced Key Usage: Shows the expected purpose, such as Code Signing or Server Authentication.

  4. On the Certification Path tab, verify the full chain from Root CA through Subordinate CA to the end-entity certificate.
