Creating a WinML addon for Electron

This guide shows you how to create a C# native addon that uses Windows Machine Learning (WinML) in your Electron app. WinML allows you to run machine learning models (ONNX format) locally on Windows devices for tasks like image classification, object detection, and more.

Prerequisites

Note

WinML runs on any Windows 10 (1809+) or Windows 11 device. For best performance, devices with GPUs or NPUs are recommended, but the API works on CPU as well.

Step 1: Create a C# native addon

npx winapp node create-addon --template cs --name winMlAddon

This creates a winMlAddon/ folder with a C# project configured with Windows SDK and Windows App SDK references.

Build the addon:

npm run build-winMlAddon

Step 2: Download the SqueezeNet model

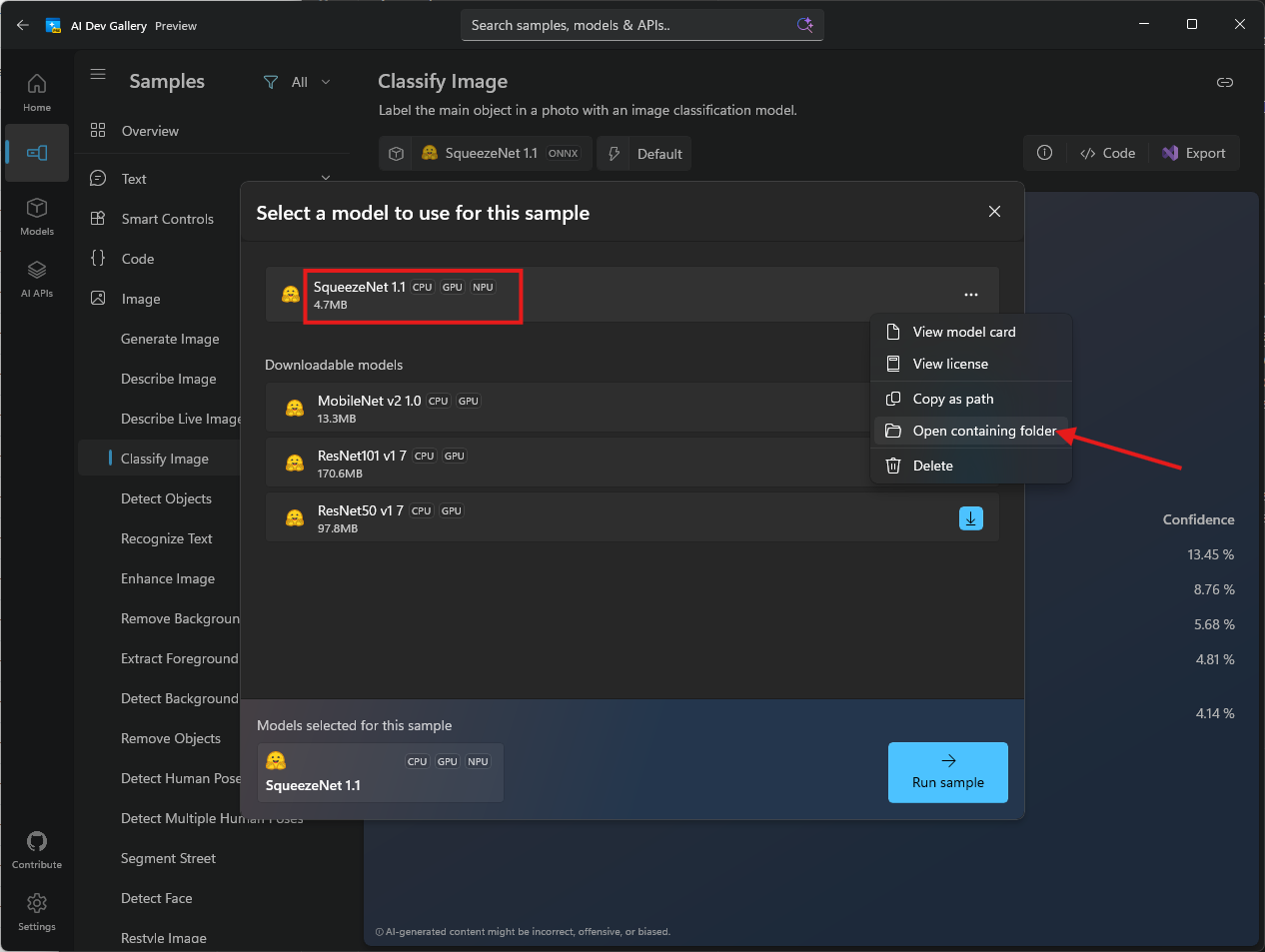

  1. Install the AI Dev Gallery
  2. Navigate to the Classify Image sample
  3. Download the SqueezeNet 1.1 model
  4. Copy the .onnx file to a models/ folder in your project root

Note

The model can also be downloaded from the ONNX Model Zoo GitHub repo.

Step 3: Add required NuGet packages

Update Directory.packages.props in your project root:

<PackageVersion Include="Microsoft.ML.OnnxRuntime.Extensions" Version="0.14.0" />
<PackageVersion Include="System.Drawing.Common" Version="9.0.9" />

Update winMlAddon/winMlAddon.csproj to add the package references:

<PackageReference Include="Microsoft.ML.OnnxRuntime.Extensions" />
<PackageReference Include="System.Drawing.Common" />

Step 4: Add the sample code

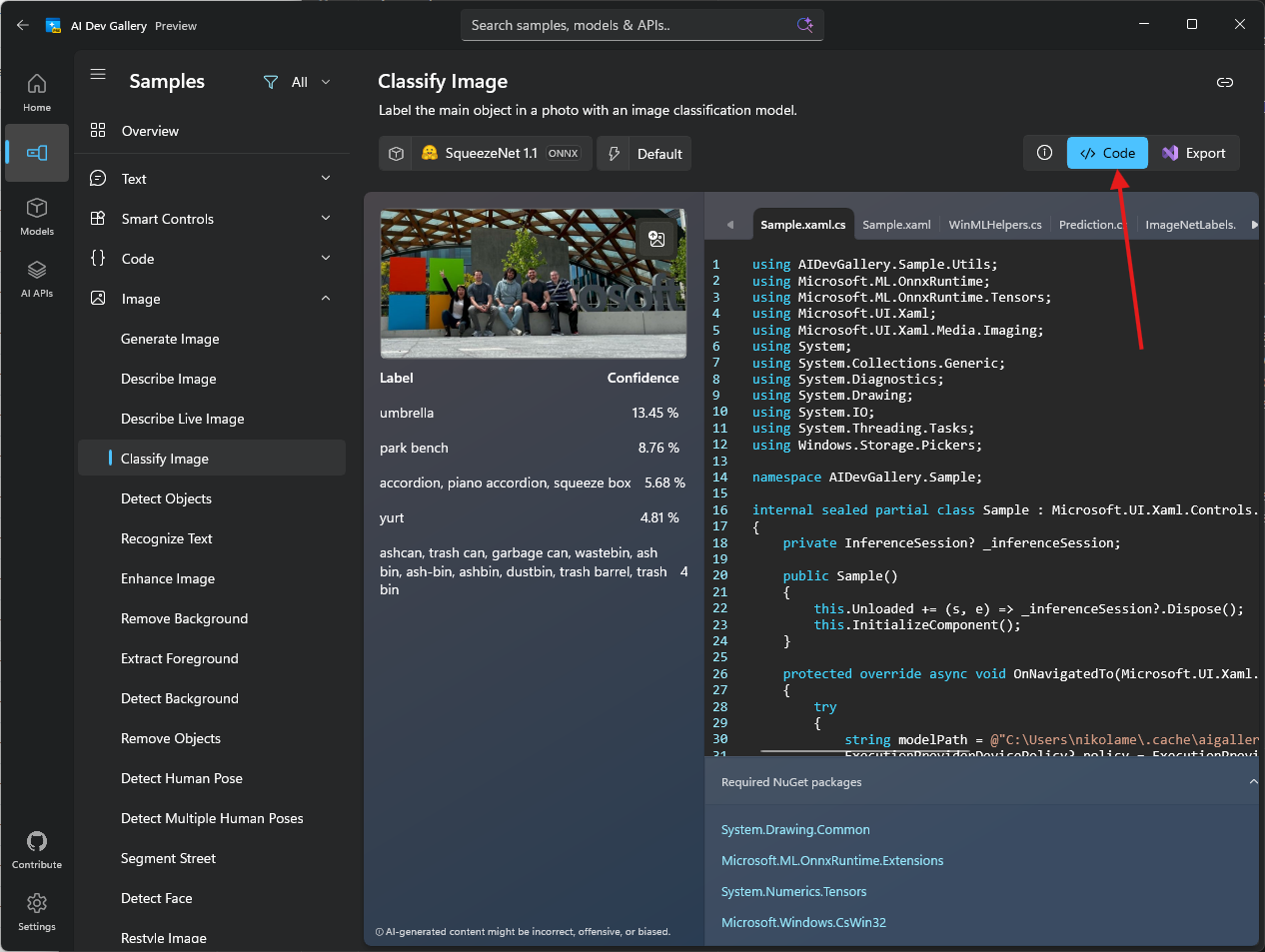

The AI Dev Gallery provides the complete implementation for image classification with SqueezeNet. You can find the adapted code in the electron-winml sample.

Copy the winMlAddon/ folder from the sample, or manually update winMlAddon/addon.cs with the sample code.

Key implementation details

Project root path: The addon requires the JavaScript code to pass the project root path so it can locate the ONNX model and native dependencies.

Preloading native dependencies: The addon includes a method to load required DLLs that works for both development and production scenarios.

Electron Forge configuration: Configure your packager to unpack native files:

module.exports = {
  packagerConfig: {
    asar: {
      unpack: "**/*.{dll,exe,node,onnx}"
    },
    ignore: [
      /^\/.winapp\//,
      "\\.msix$",
      /^\/winMlAddon\/(?!dist).+/
    ]
  },
};

Step 5: Build the addon

npm run build-winMlAddon

Step 6: Test the addon

Open src/index.js and load the addon:

const winMlAddon = require('../winMlAddon/dist/winMlAddon.node');

Add a test function:

const testWinML = async () => {
  try {
    let projectRoot = path.join(__dirname, '..');
    if (projectRoot.includes('app.asar')) {
      projectRoot = projectRoot.replace('app.asar', 'app.asar.unpacked');
    }

    const addon = await winMlAddon.Addon.createAsync(projectRoot);
    console.log('Model loaded successfully!');

    const imagePath = path.join(projectRoot, 'test-images', 'sample.jpg');
    const predictions = await addon.classifyImage(imagePath);

    console.log('Top predictions:');
    predictions.slice(0, 5).forEach((pred, i) => {
      console.log(`${i + 1}. ${pred.label}: ${(pred.confidence * 100).toFixed(2)}%`);
    });
  } catch (error) {
    console.error('Error testing WinML:', error.message);
  }
};

Prepare test images by creating a test-images/ folder with sample images, then run:

npm start

Step 7: Update debug identity

npx winapp node add-electron-debug-identity

Note

There is a known Windows bug with sparse packaging Electron applications that can cause crashes or blank windows. See the setup guide for the workaround.
