Windows Search providers

Note

Some information relates to pre-released product, which may be substantially modified before it's commercially released. Microsoft makes no warranties, express or implied, with respect to the information provided here.

Important

The feature described in this topic is available in preview builds of Windows starting with build 22631.2787 for Windows 11 and build 19045.3758 for Windows 10, although newer builds are recommended because they contain stability improvements. For information on preview builds of Windows, see Windows 10 Insider Preview.

Windows Search currently uses the Web Search from Microsoft Bing app to return web content and search results. In the European Economic Area (EEA), you can enable installed apps that implement a web search provider to return web content and search results in Windows Search through Settings.

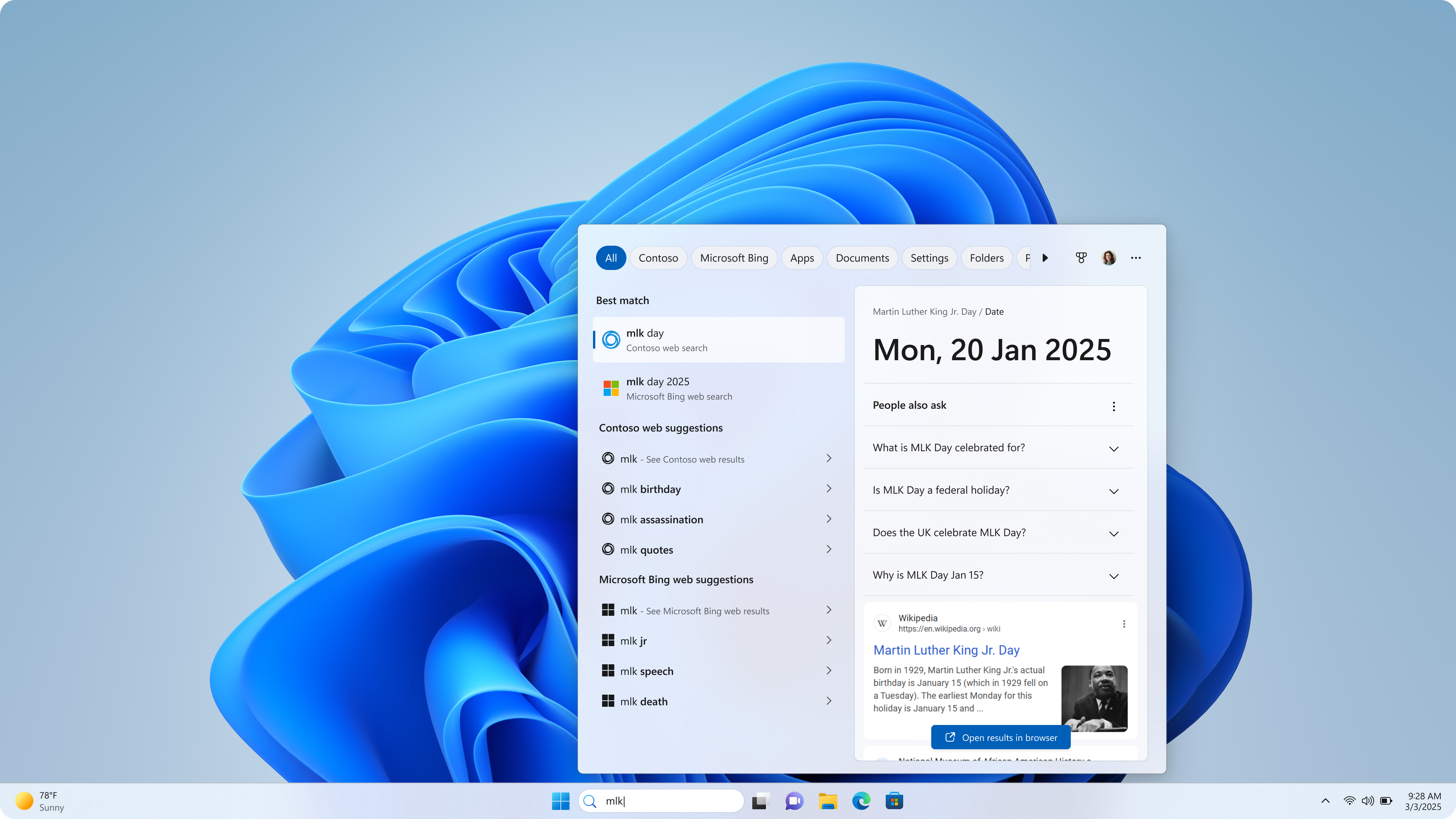

Screenshot of the Windows Search UI with 3rd party search provider integration.

Search providers integrate with the Search experience by creating an MSIX package with a package manifest file that provides the required information for the OS to register the search provider. Users can add a search provider to Windows by installing the associated app package and can remove the search provider through the Add or remove programs page in Windows Settings app.

For development and testing, when Developer Mode is enabled and the search provider app has been sideloaded on the device, it will appear in the list of available search providers. For more information, see Developer Mode features and debugging.

Once the search provider is registered with the OS, user queries are passed to the HTTP endpoint specified by the provider in their package manifest using a standardized query string. The endpoint returns suggested results in a JSON document. With each suggested URL in the response document, the search provider includes the preview endpoint URL, which returns an HTML document that is displayed in the preview pane in the search results UI.

This article provides guidance for creating a search provider app package and details about the protocols for implementing search provider HTTP endpoints.

Create a search extensibility app package

Search providers register with the OS by providing an MSIX package that contains required information about the provider, such as the name of the search provider and the HTTP endpoints for suggestions and previews.

Search provider app extension

The app package manifest file supports many different extensions and features for Windows apps. The app package manifest format is defined by a set of schemas that are documented in the Package manifest schema reference. Search providers declare their registration information within the uap3:AppExtension. The Name attribute of the extension must be set to "com.microsoft.windows.websearchprovider".

Search providers should include the uap3:Properties as the child of uap3:AppExtension. The package manifest schema does not enforce the structure of the uap3:Properties element other than requiring well-formed XML. The rest of this section describes the XML format that the OS expects in order to successfully register a search provider.

<uap3:Extension Category="windows.appExtension">
  <uap3:AppExtension Name="com.microsoft.windows.websearchprovider" DisplayName="SearchExampleApp" Id="ContosoSearchApp" PublicFolder="Public">
    <uap3:Properties>
    <!-- Search provider registration content goes here -->
    </uap3:Properties>
  </uap3:AppExtension>
</uap3:Extension>

Element hierarchy

uap3:Properties

  EndPoint

  Protocol

Endpoint

The URL of the HTTPS endpoint to which the OS will send search query requests.

Protocol

The protocol schema that will be used when launching the provided web search results. If the specified protocol is not registered by an app on the OS, then the default browser will be launched for search results. For more information on registering protocol schemas, see uap:Protocol.

DynamicContentEndpoint

The URL of the HTTPS endpoint to which the OS will send a request for the gleam icon to be displayed in the search box. For more information see Implement a gleam icon endpoint. This feature is supported starting with Windows 10 build 19045.4233 and Windows 11 build 22621.3371.

Example package manifest file

The following is an example appmanifest.xml package manifest file for registering a Windows Search provider.

<!-- appxmanifest.xml -->

  <uap3:Extension Category="windows.appExtension">
	  <uap3:AppExtension Name="com.microsoft.windows.websearchprovider" DisplayName="CustomSearch" Id="CustomSearchApp" PublicFolder="Public">
		  <uap3:Properties>
			  <Endpoint>https://customsearchendpoint</Endpoint>
			  <Protocol>customsearch</Protocol>
        <DynamicContentEndpoint>https://sub.contoso.com/dynamic</DynamicContentEndpoint>
		  </uap3:Properties>
	  </uap3:AppExtension>
  </uap3:Extension>
  <uap:Extension Category="windows.protocol">
	  <uap:Protocol Name="customsearch"/>
  </uap:Extension>

Implement a Windows Search provider suggestion endpoint

Search providers must expose and register an HTTPS endpoint that is called by the OS when a user types into the Windows Search box. This endpoint should return a JSON-formatted string containing the search suggestions for the provided user query. Content must be delivered over HTTPS. Search integration does not support content delivered over HTTP.

Suggestion HTTPS request format

The HTTPS request to the suggestion endpoint uses the following format.

https://contoso.com?setlang=en-US&cc=US&qry=

The query string parameters passed to the suggestion endpoint are the following.

Parameter Description
setlang The locale associated with the query.
cc The country code associated with query.
qry The query provided by the user. If the parameter has no value, i.e. appears in the query string as qry=, then the user query is empty. Search providers can still provide suggestions and preview pages in response to an empty query. NOTE The OS does not perform any sanitization of query strings. Search providers can implement their own sanitization when the query is received.

Suggestion HTTPS response headers

Search provider must include the following headers in the response from the suggestion HTTPS endpoint.

  • Access-Control-Allow-Origin: https://www.bing.com
  • Access-Control-Allow-Credentials: true
  • Access-Control-Allow-Methods: GET
  • Content-Type: application/json; charset=utf-8
  • Content-Length: [Must be the exact length of response]

Suggestion response JSON format

The search provider HTTPS endpoint for suggestions must return a JSON document with the following format. The key names must match the format exactly.

Key Description
Suggestions Contains a list of JSON objects with key Attributes representing the suggestions associated with the user query.
Attributes Contains the attributes of a suggestion.
url The URL for the search suggestion on the provider web site.
query The user query associated with the search suggestion.
previewPaneUrl The URL of the preview endpoint from which an HTML preview of the suggestion can be retrieved.
Text The text description of the suggestion.
{"Suggestions":
   [{"Attributes":
     {"url":"https://www.contoso.com/search?q=projection+matrix","query":"projection matrix","previewPaneUrl":"http://www.contoso.com/preview"} ,"Text":"projection matrix"},
    {"Attributes":
     {"url":"https://www.contoso.com/search?q=rotation+matrix","query":"rotation matrix","previewPaneUrl":"http://www.contoso.com/preview"} ,"Text":"rotation matrix"}
    ]
}

Implement a Windows Search provider preview endpoint

Search providers return the URL of an HTTPS endpoint that provides an HTML preview of the page associated with each suggestion in the search results. The preview endpoint response must return the HTML code for a functioning page.

Preview HTTPS request format

The HTTPS request to the preview endpoint uses the following format.

https://contoso.com?Darkschemeovr=1

The query string parameters passed to the suggestion endpoint are the following.

Parameter Description
Darkschemeovr Specifies if the calling Windows system has dark theme enabled. The value is 1 if dark theme is enabled and 0 if the dark theme is disabled.

Preview HTTPS response headers

  • Access-Control-Allow-Origin: https://www.bing.com
  • Access-Control-Allow-Credentials: true
  • Access-Control-Allow-Methods: GET
  • Content-Type: text/html; charset=utf-8
  • Content-Length: [Must be the exact length of preview html]

OPTIONS request and Cross-Origin Resource Sharing (CORS)

Search providers must support the OPTIONS request method and respond to this request with HTTP OK. If the search provider endpoint is using CORS, the Windows search client will send out a HTTP OPTIONS request before each GET request.

Implement a gleam icon endpoint

Search providers can optionally provide light and dark mode gleam icons that are displayed in the search bar when the search provider is currently enabled. When the DynamicContentEndpoint element is provided in the app manifest, a request will be sent to the specified URL and the search provider responds with a json file in the format defined below that includes the URLs of the icon image files and other metadata. The gleam icon request will be sent periodically while the search provider is the most recent provider active in Windows Search. The cadence for this request is every 6 hours. A request will also be sent upon each Search launch and on device unlock.

Gleam icon HTTPS request format

The HTTPS request to the gleam icon endpoint uses the following format.

https://www.contoso.com/Gleam?cc=FR&setlang=en-us&dateTime=3%2F29%2F2024%2C%208%3A33%3A56%20PM&deviceOs=windows10&schemaversion=1.0.0

The query string parameters passed to the suggestion endpoint are the following.

Parameter Description
setlang The locale associated with the query.
cc The country code associated with query.
dateTime The current date and time from client device, url-encoded.
deviceOs The OS of the client device. The value of this parameter can be "Windows10" or "Windows11". On Windows 10, the gleam icon size is 30x60. On Windows 11, the gleam icon size is 20x36
schemaversion The gleam schema version.

Gleam icon response JSON format

The search provider HTTPS endpoint for gleam icons must return a JSON document with the following format. The key names must match the format exactly. The current schema version is 1.0.0.

Key Description
schemaVersion The gleam schema version. This should match the schemaVersion query string parameter in the request.
telemetryId A unique identifier for the gleam icon. If the value in the response is the same as the value for the current gleam icon, the OS will not update the icon.
expirationTime The expiration time for the gleam icon. Must be a time in the future.
content The content section of the response.
taskbarSearchBox Contains settings for the search box.
gleam Contains settings for the gleam icon.
altText Alternate text for the gleam icon.
dimensionEnum The value "30x60" if the request was sent from a Windows 10 device. The value "20x36" if the request was sent from a Windows 11 device.
iconUrl Contains the URLs for the light and dark gleam icon image files.
light The URL for the light gleam icon image file.
dark The URL for the dark gleam icon image file.
{
  "schemaVersion":"1.0.0",
  "telemetryId":"<unique gleam Id>",
  "expirationTime":"2025-12-09T20:37:13Z",
  "content": {
    "taskbarSearchBox": {
      "gleam":{
        "altText": "<alt text of the gleam>",
        "dimensionEnum": "(30x60 for Windows 10, 20x36 for Windows 11)",
        "iconUrl": {
          "light":"<3p's light gleam url>",
          "dark": "<3p's dark gleam url>"
        }
      }
    }
  }
}

Gleam icon response validation

The response must specify both the light asset URL and the dark asset URL. The domains for the icon image URLs must use HTTPS and the subdomain must match the subdomain specified in the DynamicContentEndpoint element in the app manifest file.

The image files must be in SVG format and the maximum file size is 300 kB. The gleam needs to be within a 240x120px frame inside the SVG.

If an empty payload is received, that will clear the active gleam icon and no gleam will be displayed.
